Alcantina-12 Red Tile 25.7 x 37 cm
Calculate your shipping costs
Select zone and quantity

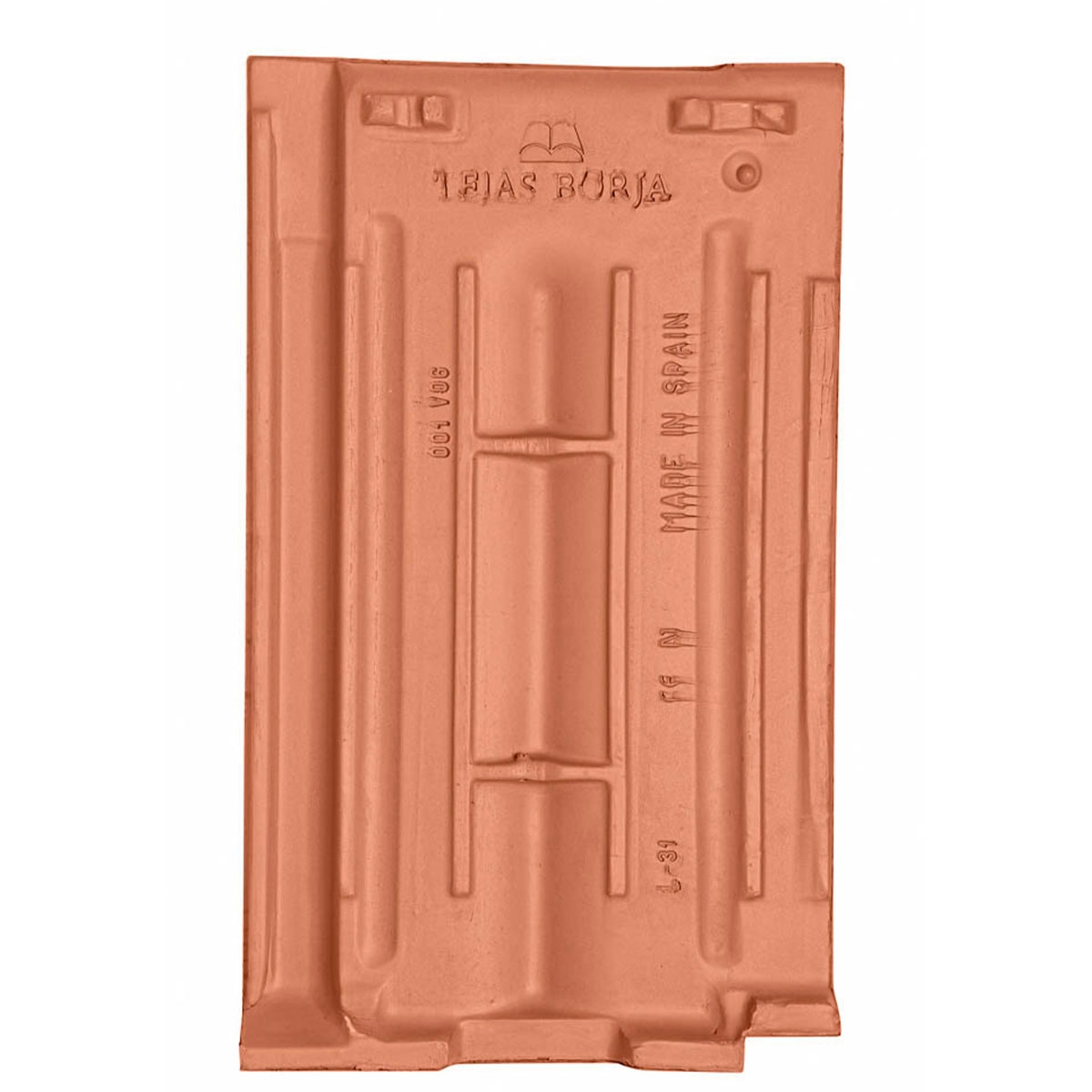

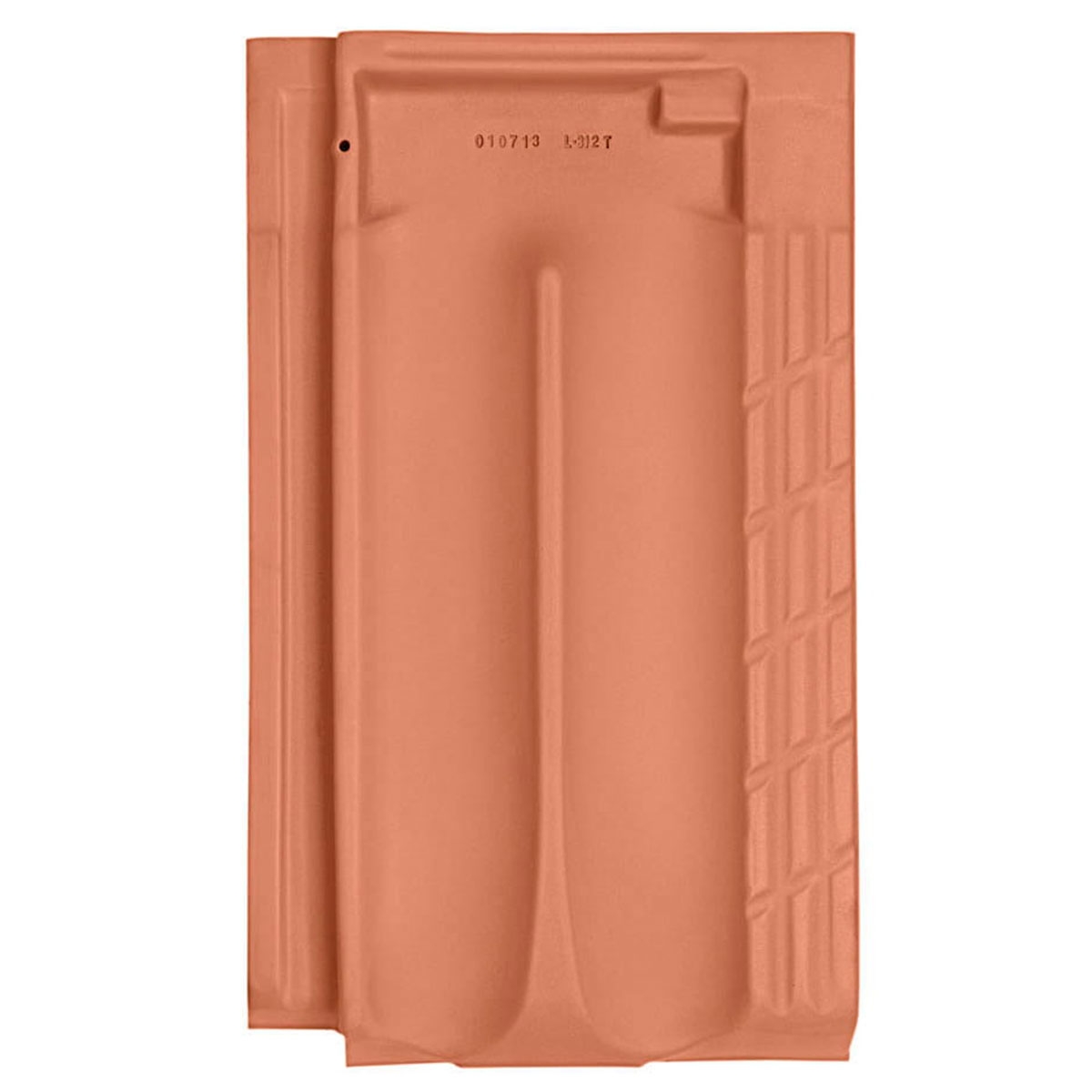

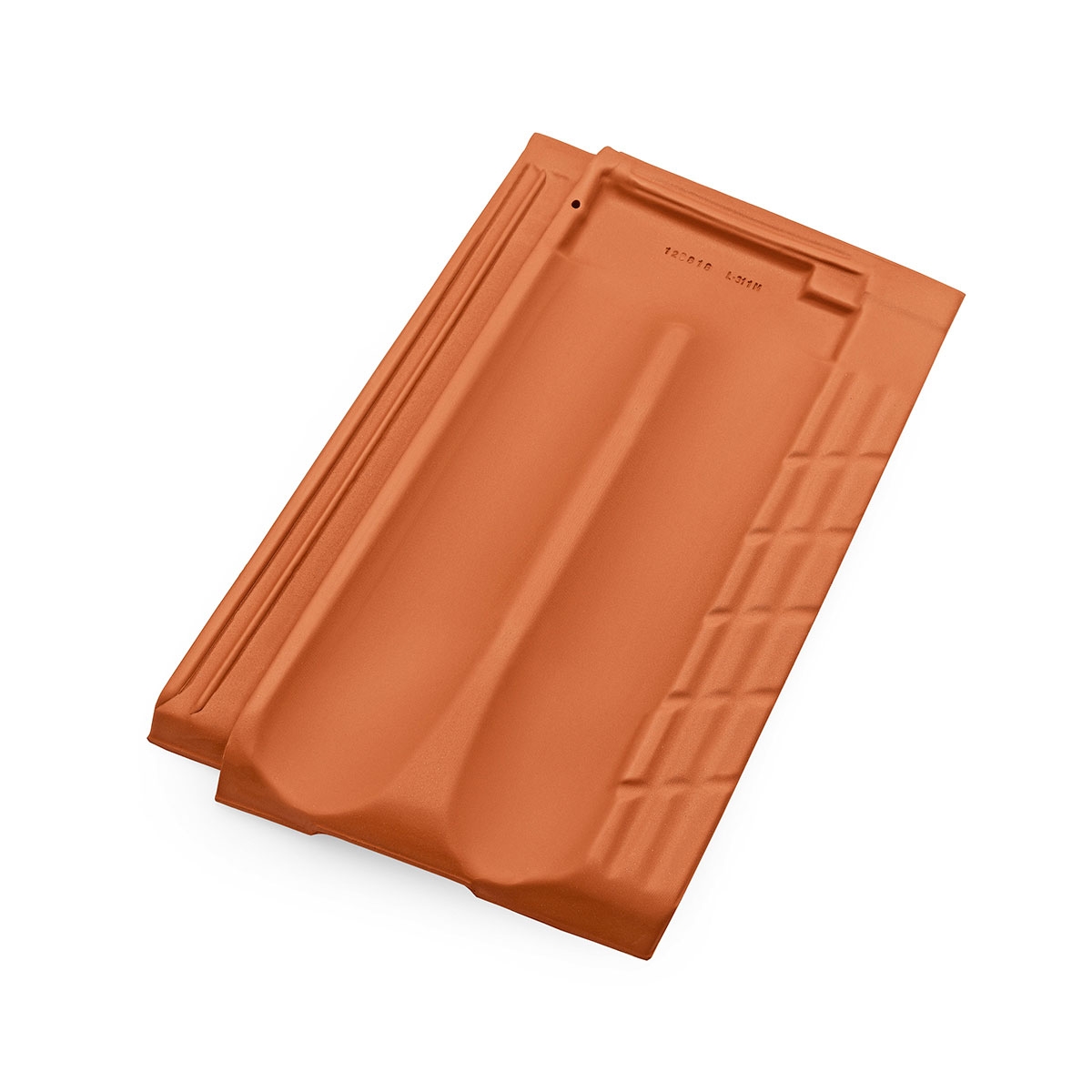

The product Alicantina-12 is a high-quality ceramic tile made of red clay. It has a flat Marseillaise type tile format with dimensions of 430 mm in length and 257 mm in width. Each tile weighs 3.00 kg and is laid at a rate of 12.3 tiles per square meter. The useful length of each tile is 370 mm and its useful width is 215 mm.
For installation on sloping roofs, a minimum slope of 40% or 22 degrees is recommended. In addition, it has a side overlap of 3.7 cm and a head overlap of 6.0 cm. The total weight per square meter of these tiles is 36.9 kg. To ensure waterproofing, a breathable sheet is used.
The tile is best placed on a batten system or equivalent, using the lateral and longitudinal fits.
The Alicantina-12 tile is a high-quality product made of red clay by Tejas Borja. Its design features a flat Marseillaise type tile format with dimensions of 430 mm in length and 257 mm in width. Each tile weighs 3.00 kg and is placed at a density of 12.3 tiles per square meter. The useful length of each tile is 370 mm, and its useful width is 215 mm.
This shingle is ideal for installation on sloping roofs, and a minimum slope of 40% or 22 degrees is recommended for optimal performance. It has a side overlap of 3.7 cm and a head overlap of 6.0 cm. The total weight per square meter of these tiles is 36.9 kg, which guarantees their durability and resistance.
To ensure the waterproofing of the roof, a breathable sheet is used in the installation. The Alicantina-12 tile is installed efficiently using a batten system or equivalent, taking advantage of the lateral and longitudinal fits.

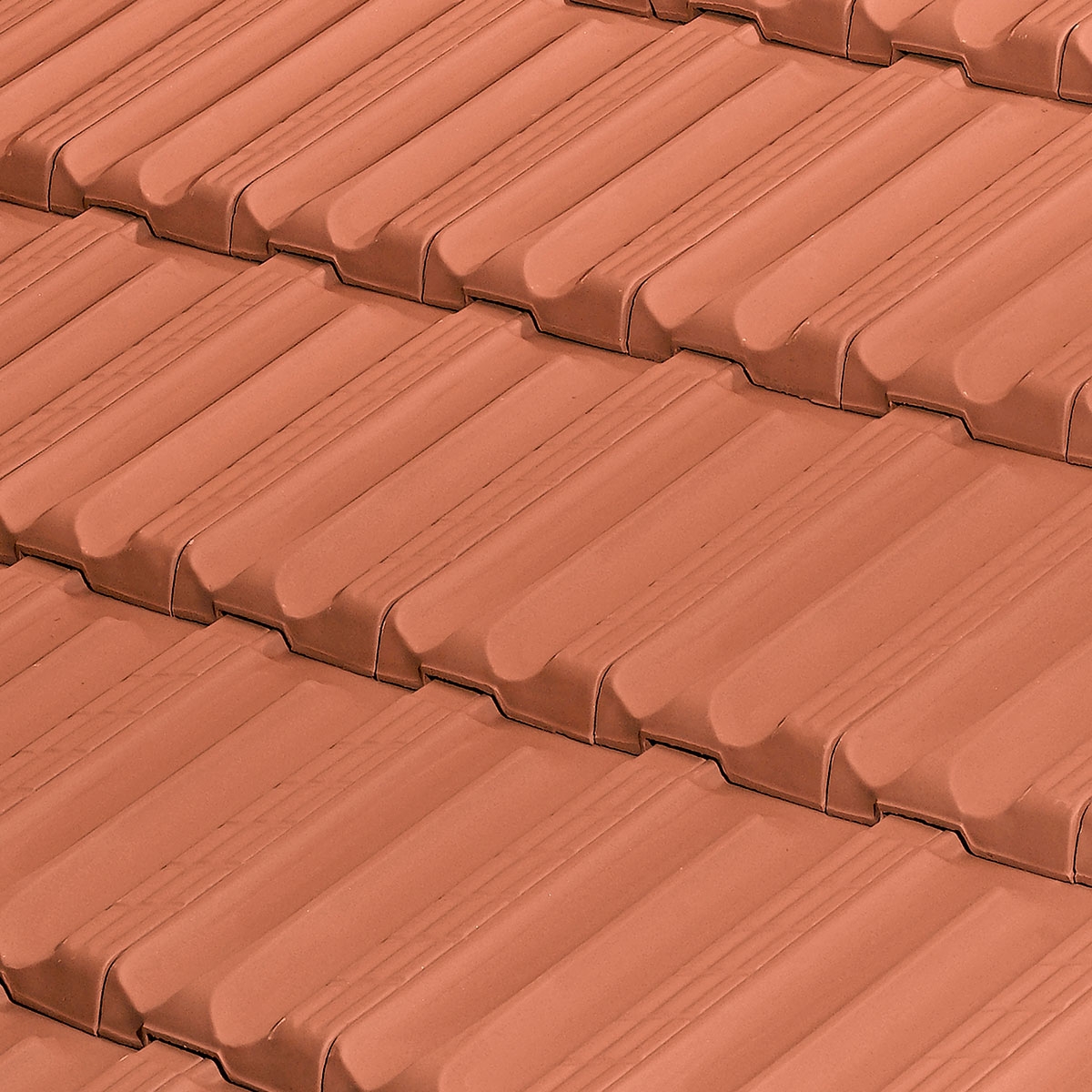

The Alicantina-12 by Tejas Borja is a perfect combination of tradition and elegance in design, with more than a century of experience in its manufacture. Its two smooth channels in the visible part facilitate the evacuation of water on sloping roofs, making it an exceptional choice for construction projects.
| Product | Alcantina-12 Red Tile 25.7 x 37 cm |
| Brand / Manufacturer | Tejas Borja |
| Weight (kg) | 3kg kg/tile |
| Width (cm) | 25.8 |
| Length (cm) | 45.7 |
| Useful Width Tiles (cm) | 45.7 |
| Side Overlap (cm) | 3.7 |
| Head Overlap (cm) | 6 |
| Rastrel ml per m2 | 2.7 |
| Units/m2 | 12.3 |
