Intermediate anchor 40x10 hidden (pack 1000 units)
207,02 € VAT incl. 21%
Calculate your shipping costs
Select zone and quantity
This product has free shipping from: 1.500,00 €

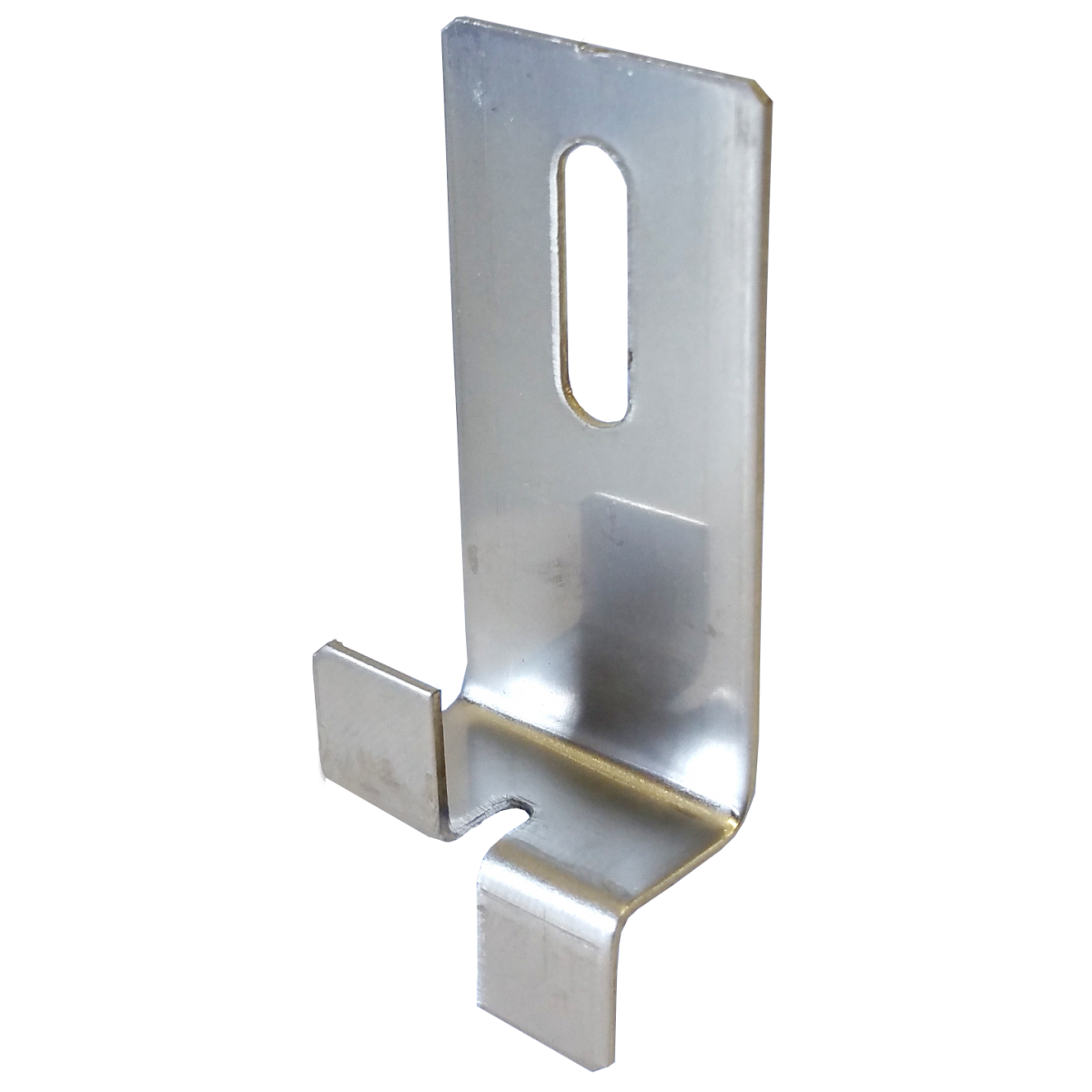

Hidden intermediate anchor 40x10 is a clamp formed by stainless steel for general use according to the UNE-EN 10088-2 standard
Table of Contents

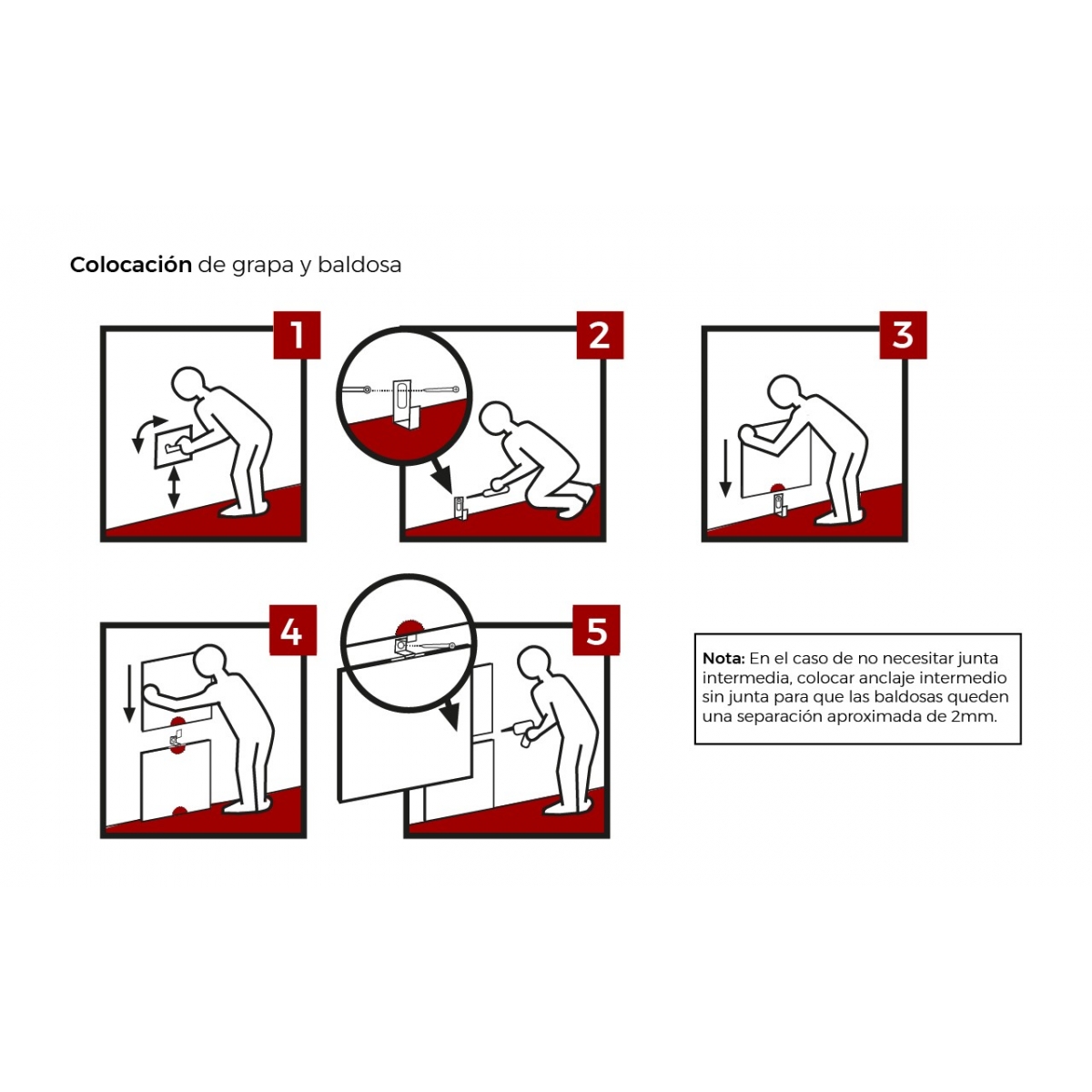

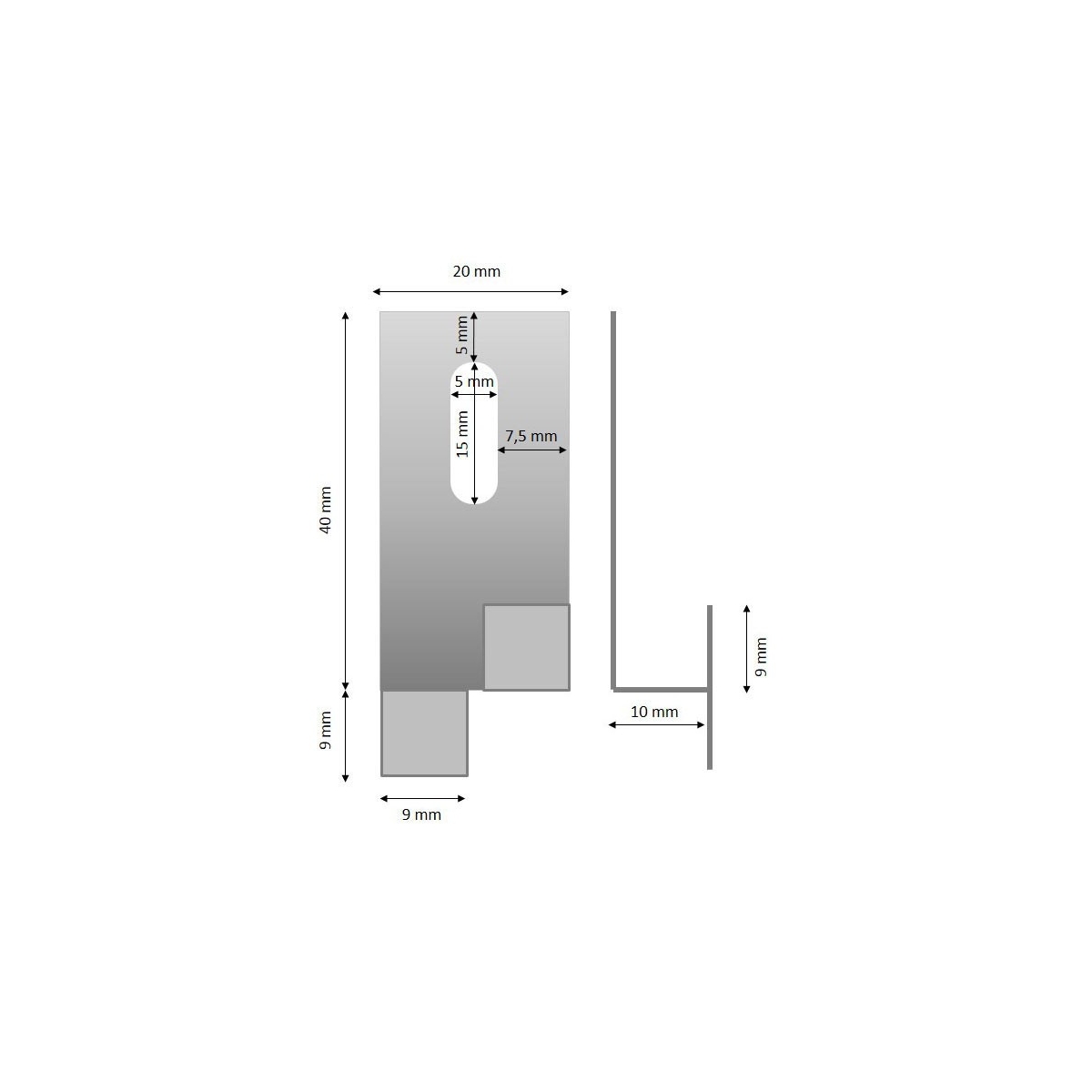

Hidden intermediate anchor 40x10 is a hidden anchor clip for glued façade formed by stainless steel for general use according to the UNE-EN 10088-2 standard. This type of anchor is used as a continuity piece, serving as a crowning of the previous piece and starting the next. To cover a façade with glued ceramics, an additional system of fixing to the wall through anchors must be used because the tile could detach and this system of anchors for ceramic façade would fix the tile to the wall. It consists of two types of anchors, visible and hidden. The visible anchor is part of it visible and the hidden one is integrated into the edge of the tile inside a groove. Both are installed drilled into the wall and screwed. Measurements: 40 x 10 mm. Supplied with screw and plug optionally
![]() |
![]() |
![]() |
![]() |
![]() |
|
| Product | Intermediate anchor 40x10 hidden (pack 1000 units) | Intermediate anchor 40x16 visible (pack 1000 units) | Bridge type anchor 8x9x24 (pack 1000 units) | Hidden 60x10 boot anchor (pack 500 units) | Exposed 60x16 boot anchor (pack 500 units) |
| Ratings |
|
|
|
|
|
| Manufacturer | Muelles Castellón | Muelles Castellón | Muelles Castellón | Muelles Castellón | Muelles Castellón |
| Price |
190,10 € 171,09 € |
190,10 € 171,09 € |
190,10 € 171,09 € |
115,72 € 104,15 € |
115,72 € 104,15 € |
| Price difference | -66,94 € | -66,94 € | |||
| View product | View product | View product | View product | View product |
