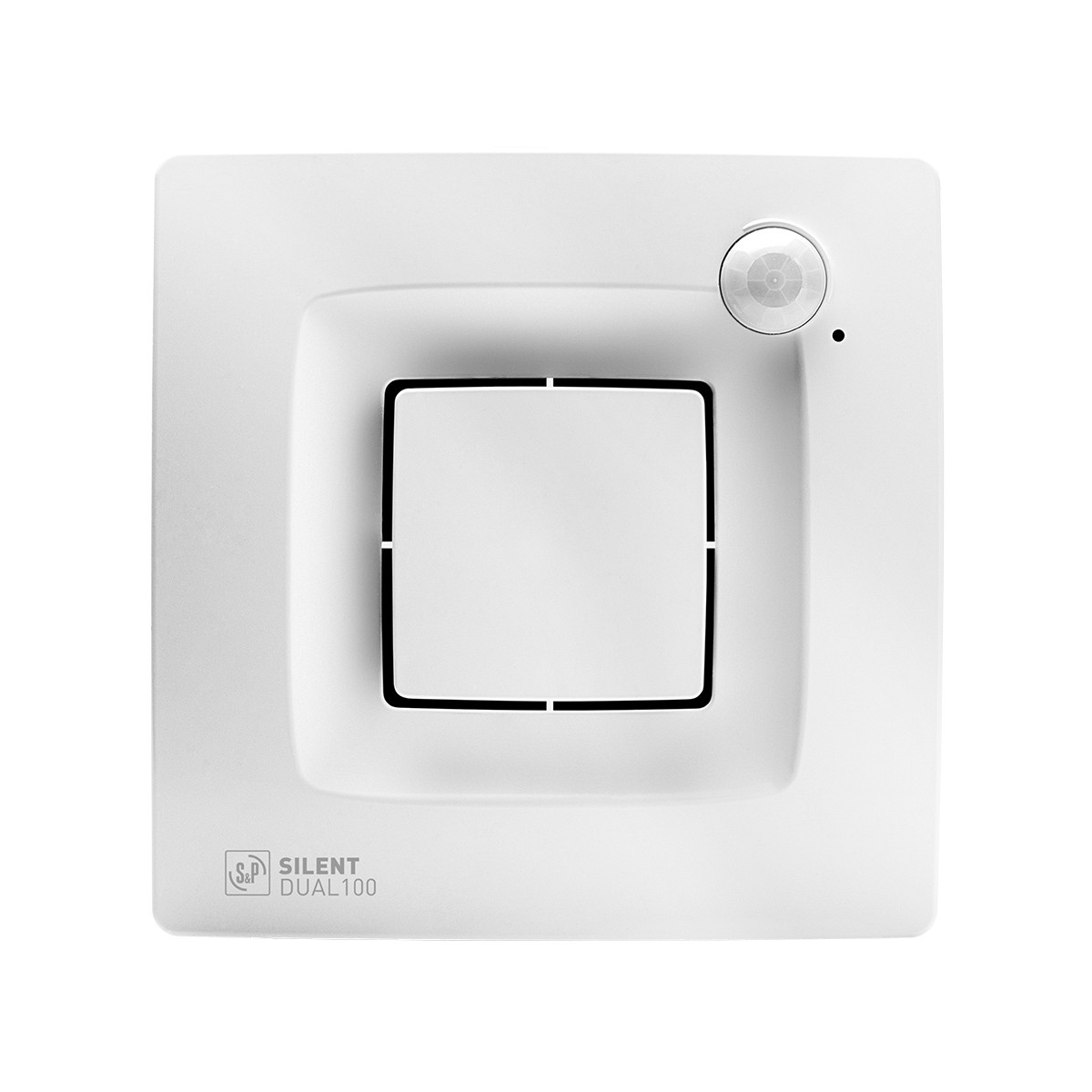

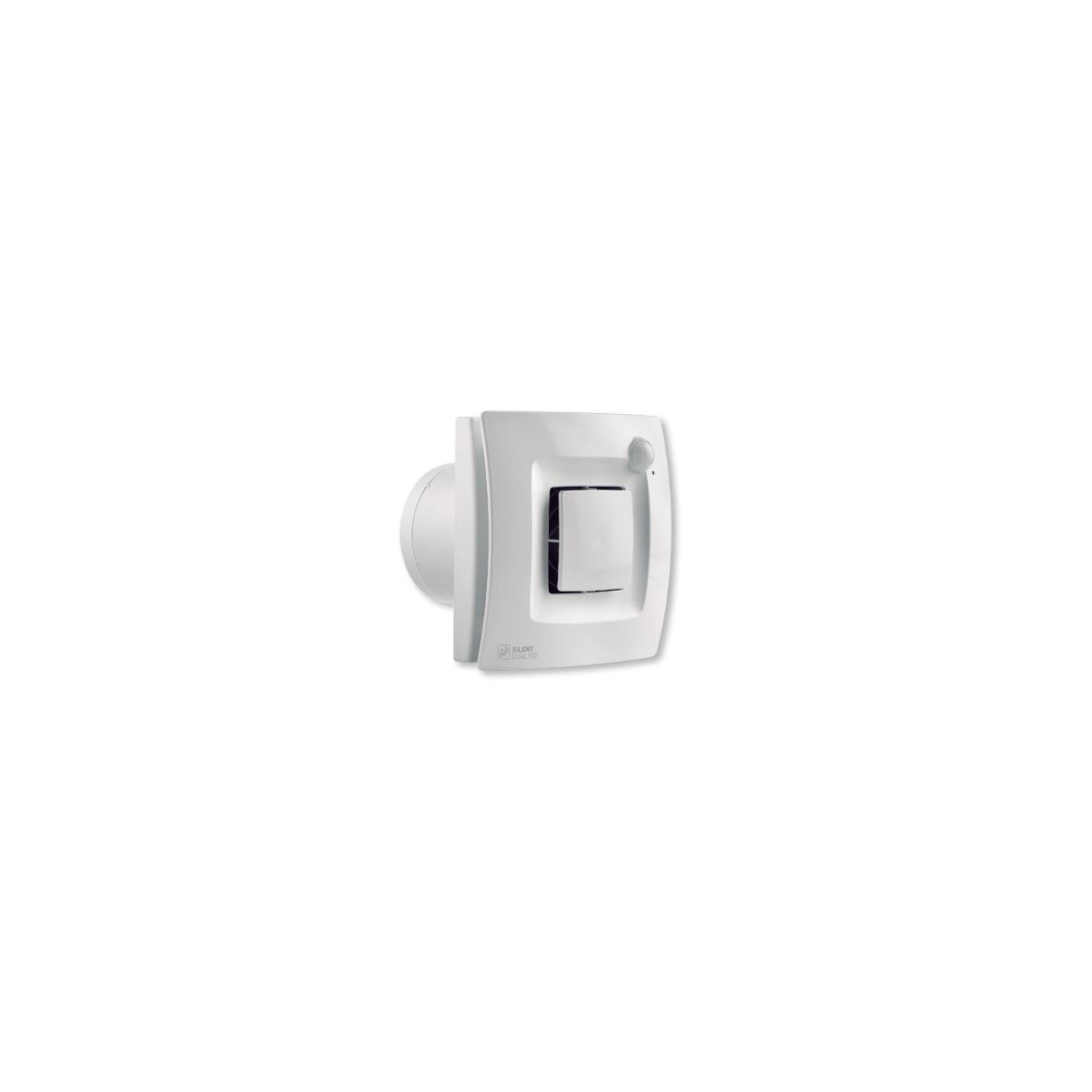

SILENT DUAL 100 bathroom extractor

Bathroom extractor, autonomous and intelligent. It adjusts its performance to the ambient conditions and the ventilation demand through two sensors, a presence detector and a humidity sensor.

It incorporates an intelligent control algorithm through which the bathroom extractor self-adjusts its setpoints according to environmental conditions, without the need for interaction with the user.

It learns from the environment where it is installed (environmental conditions) and determines how it has to work.

AC motor regulated to obtain an adequate flow, adjusting electricity consumption and noise according to the actual ventilation demand.

Direct connection to two wires (L, N).

- Power supply: 220-240V 50Hz.

- Working temperatures: -5ºC / + 40ºC.

- IP45 - Class II.

- Thermal protection.

- Removable non-return gate.

Operation:

The Silent Dual continuously monitors the ambient conditions and automatically adapts the motor speed and thus the ventilation to the actual needs of the moment, activating one of the four operating modes and thus optimizing energy consumption and sound nivel .

NO PRESENCE DETECTION

NO "WETNESS EVENT":

HR* Snapshot < Ambient Medium HR

Non-detection.

PRESENCE DETECTION:

Instant HR < Ambient Medium HR

If detection.

SUDDEN CHANGE IN HUMIDITY:

Instant HR > Ambient Medium HR

"Abrupt change".

GENTLE CHANGE OF HUMIDITY:

Instant HR > Ambient Medium HR

"Smooth change."

*Relative humidity.
