Reference: EXCM08045316

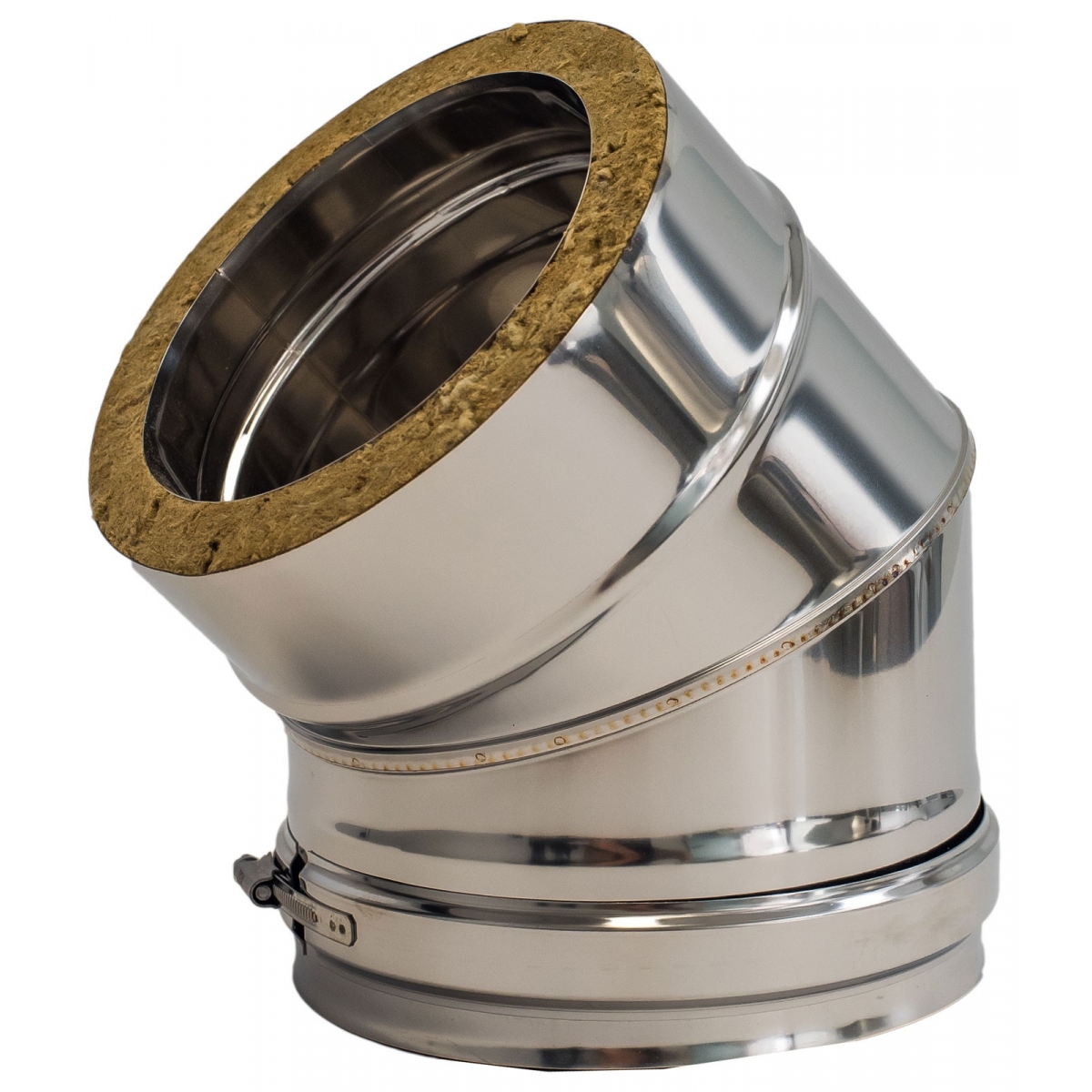

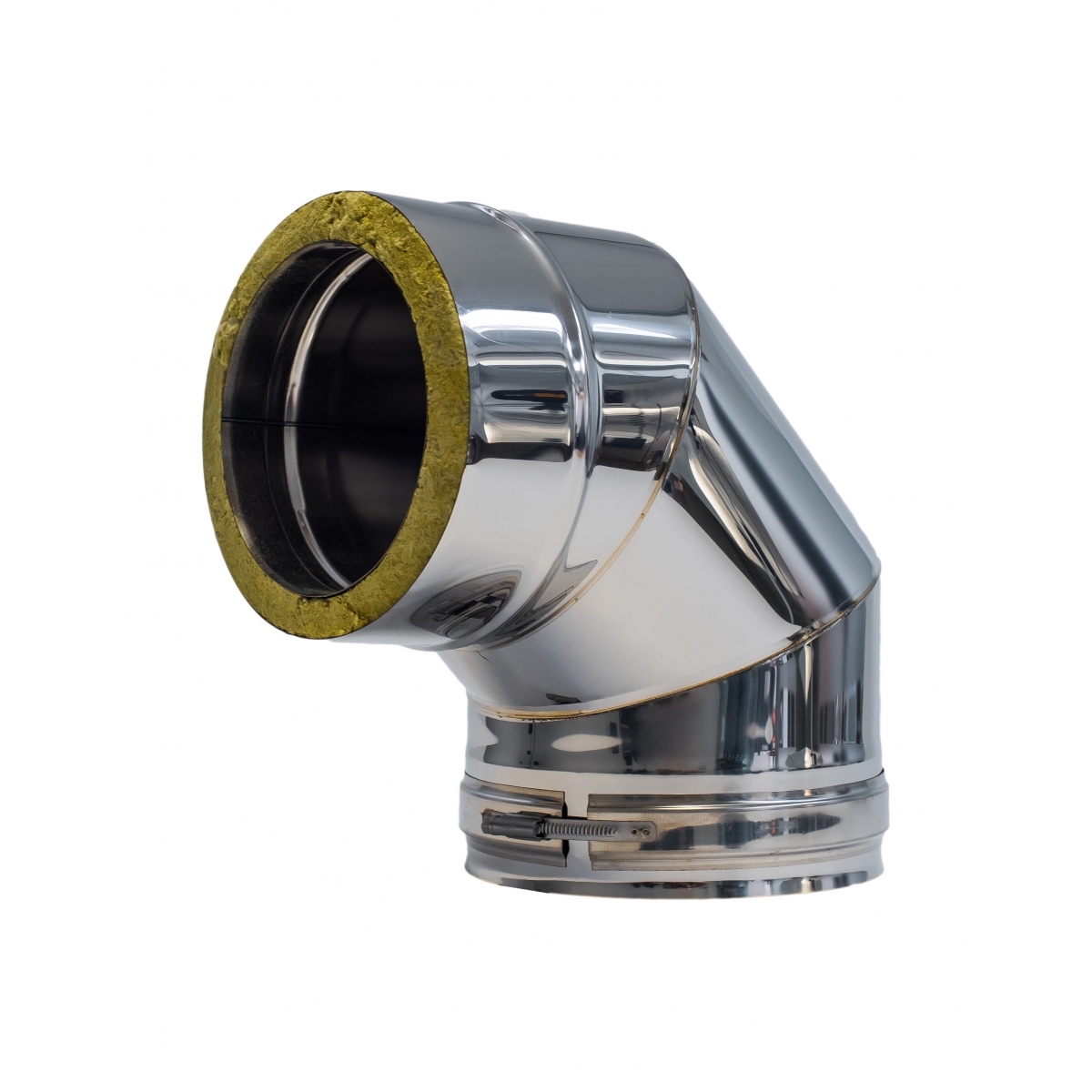

Double wall stainless steel elbow for pellets 45º and 90º

Exojo
Before: €48.41
-5%
Tax included at 21%
Share
Share
Receive it between 10 and November 19.
Angle

Calculate your shipping costs

Select zone and quantity

Double wall elbow for pellet stove. Made with the inner wall of 0.4 mm thick stainless steel and the outer wall of 0.5 mm stainless steel

Questions? Message us on WhatsApp

Complementary items:

Stainless steel trim for pellet pipes €19.15 Clamp for stainless steel double-wall pipe €7.99 Stainless steel rain cap for double-walled pipes - Pellets €44.97 Clamp for stainless steel double-walled pipe - Pellet €17.00 Single to Double Wall Stainless Steel Adapter - Pellet €32.46 Stainless steel double-walled "T" terminal for pellet stoves €104.13

Double wall elbow for pellet stove. Made with the inner wall of 0.4 mm thick stainless steel and the outer wall of 0.5 mm stainless steel, with a section of 80 mm in diameter. Available in 45º and 90º angles. Technical details

  • Inner wall: AISI 316L stainless steel thickness 0.4 mm.
  • Exterior wall: AISI 304 stainless steel thickness 0.5 mm.
  • Insulation: rock wool; Density 90kg/m3 and 25mm. thick.
  • Continuous LASER welding on all parts.
  • No thermal bridge of the internal duct with the outer tube, which represents a lower temperature loss of the internal duct and allows independent expansion.
  • Joining system: male-female with included union clamp.
  • Finish: glossy exterior.

Product Double wall stainless steel elbow for pellets 45º and 90º
Brand / Manufacturer Exojo
Difficulty Advanced
Diameter (cm) 8
