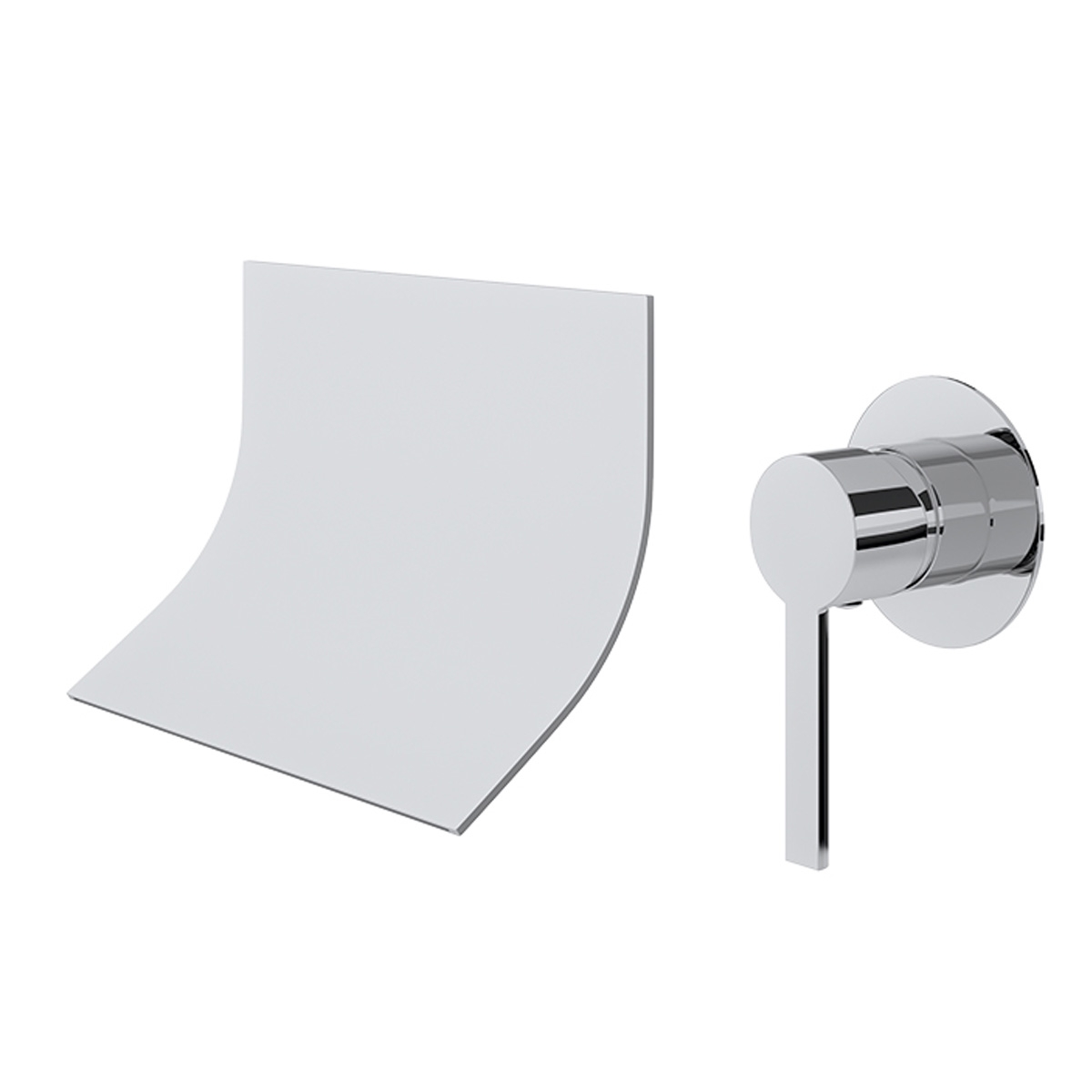

Drako Cascada Extraplano Built-in Tap For Sink

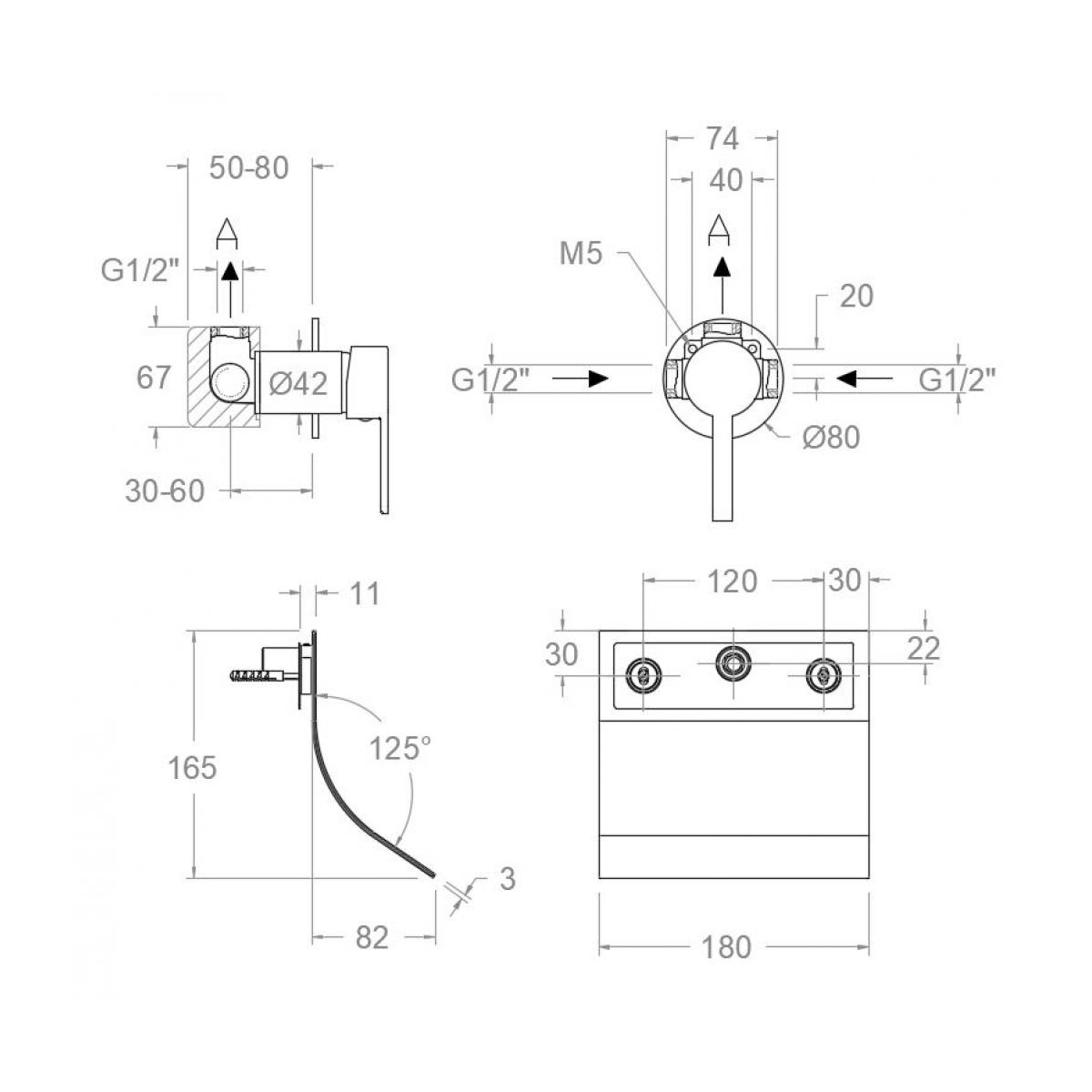

Recessed faucet plate in extra-flat waterfall design for sink 165mm high, 180mm wide and 80mm deep, in chrome Diamond Finish finish.

It has an S2 system for 50% water saving, temperature limiter and patented anti-corrosion system. Cascading water outlet by means of 3mm Ultraslim Stainless Steel plate. Only recessed part.

Product Features

• Ceramic cartridge Ø40 mm.
• Thermostop Block system for limiting the maximum temperature of hot water.
• S2 water saving system by opening the handle in two phases.
• Flow at 3 bar.
• Acoustic Nivel at 3 bar: < 20 dB.
• Chrome plated brass: 15 microns thick nickel, 0.3 microns chrome.
• Resists static pressures of 10 bar and water hammer of 25 bar.
• Recommended hot water temperature 55°C. Maximum operating temperature 65°C. Maximum 1h at 90°C.
• Operating pressure between 1-5 bar. Recommended 3 bar.
