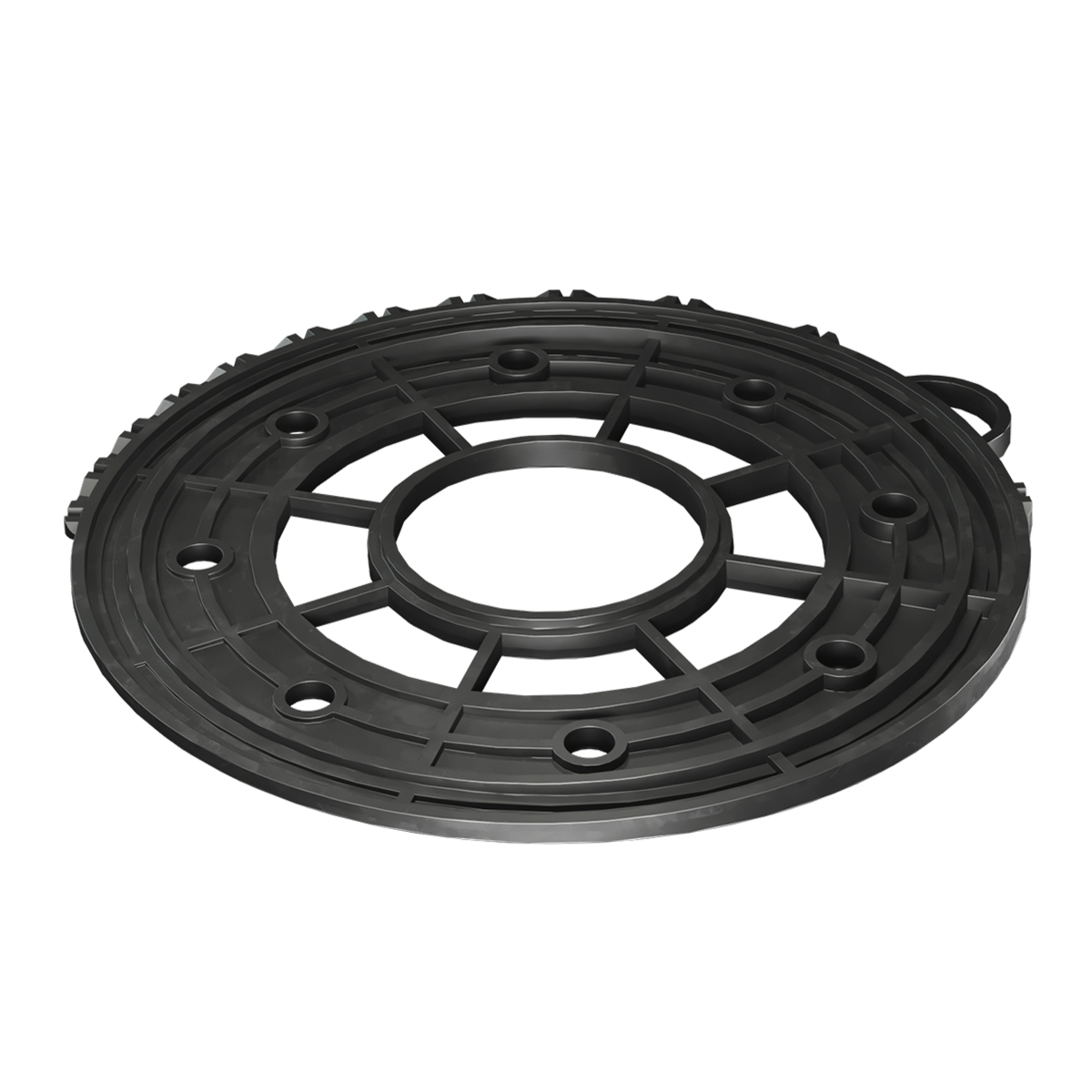

BSP Tilt Regulator

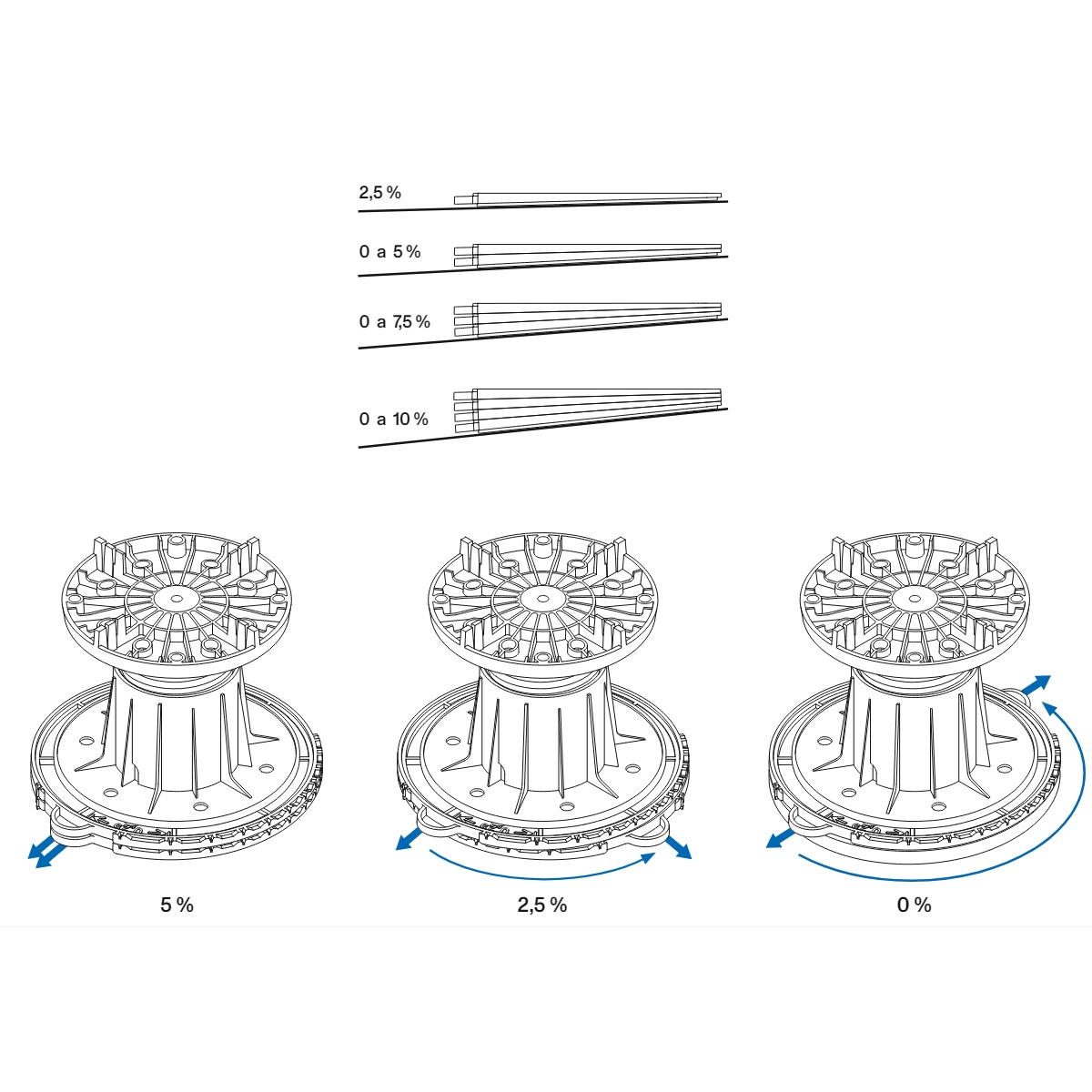

The Tilt Regulator allows you to achieve the perfect leveling of the Plot on slope formations, thus preventing eyebrows from appearing between tiles. The Regulator is a circular wedge with a slope of 2.5%. They are coupled at the base of the pedestals and up to 4 Regulators can be combined, thus allowing to compensate for slope formations of up to 10%. It can be used as a complement to the tilting head in installations with slopes that exceed 3% of unevenness.

Adaptable to any situation

The main virtue of our plot is its versatility when planning and installing a project. The BSP range has an infinite number of complements designed to customize your installation depending on the need.

Wide variety of heights

From 34mm for the lowest model (BSP1) to 655mm for the BSP4 + 4 bushings. In BSP supports from Peygran you will find the solution for your raised flooring project, adapting to any need.

Expandable height

The design of the BSP4 allows an expandable height thanks to the insertion of up to 4 bushings, with the corresponding increase of 100mm for each of these

Very resistant and versatile in installation

It has the essential requirements when carrying out an installation. It has a wide variety of heights ranging from 35 to 255 mm, expandable next to the bushing.

Its wide variety of accessories makes it very versatile for every installation or project need. They are compatible with Fixed Supports to supplement if necessary.
