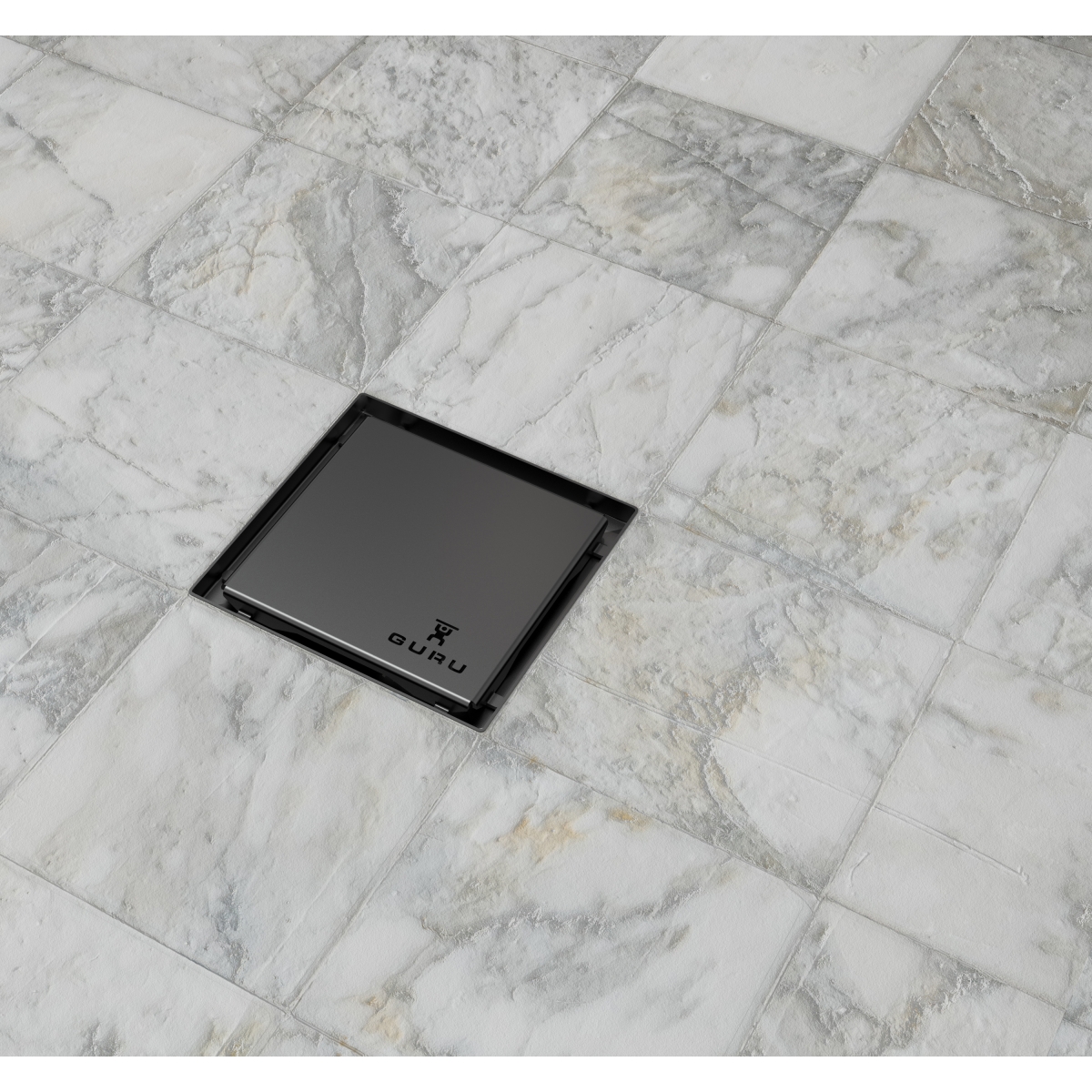

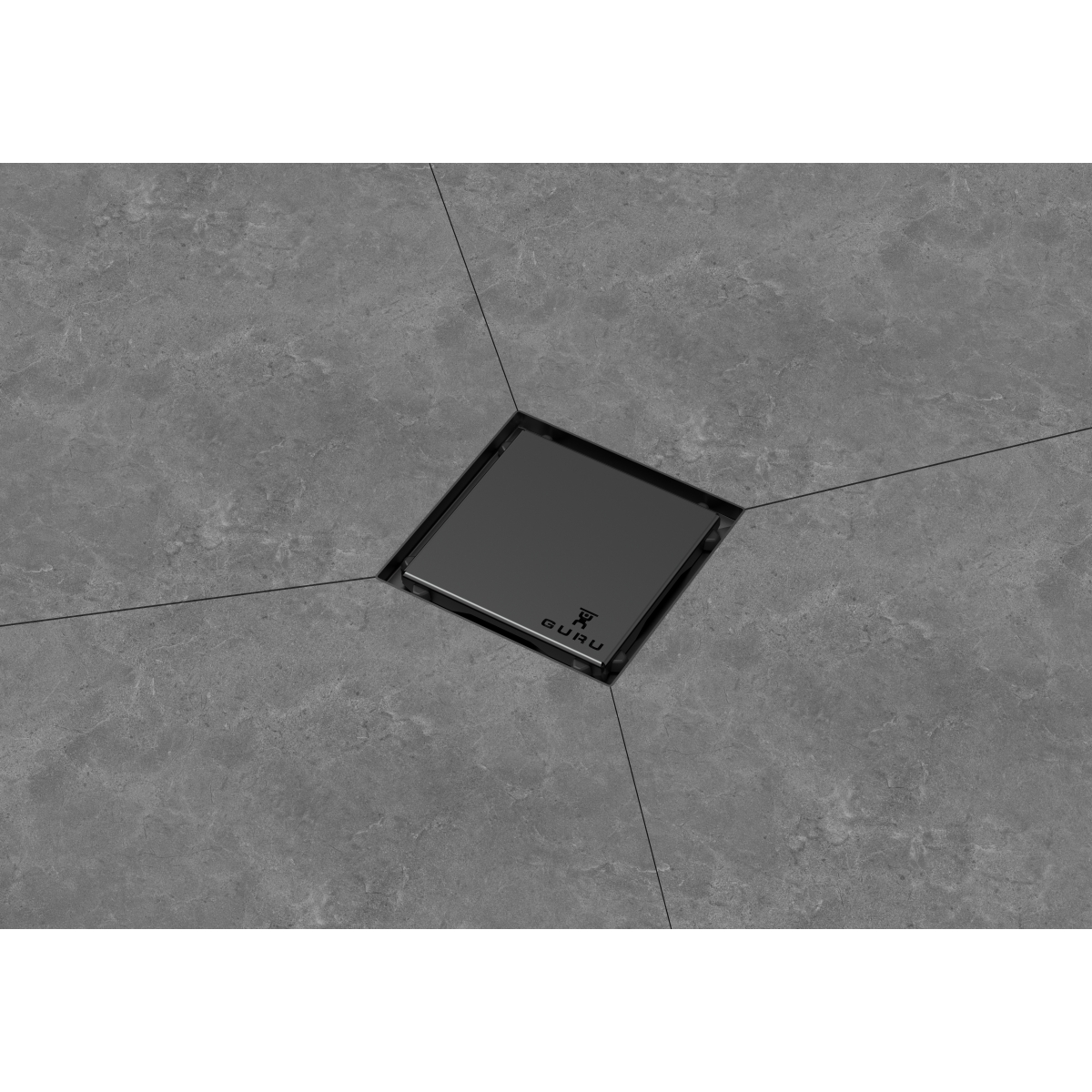

Evolux System Kit with smooth DARK spot grid 11.6x11.6cm

The EVOLUX system is the integrated drainage solution with waterproof protection for built-in shower trays.

• Shower trays with minimum height, even at floor level.
• 2 formats of point drainage.
• Spot drain models in sizes 11.6 x 11.6 cm
• Separate installation of the siphon body and the WATER-STOP waterproof film is more convenient and easy.
• The connections are elastic by pressure with decoupling, without gluing.
• Installation at a minimum height of 90 mm including a 9 mm thick pavement with its installation adhesive.
• Low profile siphon compatible with EN 1253-1 standard with 50 mm annulable siphon.
• Model-based evacuation flow up to 0.65 l/s (39 liters/minute).

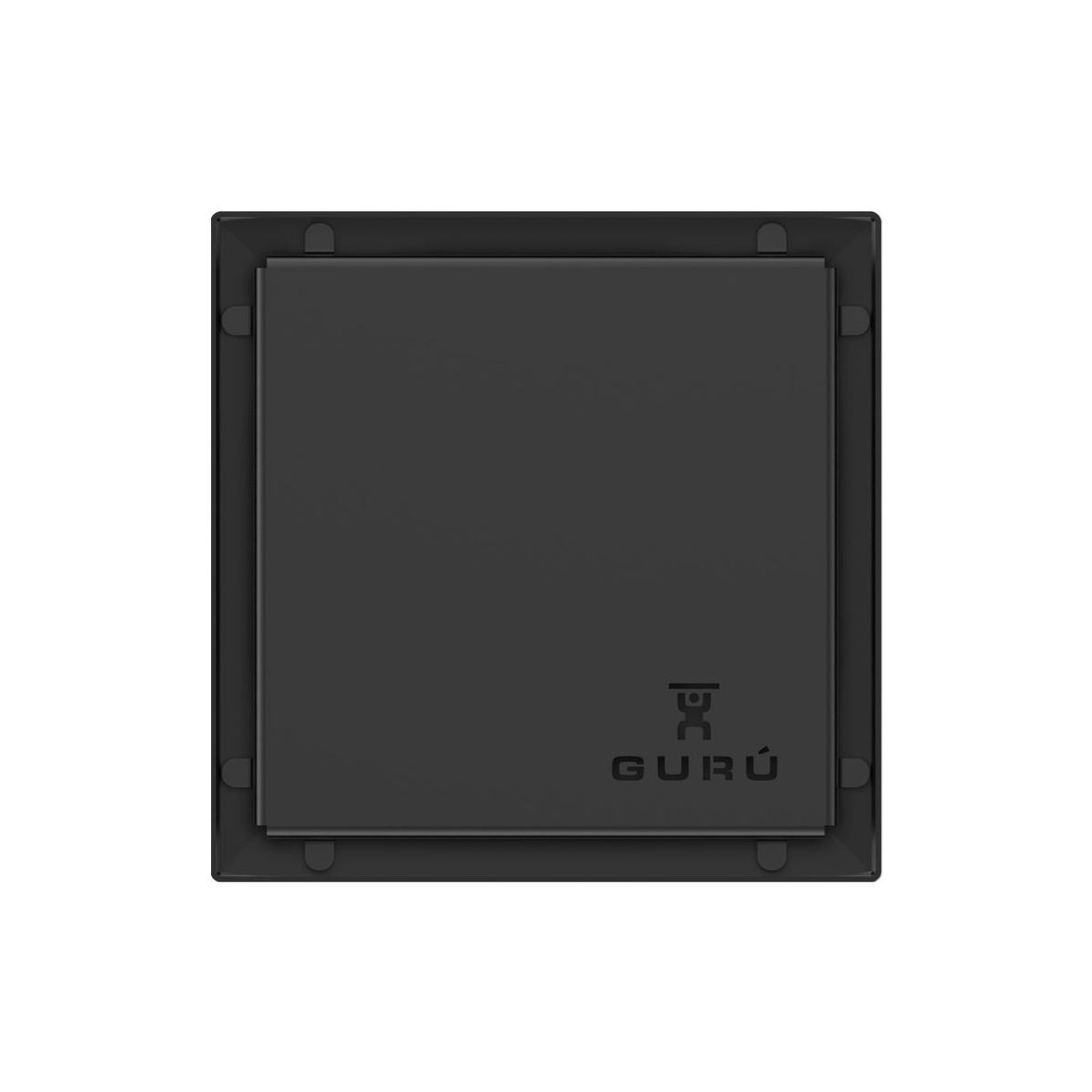

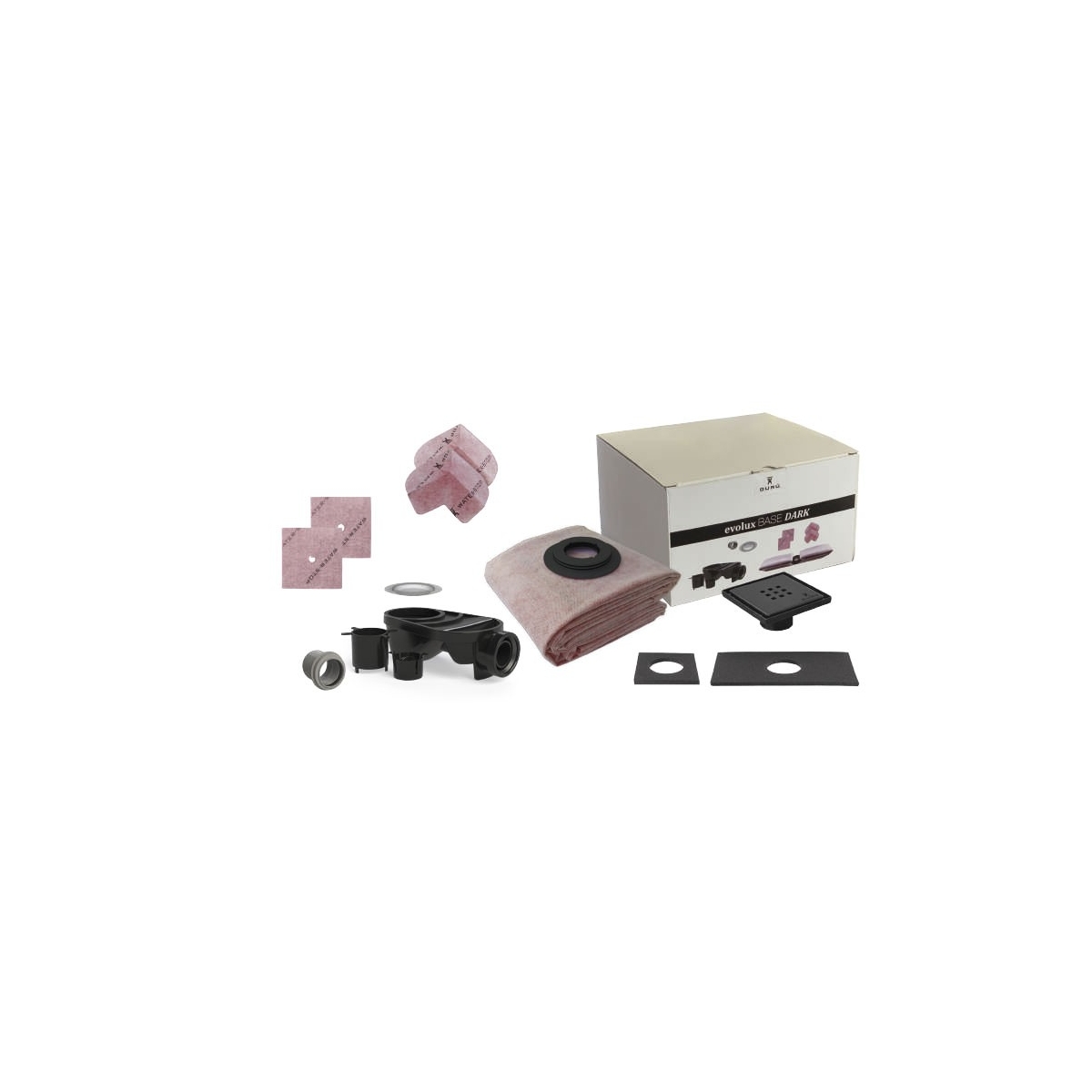

In line with the latest trends, the DARK series also highlights dark metal on the shower floor. Made with stainless steel and the best coloring treatment, it contributes to the design and quality of the shower tray. The kit includes:

• WATERPROOFING: A WATER-STOP waterproof sheet sealed at the factory to an adapter for connection to the drain and to receive the bowl with the grid. Dimension of 1.5m x 2m (3m2)

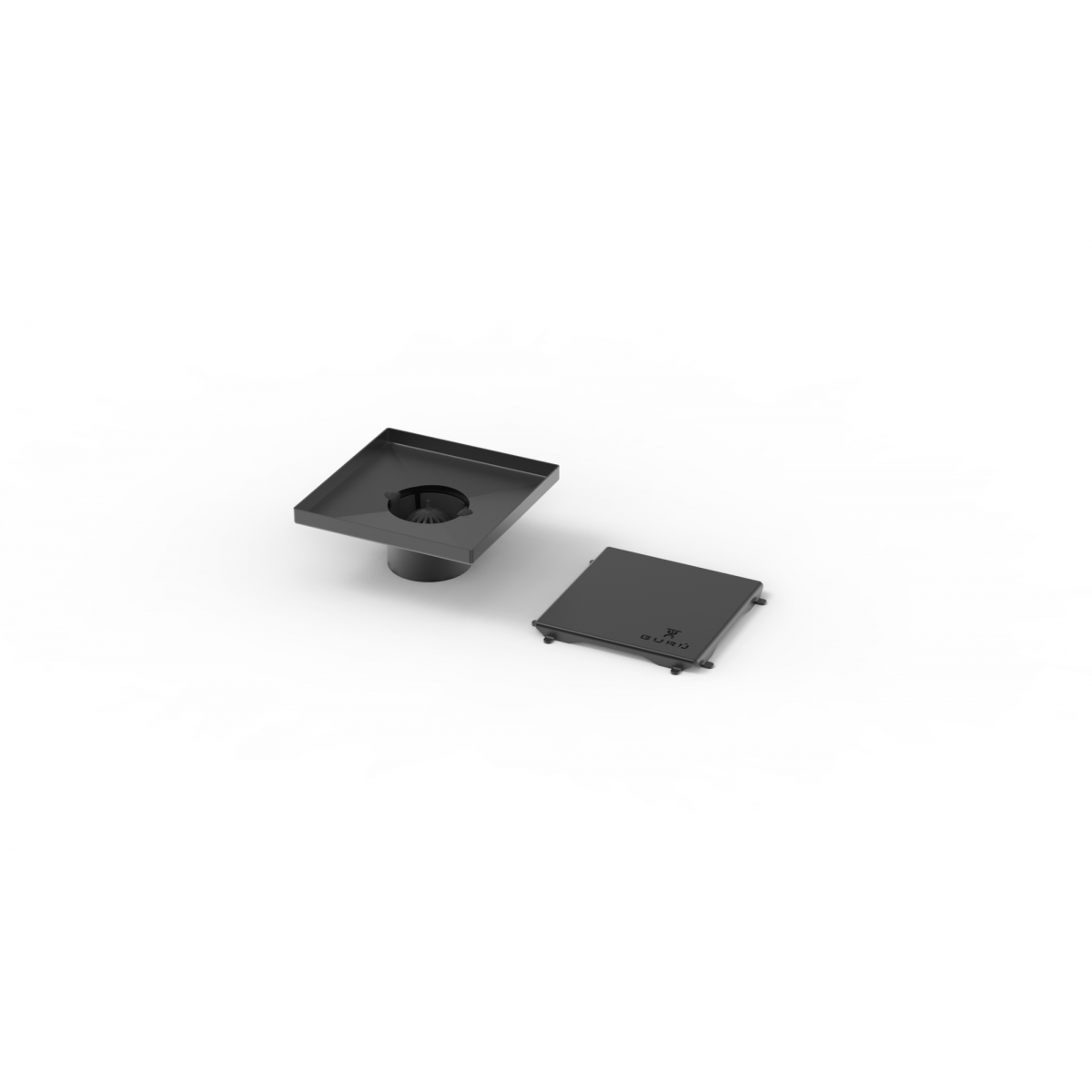

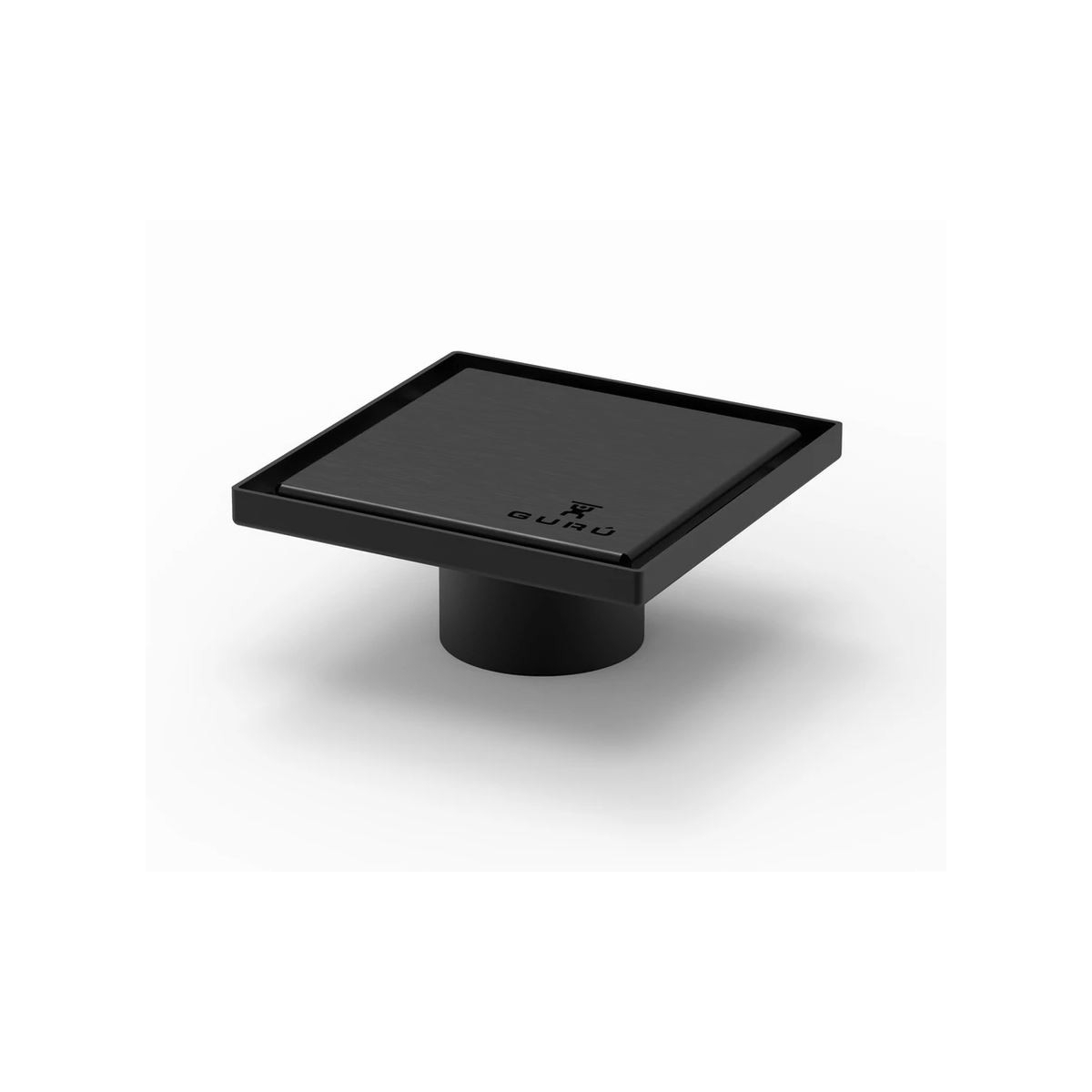

• THE DRAIN: EVOLUX System drain with horizontal outlet DN/DE 50 - (50 M) with 50 mm high siphon with the possibility of override. Pipe connection sleeve with DN/DI 50 - (50 H) sliding joint.
• ACCESSORIES FOR INSTALLATION AND MAINTENANCE: Cover to cover the sump mouth during installation. Hair basket. 2 reinforcements for interior corners and two reinforcements for pipes.
