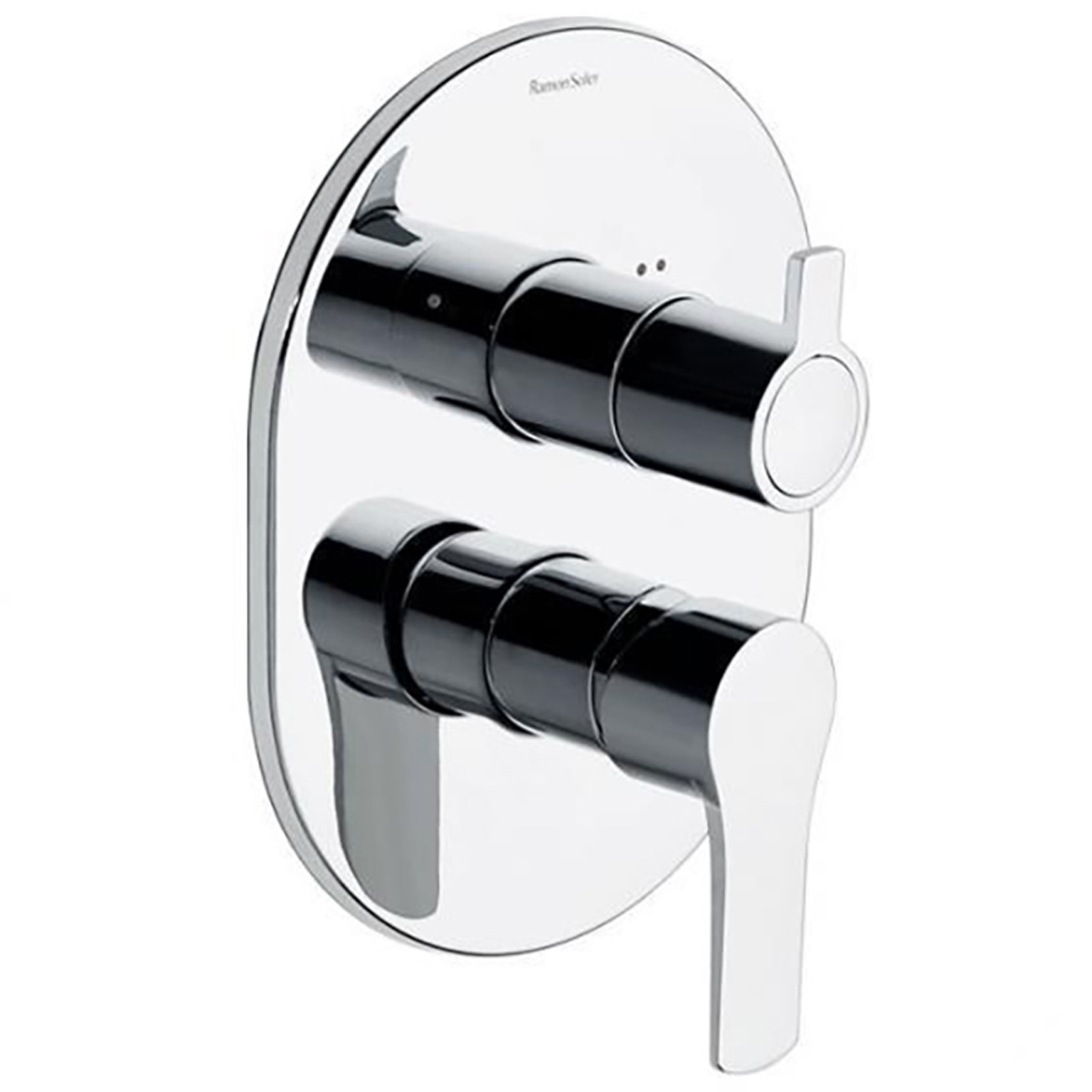

Ultraslim recessed plate for shower and bathtub Titanium series

2-outlet built-in shower faucet, with extra-flat metal plate in chrome Diamond Finish. Easy installation due to its compact body with S2 system for 50% water saving and temperature limiter.

• Ceramic cartridge Ø35 mm.
• 2-way distributor without closure
• S2 water saving system by opening the handle in two phases.
• Flow at 3 bar: bath outlet 22 l/min and shower outlet 21 l/min.
• Resistant to thermal shock and anti-legionella chemical.
• 5-year warranty on taps and 3 years on accessories.
• Operating pressure between 1-5 bar. Recommended 3 bar.
• It resists static pressures equal to or less than 10 bar and water hammer of 25 bar.
• Acoustic Nivel at 3 bar: less than 20 dB.
• Comfort features nivel fidelity, sensitivity and consistency in temperature selection.
• Recommended hot water temperature 55ºC. Maximum usage temperature 65°C. Maximum 1h at 90°C.
• Chrome surface: 15 microns nickel thickness, 0.3 microns chrome.
• Thermostop Block system for limiting the maximum temperature of hot water.
