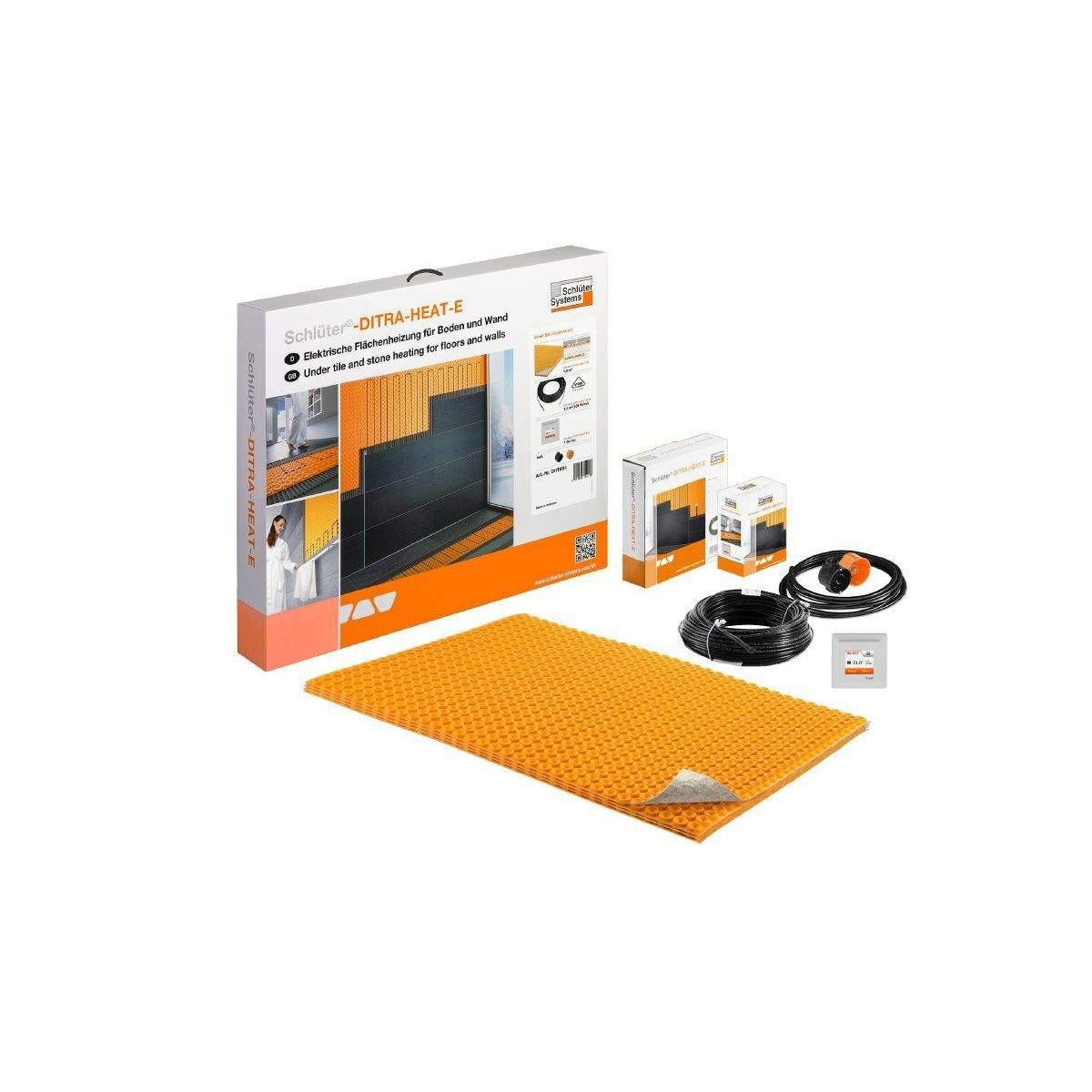

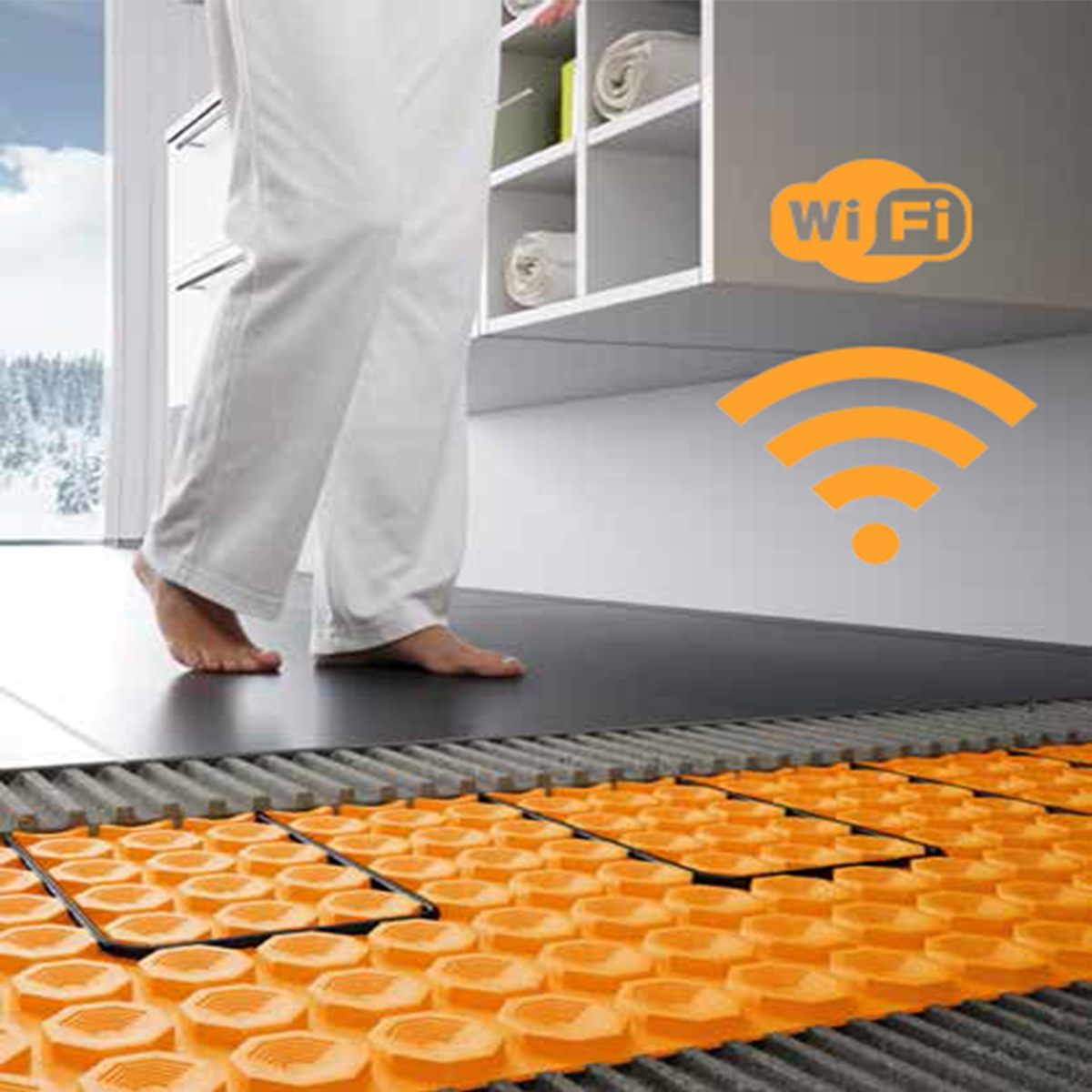

Underfloor heating kit with touch thermostat and Wifi with all the components for the installation of a radiant heating system for a certain area of pavement. The available options only differ according to the square meters of heated area needed. The set contains:
- Ditra-Heat-Ma decoupling foil
- Ditra-Heat-E-HK heating cable
- Temperature regulator with programmable touch screen and wifi, to program it from your mobile or tablet.
- Two probes for temperature measurement. Both are installed and one is connected to the patch panel. If in the future the second one had to be connected, it would be done without having to do any work.
Specifications according to kit Kit for 2.2 m2 of heated surface
- No. of Ditra-Heat-Ma plates: 4
- Total dessolated area in m2: 3.2
- Heated area in m2: 2.2
- Power consumed: 136 W/m2 (installation of the heating cable every 3 nodes of separation)
Kit for 3.8 m2 of heated surface
- No. of Ditra-Heat-Ma plates: 7
- Total desolated area in m2: 5.6
- Heated area in m2: 3.8
- Power consumed: 136 W/m2 (installation of the heating cable every 3 nodes of separation)
Kit for 5.5 m2 of heated surface
- No. of Ditra-Heat-Ma plates: 10
- Total dessolated area in m2: 8
- Heated area in m2: 5.5
- Power consumed: 136 W/m2 (installation of the heating cable every 3 nodes of separation)
Ditra-Heat Sheet

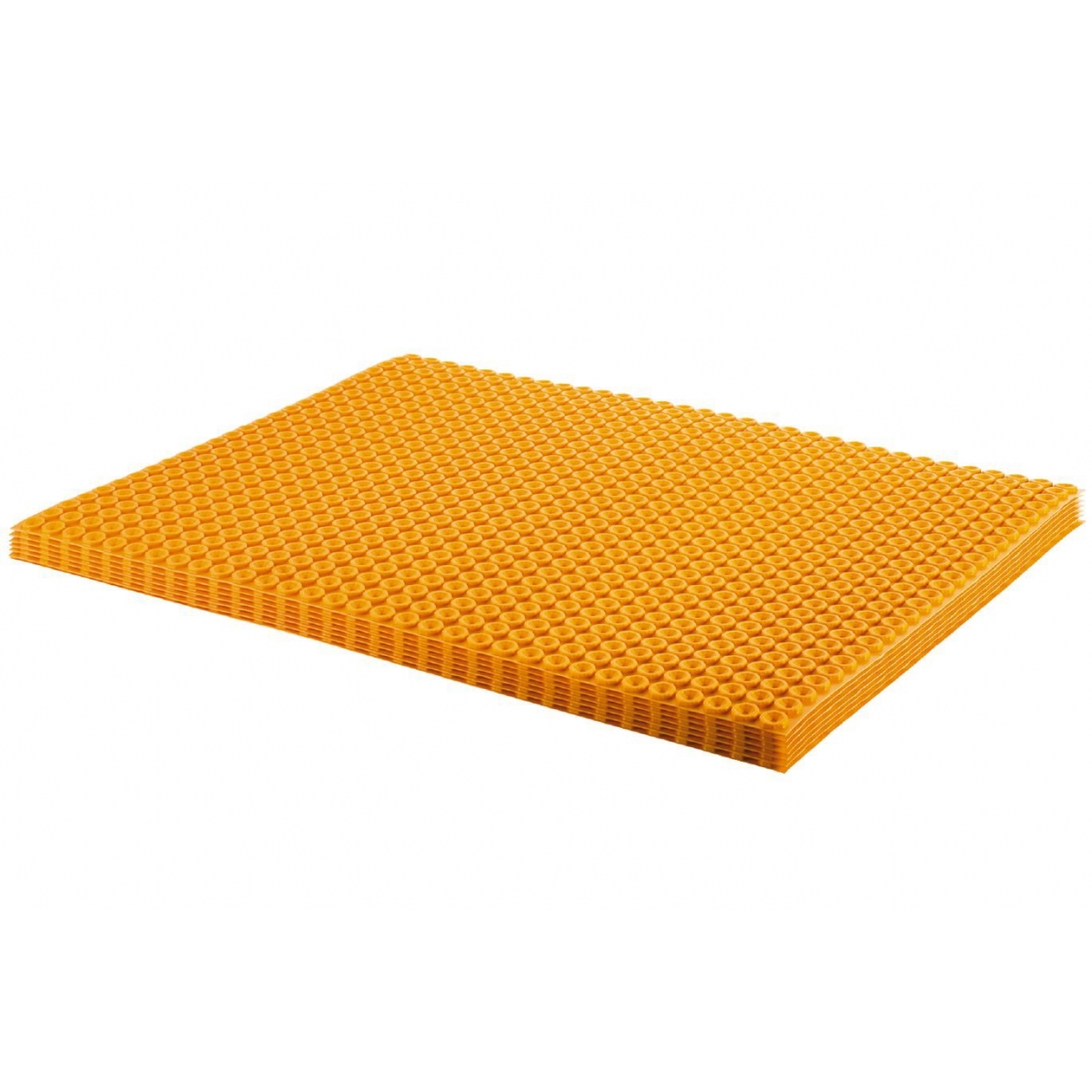

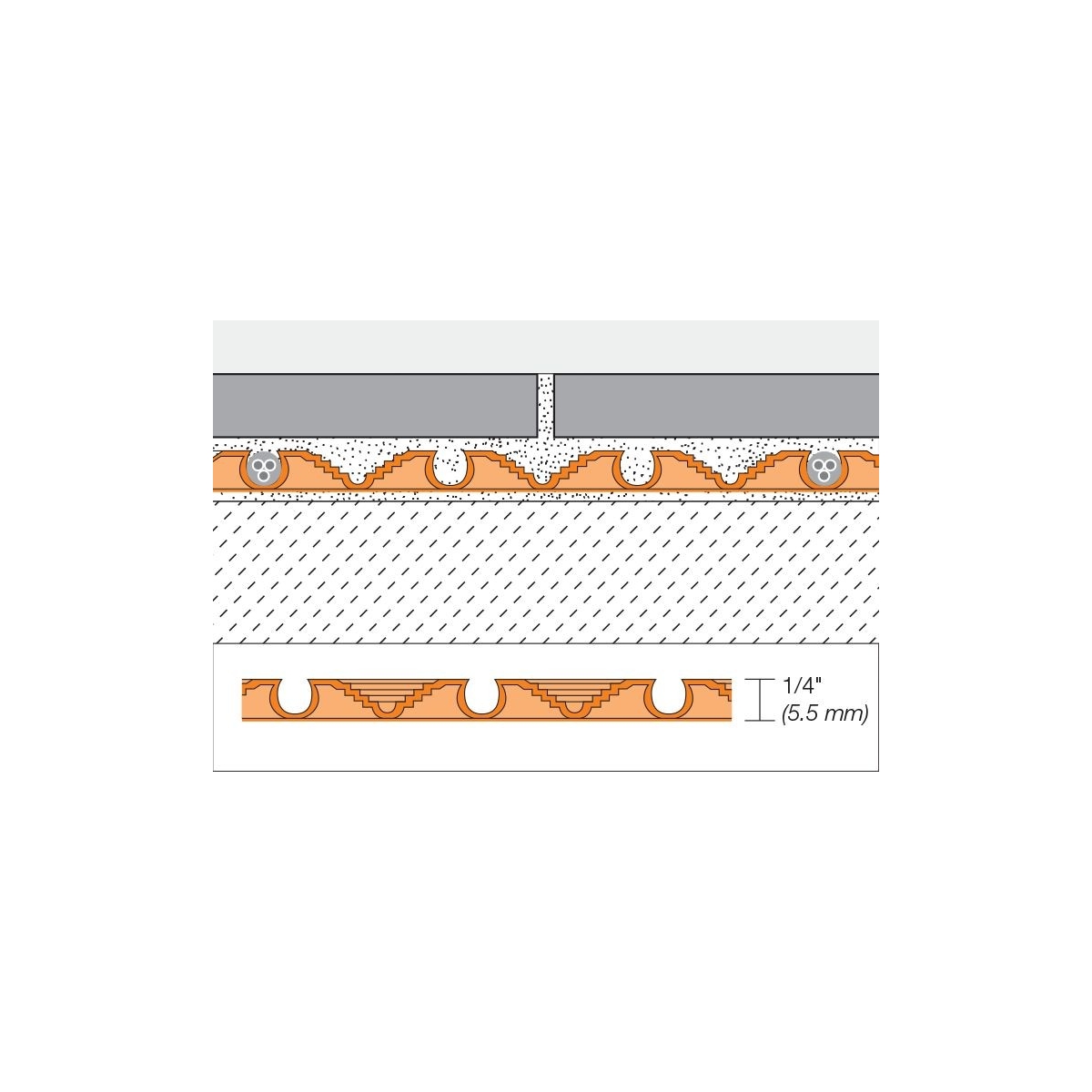

Schlüter-DITRA-HEAT® is a polypropylene sheet with a nodule structure on the top and a geotextile on the back. The thickness of the film is approximately 5.5 mm, while the Schlüter-DITRAHEAT-DUO® film is 7.5 mm thick. Polypropylene does not withstand long-term sun exposure. For this reason, it is recommended to store it in a protected place that is not exposed to solar radiation. Material properties and areas of application: Schlüter-DITRA-HEAT® remains unchanged over time, is waterproof, has high elasticity and covers cracks. In addition, it remains stable against aqueous solutions, saline, many organic solvents, alcohols and oils. Once the concentration nivel , temperature and duration of the effect are known, it is necessary to check its specific resistance to certain objects. The diffusion density of the water vapour of the sheet is relatively high and the material that composes it is physiologically harmless. The use of the Schlüter-DITRA-HEAT® electric heating system is only suitable indoors. Its use outdoors is not allowed.
Touchscreen for temperature control and Wi-Fi

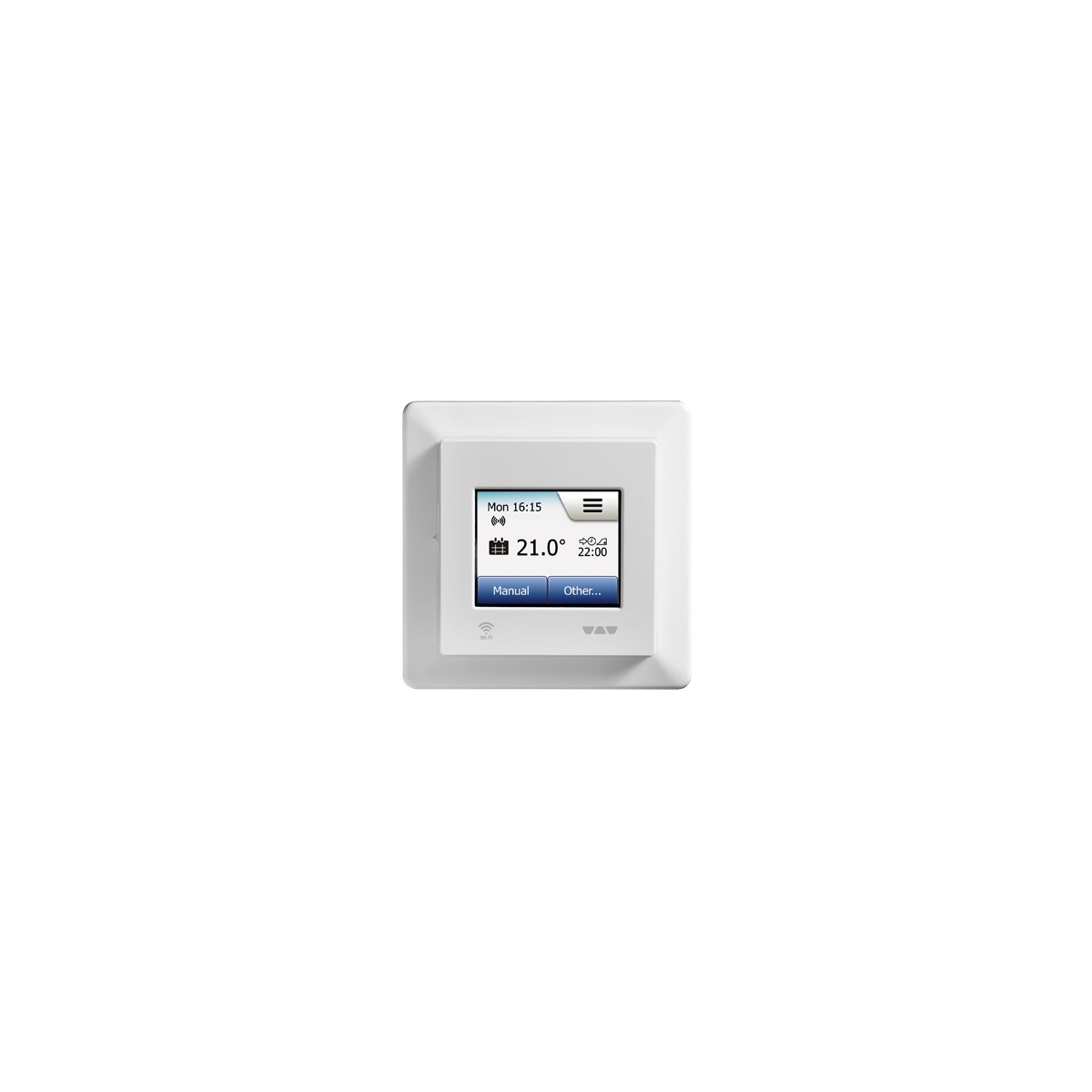

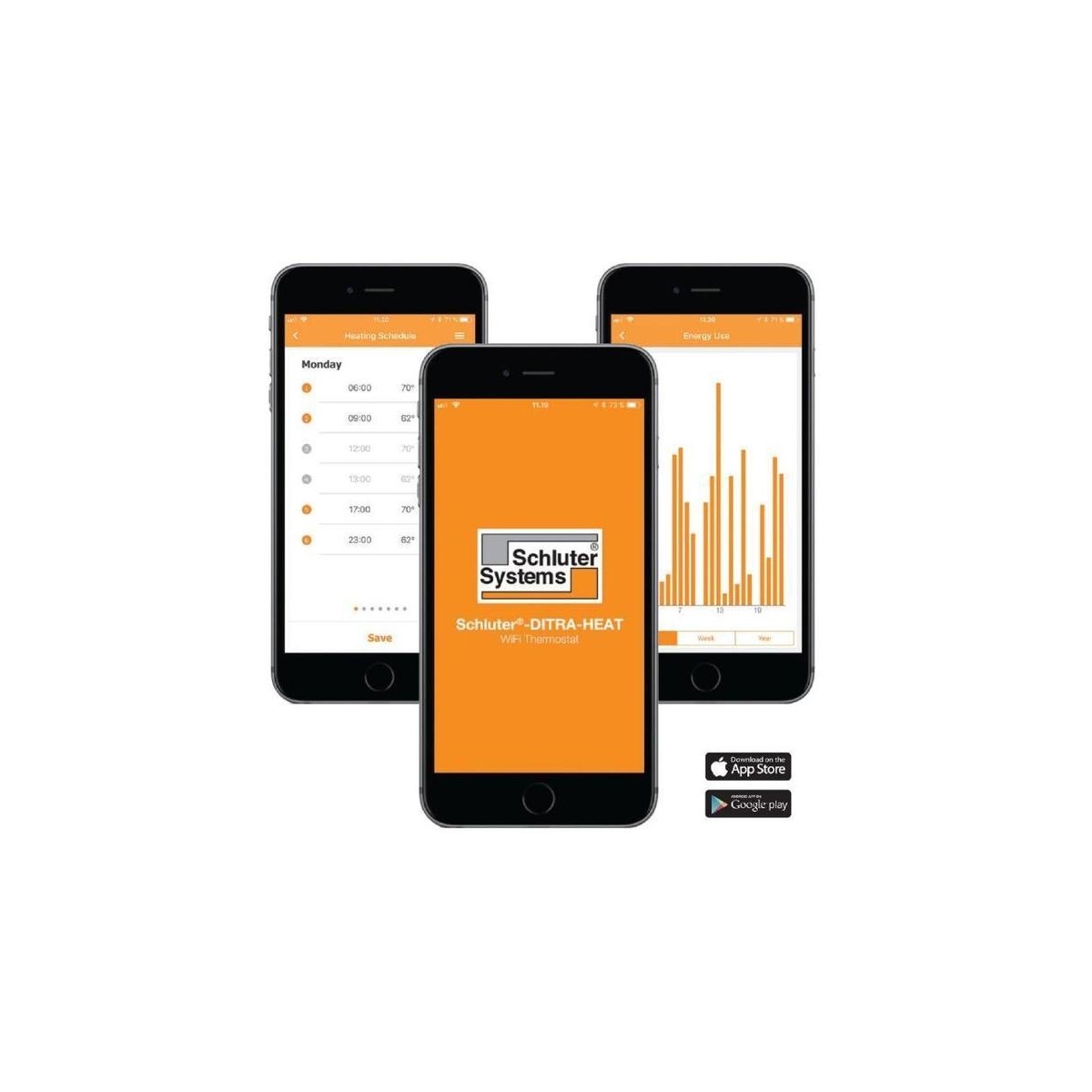

Schlüter-DITRA-HEAT-E-R-WIFI® is a temperature controller, which allows the temperature control of floor and wall tiles with Schlüter-DITRA-HEAT-E®. Control can be carried out via the 2" touchscreen (5.1 cm) of a smartphone or tablet with the free Schlüter-HEAT-CONTROL app using a WIFI network. The device allows you to control the ambient temperature and/or the temperature of the coating. The set includes a backup thermal probe.
Heating cable

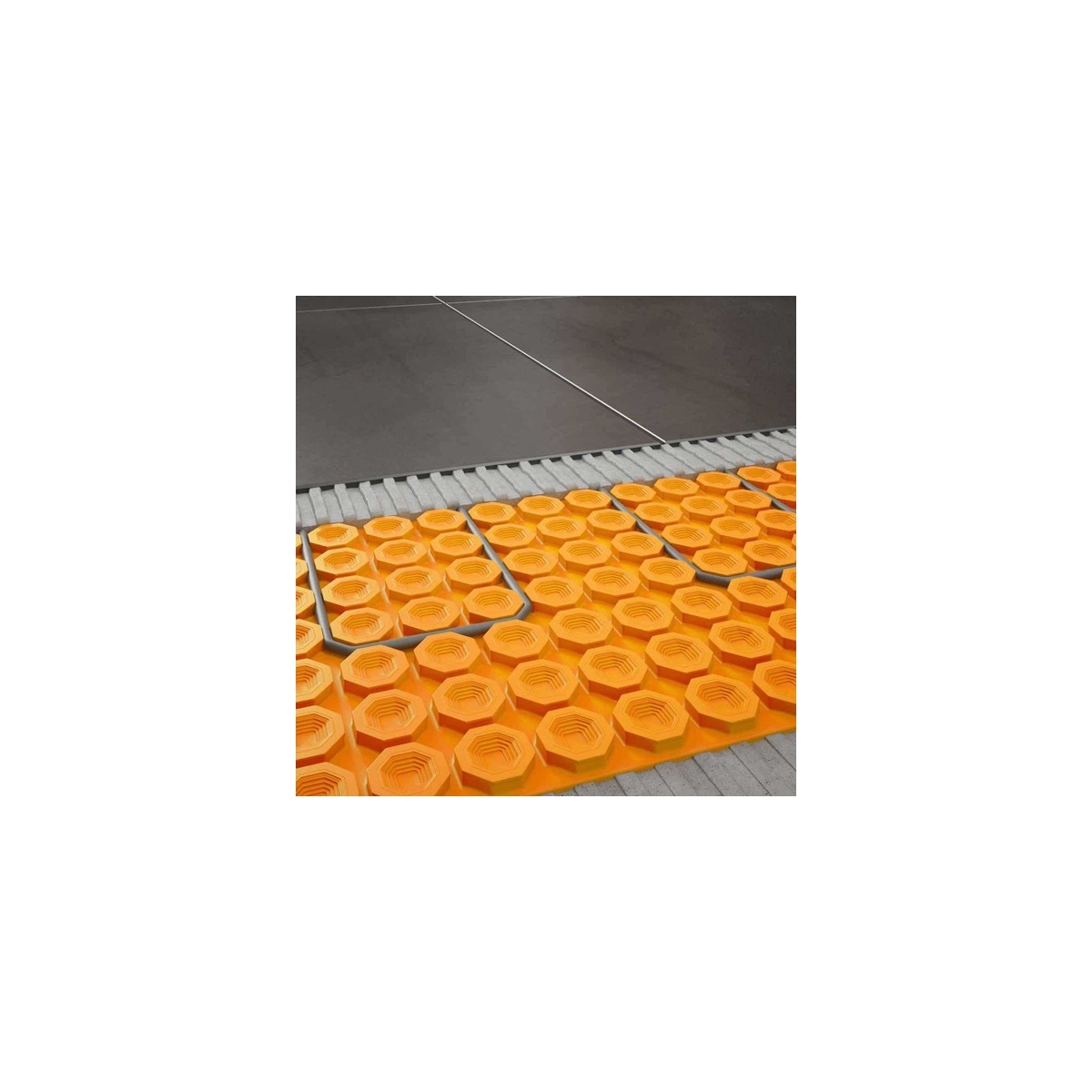

It is an electric heating cable with a connection piece at one end, which is installed on the Schlüter-DITRA-HEAT® decoupling foil. Heating cables should not be cut. When choosing the heating cable, it must be taken into account that the heated area in m² of the board will not correspond to the real area of the room. To determine the area to be heated, unheated areas, such as perimeter areas, must be subtracted.
