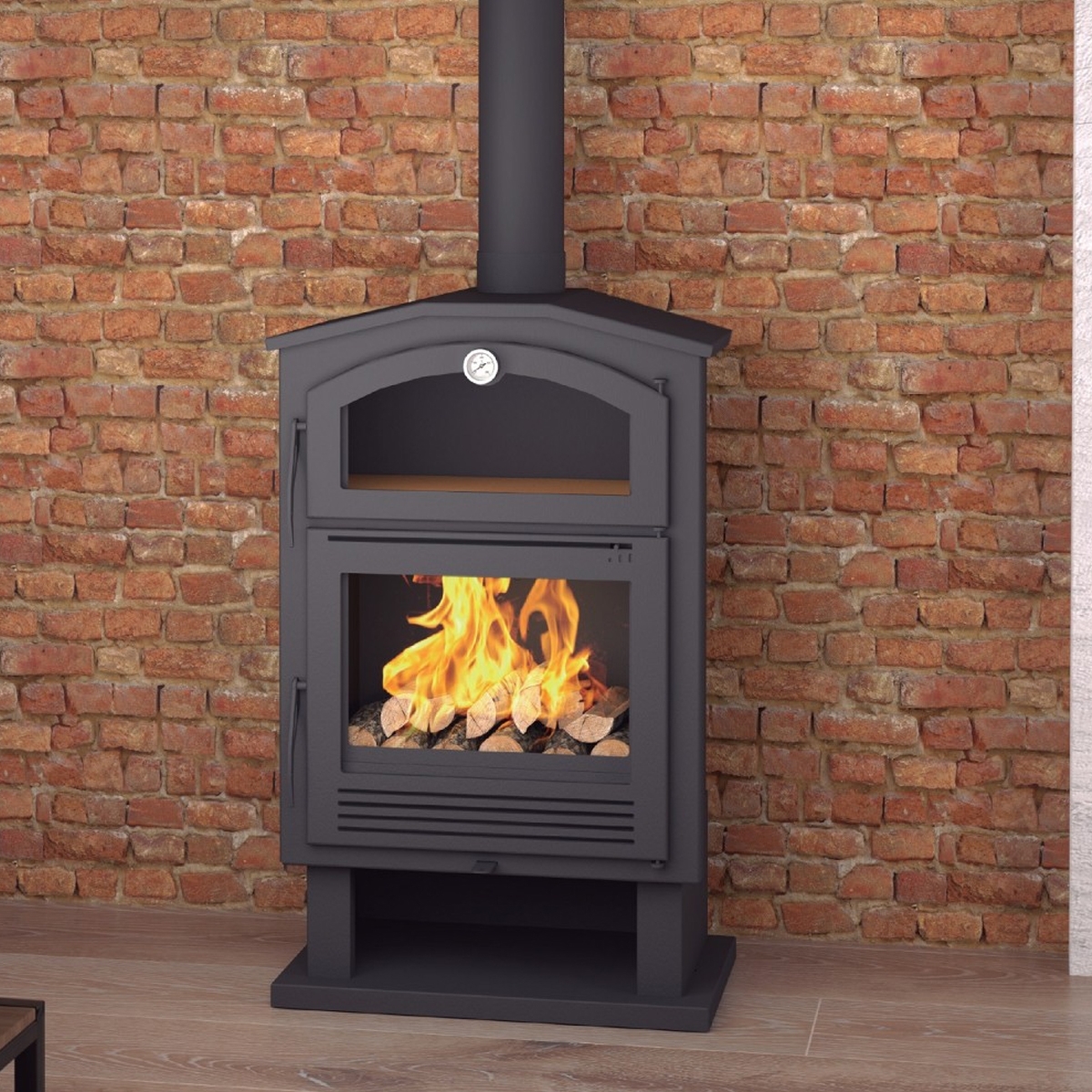

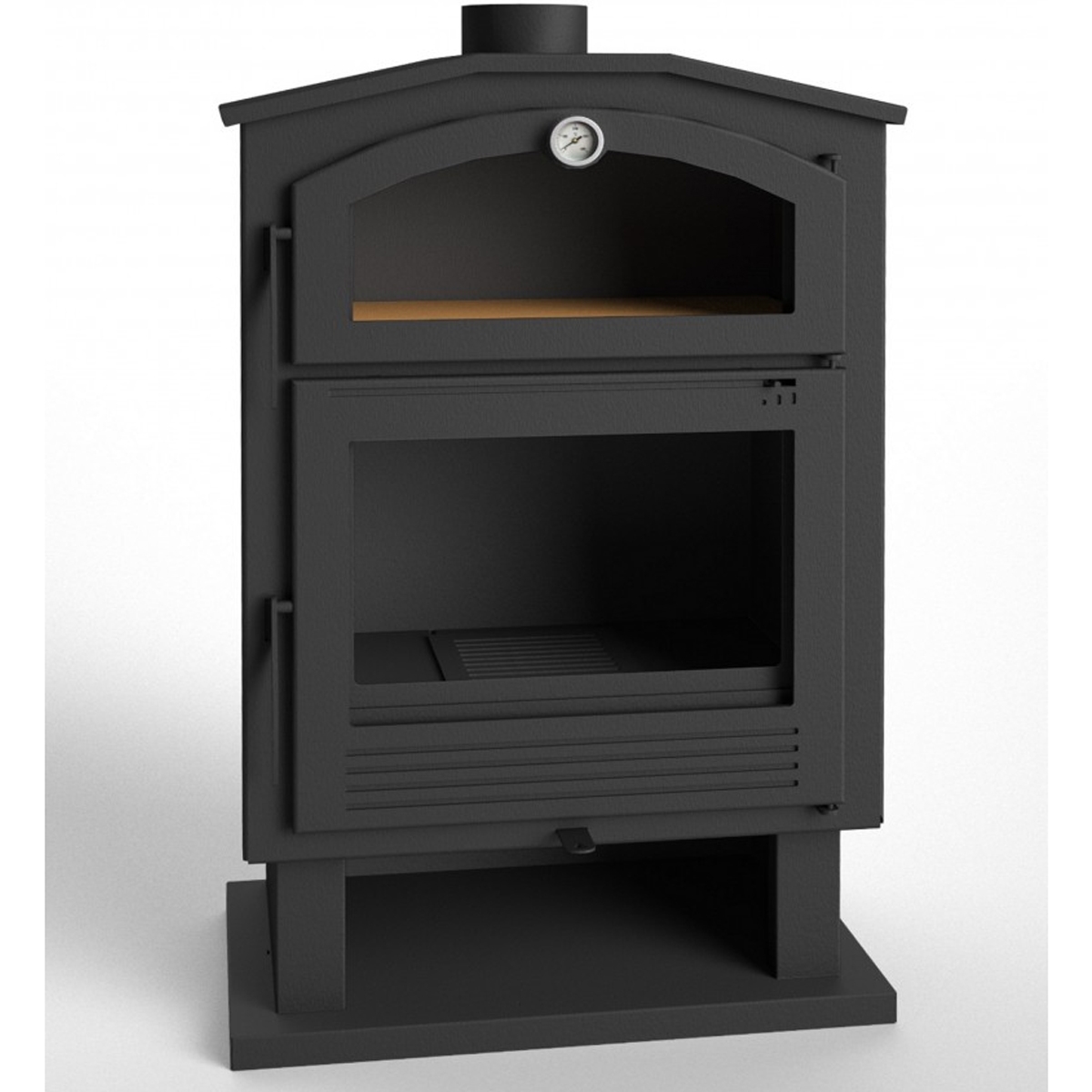

Front Wood Stove CH-4
851,84 € VAT incl. 21%
Front CH-4 wood stove with closed oven, has the following characteristics:
- Equipment Made of Steel up to 4 mm.
- Pull-out ashtray drawer
- Vermiculite interior
- Double Combustion System

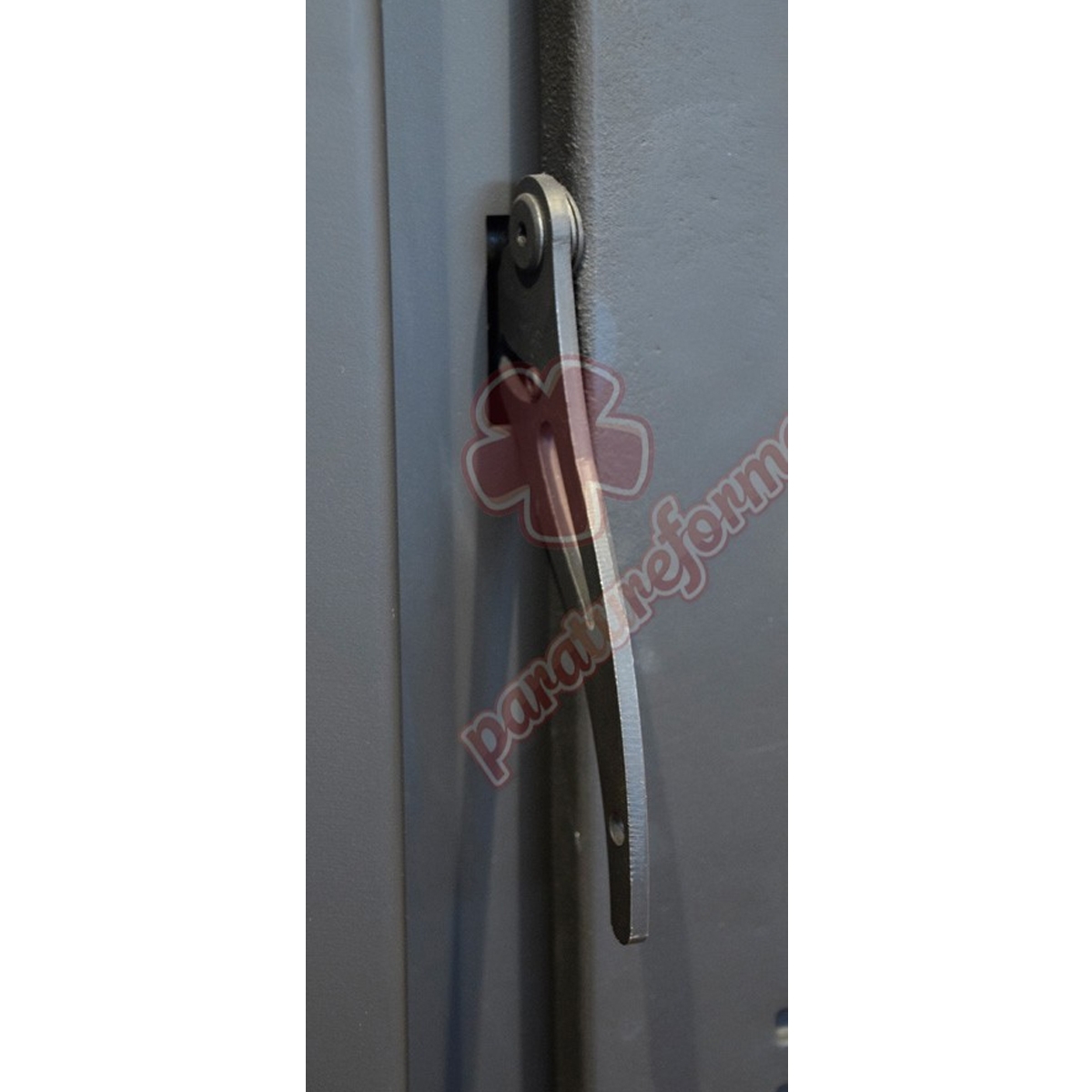

- Equipment with Doors

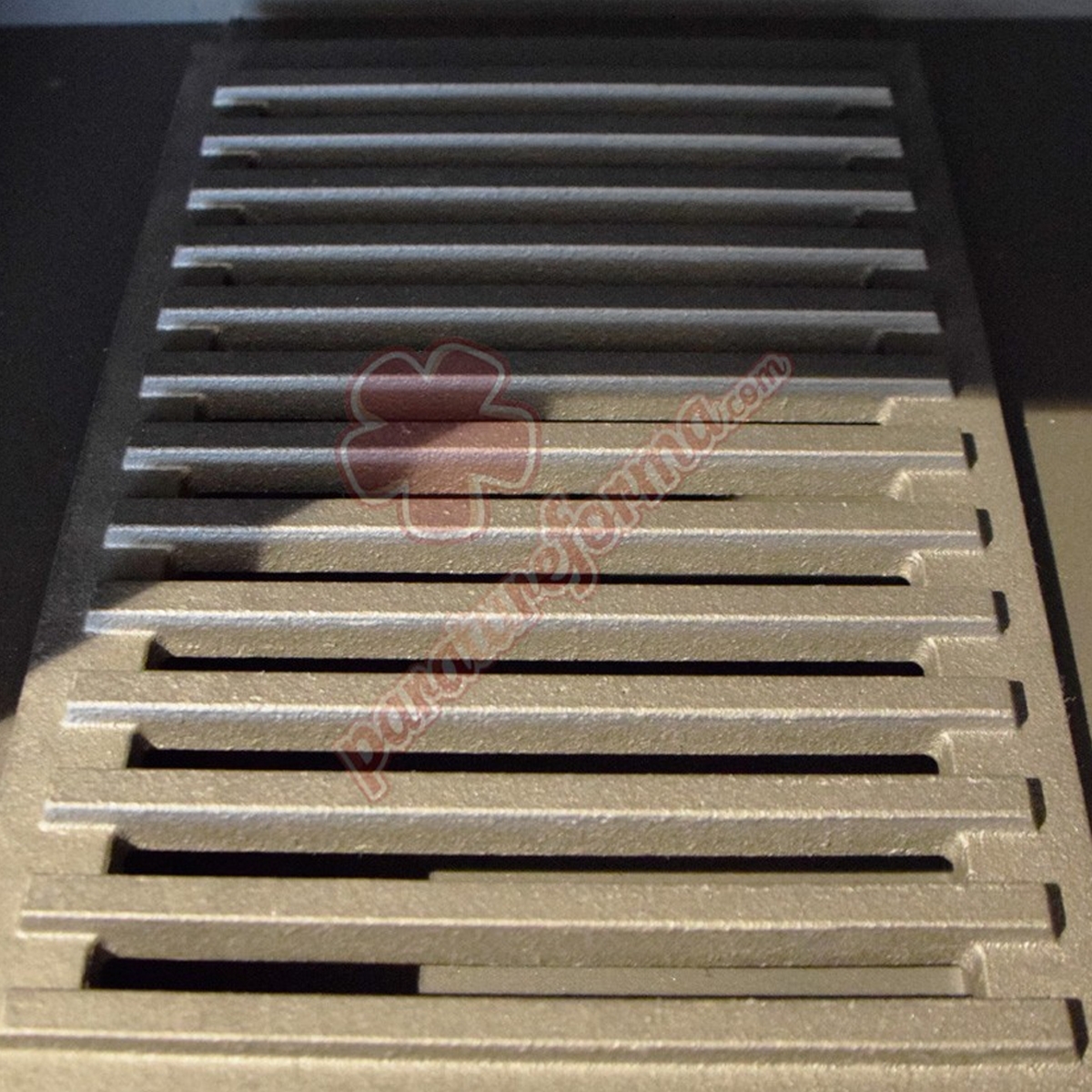

- Cast Iron Grill
In addition, the Front CH-4 wood stove comes with a gift of your choice from Wonderbox.
592,00 €
-20%
710,40 €
-20%
571,20 €
-20%
1.051,20 €
-20%
528,00 €
-20%
576,00 €
-20%
Table of Contents
Basic CH-4 wood stove , made of steel with an elegant design. High quality finish with great resistance and allowing you to enjoy ecological heating while maintaining significant energy savings. It has an elegant design equipped with a cast iron door and grill.
The CH-4 wood stove is a product with an excellent quality/price ratio as it includes primary and secondary air regulation with a Clean-Glass system.
What is combustion in a fireplace?
It is the chemical reaction that occurs between oxygen and fuel (firewood), with an initial contribution of fire at the beginning of the process.
What is double combustion in a fireplace?
The combustion of a basic chimney emits waste that is expelled by its draught, which ends up in the outside air and produces greater environmental pollution, as well as a great loss of heat and efficiency.
If the waste formed by the first combustion is reused as fuel, performance is improved. This process is known as double combustion, and it is carried out by injecting air into this waste. This second air intake improves the final performance of the chimney, reduces the elements ejected, improves fine performance, and keeps the interior cleaner.
What is the performance of a fireplace?
This value indicates the percentage of heat that is actually used to heat the room where it is located, produced by combustion. That is, of the 100% of the heat produced inside the fireplace, the value that really serves us to heat our home. For example, an efficiency of 71% indicates that 29% of the heat is lost in the chimney's own combustion chamber and 71% is emitted to the outside.
On the other hand, a different concept is energy efficiency, which is related to the performance that can be extracted from a fuel, depending on whether we use combustion, double combustion, primary air, secondary air... The greater the mechanisms for extracting all its accumulated energy from a fuel, the more efficient our fireplace will be.
What is a chimney deflector?
It is a piece that is placed in the upper part of the combustion chamber. It serves as a screen between the fire and the smoke outlet where the evacuation pipe is fitted.
It has a double function, on the one hand it prevents that when there is a lot of flame it can directly affect the tube, which would cause the smoke to accumulate in the combustion chamber of the stove as the flame is covering the natural outlet of the stove, while reducing the consumption of wood, since the deflector regulates the burning of wood, and it also serves to improve smoke evacuation, since the flame when it hits the baffle, heats it, and this heats the air at the top of the baffle making it weigh less, and causes it to exit through the tube upwards.
 |
|
 |
 |
 |
 |
|
| Product | Front Wood Stove CH-4 | Front wood stove with oven M-104 | Corner wood stove CH-5 H | Wood stove with cast iron interior M-108 PF + Direct gift | Front wood stove with CH-8 oven | Jaén Stove with Oven |
| Ratings |
|
|
|
|
|
|
| Manufacturer | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción | Joyma |
| Price |
880,00 € 704,00 € |
888,00 € 710,40 € |
850,00 € 680,00 € |
940,00 € 752,00 € |
950,00 € 760,00 € |
805,09 € 724,58 € |
| Price difference | +6,40 € | -24,00 € | +48,00 € | +56,00 € | +20,58 € | |
| Guarantee |
3 years |
3 years |
3 years |
3 years |
3 years |
|
| Energy certification |
A+ |
TO |
TO |
TO |
A+ |
|
| Heat output (kW) |
9,5-12 |
11-15 |
11-15 |
9.5-12 |
9,5-12 |
8,3 |
| Yield (%) |
81 |
75 |
74 |
81 |
81 |
81.5 |
| CO emissions (%) |
0.08 |
0.11 |
0.09 |
0.08 |
0.08 |
|
| Smoke outlet (mm) |
150 |
150 |
150 |
150 |
150 |
150 |
| Smoke outlet area |
Superior Male |
Superior Male |
Superior Male |
Superior Male |
Superior Male |
|
| Weight (kg) |
110 |
93 |
93 |
75 |
128 |
130 |
| Max size. Trunk (cm) |
65 |
50 |
55 |
65 |
65 |
|
| Heatable volume (m3) |
260 |
305 |
305 |
260 |
295 |
|
| Type of Combustion |
Double |
Double |
Double |
Double |
Double |
Double |
| Pull-out ashtray drawer |
Yes |
Yes |
Yes |
Yes |
Yes |
|
| Woodshed |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Dual chamber |
Yes |
Yes |
Yes |
No |
No |
Yes |
| Plate warmer |
No |
No |
No |
No |
No |
|
| Oven |
Yes |
Yes |
Yes |
No |
Yes |
Yes |
| Fans (turbines) |
No |
No |
No |
No |
No |
|

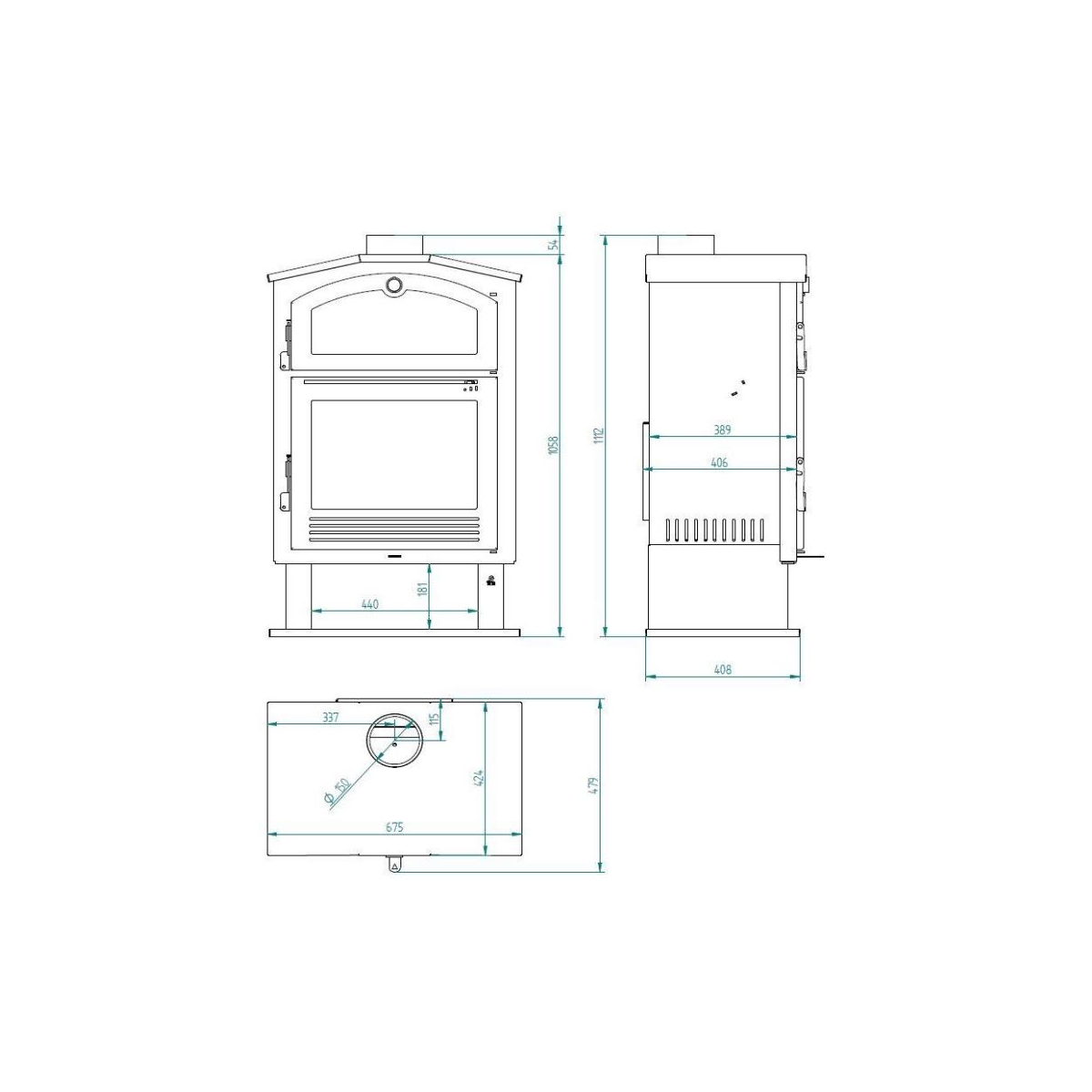

| Dimensions cm (W x L x H) |
675x435x1115 |
562x460x1015 |
895x522x1018 |
648x504x713 |
650x495x1136 |
61x48x100 |

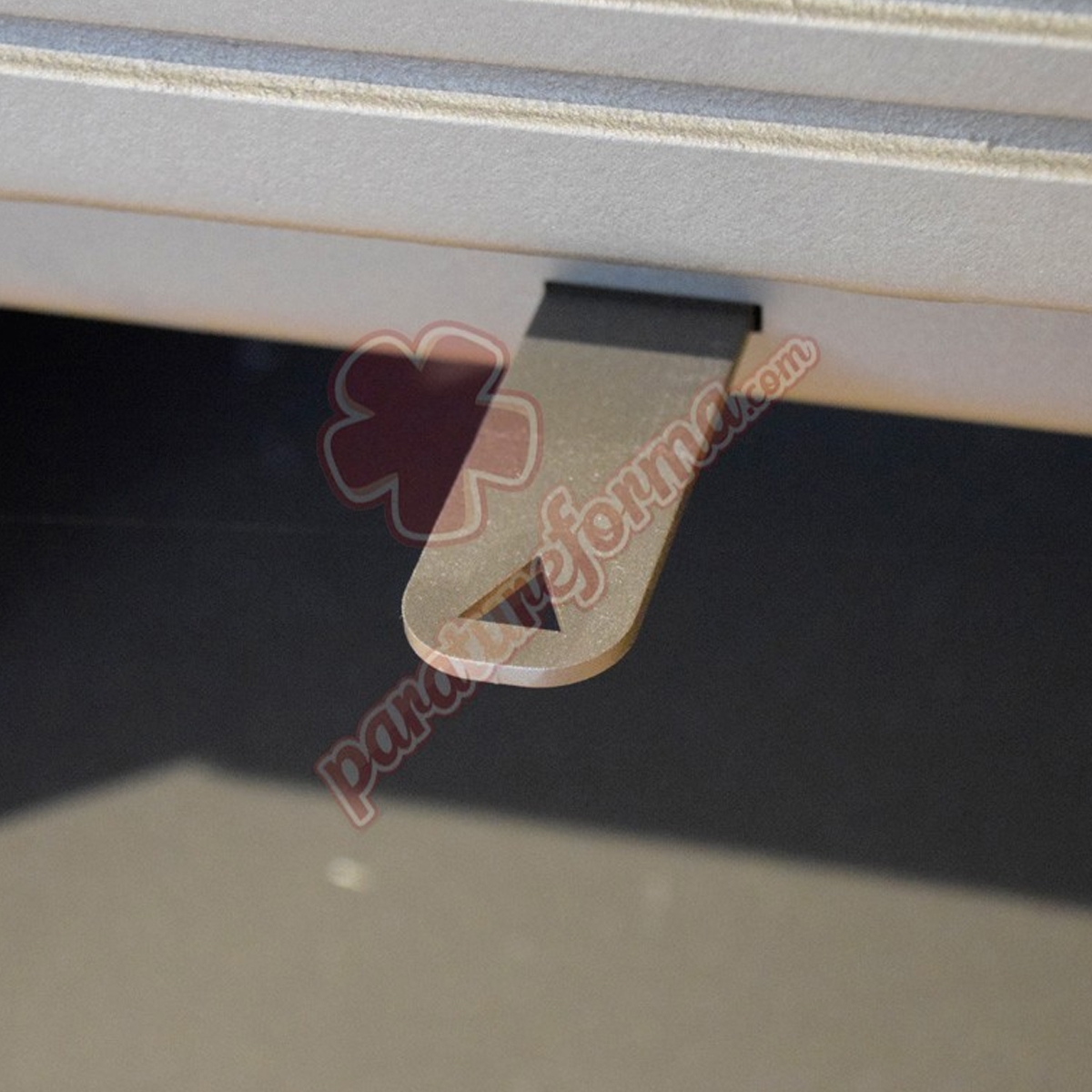

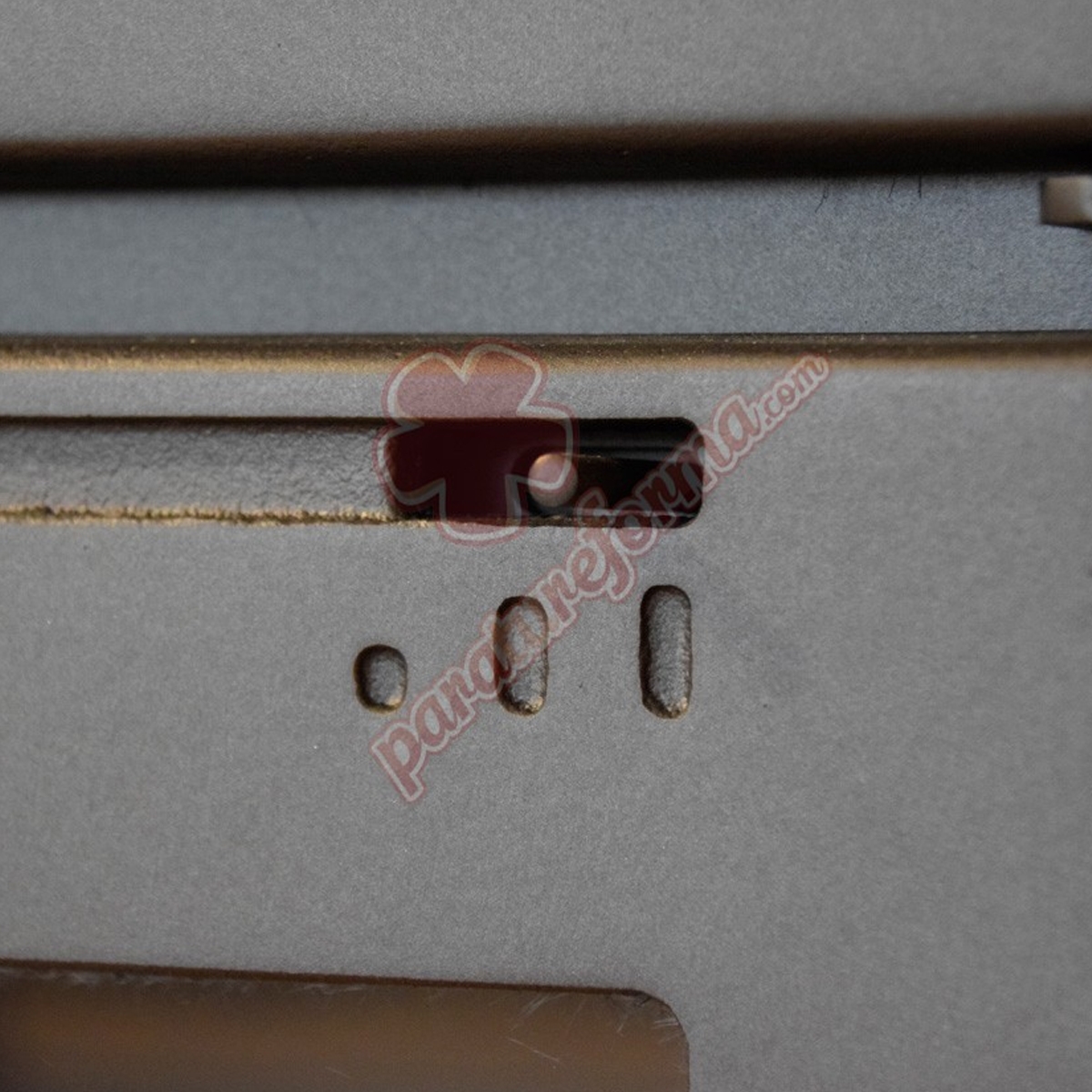

| Primary air regulation |
Yes |
Yes |
Yes |
Yes |
Yes |
|
| Secondary air regulation |
Yes |
Yes |
Yes |
Yes |
Yes |
|
| Clean-glass system |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Glass-ceramic resistance (ºC) |
750 |
750 |
750 |
750 |
750 |
750 |
| Heat resistance paint (ºC) |
800 |
800 |
800 |
800 |
800 |
|

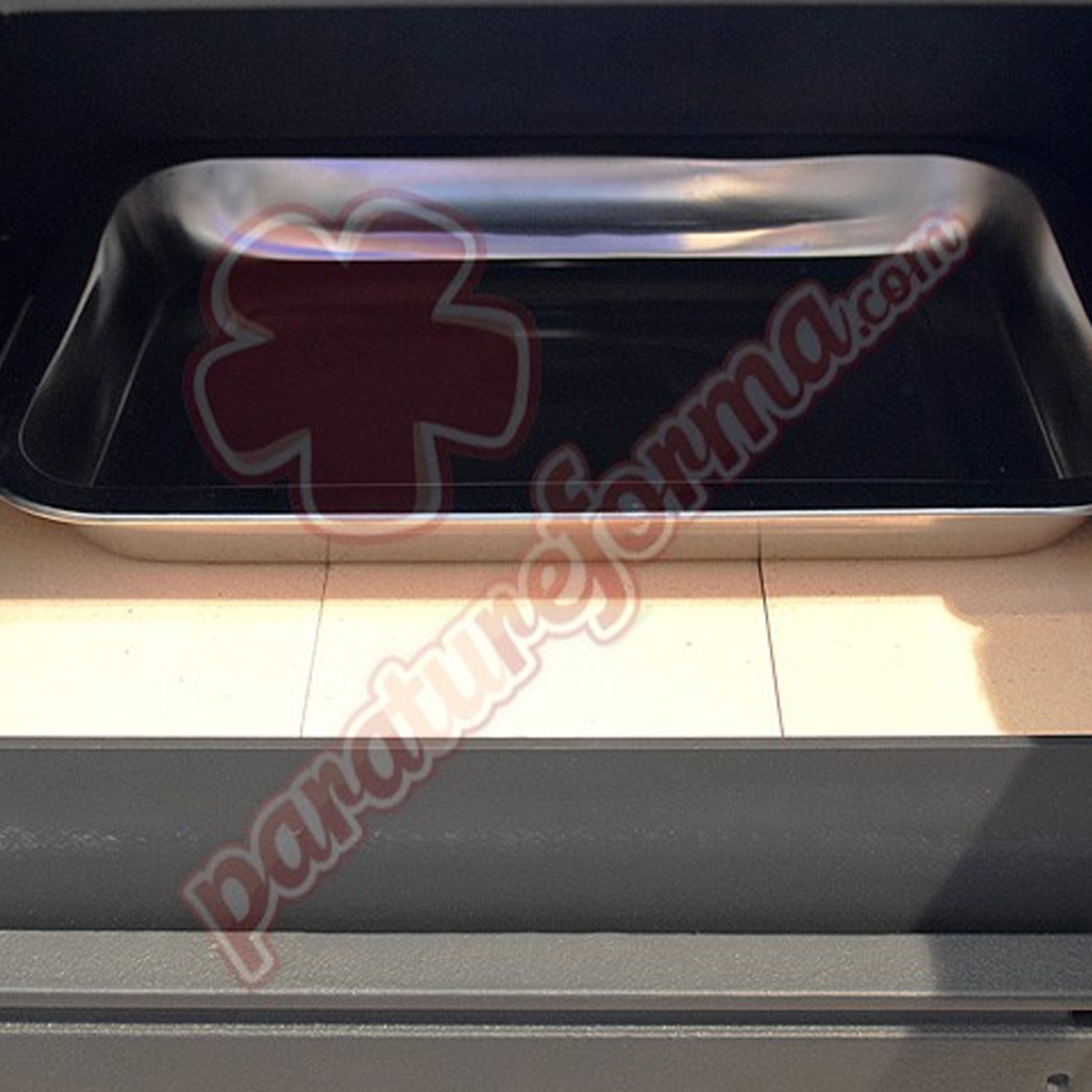

| Stainless steel oven tray. |
Yes |
|||||
| Fuel |
Firewood |
|||||
| Wall |
Straight |
|||||
| View product | View product | View product | View product | View product | View product |
