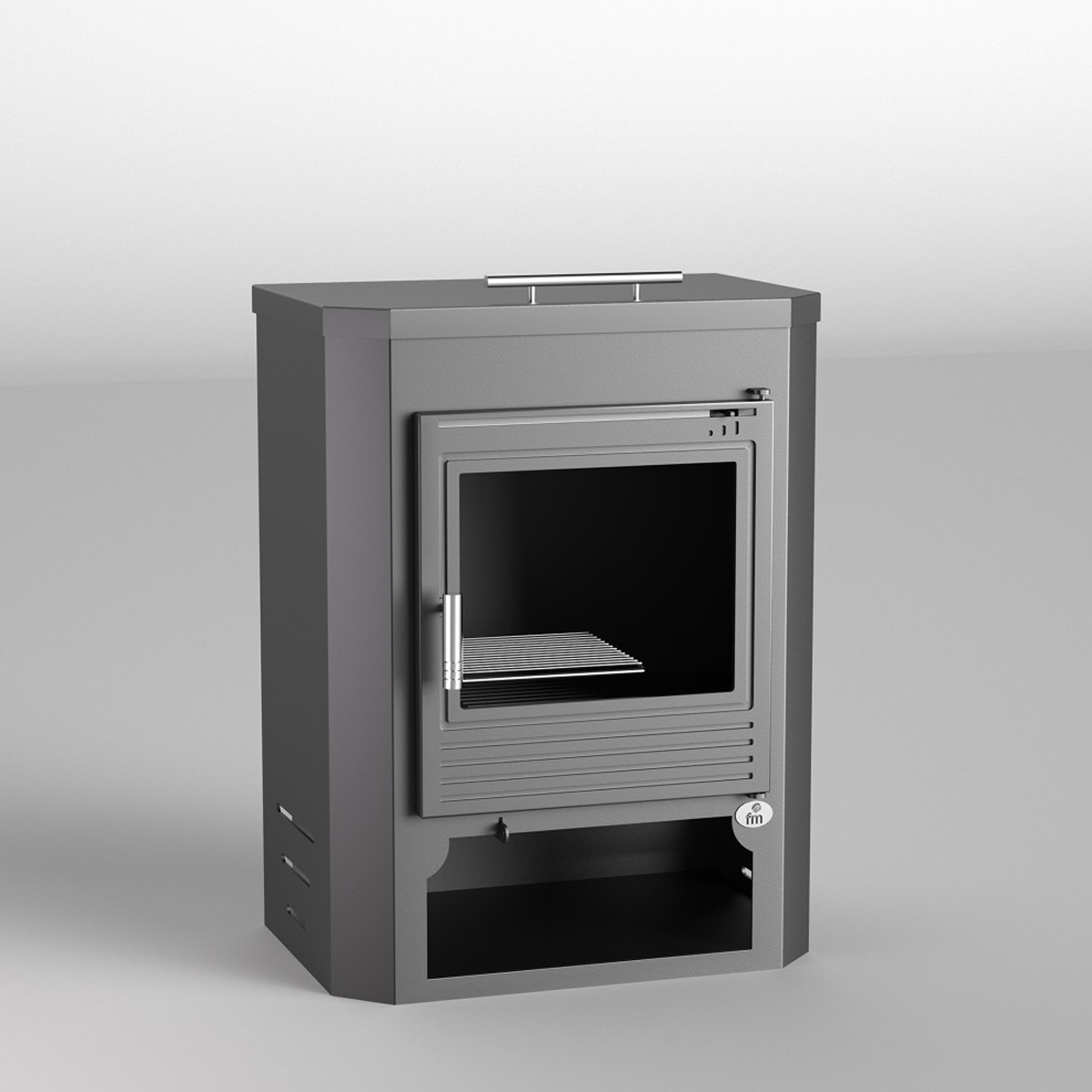

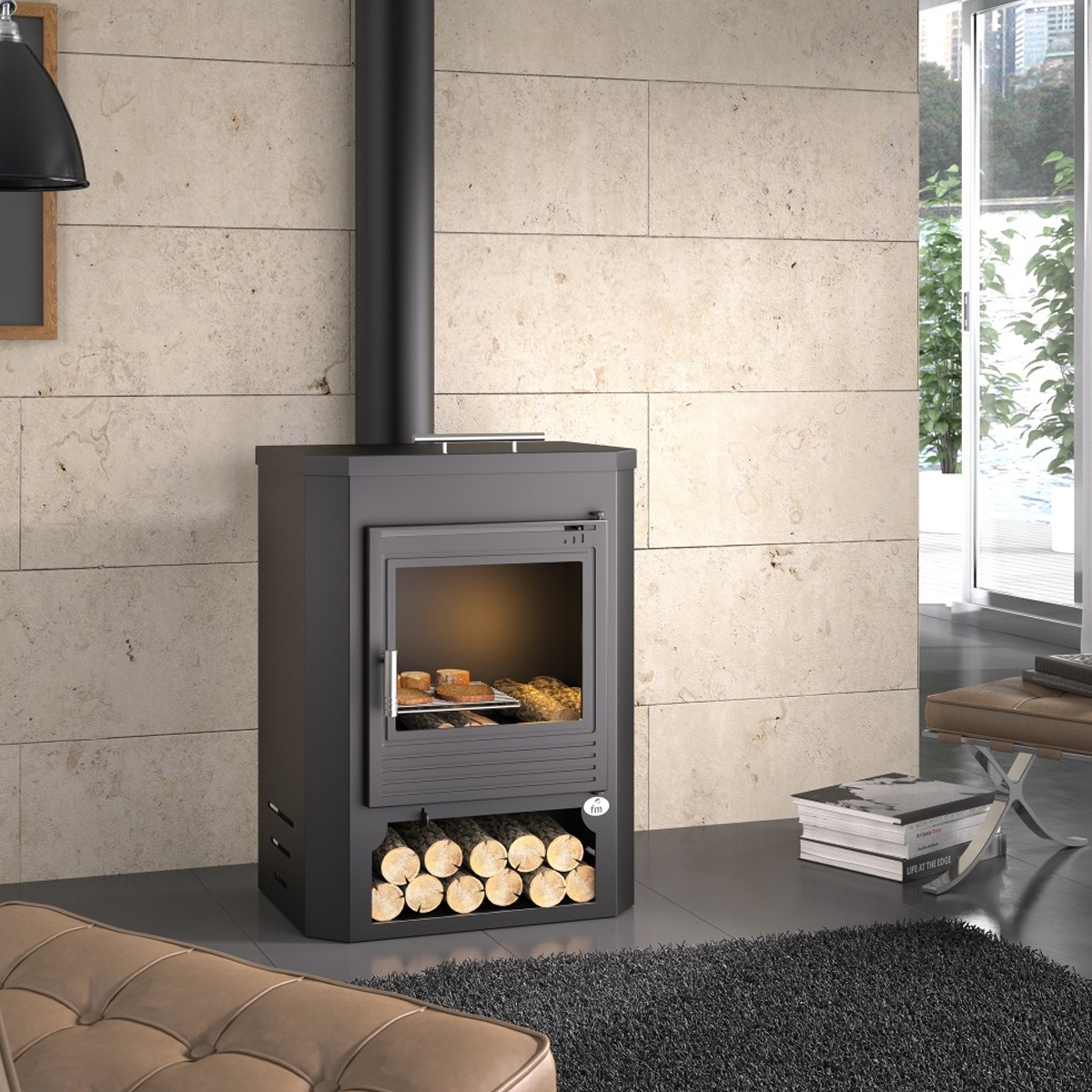

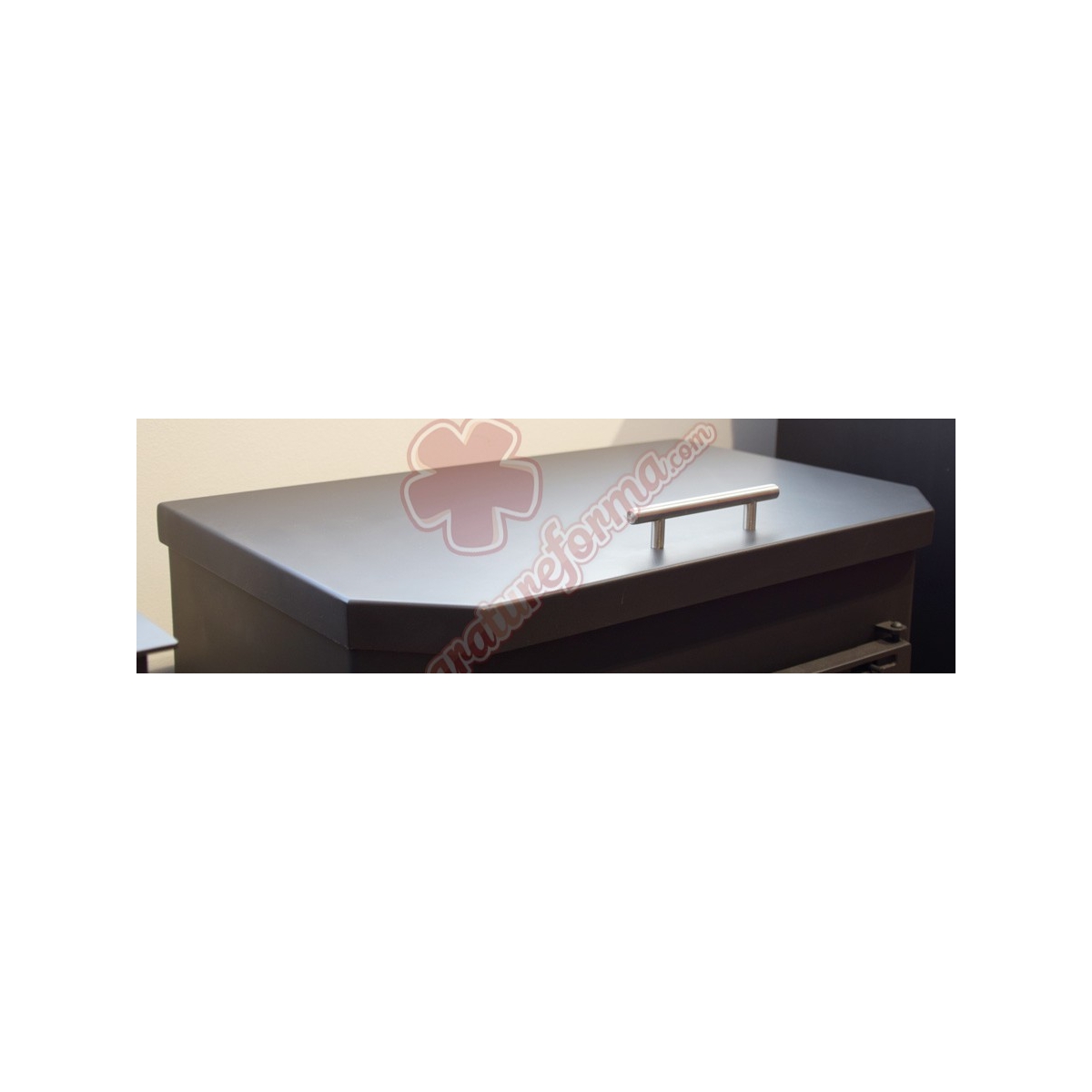

Front wood stove M-102

The M-102 Front wood stove, a true jewel of heating. This equipment is made of steel up to 4 mm thick, which guarantees its durability and efficiency. With its pull-out ashtray drawer, cleaning is child's play.

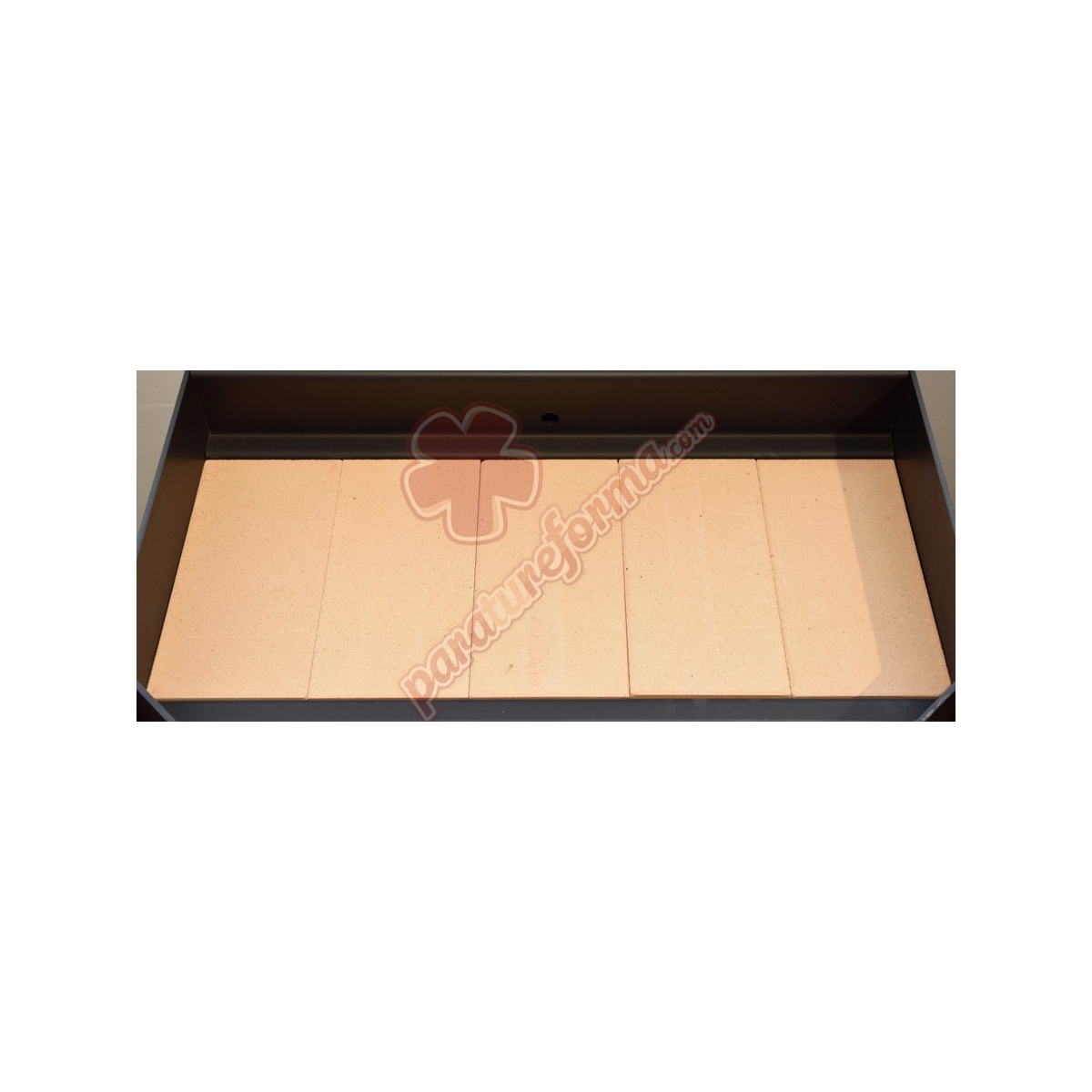

The vermiculite-clad interior ensures even heat distribution, while the cast iron door and grille add a touch of elegance and robustness.

Download Heating Brochure

What is combustion in a wood stove?

It is the chemical reaction that occurs between oxygen and fuel (firewood), with an initial contribution of fire at the beginning of the process.

What is double combustion in a wood stove?

The combustion of a basic chimney emits waste that is expelled by its draught, which ends up in the outside air and produces greater environmental pollution, as well as a great loss of heat and efficiency.

If the waste formed by the first combustion is reused as fuel, performance is improved. This process is known as double combustion, and it is carried out by injecting air into this waste. This second air intake improves the final performance of the chimney, reduces the elements ejected, improves fine performance, and keeps the interior cleaner.

What is the performance of a wood stove?

This value indicates the percentage of heat that is actually used to heat the room where it is located, produced by combustion. That is, of the 100% of the heat produced inside the fireplace, the value that really serves us to heat our home. For example, an efficiency of 71% indicates that 29% of the heat is lost in the chimney's own combustion chamber and 71% is emitted to the outside.

On the other hand, a different concept is energy efficiency, which is related to the performance that can be extracted from a fuel, depending on whether we use combustion, double combustion, primary air, secondary air... The greater the mechanisms to extract all its accumulated energy from a fuel, the more efficient our fireplace will be.

What is the baffle of a wood stove?

It is a piece that is placed in the upper part of the combustion chamber. It serves as a screen between the fire and the smoke outlet where the evacuation pipe is fitted.

It has a double function, on the one hand it prevents that when there is a lot of flame it can directly affect the tube, which would cause the smoke to accumulate in the combustion chamber of the stove as the flame is covering the natural outlet of the stove, while reducing the consumption of wood, since the deflector regulates the burning of wood, and it also serves to improve smoke evacuation, since the flame when it hits the baffle, heats it, and this heats the air at the top of the baffle making it weigh less, and causes it to exit through the tube upwards.

Advantages of M-102 Wood Stove

• It has a front, woodshed and plate warmer.

• Made of steel with an elegant design and its finish is of high quality and great resistance, allowing you to enjoy ecological heating while maintaining significant energy savings.

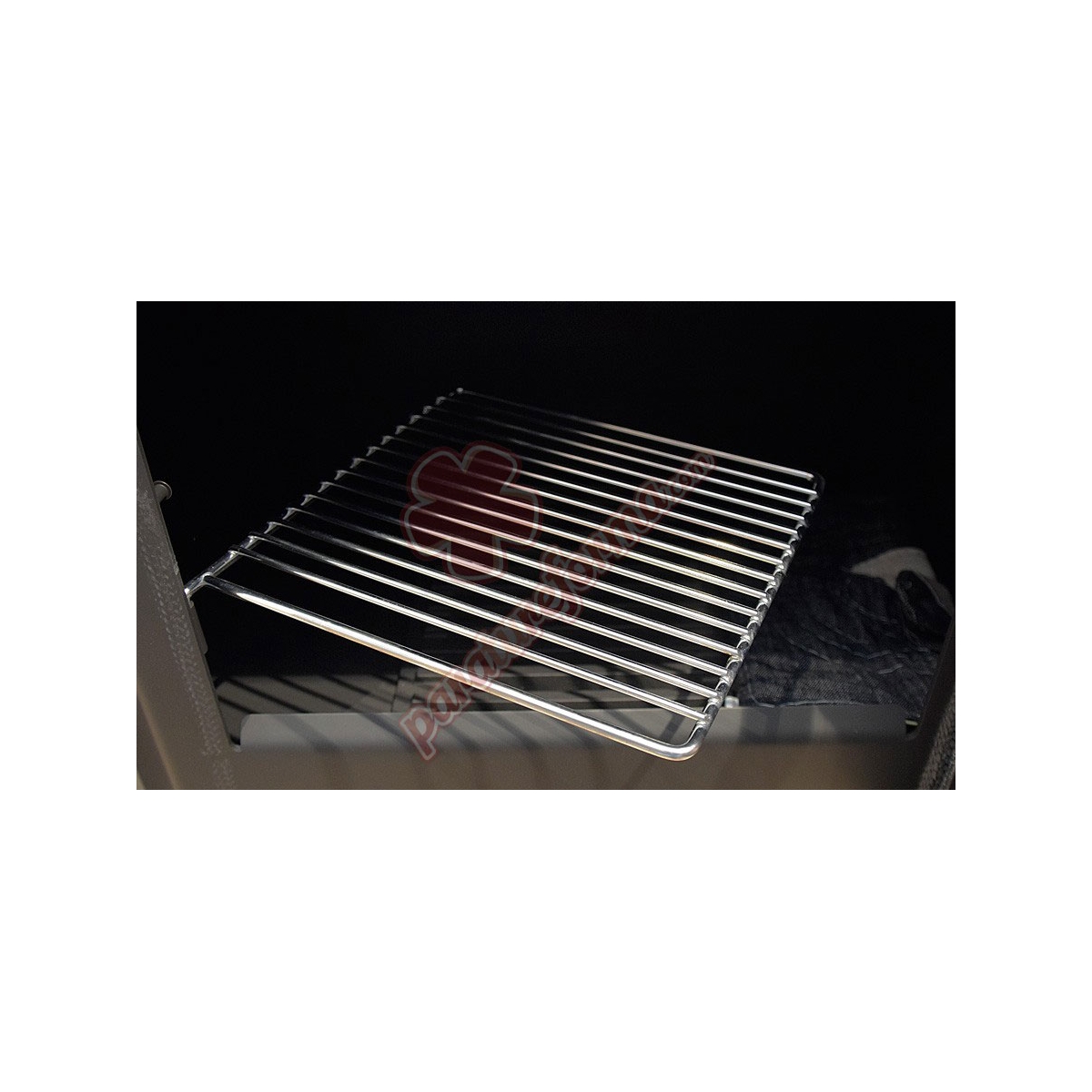

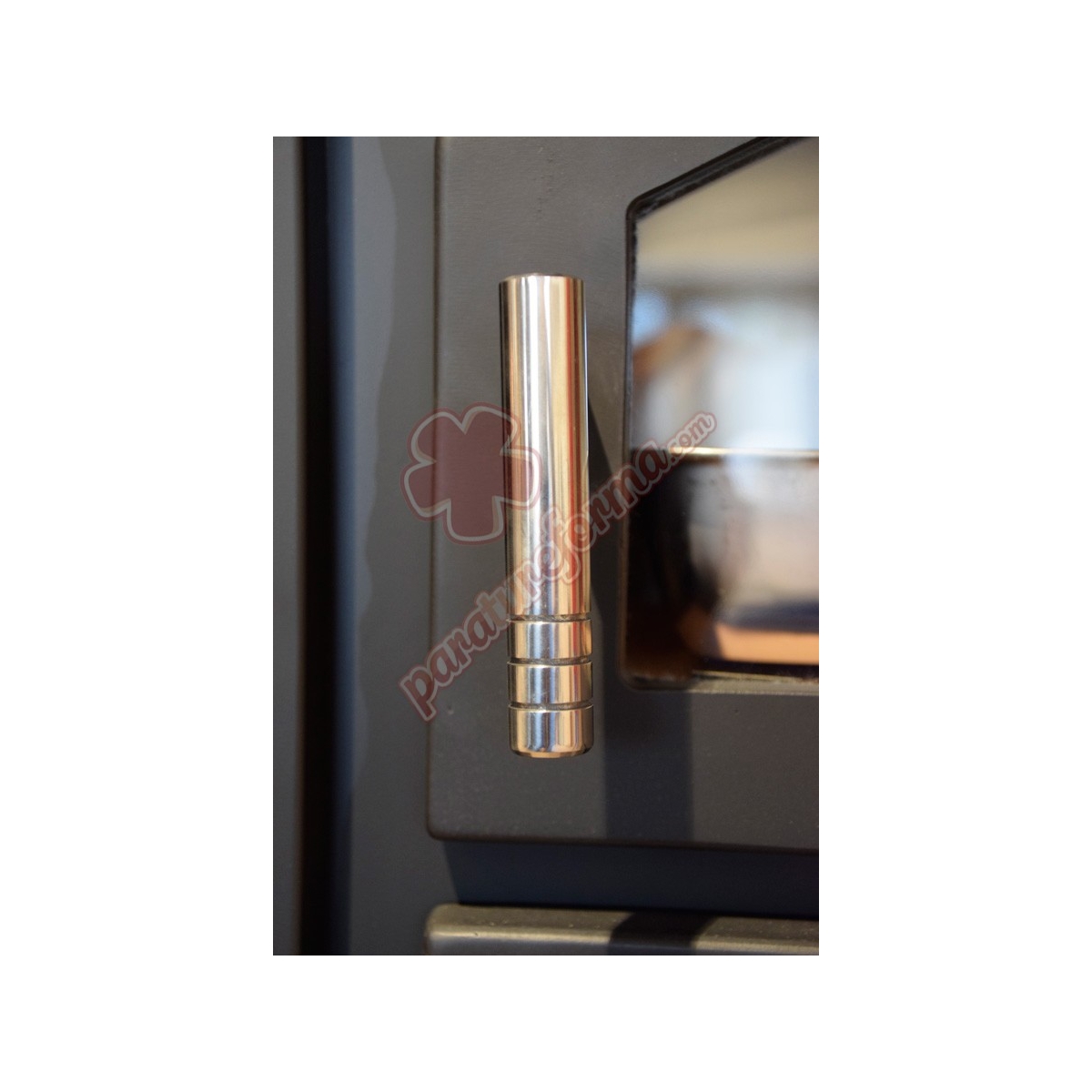

• It is equipped with a cast iron door and grill.

Installation of M-102 wood stove

Installation must be carried out by a professional and the following instructions must be taken into account:

• It must be installed in a ventilated room, with at least one window that can be opened into the room.

• The installation must be as vertical as possible, avoiding the use of elbows and deviations. In the event that the installation is carried out only with pipes, it must have a minimum of 3 linear meters. The pipes must be sealed with a refractory putty in order to prevent soot from falling through the joints.

• To test the tightness of the chimney, it is recommended to cover the outlet in the roof and insert paper or wet straw, light it and observe if there are leaks.

• It is important that the chimney exceeds one meter the highest part of the house.

• It is necessary to have access to the cleaning of the appliance, the flue and the chimney. It is recommended to leave a minimum distance to facilitate cleaning operations.

• It must be installed on floors that have an adequate powerful capacity.
