Wood stove with oven and turbine M-107 T + Direct gift
1.560,42 € VAT incl. 21%

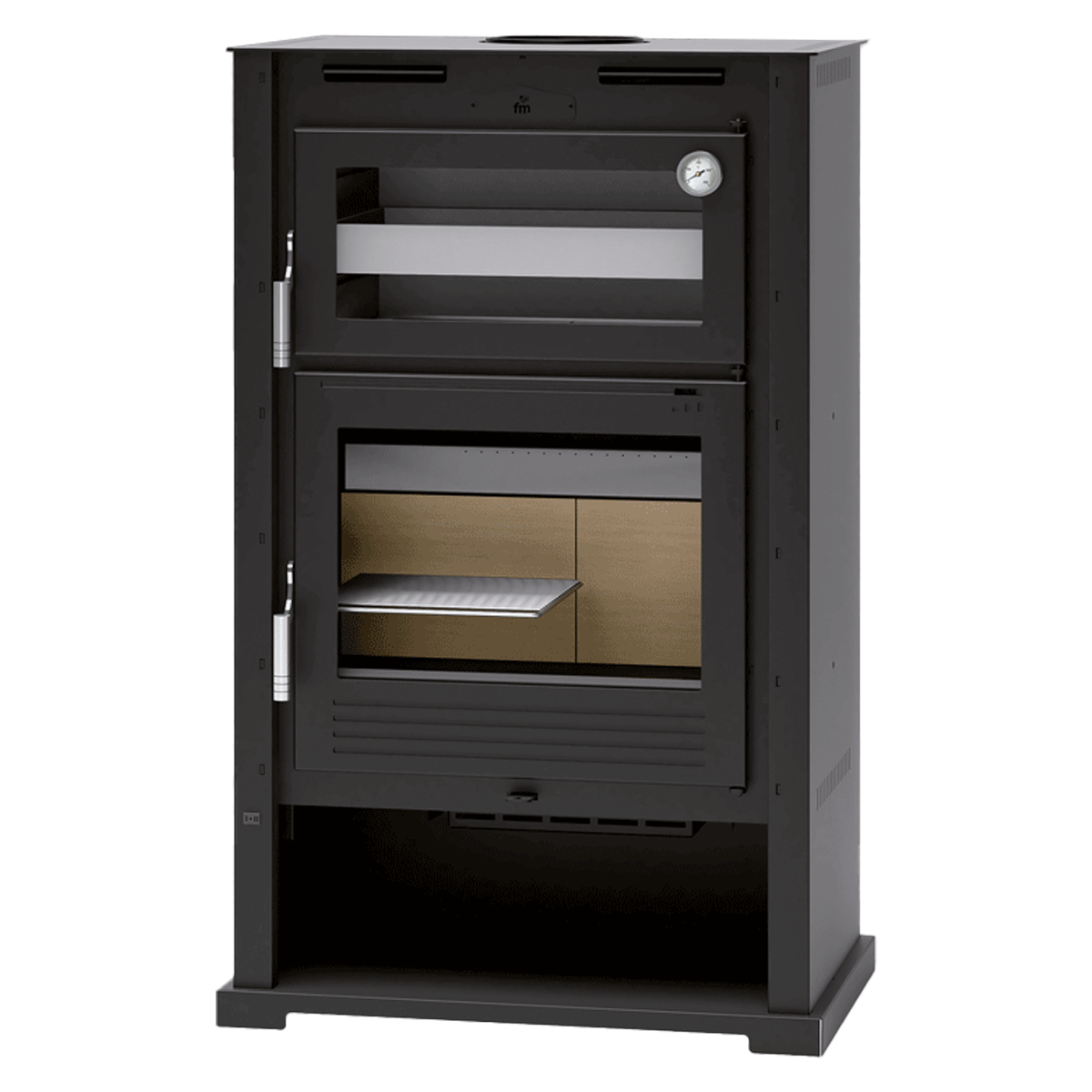

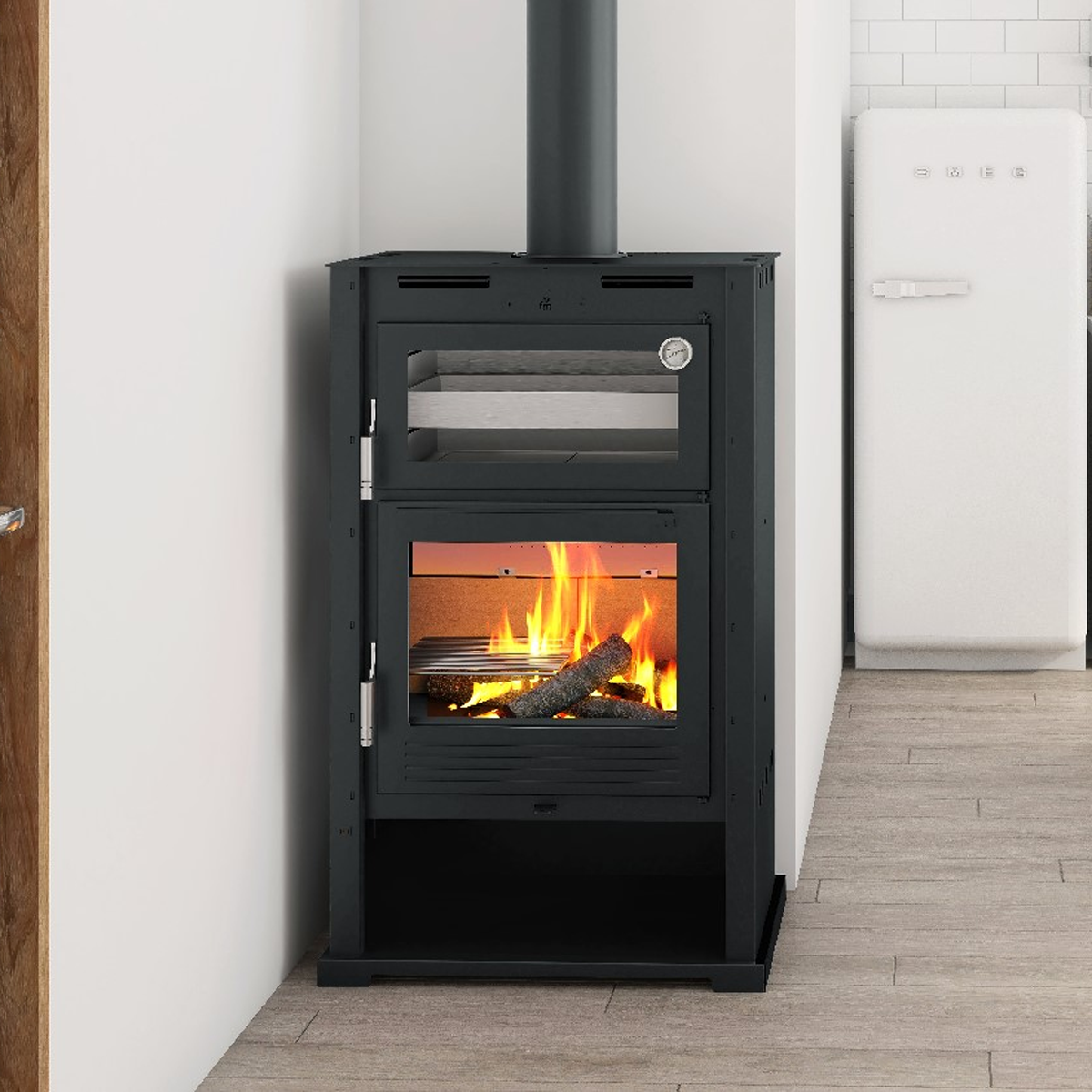

Wood stove with enveloping oven in stainless steel M-107 T
- Equipment Made of Steel up to 4 mm.

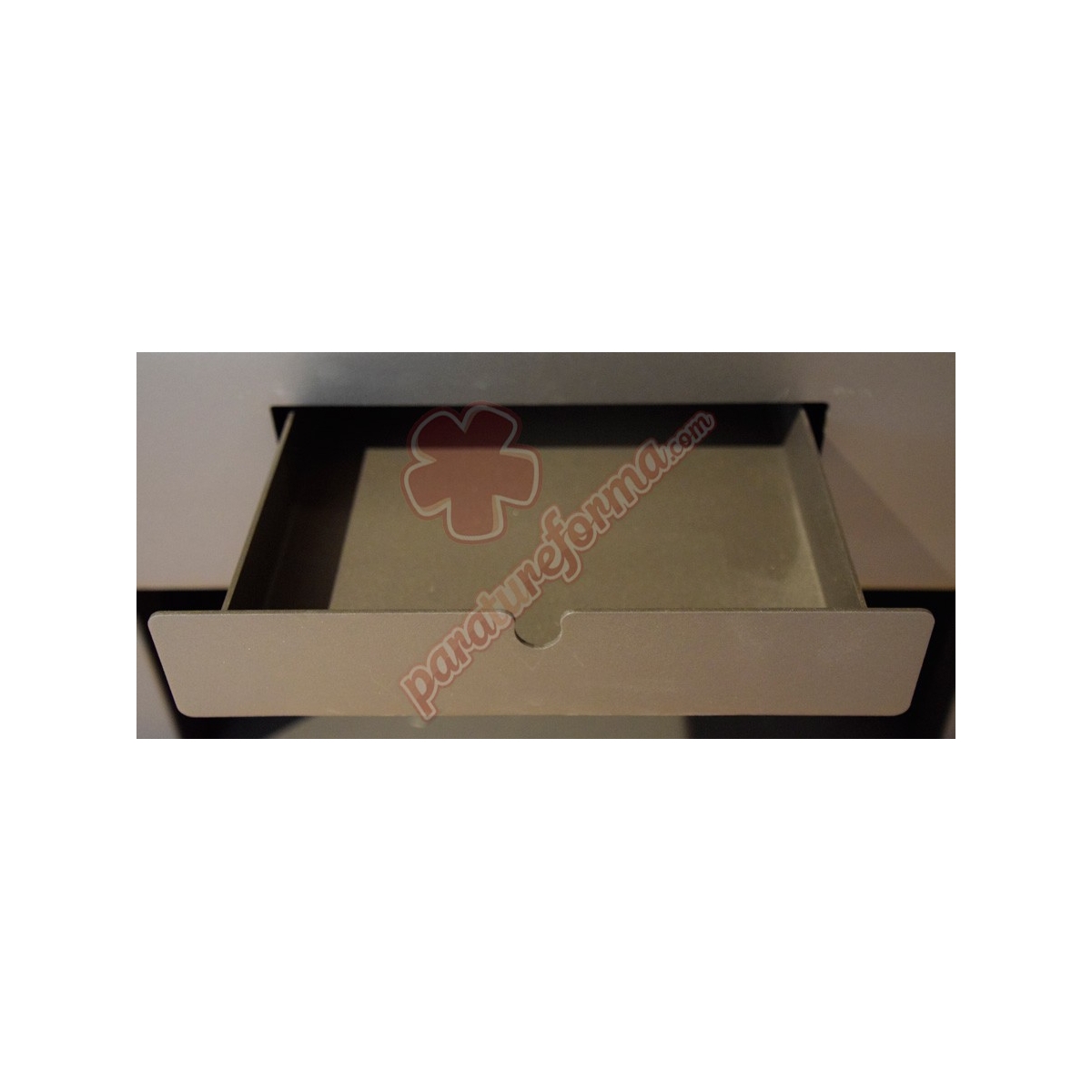

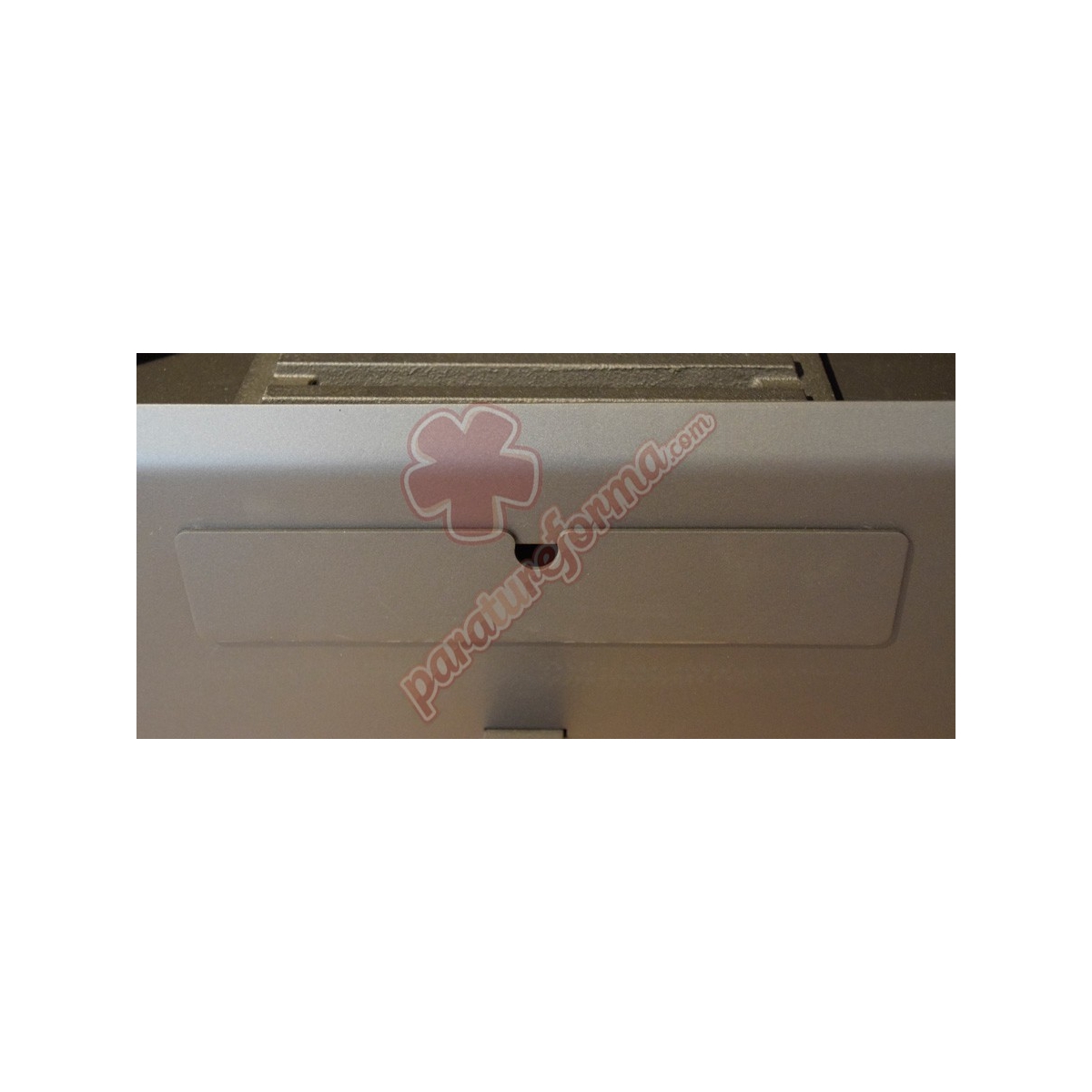

- Pull-out ashtray drawer
- Vermiculite interior
- Double Combustion System

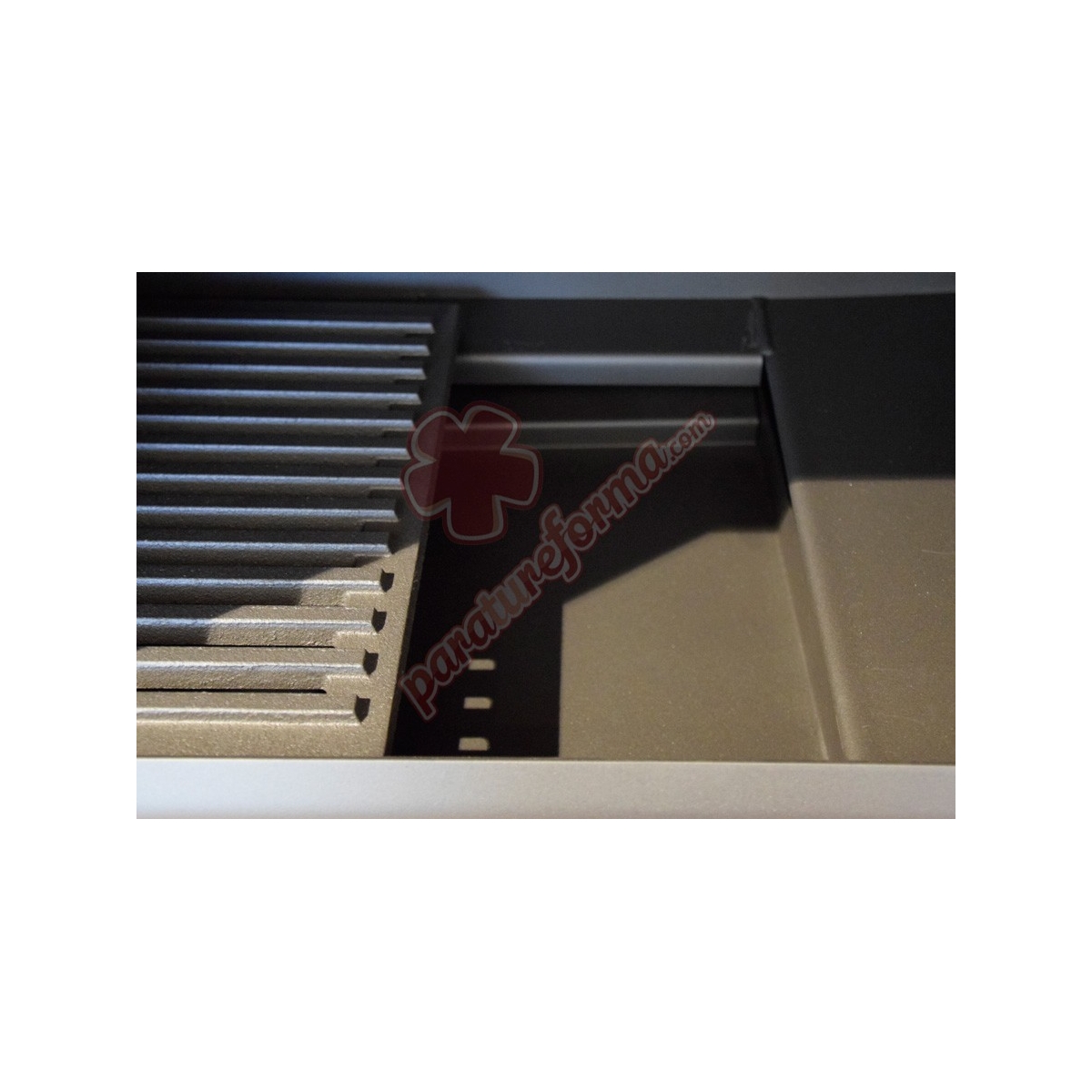

- Equipment with Cast Iron Doors and Grill

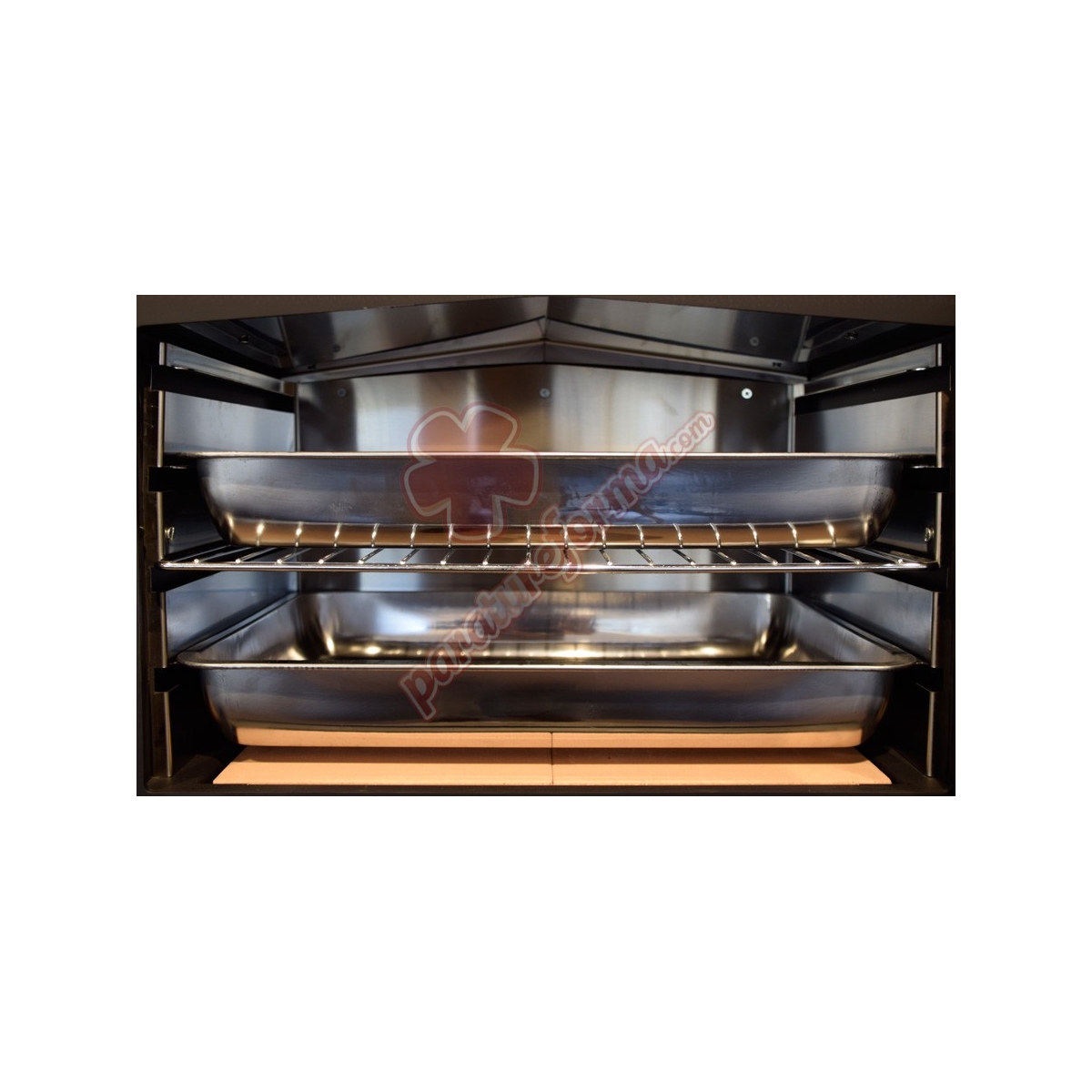

- Stainless Steel Oven Tray. 500 x 300 x 60 mm
- Oven Grill Stainless Steel. 500 x 350 mm
- Dual Camera
- With turbine
In addition, the M-107-T corner wood stove comes with a gift of your choice from Wonderbox
592,00 €
-20%
710,40 €
-20%
571,20 €
-20%
1.051,20 €
-20%
528,00 €
-20%
576,00 €
-20%
Table of Contents
M-107 T wood stove with tangential turbine of 265 m3/h, with oven and stainless steel tray and with log holder and double combustion chamber, made of steel up to 4mm, with an elegant design. High quality finish with great resistance.

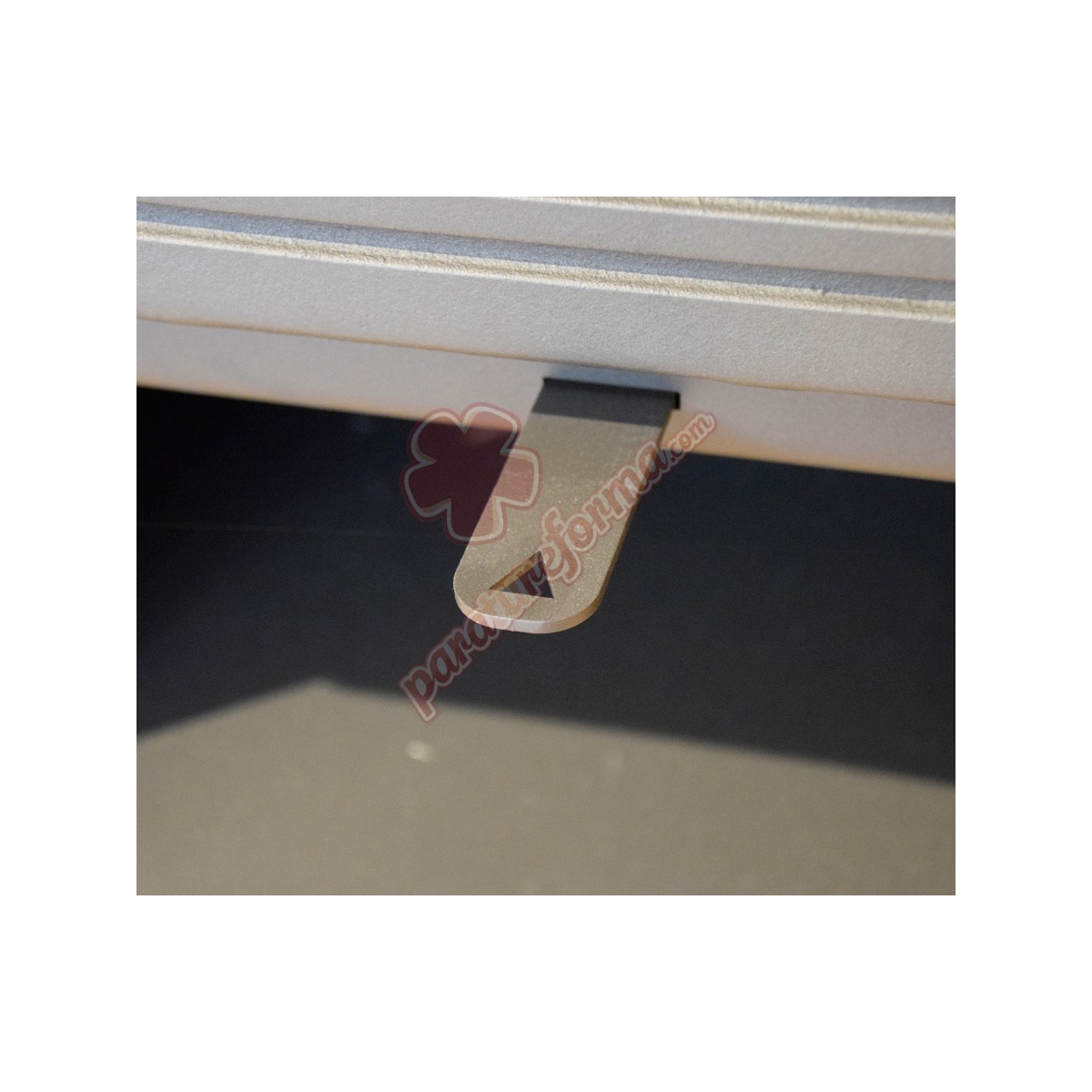

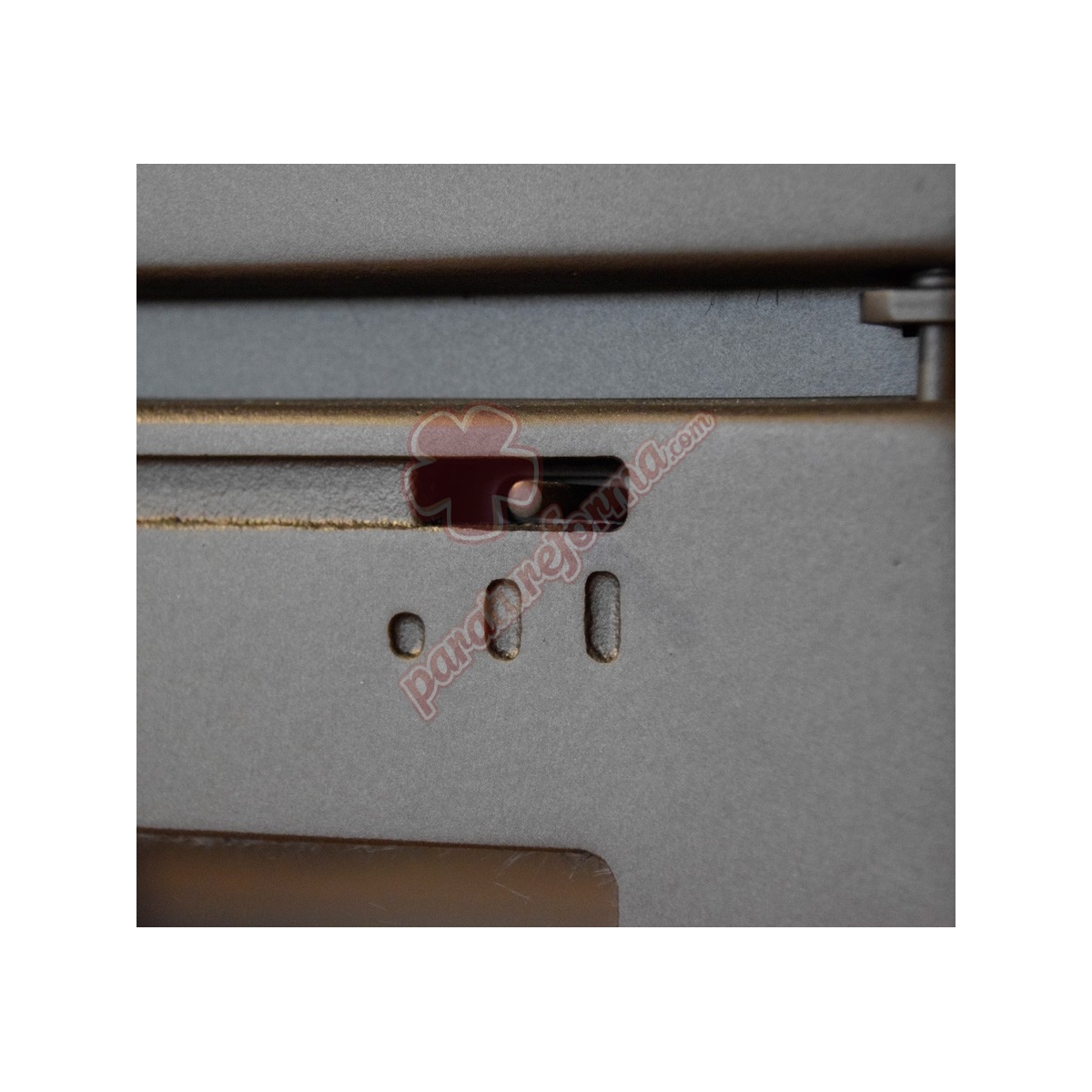

It has an elegant design equipped with doors with vitroceramic glass resistant up to 750º. Primary and secondary air regulation with Clean-Glass system. Double combustion system that allows cleaner and more efficient combustion.
What does combustion in awood stove consist of?
It is the chemical reaction that occurs between oxygen and fuel (firewood), with an initial contribution of fire at the beginning of the process.
What is double combustion in a wood stove?
The combustion of a basic wood stove emits waste that is expelled by its draught, which ends up in the outside air and produces greater environmental pollution, in addition to a great loss of heat and efficiency.
If the waste formed by the first combustion is reused as fuel, performance is improved. This process is known as double combustion, and it is carried out by injecting air into this waste. This second air intake improves the final performance of thewood fuel , reduces the elements ejected, improves fine performance, and keeps the interior cleaner.
What is the yield of a wood fire-fired e-stufa?
This value indicates the percentage of heat that is actually used to heat the room where it is located, produced by combustion. That is, of the 100% of the heat produced inside the wood stove, the value that really serves us to heat our home. For example, an efficiency of 71% indicates that 29% of the heat is lost in the combustion chamber of the wood stove itself and 71% is emitted to the outside.
On the other hand, a different concept is energy efficiency, which is related to the performance that can be extracted from a fuel, depending on whether we use combustion, double combustion, primary air, secondary air... The greater the mechanism for extracting all its accumulated energy from a fuel, the more efficient our wood stove will be.
What is the deflector of a wood stufa?
It is a piece that is placed in the upper part of the combustion chamber. It serves as a screen between the fire and the smoke outlet where the evacuation pipe is fitted.
It has a double function, on the one hand it prevents that when there is a lot of flame it can directly affect the tube, which would cause the smoke to accumulate in the combustion chamber of the stove as the flame is covering the natural outlet of the stove, while reducing the consumption of wood, since the deflector regulates the burning of wood, and it also serves to improve smoke evacuation, since the flame when it hits the baffle, heats it, and this heats the air at the top of the baffle making it weigh less, and causes it to exit through the tube upwards.
 |
 |
 |
 |
 |
 |
|
| Product | Wood stove with oven and turbine M-107 T + Direct gift | Front wood stove with oven and tangential fan M-107 RT + Direct gift | Front Wood Stove with Log Holder and Turbines M-182 LK + direct gift | Hanging wood stove with M-180 FK turbines + direct gift | Hanging wood stove M-183 K + Direct gift | Corner wood stove with oven CH-9 R + Direct Gift |
| Ratings |
|
|
|
|
|
|
| Manufacturer | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción |
| Price |
1.612,00 € 1.289,60 € |
1.600,00 € 1.280,00 € |
1.680,00 € 1.344,00 € |
1.540,00 € 1.232,00 € |
1.700,00 € 1.360,00 € |
1.518,00 € 1.214,40 € |
| Price difference | -9,60 € | +54,40 € | -57,60 € | +70,40 € | -75,20 € | |
| Guarantee |
3 years |
3 years |
3 years |
|||
| Energy certification |
A+ |
TO |
TO |
TO |
TO |
A+ |
| Heat output (kW) |
9,5-12 |
9.5-12 |
13-18 |
13-18 |
12.5-17 |
11-13,5 |
| Yield (%) |
81 |
81 |
81 |
81 |
81 |
82 |
| CO emissions (%) |
0.08 |
0.08 |
0.07 |
0.07 |
0.11 |
0.12 |
| Smoke outlet (mm) |
200 |
150 |
200 |
200 |
150 |
200 |
| Smoke outlet area |
Superior Male |
Superior Male |
Male |
Male |
Male |
Superior Male |
| Weight (kg) |
146 |
121 |
120 |
131 |
120 |
149 |
| Max size. Trunk (cm) |
65 |
65 |
75 |
75 |
62 |
75 |
| Heatable volume (m3) |
260 |
260 |
335 |
340 |
305 |
295 |
| Type of Combustion |
Double |
Double |
Double |
Double |
Double |
Double |
| Pull-out ashtray drawer |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Woodshed |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
| Dual chamber |
Yes |
Yes |
Yes |
Yes |
Yes |
No |
| Plate warmer |
No |
Yes |
Yes |
Yes |
Yes |
No |
| Oven |
Yes |
Yes |
No |
No |
No |
Yes |
| Fans (turbines) |
Tangential Turbine 265 m3/h, 43 w |
Tangential Turbine 265 m3/h, 43 w |
No |
|||

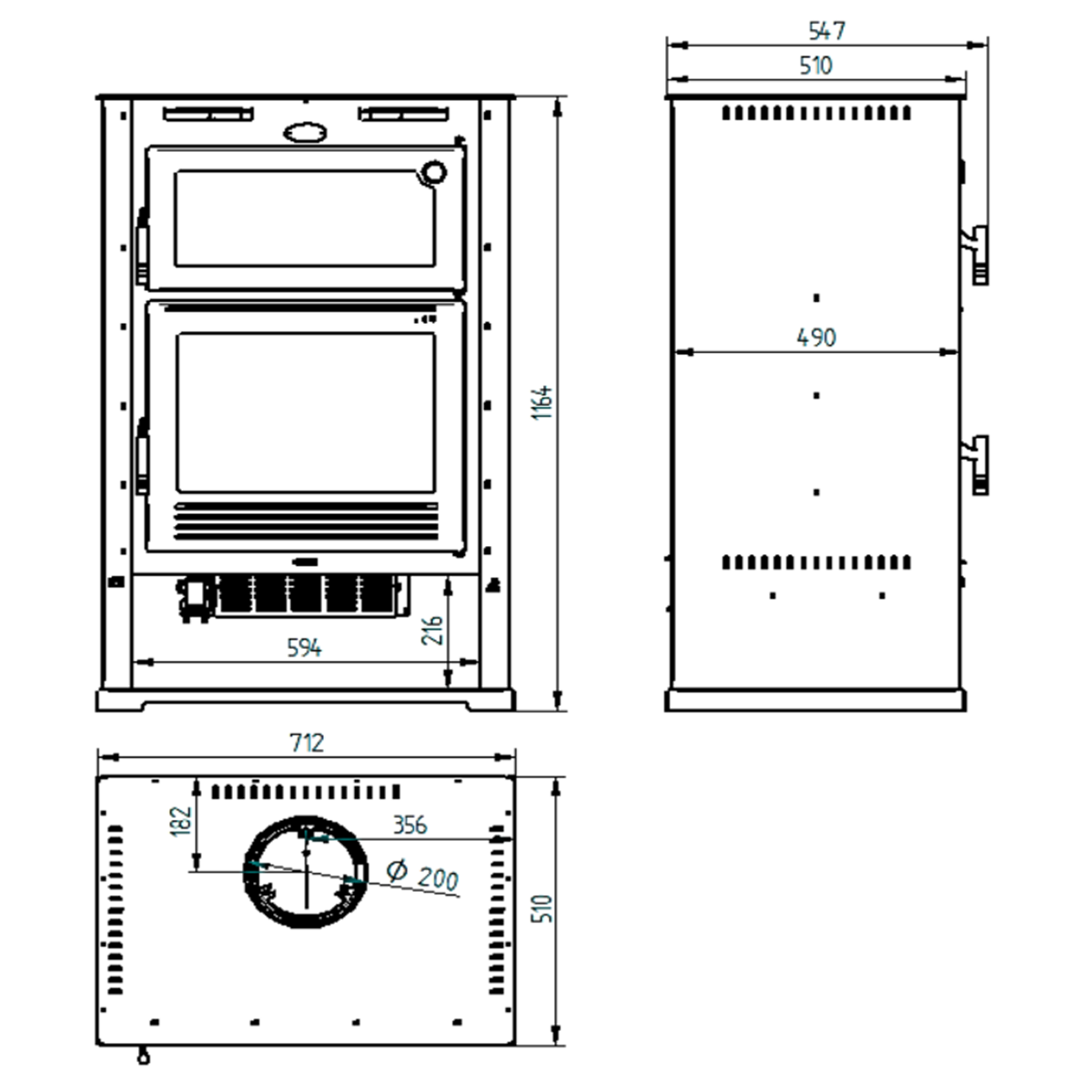

| Dimensions cm (W x L x H) |
728x543x1180 |
1118 x 641 x 1164 |
780x525x1010 |
839x493x619.5 |
839 x 493 x 619.5 |
1240x830x1120 |
| Primary air regulation |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Secondary air regulation |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Clean-glass system |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Glass-ceramic resistance (ºC) |
750 |
750 |
750 |
750 |
750 |
750 |
| Heat resistance paint (ºC) |
800 |
800 |
800 |
800 |
800 |
800 |
| View product | View product | View product | View product | View product | View product |
