Double wall stainless steel tube 25cm
Calculate your shipping costs
Select zone and quantity

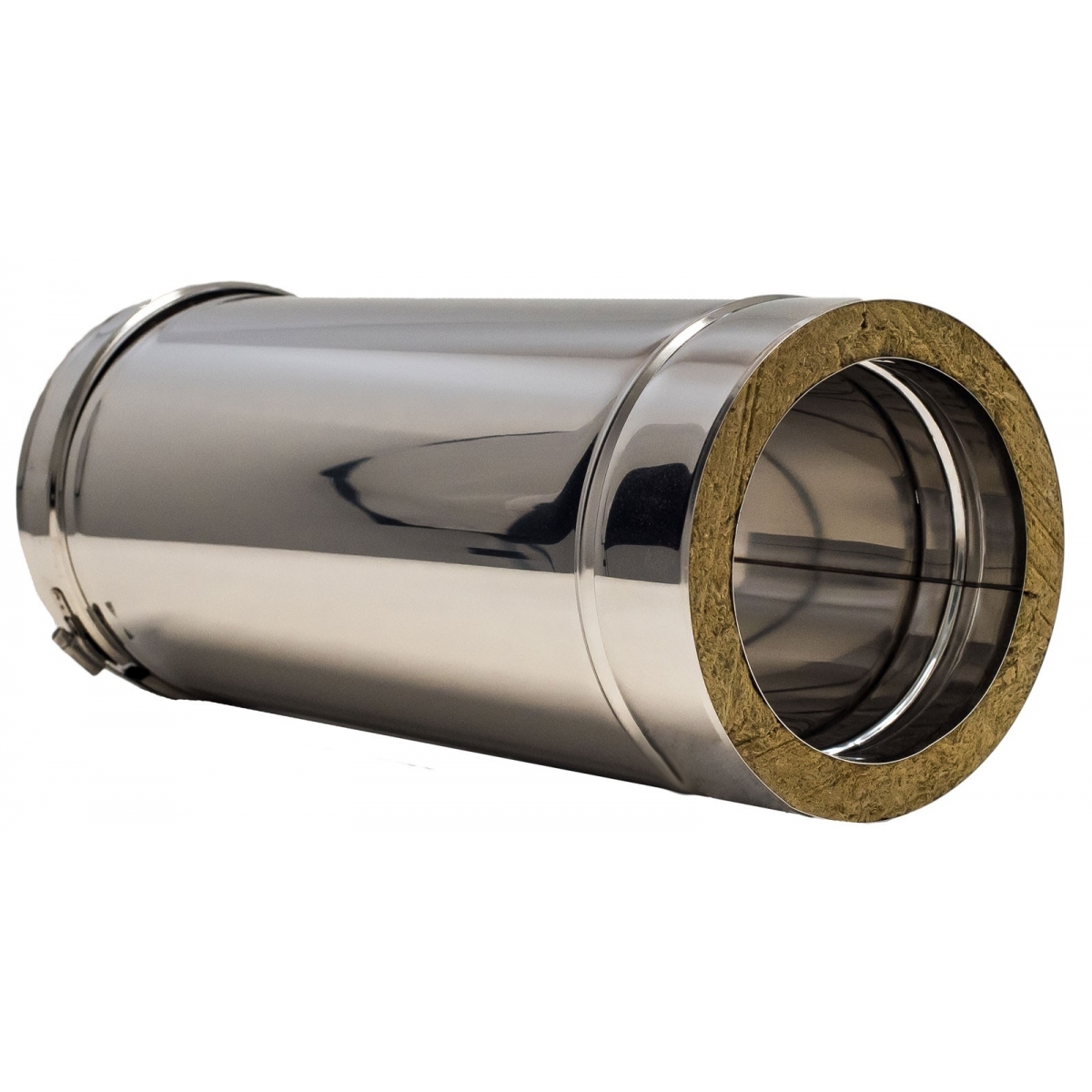

Double wall stainless steel tube 25cm with the inner wall of 0.4 mm thick stainless steel and the outer wall of 0.5 mm stainless steel prepared to withstand high temperatures. The size you choose should refer to the size of the inner tube.
Double wall stainless steel tube 25cm with the inner wall of 0.4 mm thick stainless steel and the outer wall of 0.5 mm stainless steel prepared to withstand high temperatures.
Technical details
• Inner wall: AISI 316L stainless steel thickness 0.4 mm.
• Exterior wall: AISI 304 stainless steel thickness 0.5 mm.
• Insulation: rock wool; Density 90kg/m3 and 25mm. thick.
• Continuous LASER welding on all parts.
• No thermal bridge of the internal duct with the outer tube, which represents a lower temperature loss of the internal duct and allows independent expansion.
• Bonding system: male-female with attachment clamp included.
• Finish: glossy exterior.
We can use the product in:
• Boilers for heating and DHW production.
• Boilers for industrial use.
• Bakery and confectionery ovens.
• Living room fireplaces.
• Hot air generators.
• Conduction, ventilation, air and smoke evacuation.
Vertical installations:
• Every 3 metres the installation must be fixed to the wall with a wall clamp.
• A wall bracket must be mounted every 10 meters to give greater resistance to the structure.
Horizontal installations:
• Every 2 metres the installation must be fixed to the wall by means of a wall clamp.
| Product | Double wall stainless steel tube 25cm |
| Brand / Manufacturer | Exojo |
| Length (cm) | 25 |
| Difficulty | Middle |
