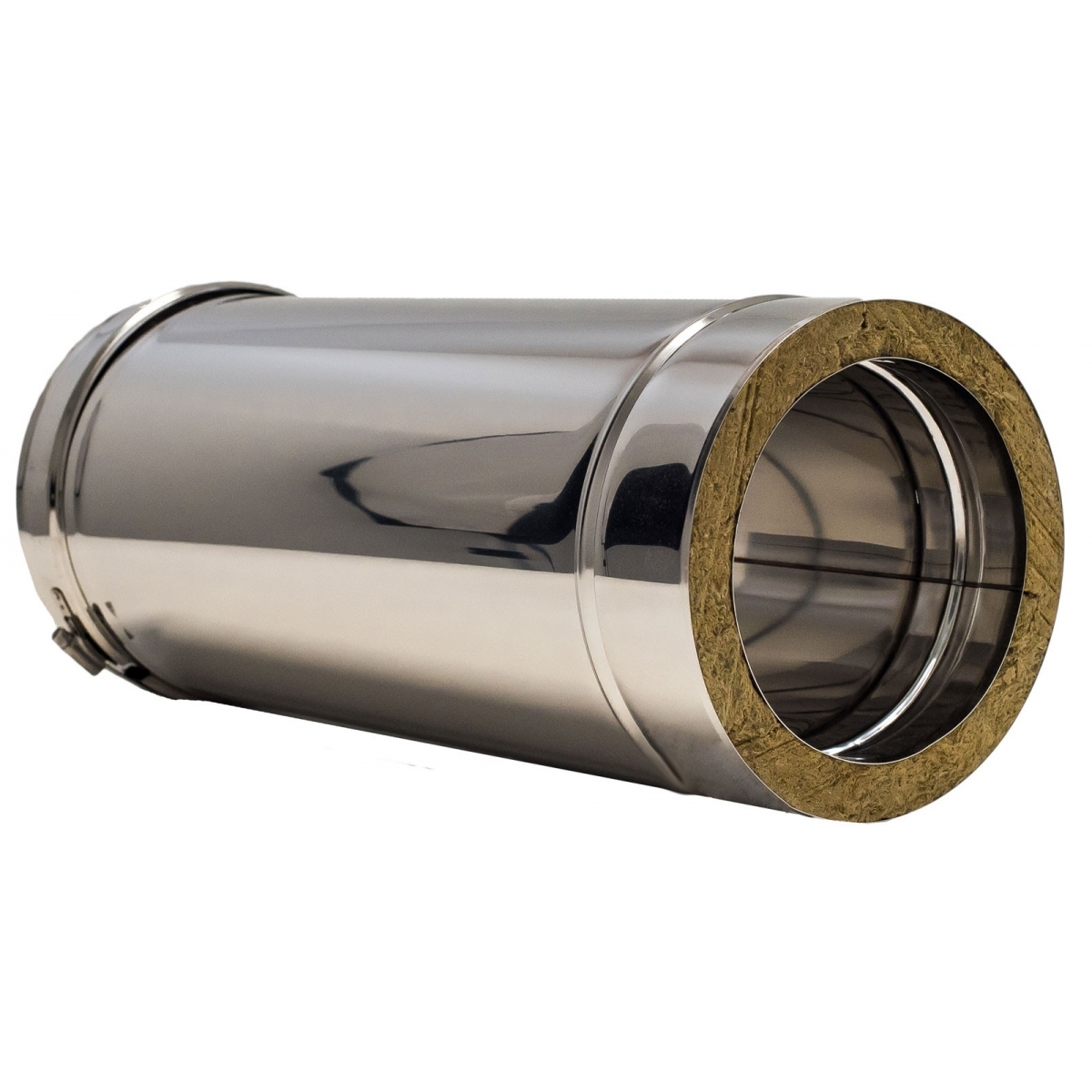

Double wall stainless steel tube 50cm

Double wall stainless steel tube 50cm with the inner wall of stainless steel thickness of 0.4 mm and the outer wall of stainless steel of 0.5 mm prepared to withstand high temperatures.

Technical details

• Inner wall: AISI 316L stainless steel thickness 0.4 mm.

• Exterior wall: AISI 304 stainless steel thickness 0.5 mm.

• Insulation: rock wool; Density 90kg/m3 and 25mm. thick.

• Continuous LASER welding on all parts.

• No thermal bridge of the internal duct with the outer tube, which represents a lower temperature loss of the internal duct and allows independent expansion.

• Bonding system: male-female with attachment clamp included.

• Finish: glossy exterior.

Uses of Stainless Double Wall Tube

We can use the product in:

• Boilers for heating and DHW production.

• Boilers for industrial use.

• Bakery and confectionery ovens.

• Living room fireplaces.

• Hot air generators.

• Conduction, ventilation, air and smoke evacuation.

Installation of stainless steel double wall tube

Vertical installations:

• Every 3 metres the installation must be fixed to the wall with a wall clamp.

• A wall bracket must be mounted every 10 meters to give greater resistance to the structure.

Horizontal installations:

• Every 2 metres the installation must be fixed to the wall by means of a wall clamp.
