Solar shutter without construction work

Enjoy all the advantages of MAYDISA 's solar and motorized electric blinds without the need to carry out expensive and complicated works inside the home.

With all the convenience, comfort and security that a roller shutter  provides and without architectural limitations.

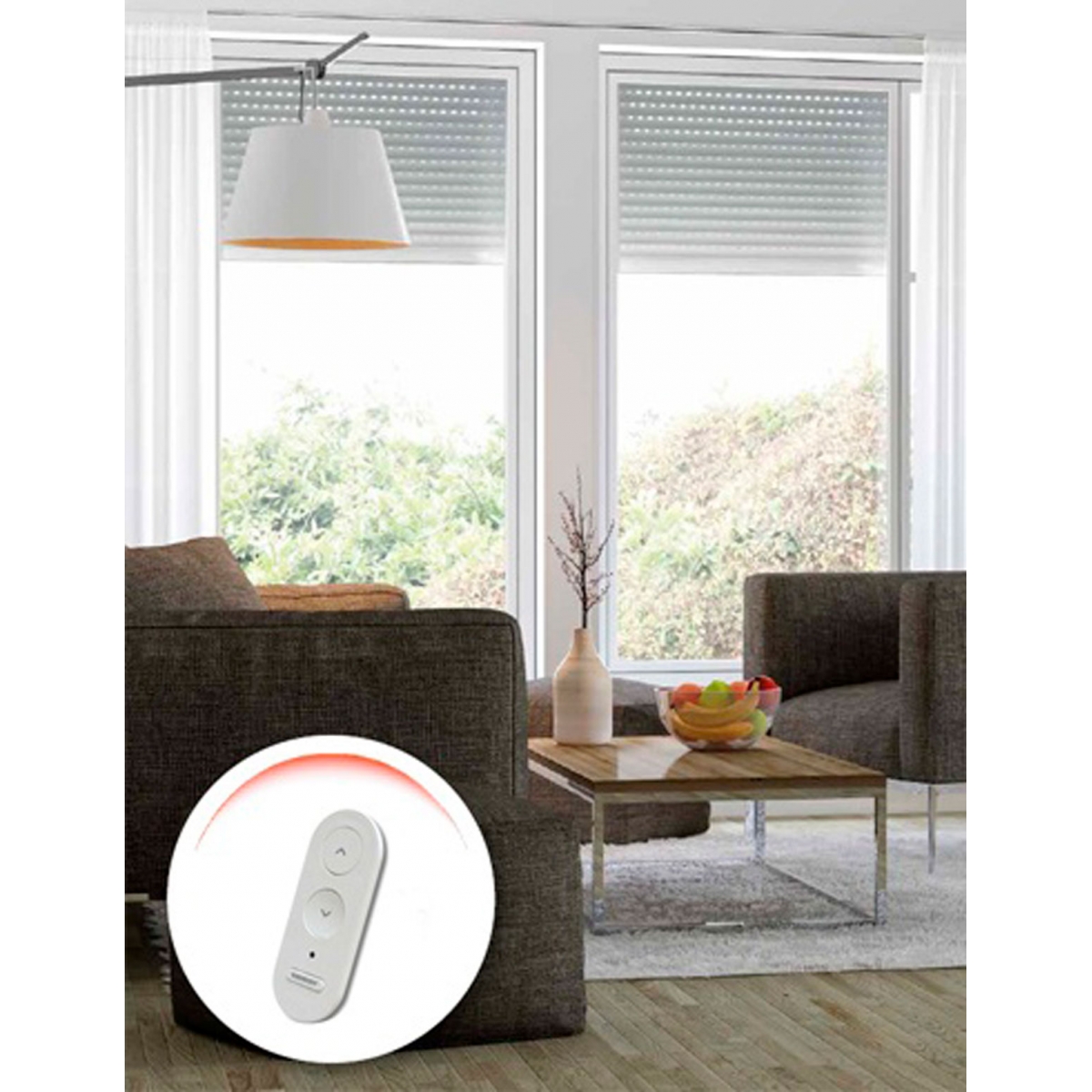

Home automation electric solar blinds are always manufactured motorized and are operated with a remote control. The blind is powered by a photovoltaic panel, it does not require a power outlet. The shutter motor stores energy, in case of power failure the motor has one week of autonomy.

The stylized design of these automatic electric blinds ensures that their installation does not distort the architectural lines of the buildings even if they have a modern style.

THE DRAWER LESSON

There is a choice between two drawer models:

Curved edge drawer	Straight top edge drawer

INSTALLATION MODALITIES

There is a choice between two installation modes:

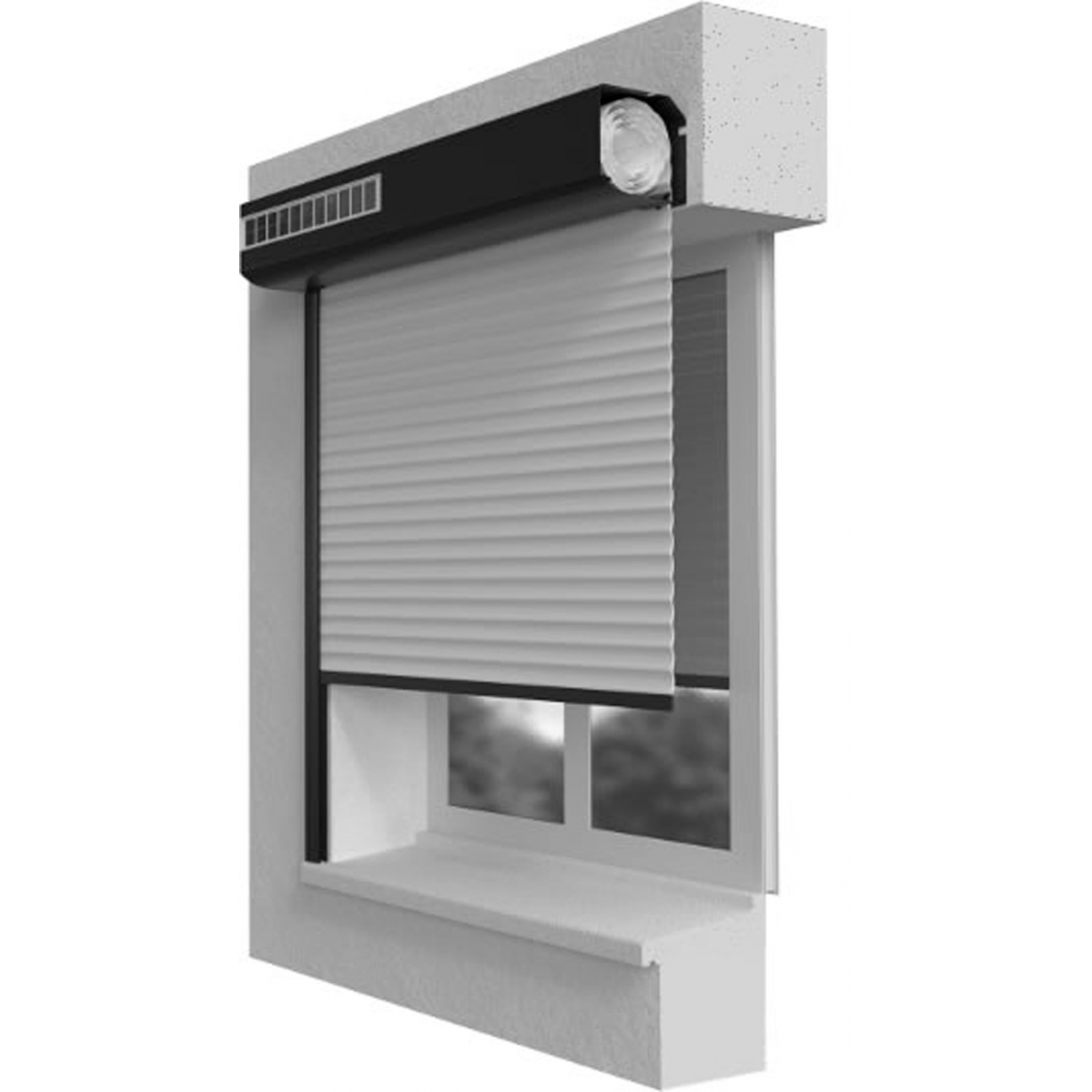

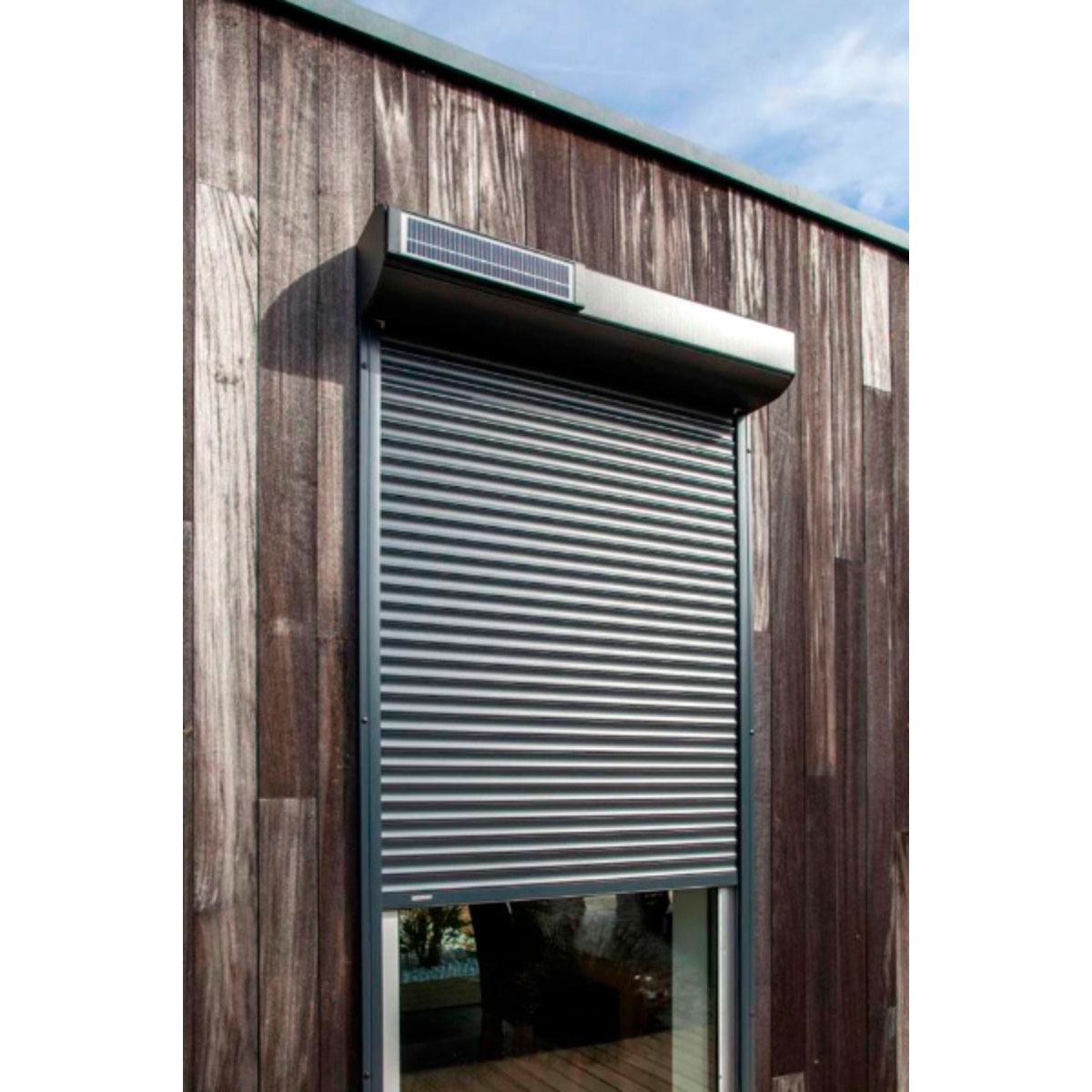

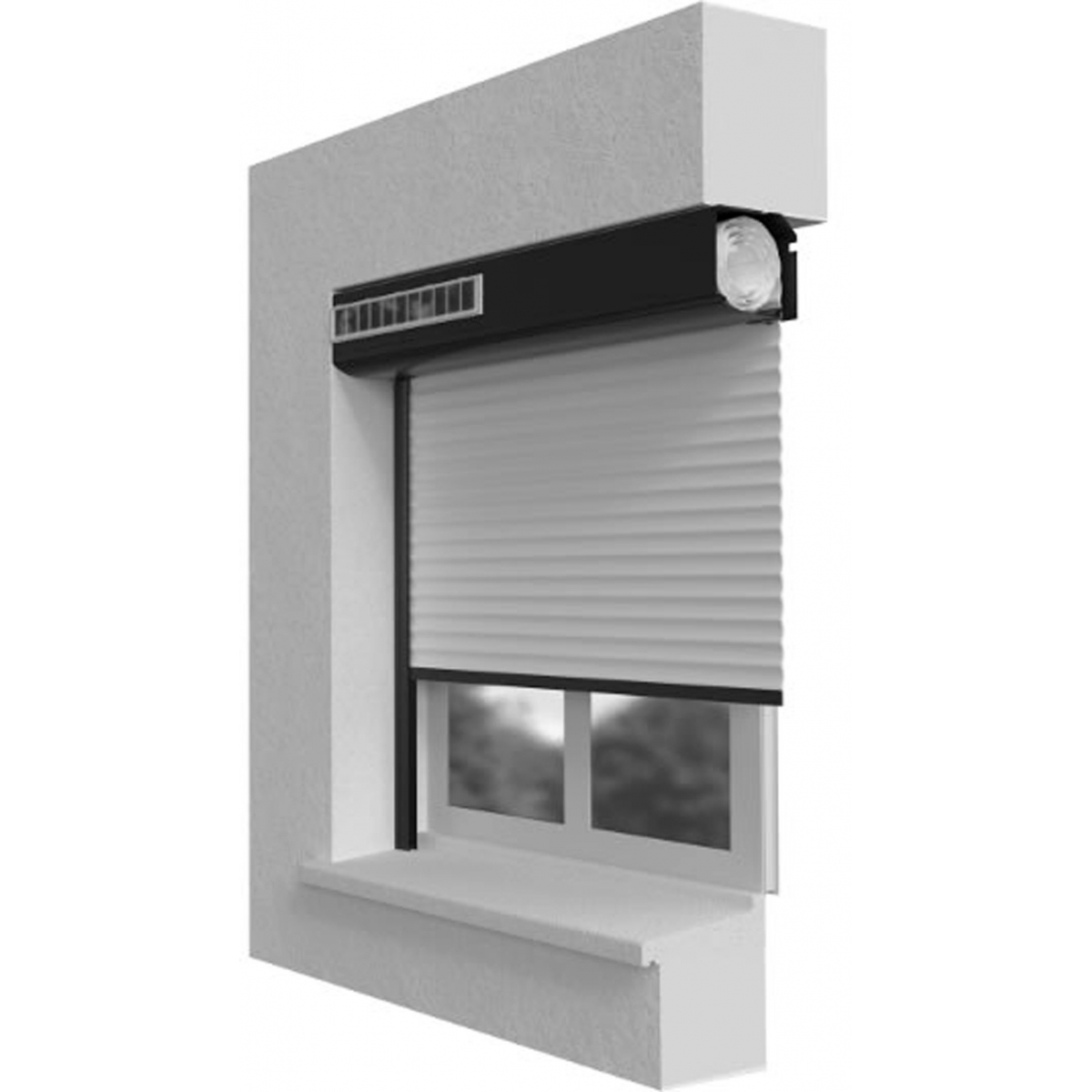

Installation in the window recess	Installation on the façade

MEASUREMENT

• Roller shutter width (mm): from 490 to 3000 mm
• Roller shutter height (mm): from 430 to 2672 mm
• Drawer height (mm): 165 mm
• Drawer depth (mm): 182 mm
• Guide measurements (mm): 45mm

HOW DO I TAKE THE MEASUREMENTS OF THE BLIND?

1. Take the width measurements in tres points (top, middle and bottom)
2. Take the measurements of the stop at tres points (left, middle, right)
3. Use the smallest width x height measurements
4. Check for possible imbalances in the gap

COLORS

There are 6 different colors to choose from

CHARACTERISTICS

• 100% Aluminum: Made entirely of aluminum (drawer, guides and slats), it provides greater resistance and safety.

• Solar: Blind with photovoltaic plate, no power outlet required.

• Comfort: The blinds are always motorized, they are operated with an included remote control.

• Acoustic thermal insulation: The shutter slats are filled with polyurethane foam that insulates from cold and heat and reduces the passage of noise providing greater thermal and acoustic comfort.

• Security: All the blinds are provided with an anti-lever locking system that protects the integrity of the house.

• Easy installation: The blinds can be installed without the need to build a hole over the window. They are installed with plugs and screws in the existing walls.

• No electrical connection

• Integrated automatic solar control

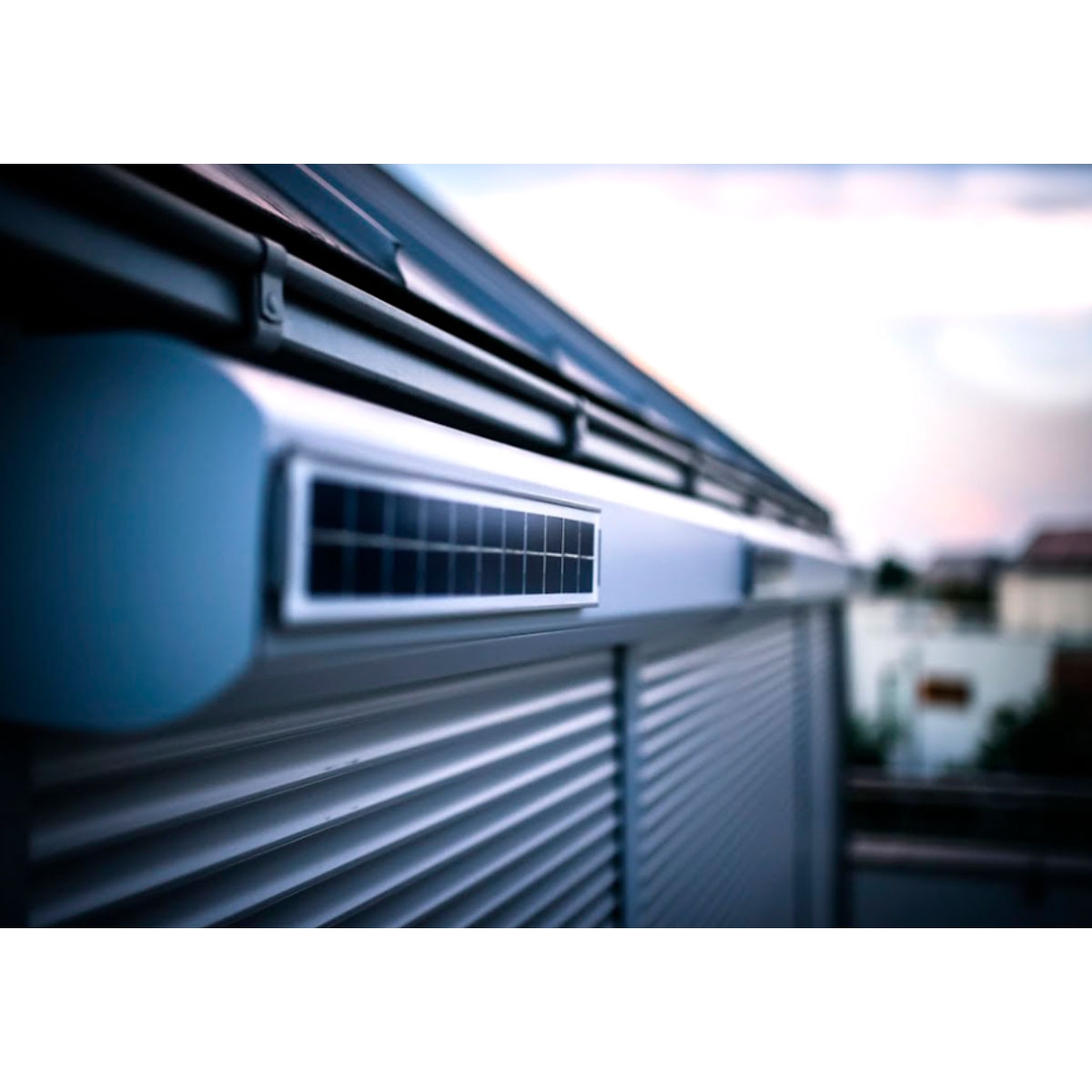

•  Flat integrated solar panel in the drawer

• 7-year warranty
