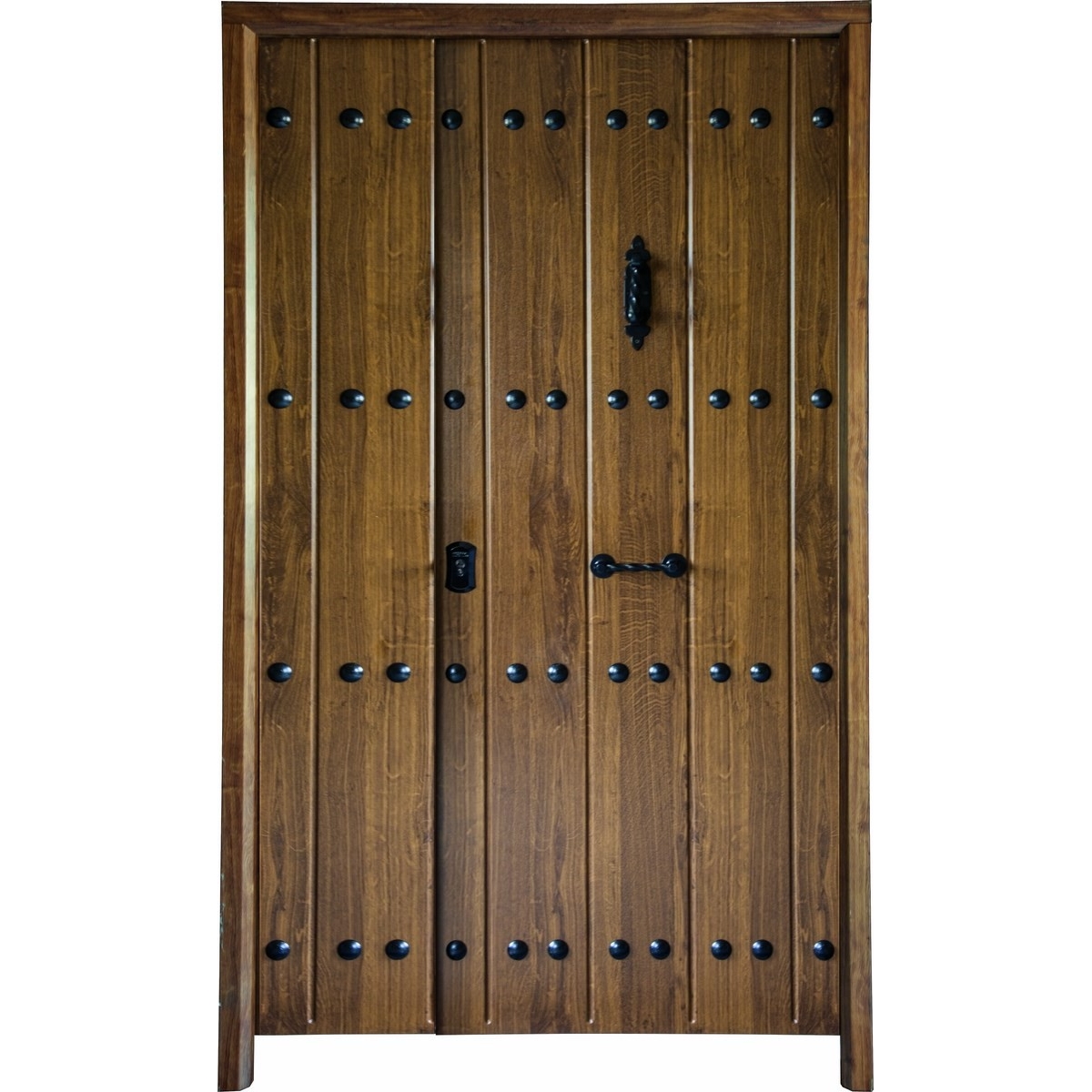

Triana double leaf armored door

Grade 3 Security Armored Residential Door

Metal security door composed of leaf, screwed frame, lock, 4 short hinges, knob, handle and peephole.

The Triana double-leaf door is available for the following finishes and widths:

• 128x207 in brown lacquer, with smooth inner face.
• 128x207 in rustic chestnut color vinyl, with smooth inner face.

The small blade measures 33cm and the large one 83cm

Available Colors of Armored Residential Door

The metal sheet is built in two pieces, front stamped in die with decoration, made on rolled and galvanized steel sheet, with a thickness of 1 mm in DX-54 quality. Back without stamping system in DX-51 quality and with a thickness of 0.8 mm.

Inside it is filled with micro-expanded polyurethane of formulation according to type M-3 applied by means of a high-pressure injection pump machine.

The metal frame is made of rolled and galvanized steel sheet, with a thickness of 1.5 mm in DX-51 or 52 quality, in automatic bending machine, which is screwed.

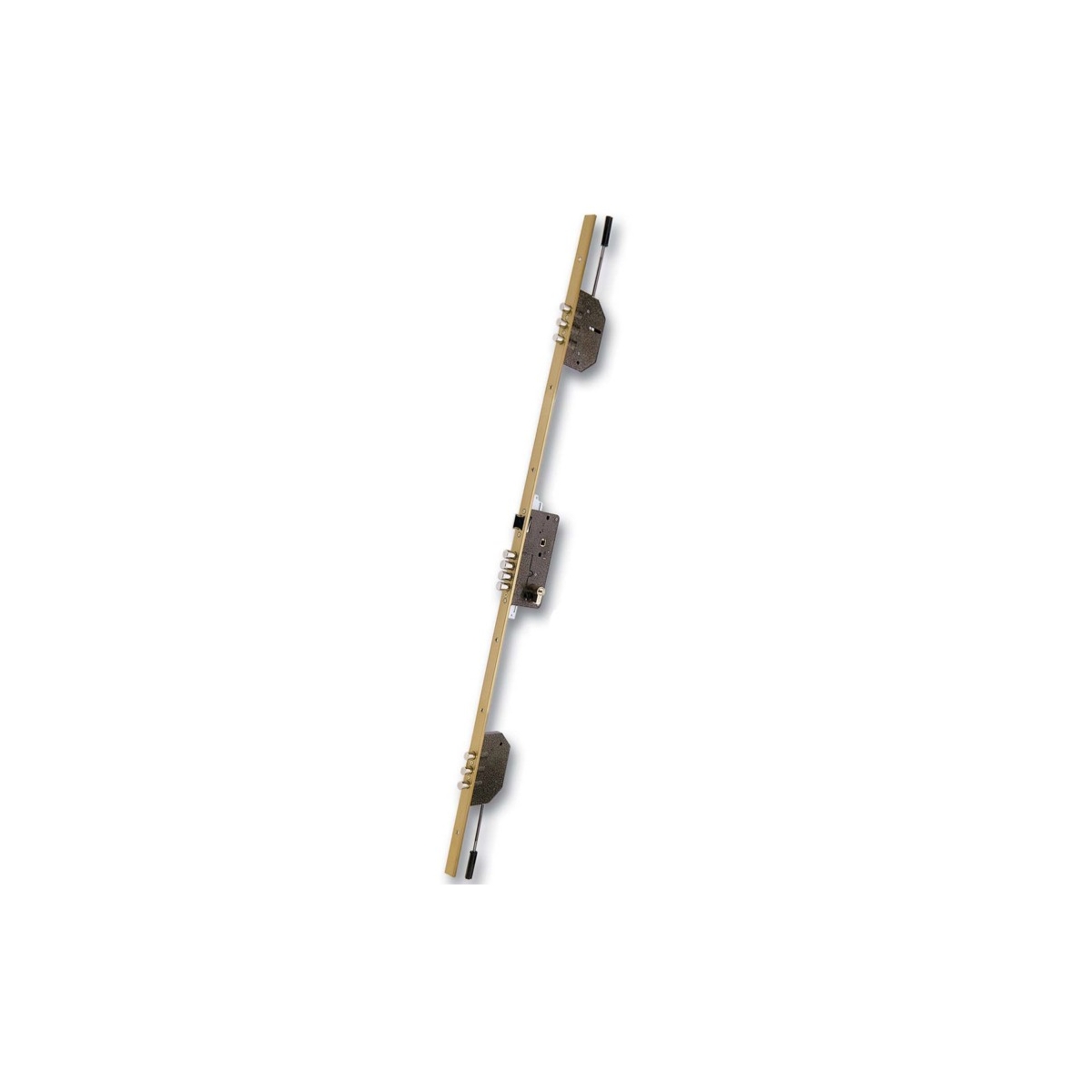

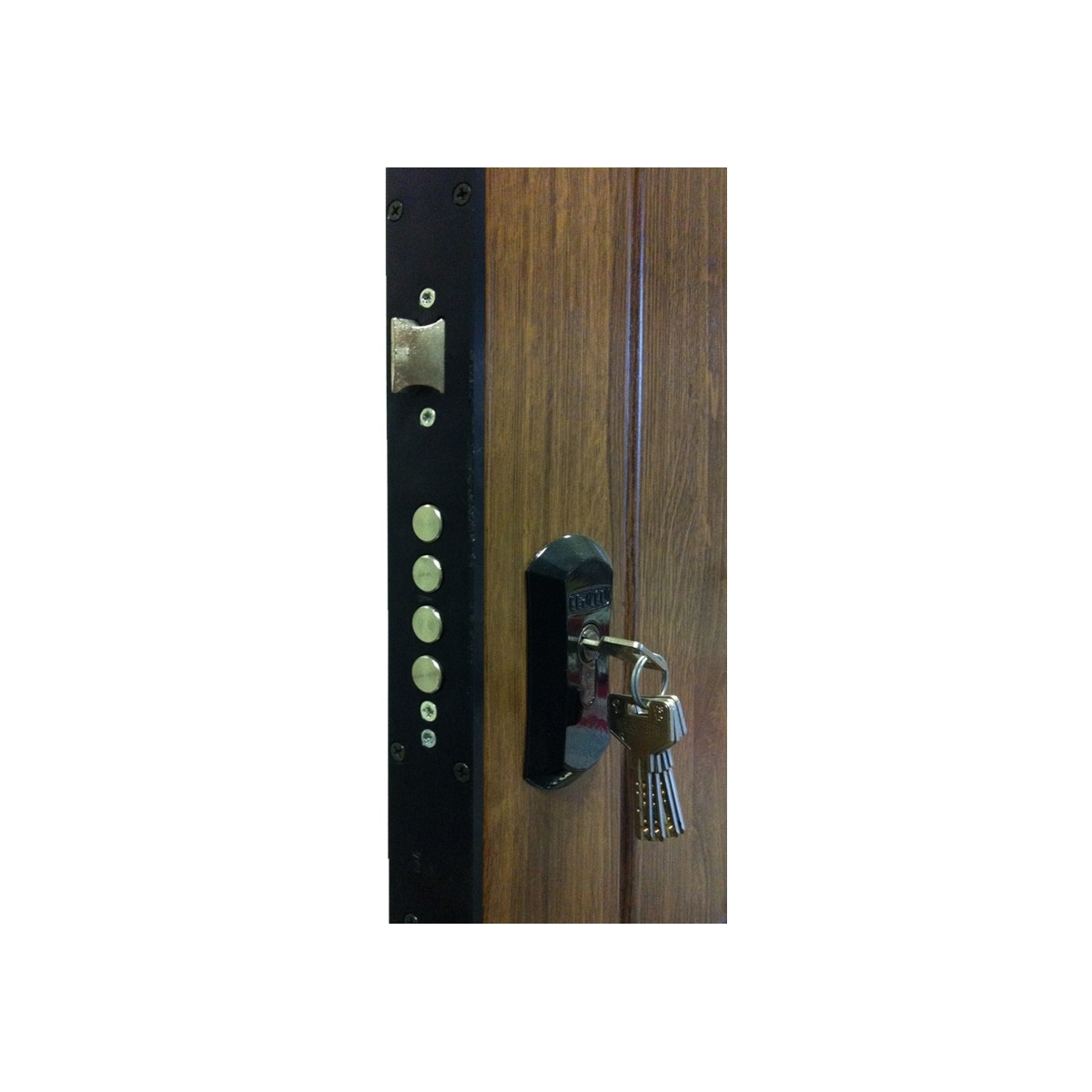

The 3-point lock (Ezcurra 2000-B model) with a system of 10 mocks and slip with two-turn security bulb and key coding by points.

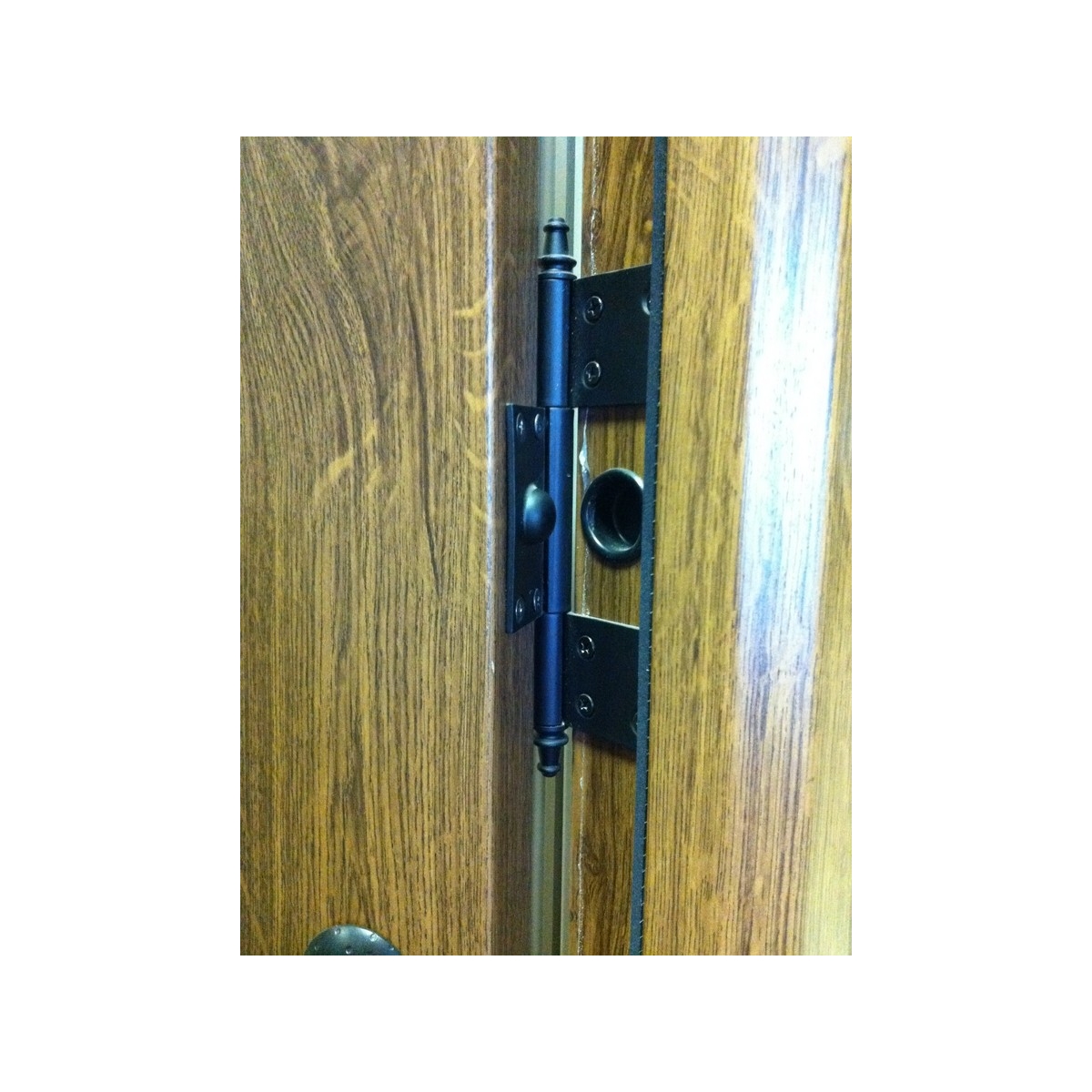

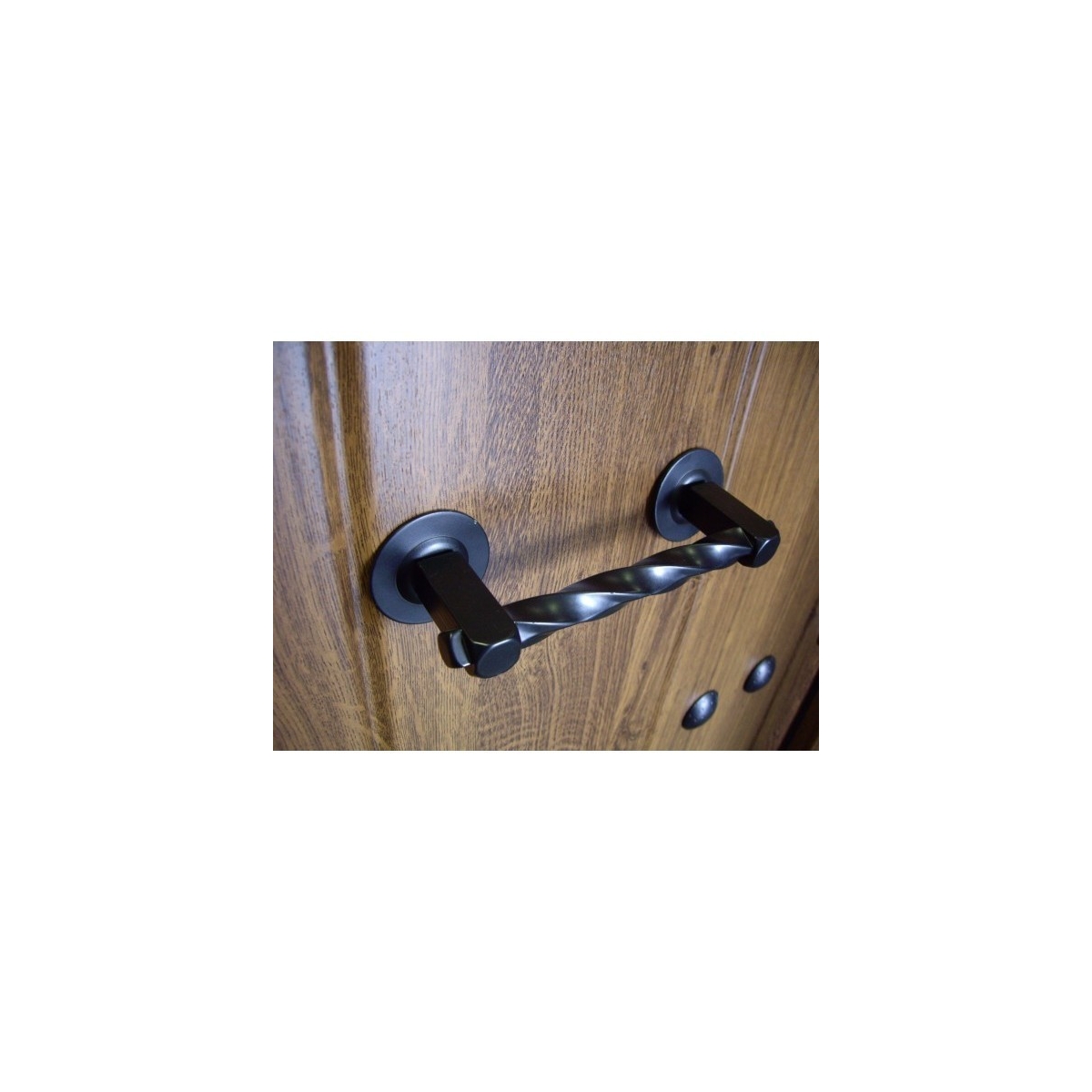

Includes 4 four-knot anti-lever safety hinges on a two-meter plate with an oven-applied epoxy varnish finish. Round knob, interior handle reference Bella and telescopic peephole type wide angle.

The door in a lacquered finish has a degreasing-phosphating treatment and washing with demineralised water, a humidity drying oven, painted in an electrostatic powder paint application cabin, robotised with pure polyester qualycoat lacquer and polymerised in an oven at 220 ºC. The vinyl finish is a low-carbon, hot-plated, cold-formed DX51D + Z100 steel backing with a semi-rigid polyvinyl chloride (PVC) film coating with a thickness of 130 microns.

Maintenance Note: Avoid the use of products containing abrasive substances.

2-YEAR WARRANTY

The manufacturer, Cearco, offers a two-year warranty on its doors. This warranty will cover possible manufacturing defects, understood as such: corrosion by rust (except fittings), malfunction of the mechanism and detachment of lacquer (due to lack of adhesion).

This warranty will be applicable as long as the storage has been appropriate (never outdoors, or totally or partially unpacked). In no case will the warranty be applicable to doors already installed. Cearco reserves the right to accept claims against this warranty.
