Flat Flat-5XL B Leon Tiles

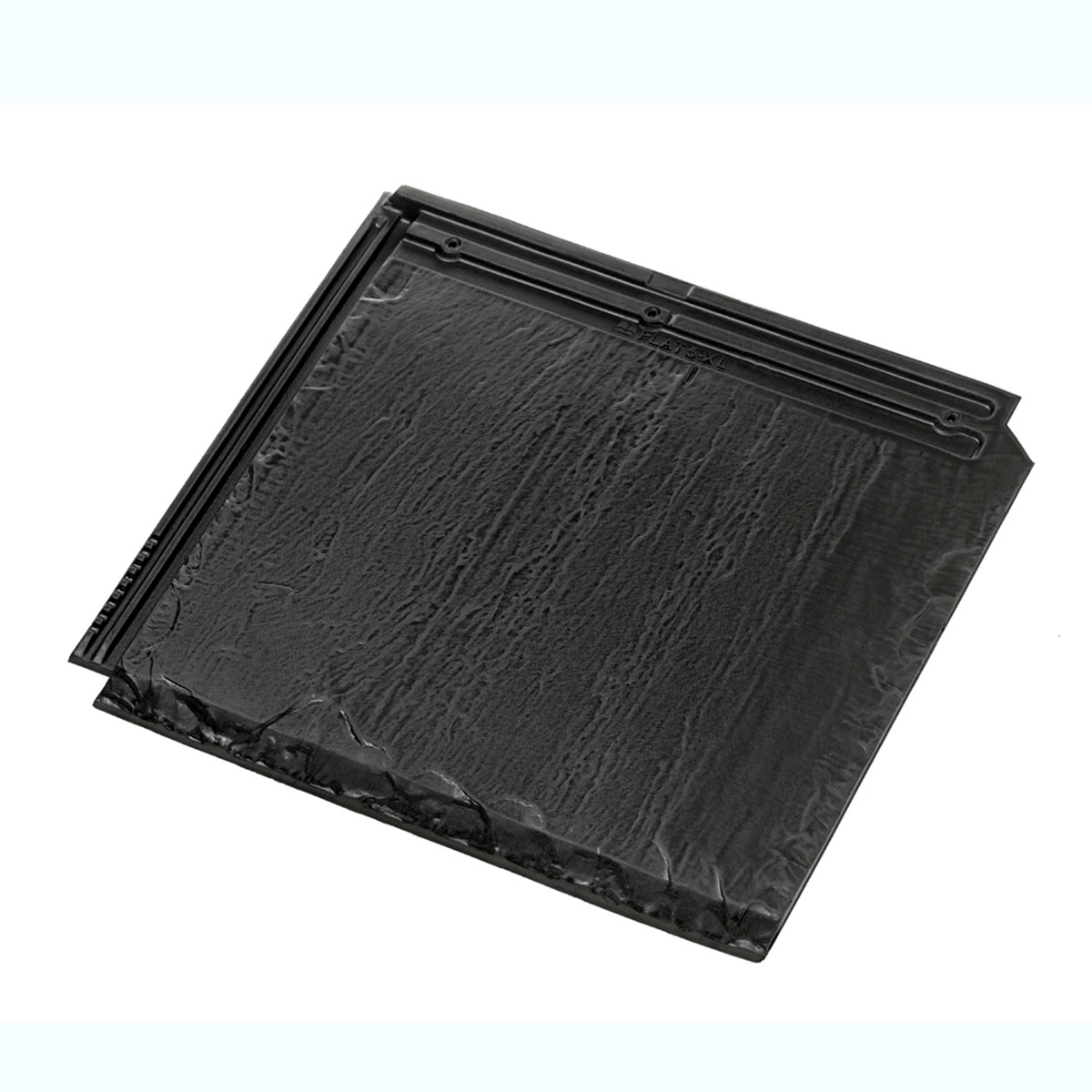

The Flat-5XL ceramic tile is an impressive example of innovation and excellence in construction products. With dimensions of 457 mm in length and 510 mm in width, and a weight of 6.55 Kg per unit, this tile stands out for its size and resistance. With a density of 5.48 units per square meter, it is a high-performance option for sloping roofs.

A key feature of the Flat-5XL is its versatility in terms of useful length, which varies between 340 mm and 385 mm depending on the batten pitch. This makes it adaptable to different types of projects. In addition, a minimum slope of 30% or 17 degrees is recommended for optimal installation.

Made of stoneware clay, this tile has the lowest water absorption in its category, which guarantees its durability and resistance to inclement weather. Its installation is carried out efficiently on sloping roofs using a batten system or equivalent.

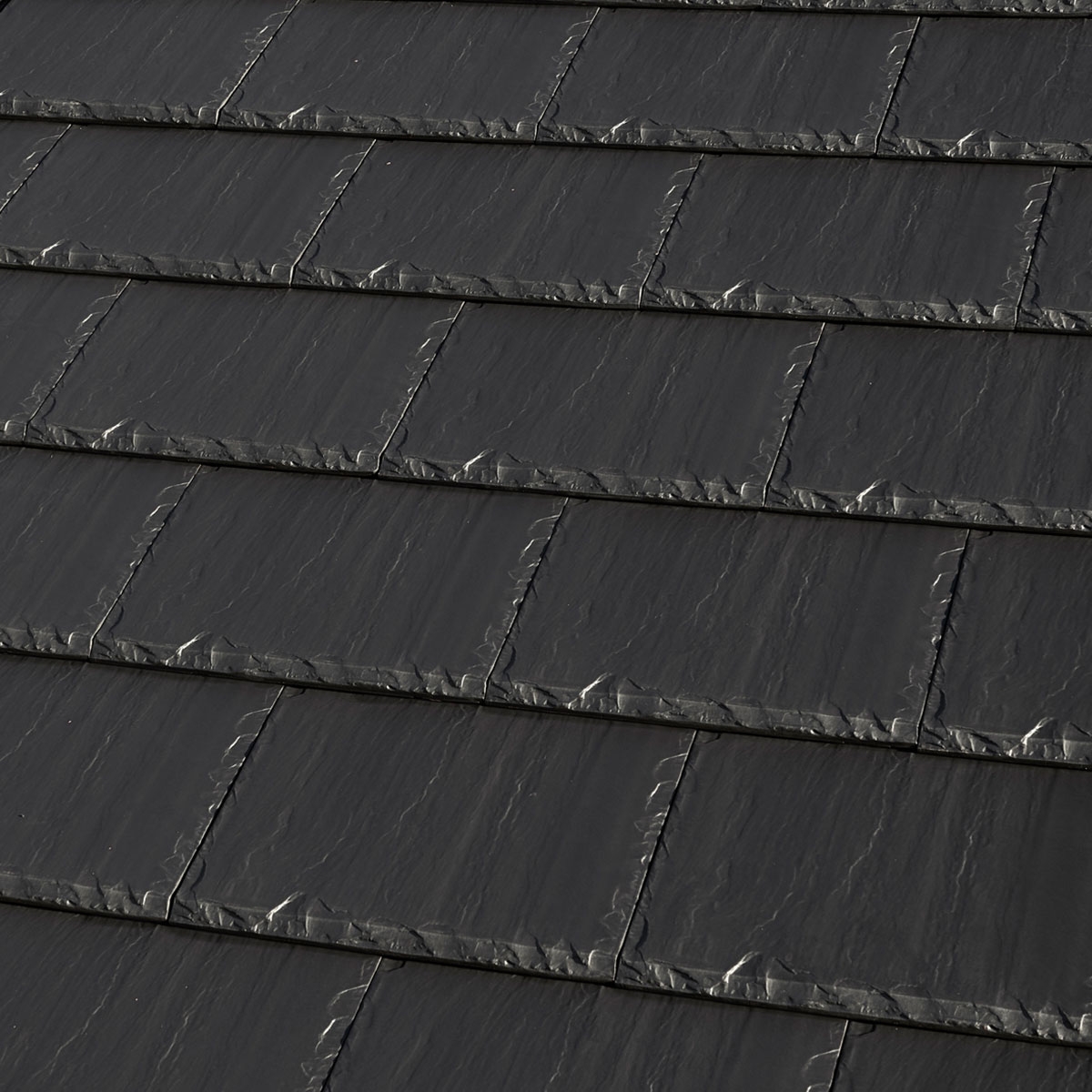

The Flat-5XL offers flexibility in its placement, and can be installed staggered or in-line, thanks to its deep sockets both laterally and longitudinally. With 5.48 tiles per square meter, it provides high performance in terms of coverage.
