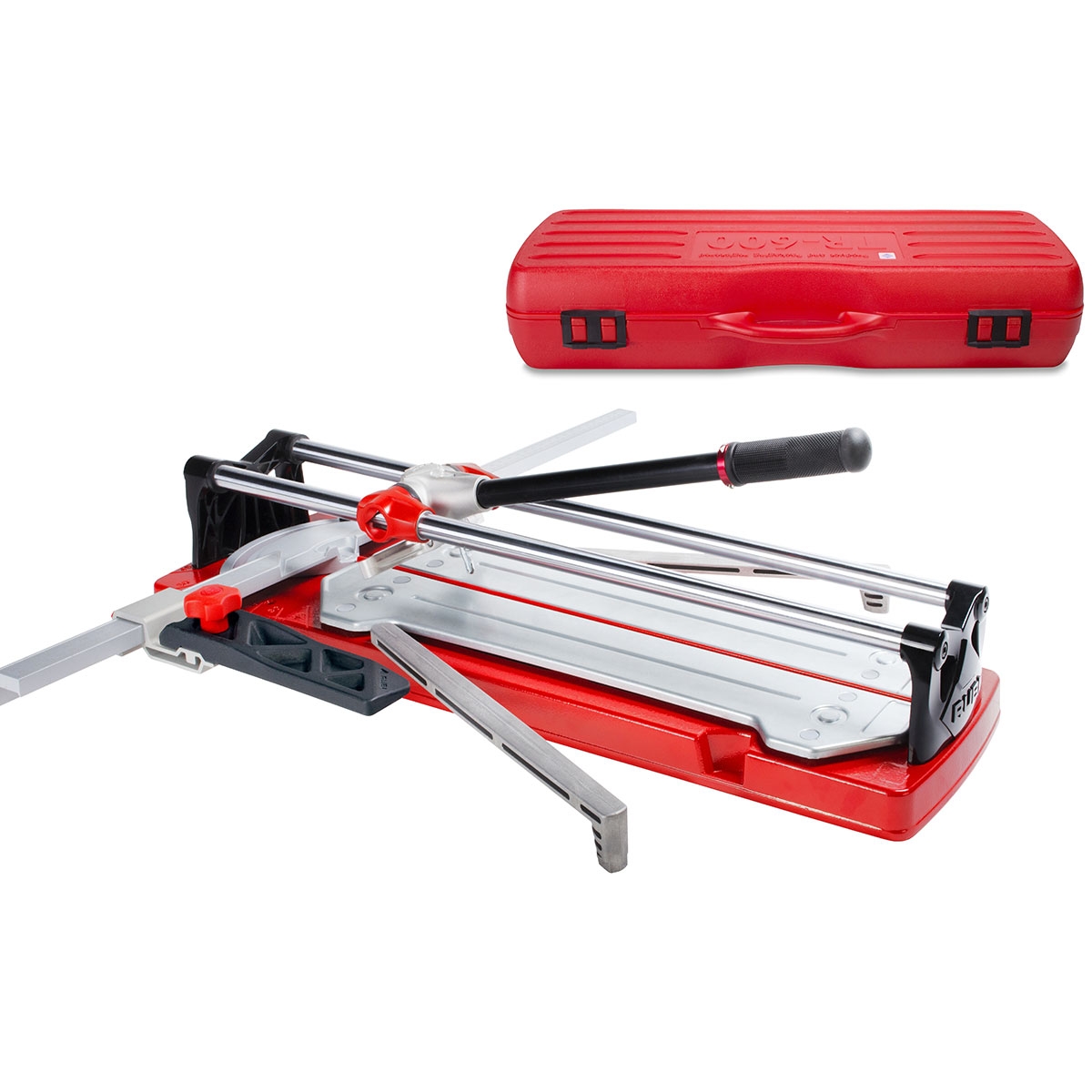

The TS-MAX range of manual cutters offers the professional a lightweight and functional tool. The TS-MAX manual cutters from RUBI are ideal for intensive cutting of ceramic tiles in general, and especially for frequent cutting of porcelain stoneware (type BIa).
All models in the TS-MAX range of manual cutters include a practical high-performance single-point separator with 800 kg of maximum separation power, specially designed for cutting materials of high hardness and with maximum thicknesses of 15 mm.
This separator includes the SMART POWER function whereby the separator itself regulates the separation power depending on the thickness of the tile, applying maximum power to thicker materials.

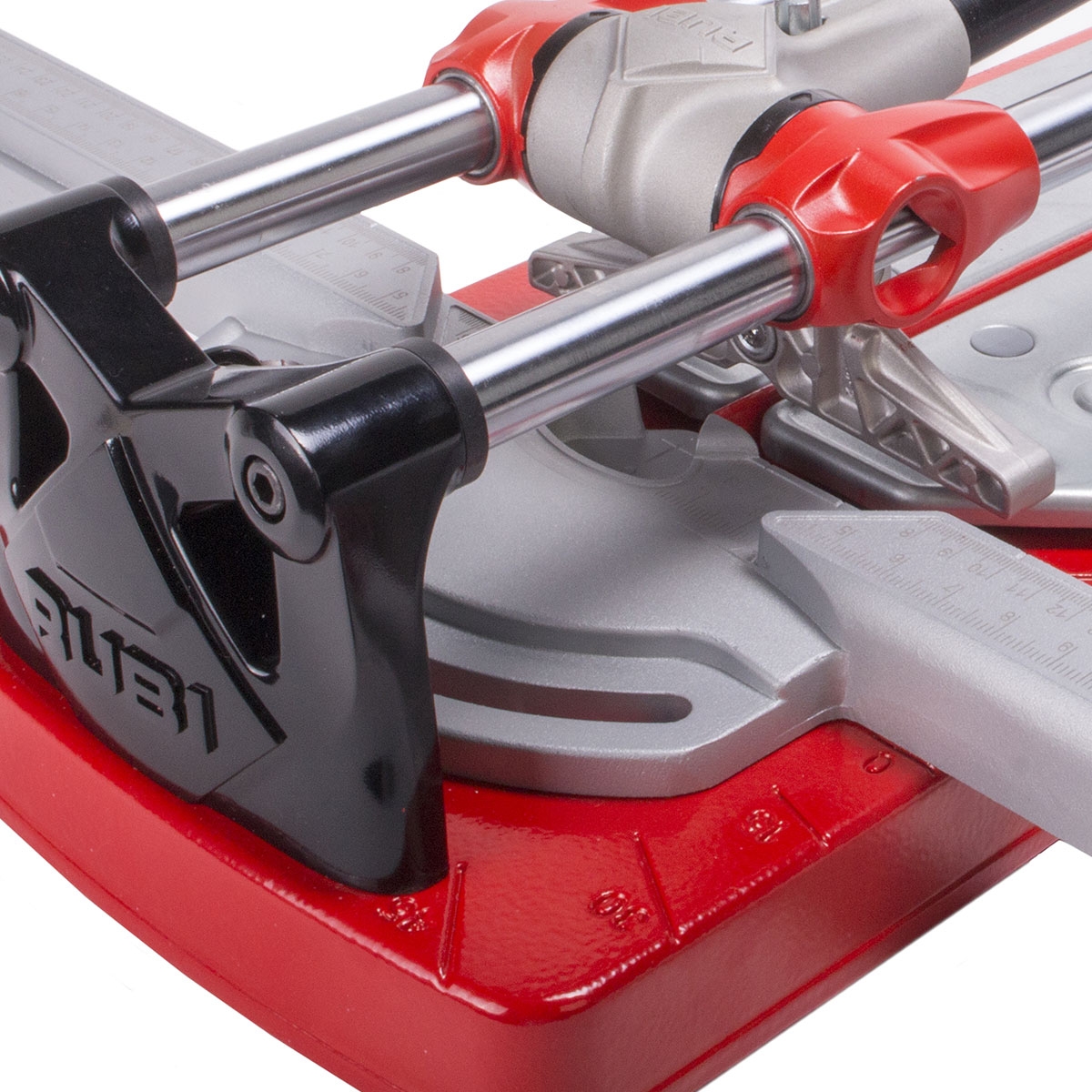

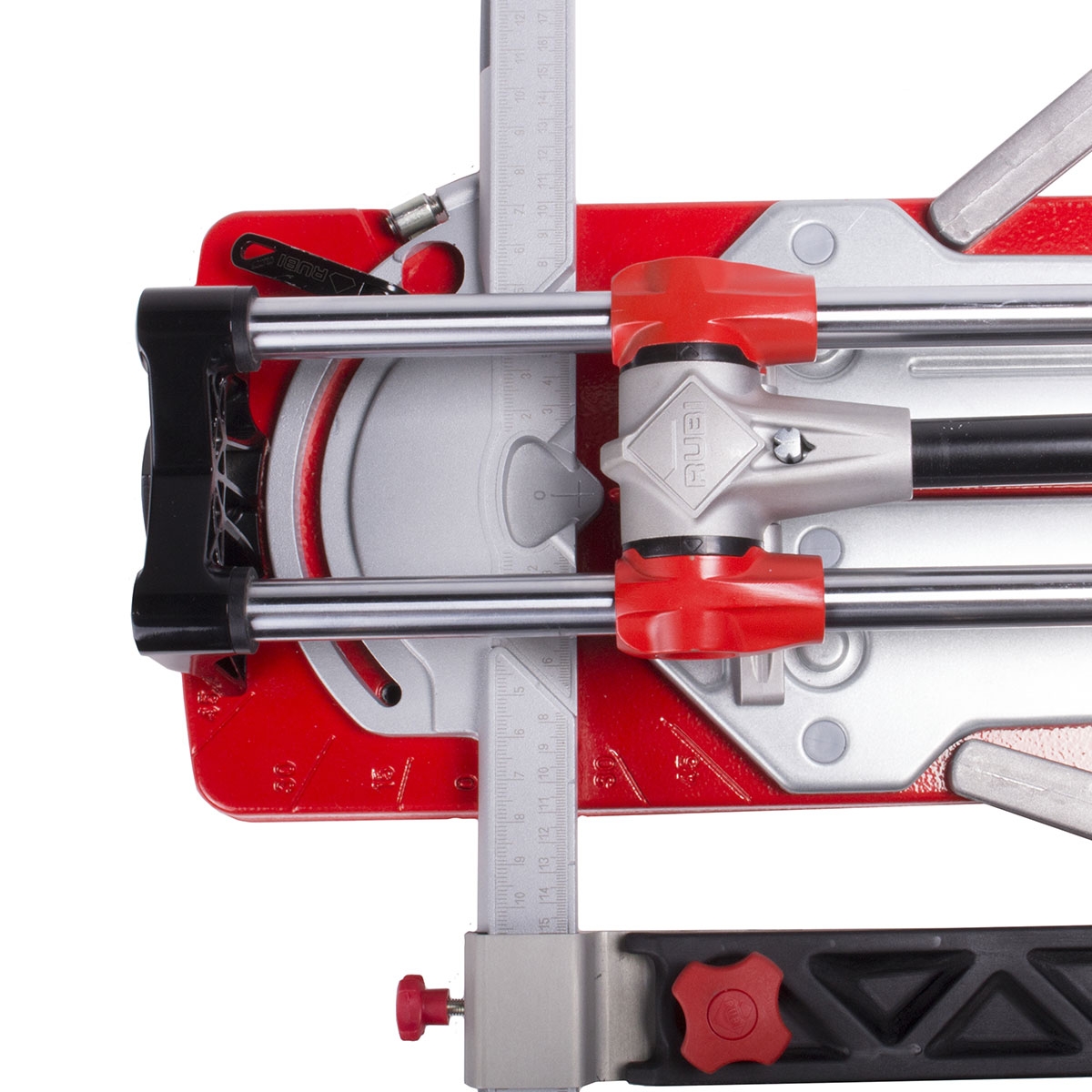

The bi-material handles of the TS-MAX manual cutters are ergonomically designed, providing the user with greater comfort during work. All TS-MAX manual cutter models include a large side stop for greater grip on the ceramic tile, and greater precision in repetitive cuts.

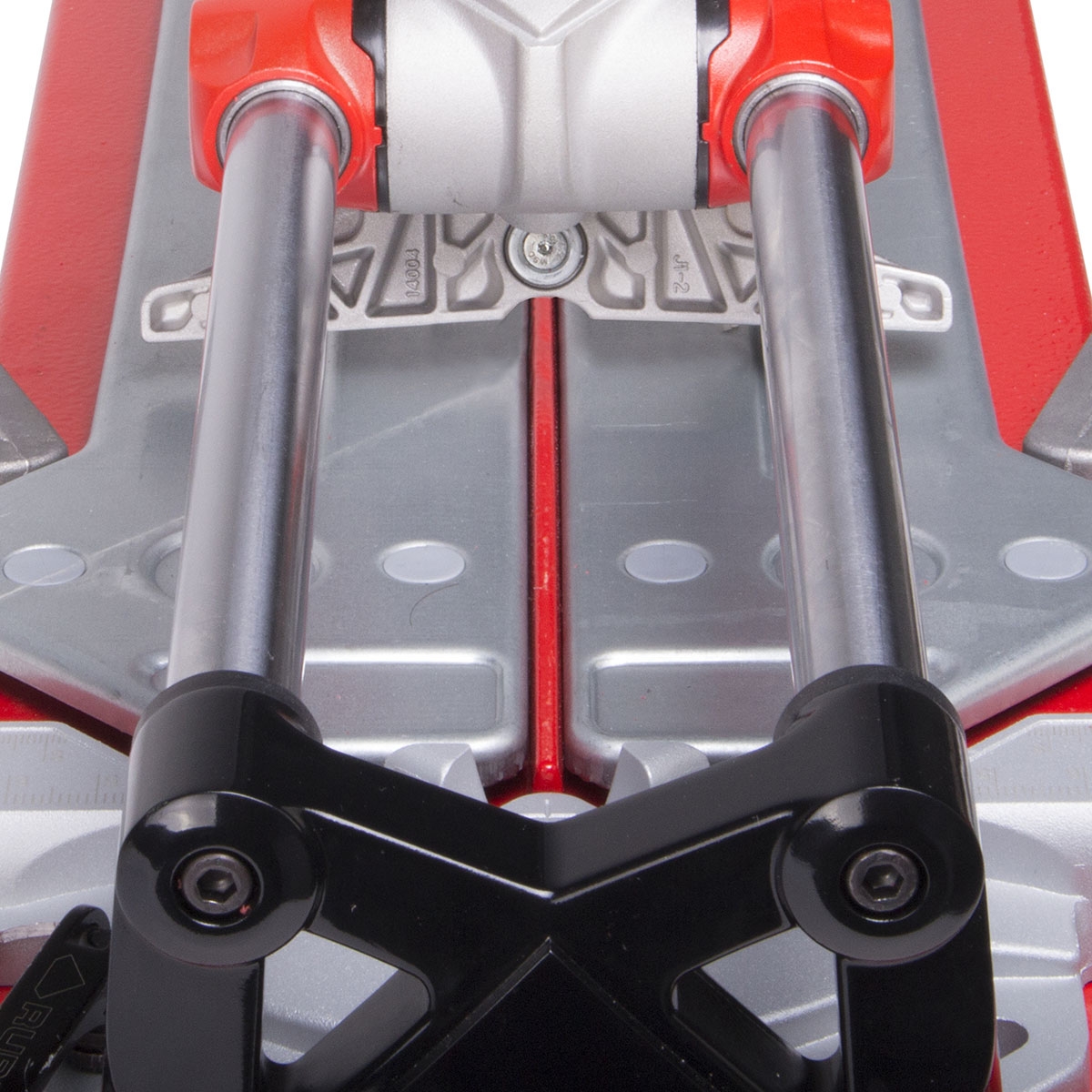

The TS-MAX manual cutters from RUBI have a reinforced and large base, so that the professional has greater comfort and stability during use. The TS-MAX manual cutters are equipped with two chrome-plated, ground and calibrated steel guides with anti-corrosion treatment. This double guide system offers the user better and greater visibility of the scratch line, thus obtaining high precision in all cuts.
The possibility of using the entire range of interchangeable scoring wheels from RUBI Ø 6 to 22 mm., allows the TS-MAX manual cutters to be adapted to each ceramic material, and to obtain maximum performance and quality in the cut. The TS-MAX manual cutters include two scoring wheels as standard: one of Ø 8 mm ENDURE for cutting highly hard materials and rough or structured surfaces, and another of Ø 10 mm SILVER for glazed stoneware and ceramics in general.

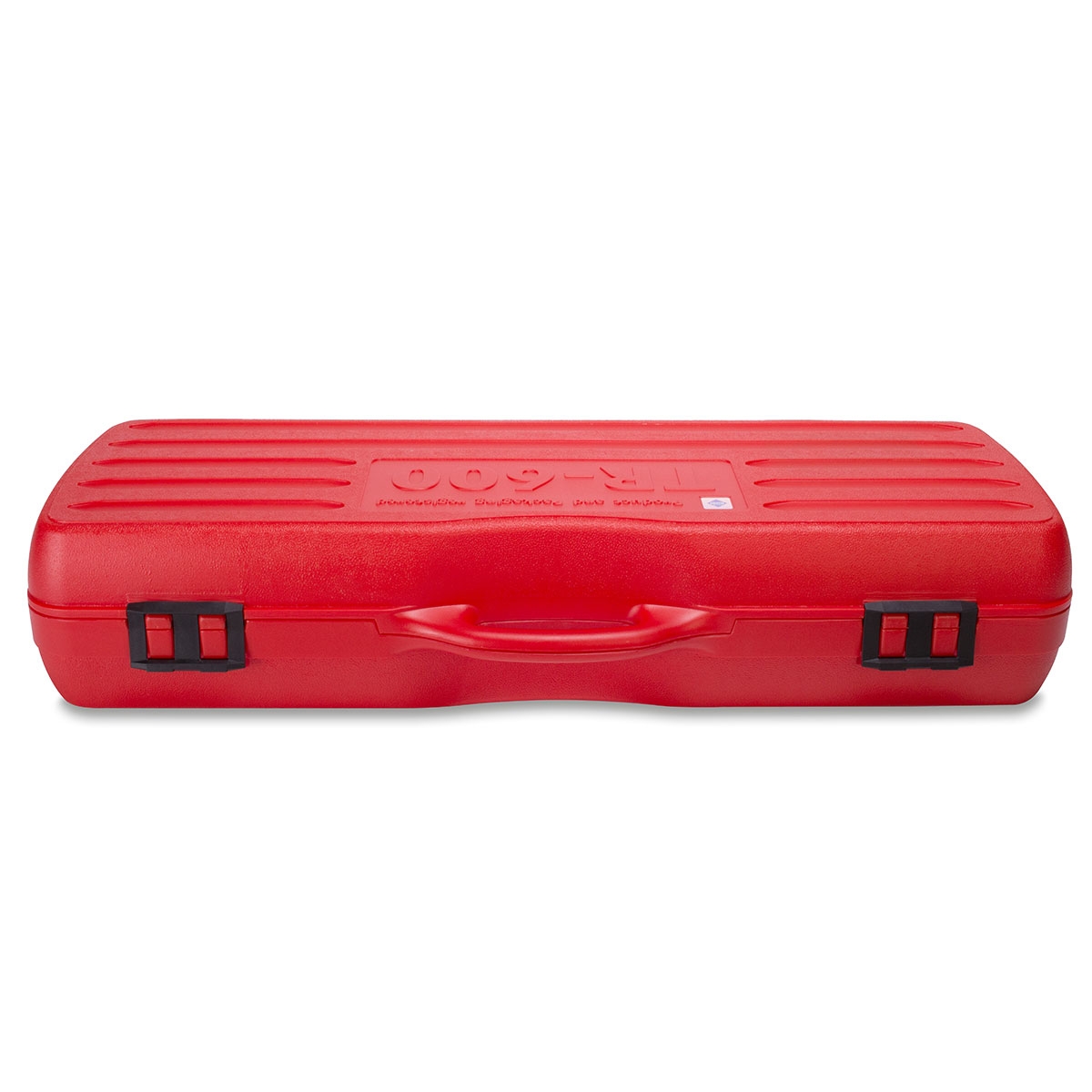

Finally, it is worth highlighting one of the most characteristic aspects of the RUBI manual cutters: the transport case, with reinforced closures and hinges, to protect and facilitate the mobility of our TS-MAX manual cutters.
Highlights
• Wide base. Larger support surface for greater stability and cutting quality.
• Ergonomic handles. Maximum comfort.
• Progressive separation system "SMART POWER", adapts to each type of material.
• Reinforced components for heavy duty work. Greater durability.
Materials
• For intensive cutting of ceramic tiles.
Characteristics
• Carrying case, with reinforced closures and hinges.
• High-performance 800kg single-point separator.
• Double guide, for better visibility of the scratching and cutting line.
• Two-layer base with cushioning effect.
• High-strength aluminum base.
• Solid steel guides, Ø 20 mm. Chrome-plated and rectified, with anti-corrosion treatment, for greater torsional resistance.
• Multipoint separator with 800 kg of power.
• Reinforced handle with SOFT-GRIP grip.
• Side stop for repetitive cuts.
