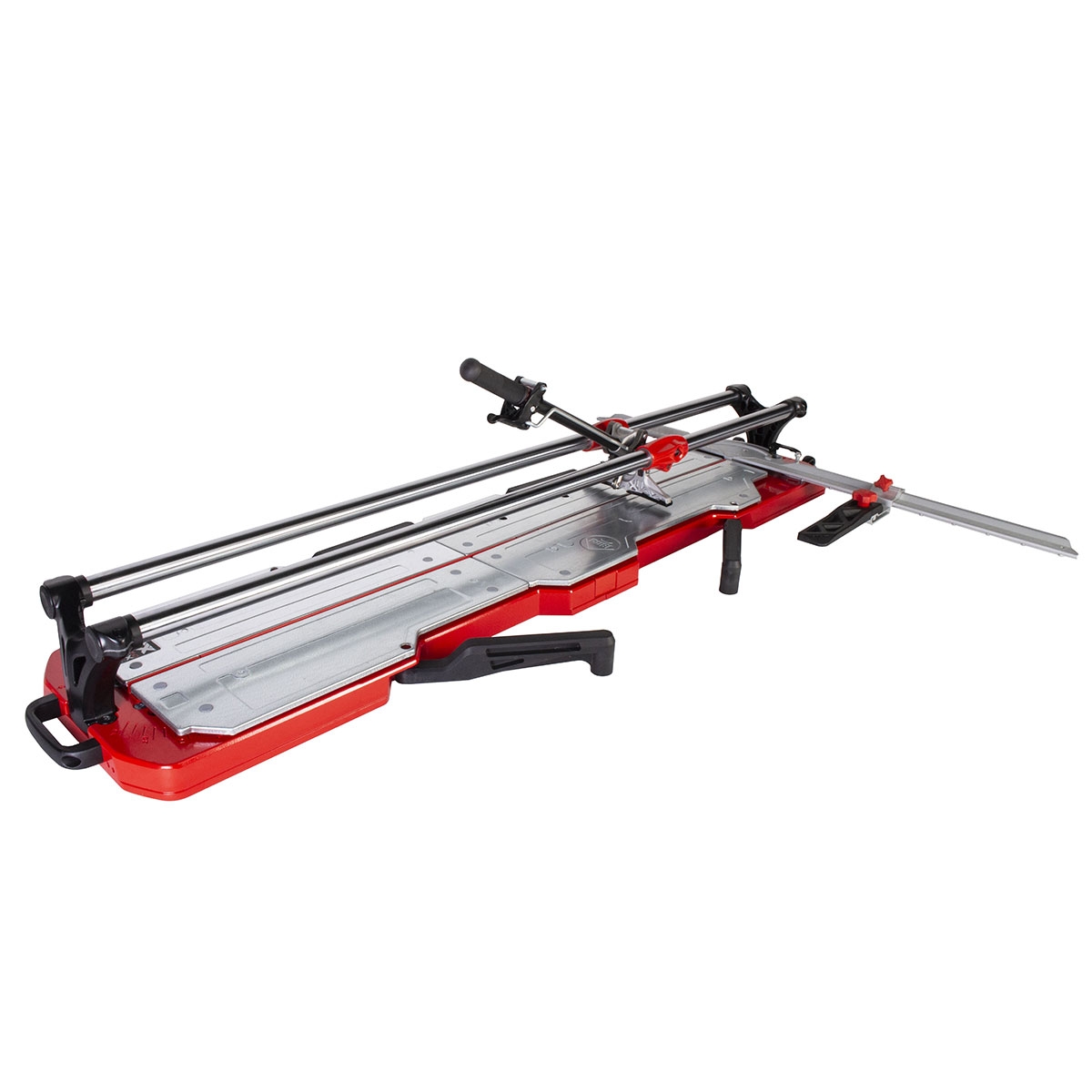

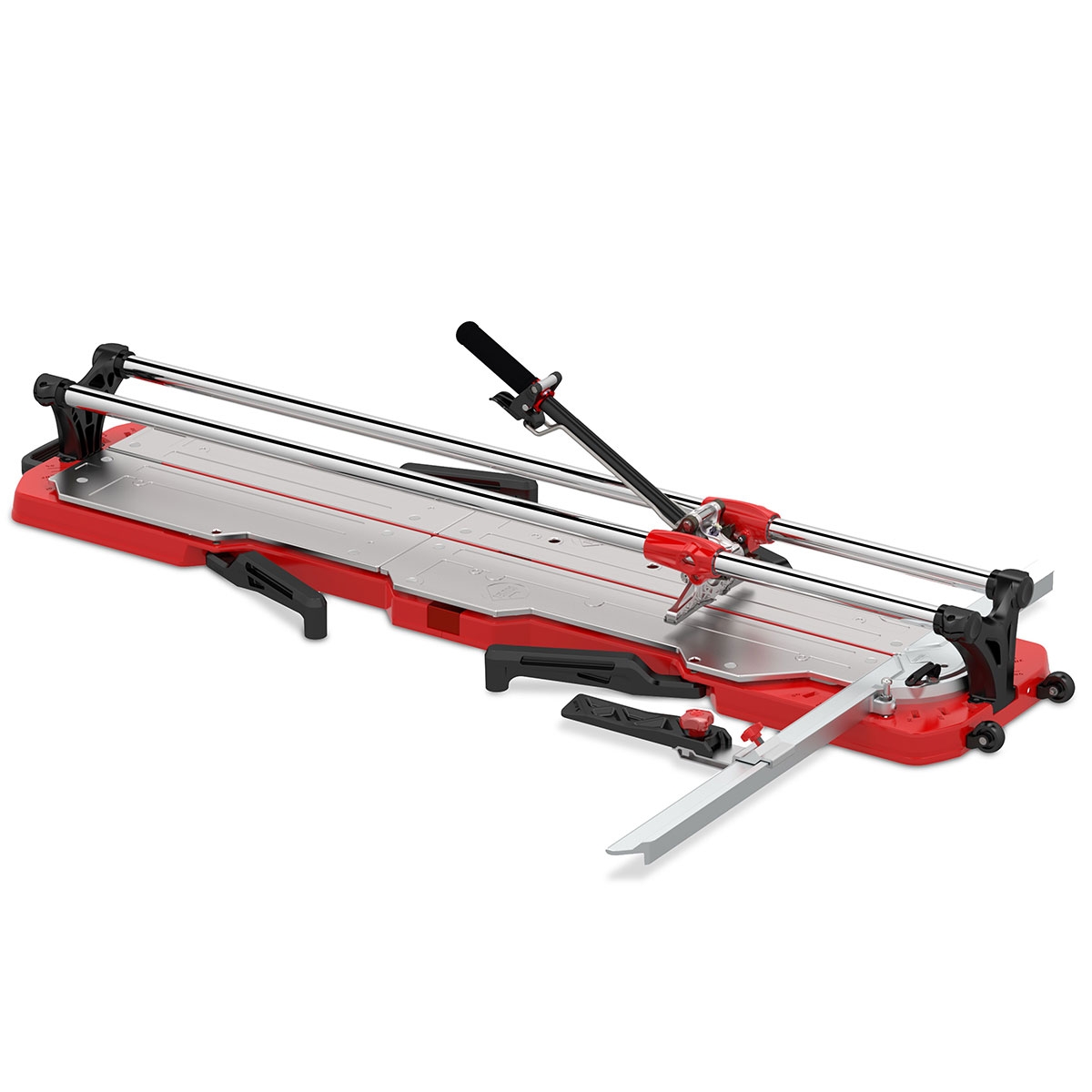

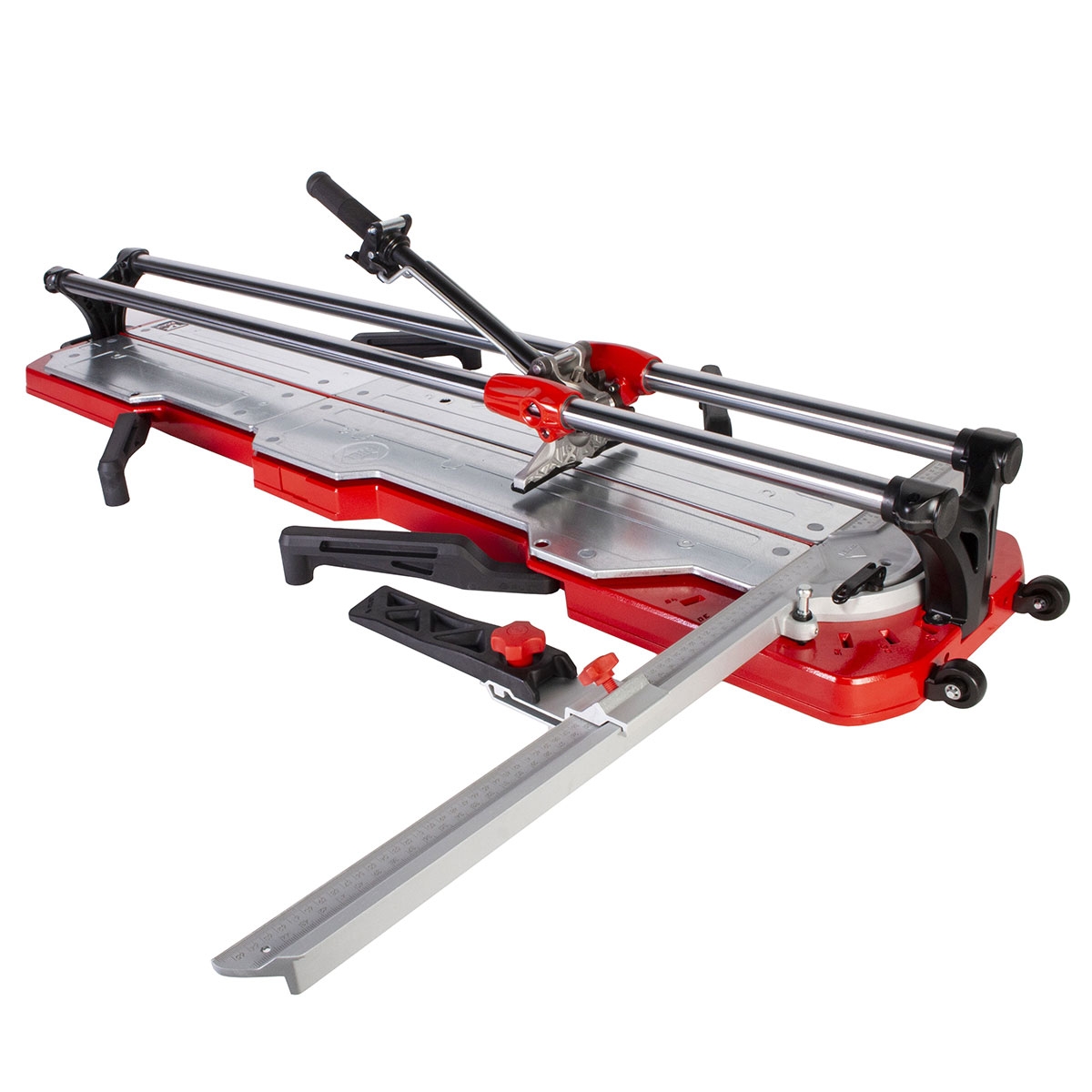

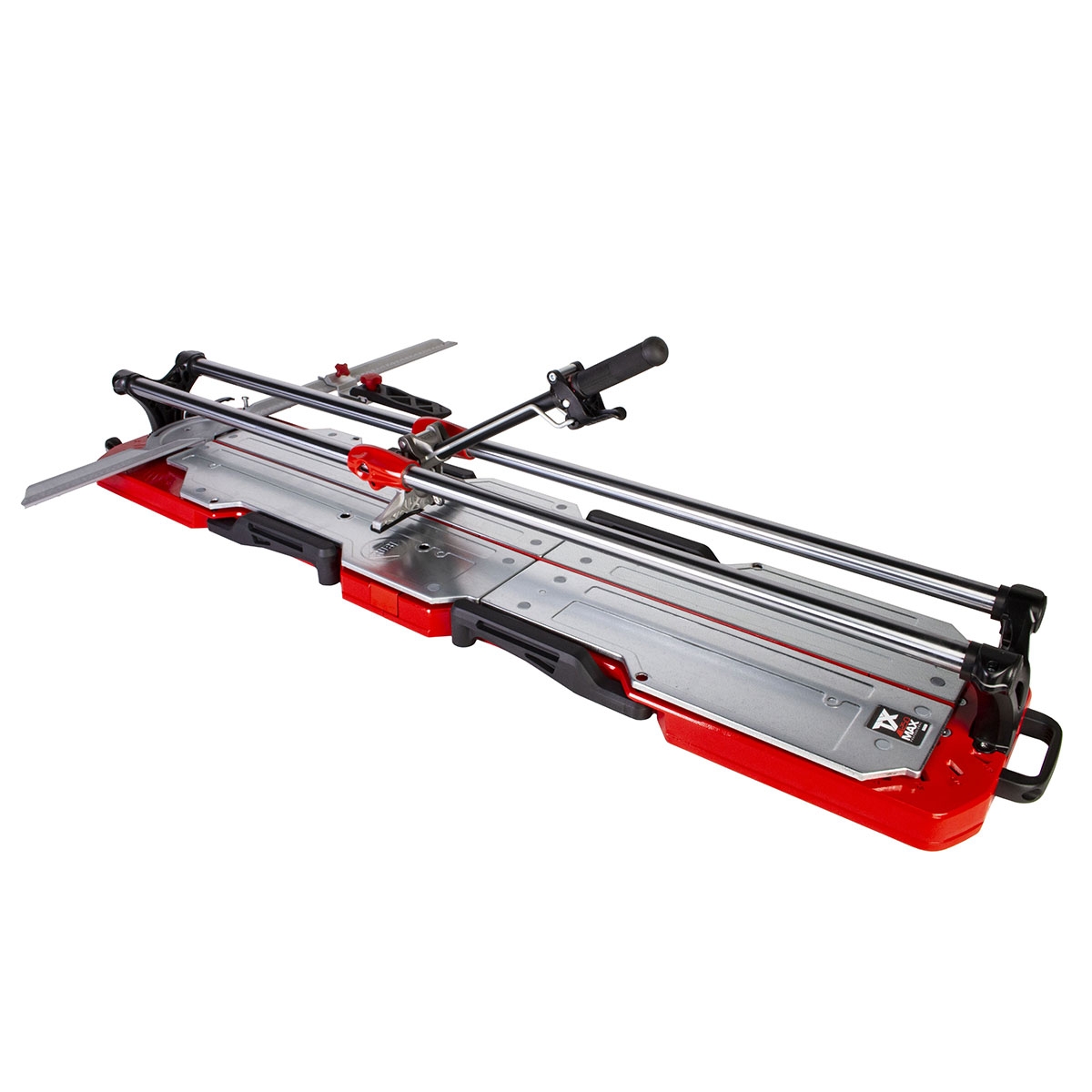

The TX-MAX range of professional manual cutters are perfect for INTENSIVE cutting of all types of ceramic tiles. Thanks to their high-performance MULTI-point separator and their swivel bracket system, the TX-MAX models allow easy and quick execution of angular cuts (from 0º to 45º), especially on porcelain stoneware tiles (AIa/BIa). Their high separation power (up to 1200 kg) allows the TX-MAX cutters to perform excellently with extruded stoneware.
The 30 mm diameter tubular steel guides and the head with extra-long aluminum slides provide impressive structural robustness, making the most of the models with the highest cutting capacity (TX-1020 MAX and TX-1250 MAX). The advanced position of the scoring wheel increases visibility during scratching and separation, and the tamper incorporates a removable protector that allows you to work on the most delicate surfaces without the risk of leaving marks. The separator mechanism allows for one-handed use, making it easy to lock and unlock the tamper using a ratchet and trigger system.
This system increases the work performance, both in thin and thicker materials (from 3 to 21 mm without the protector, and up to 19 mm with the anti-mark protector included in the tamper).
As a complement to the floating table system, the 710 and 1020 models are equipped with two additional side arms, to increase the support surface with large-format tiles. The 1250 model has 4 arms (two on each side). All models in the TX-MAX range include a side stop for measuring and blocking cuts and repetitive narrow strips, as well as two scoring wheels (8 mm and 22 mm EXTREME) and the traditional case case. TX-MAX manual cutters are compatible with the entire range of RUBI PLUS scoring wheels.
Highlights
• High precision in scratching.
• High efficiency of the whole system.
• Reinforced components. High robustness.
• High separation power (1,200 kg) - MASTER POWER. Operable with one hand.
Materials
• For professional cutting of all types of ceramic tiles, ideal for porcelain stoneware and extruded stoneware. Characteristics
• Tubular steel guides with a wall thickness of Ø30 mm x 2 mm.
• Head with extra-long aluminum slides, with "self-lubricating" friction bushings.

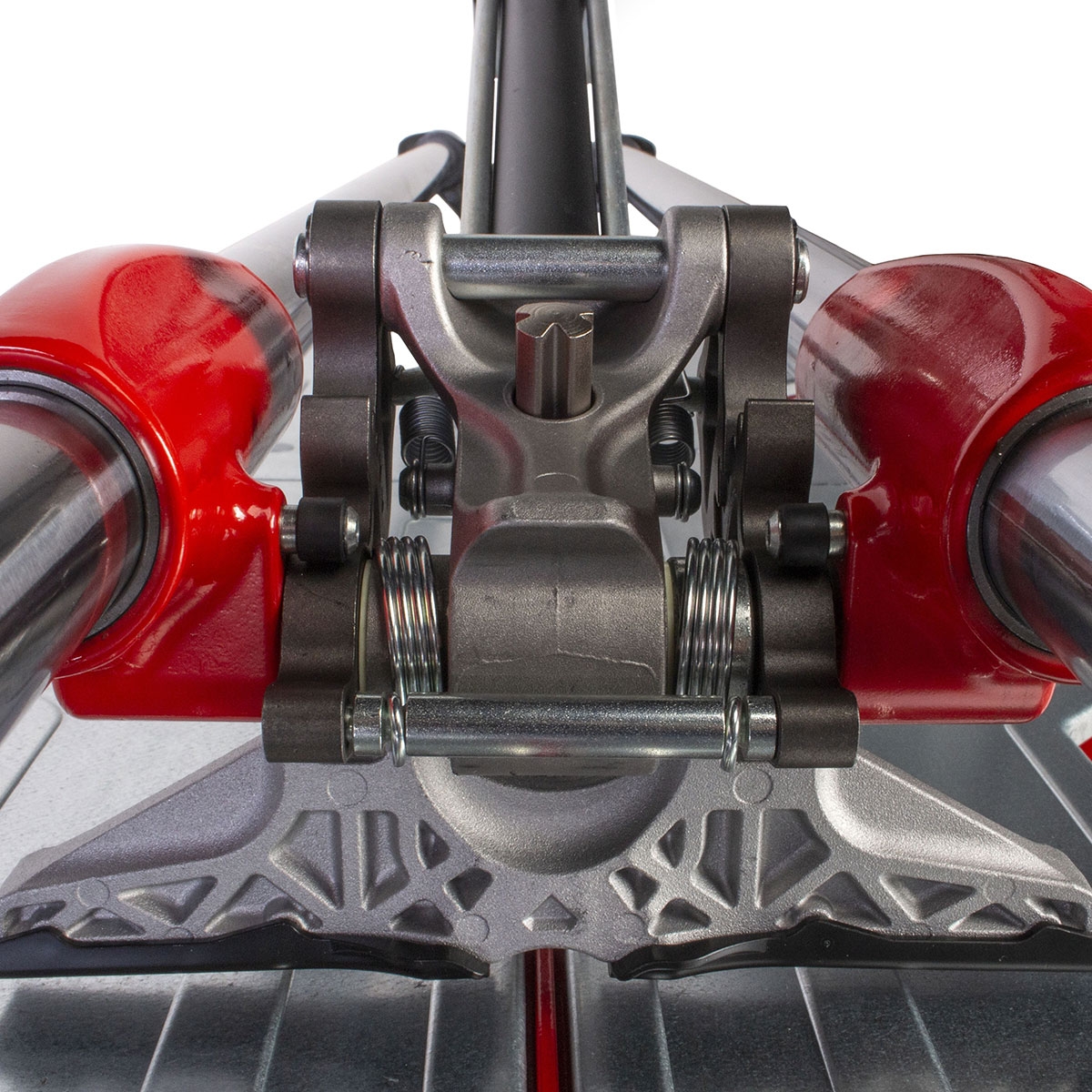

• Mobile separator with aluminium tamper, equipped with a plastic protector to AVOID marking on the most DELICATE surfaces.
• The locking of the tamper, by ratchet mechanism, and the unlocking, by trigger, allows scratching and separating with one hand. Greater SPEED of use. Increases PERFORMANCE in both thin and thicker materials.

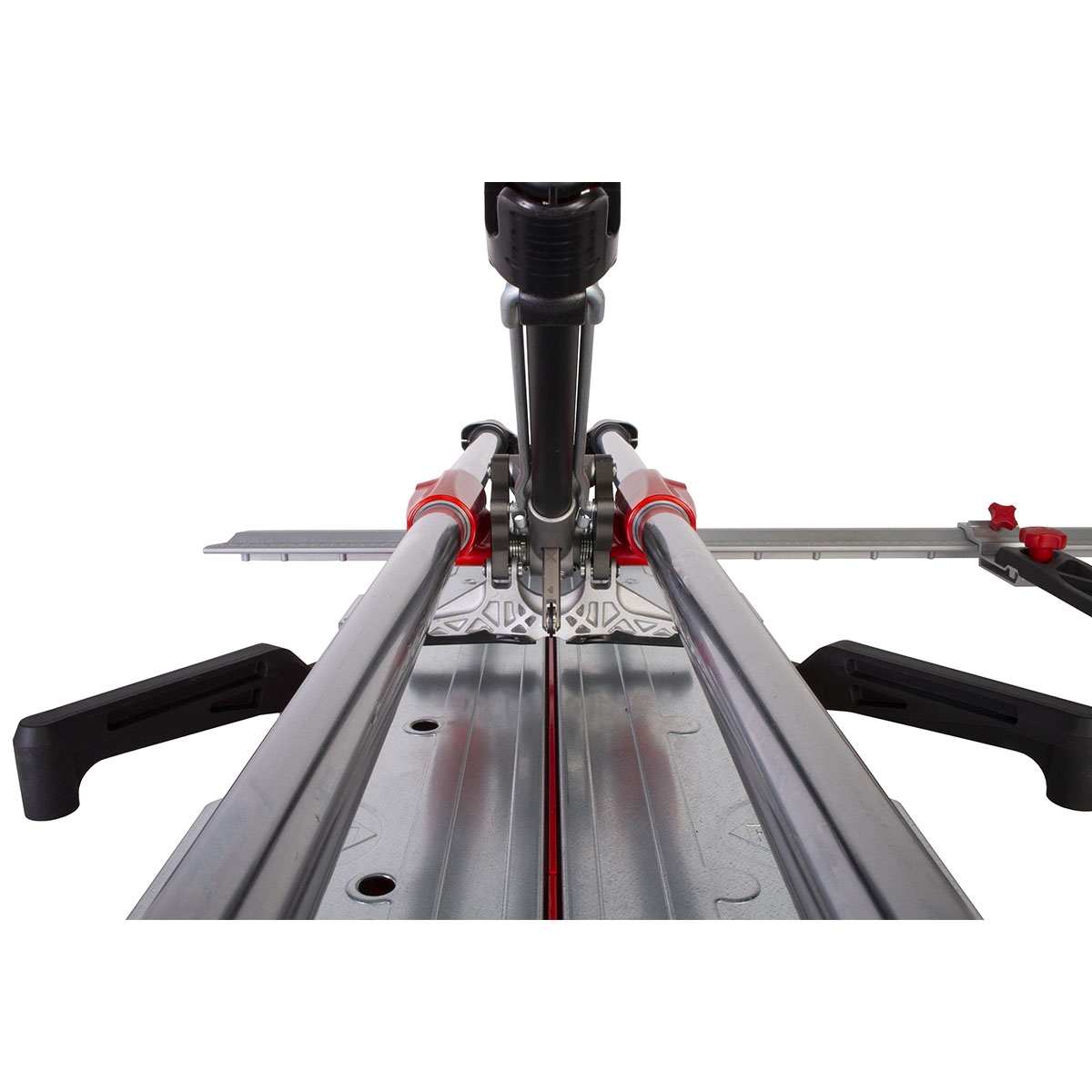

• Better VISIBILITY of the scratching and cutting area.

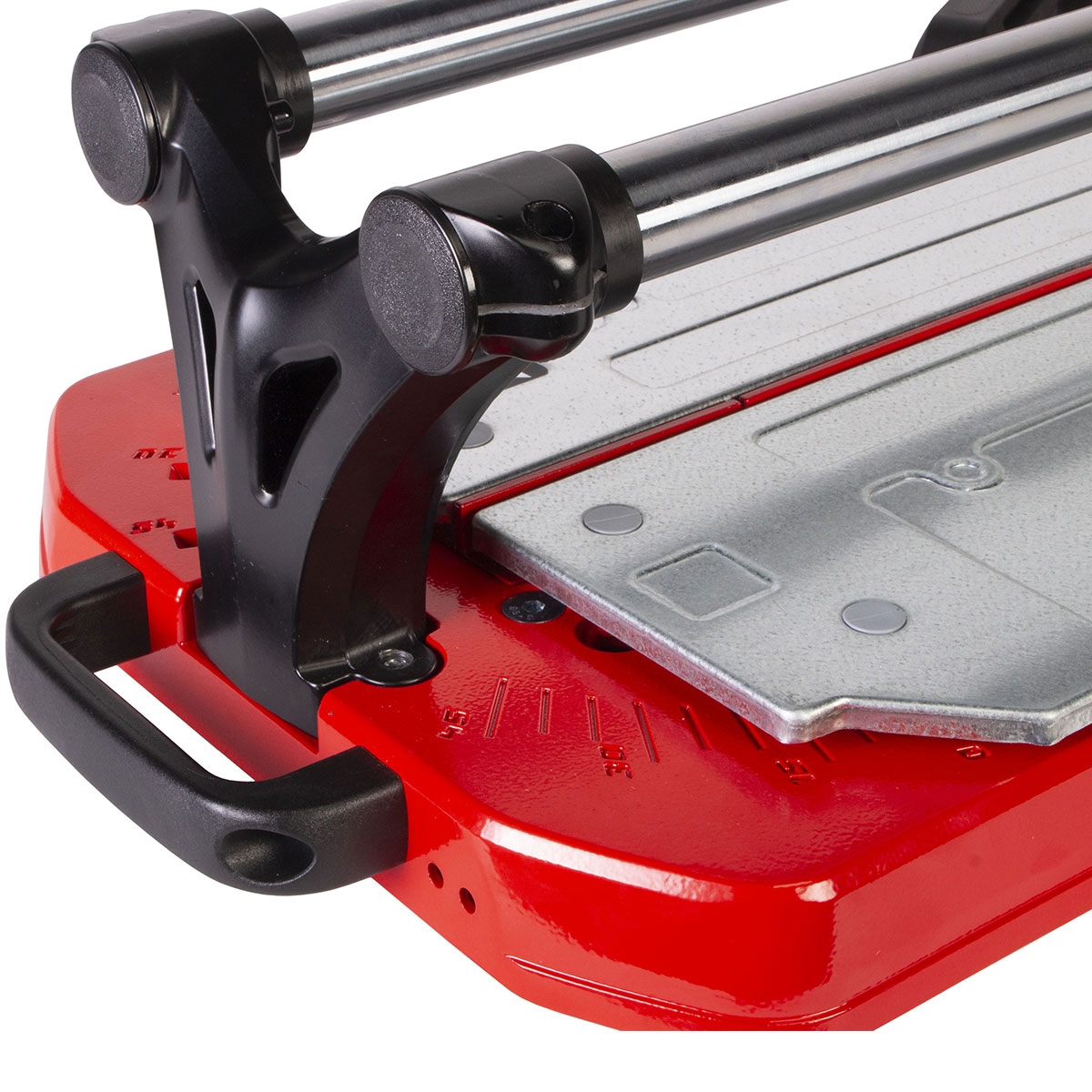

• Aluminum injection base, reinforced by a central rib, for greater ROBUSTNESS.
• Galvanized steel floating tables, increases STABILITY in cutting.

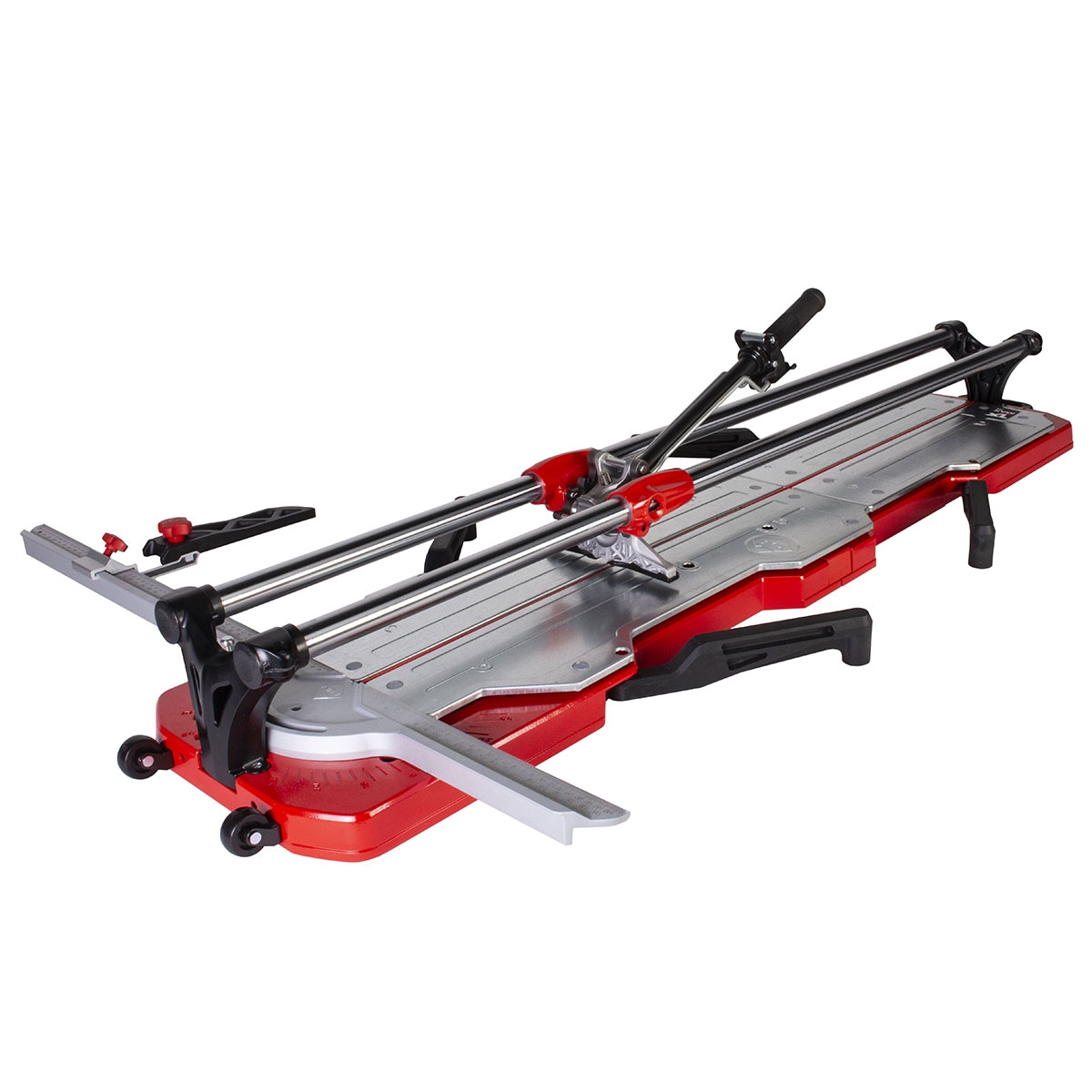

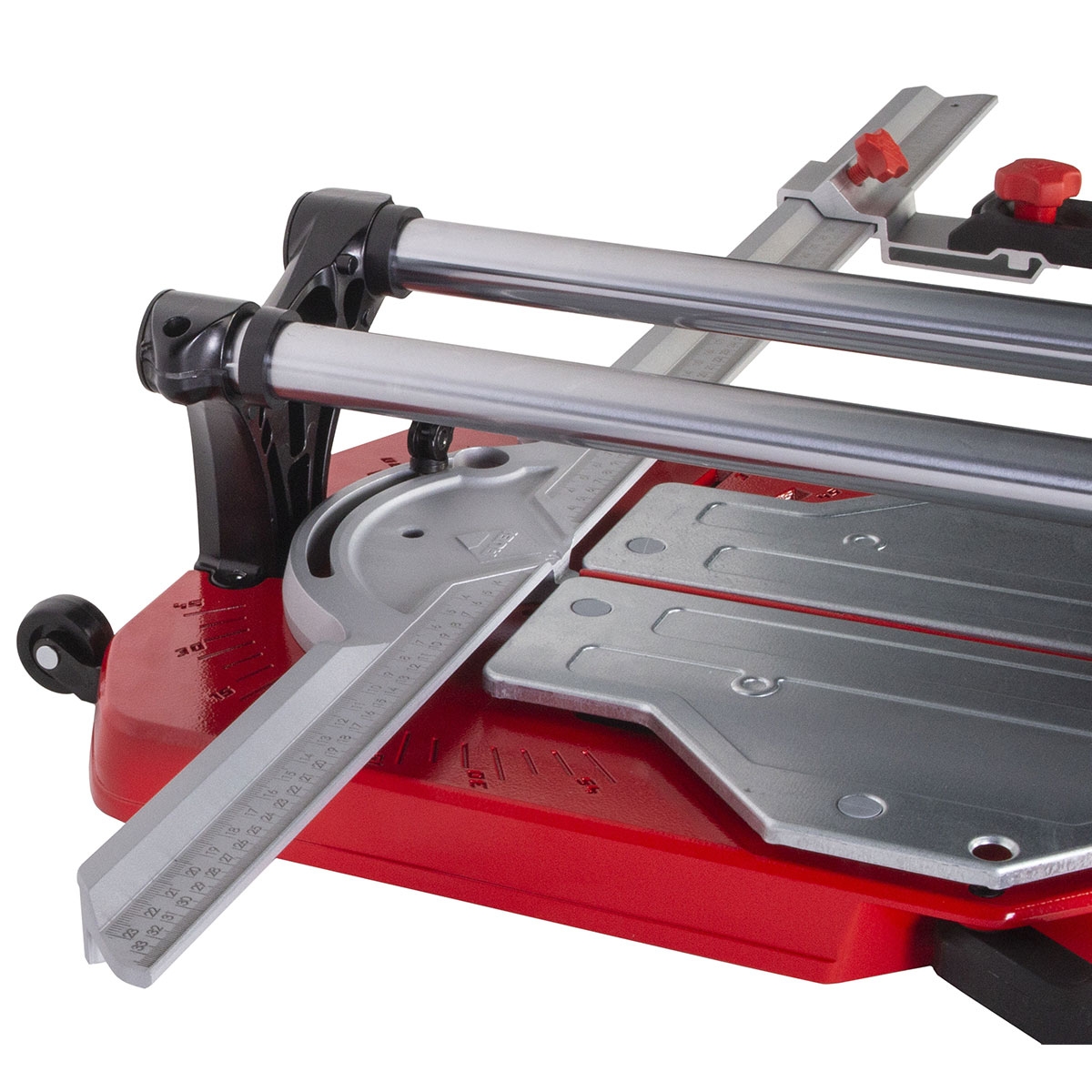

• Rotating square, with a central pivot. Greater PRECISION in angular cuts.
• With side stop for repetitive cuts and narrow straps.

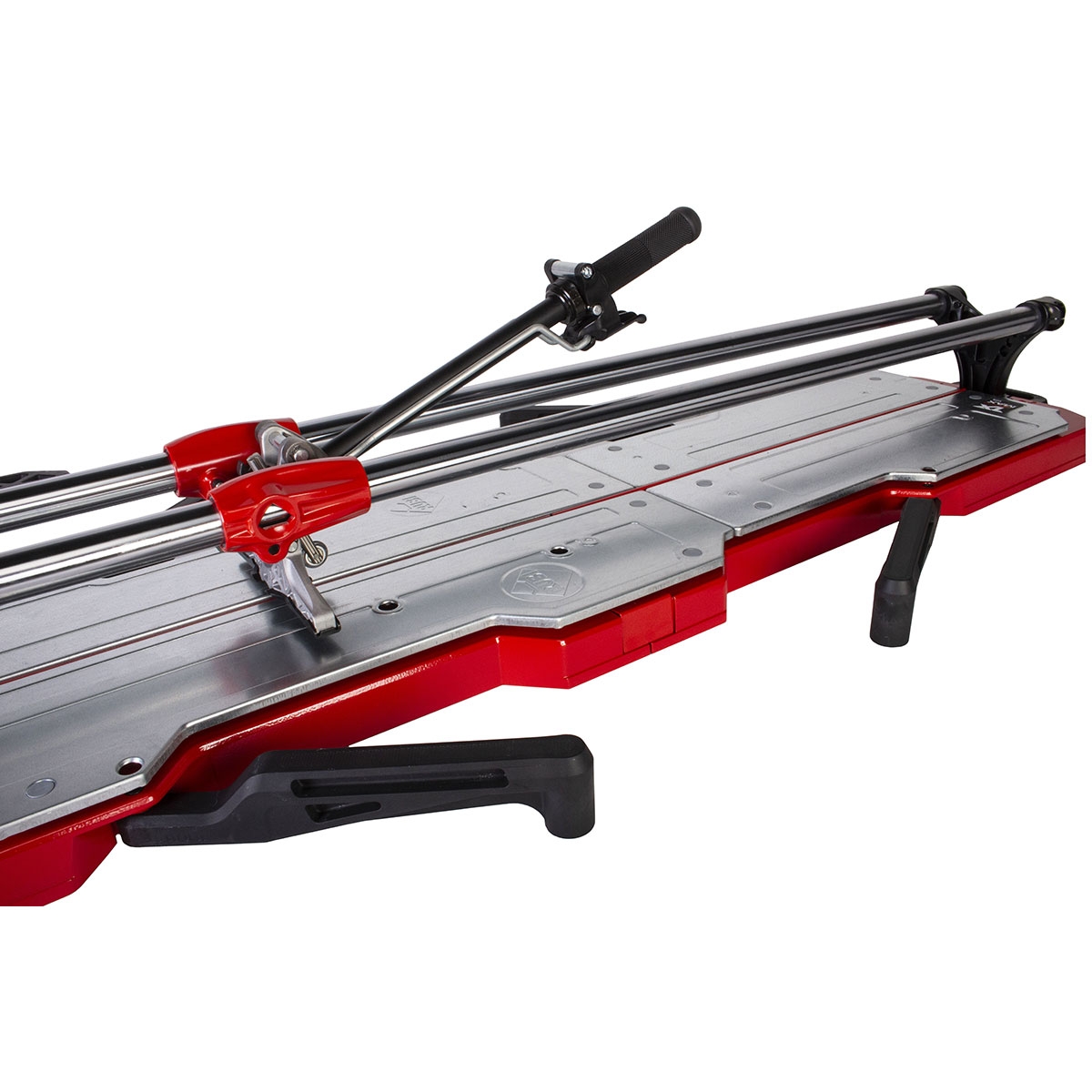

• Equipped with 2 additional arms*, for large-format ceramics. (*4 on TX-1250 MAX).
• Handle with soft-grip handle for greater ERGONOMICS and COMFORT.
• Equipped with 8 mm and 22 mm EXTREME scoring wheels. Compatible with the entire range of PLUS scoring wheels.

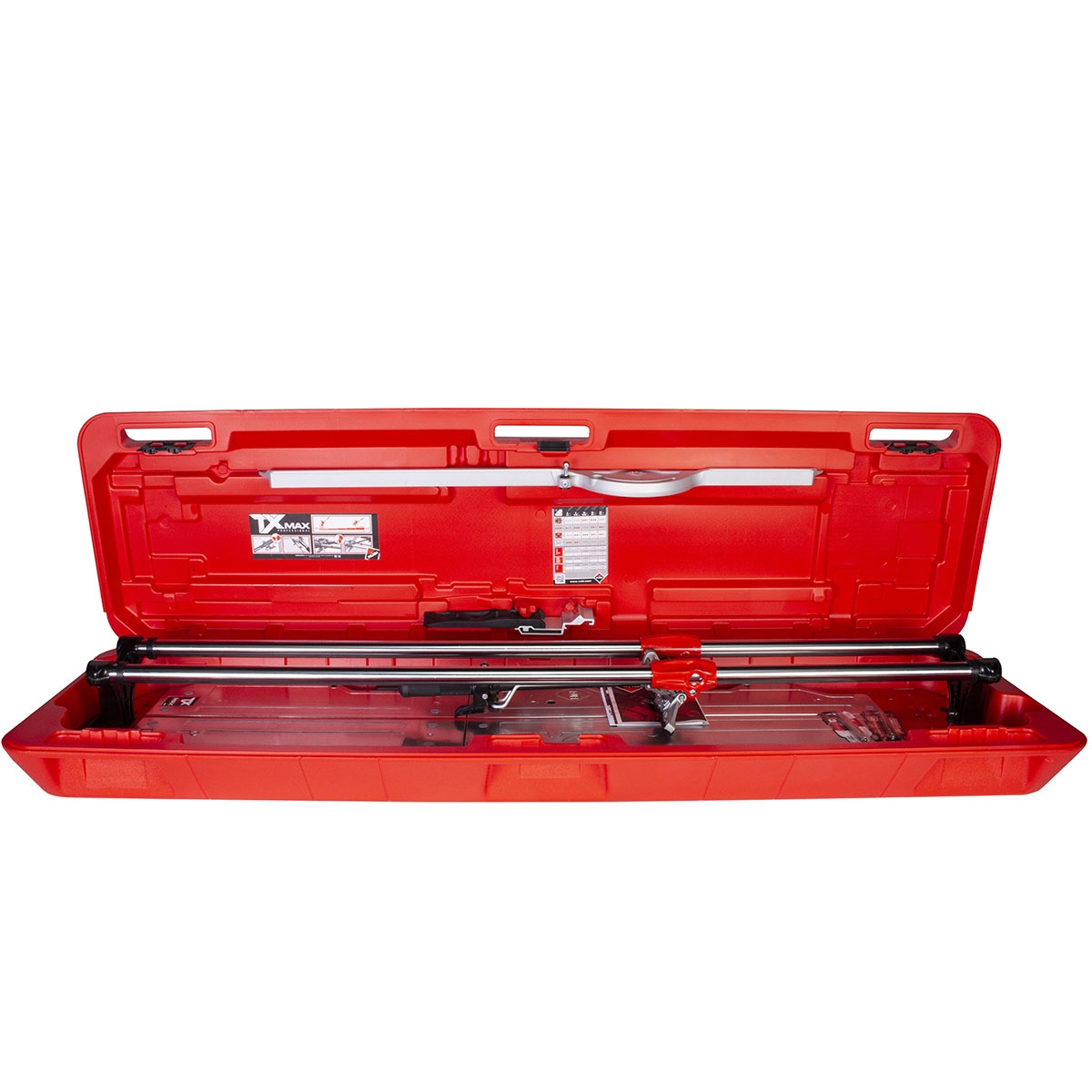

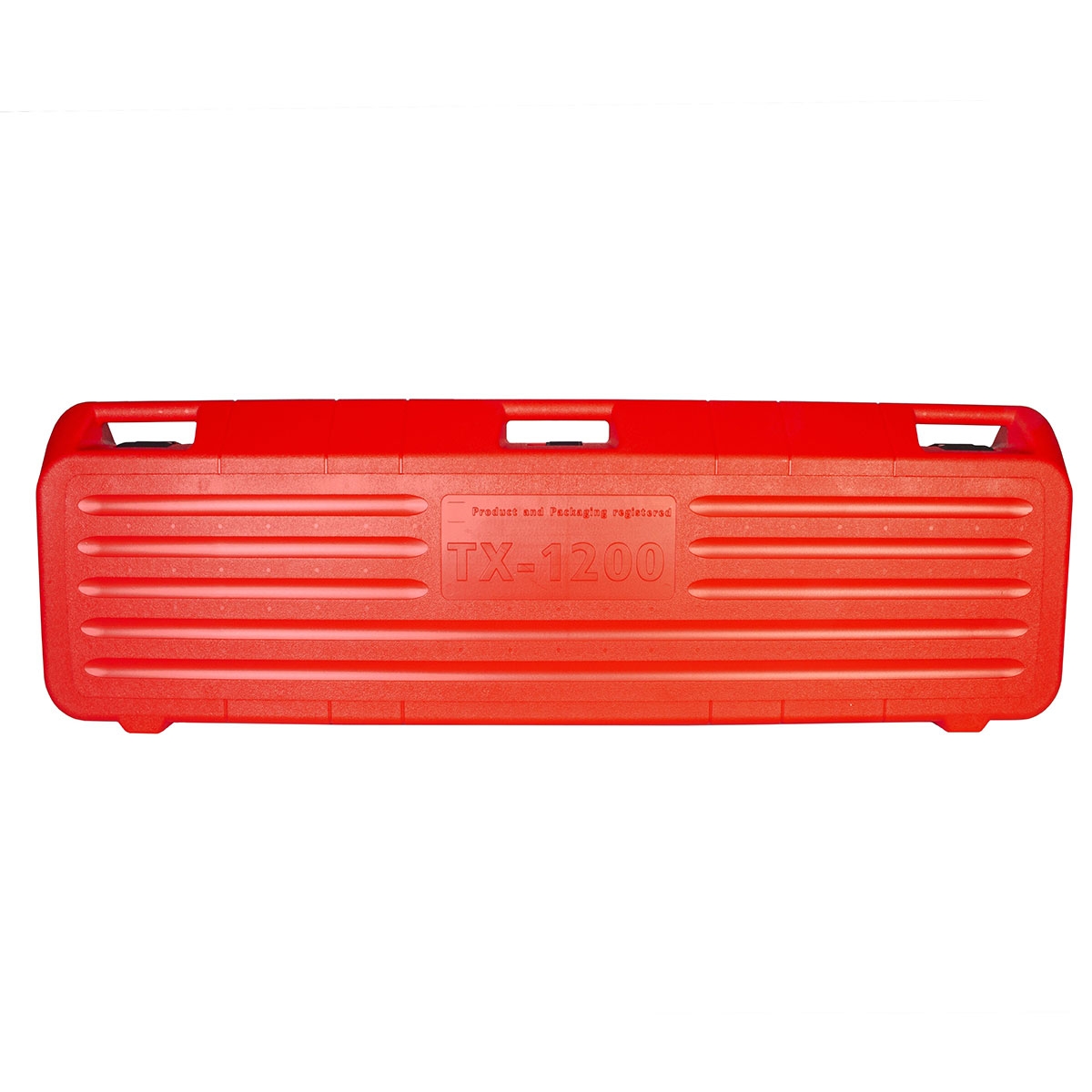

• Includes suitcase-case.
