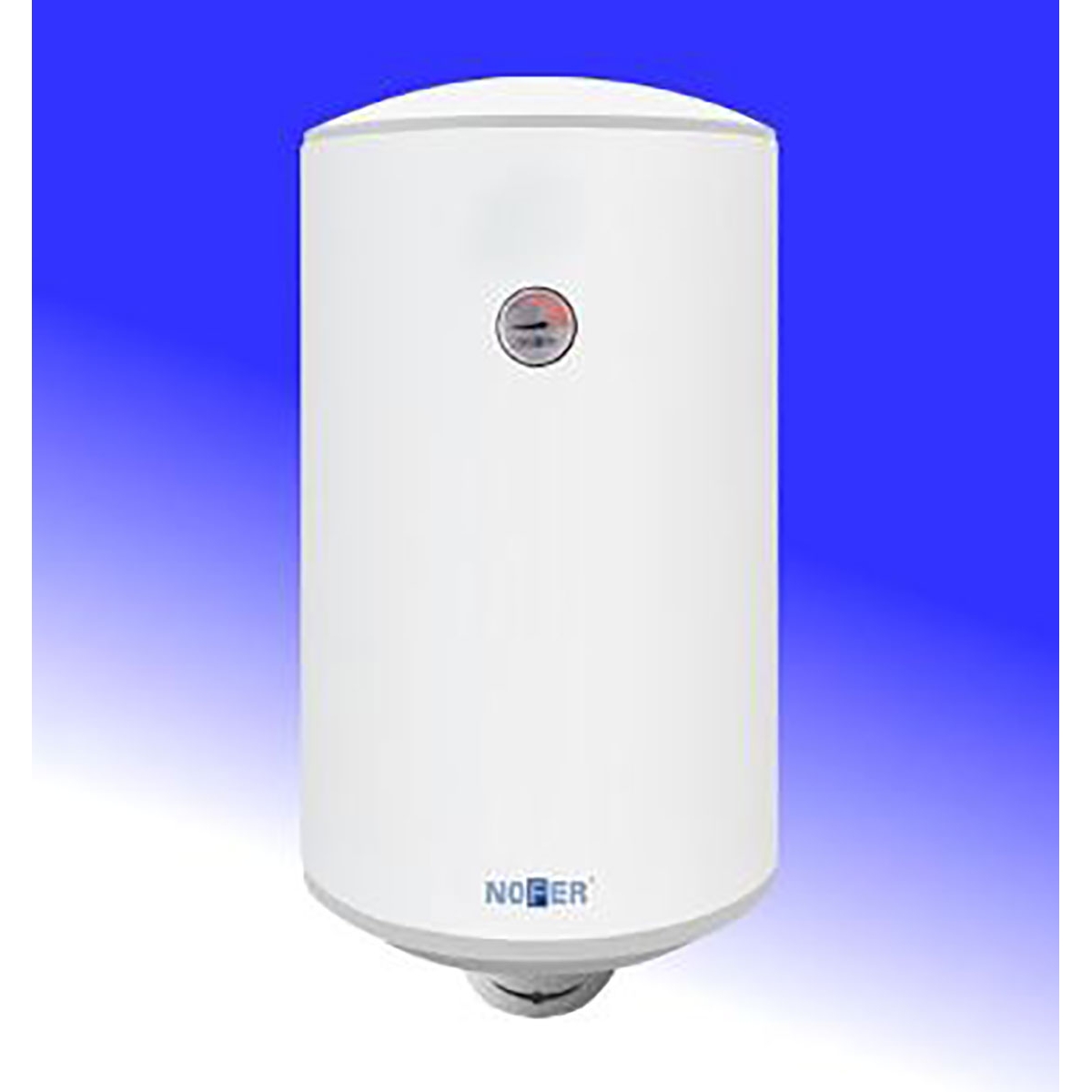

Electric Water Heater 75 liters n vertical
Calculate your shipping costs
Select zone and quantity
Electric Water Heater 75 liters n vertical, In any case the safety valve must be installed in the water inlet pipe, for electrical safety reasons and according to the Low Voltage Electrotechnical Regulations, the installation in bathrooms must be carried out in zone 3
The inner tank is made of 1.55 mm thick cold-rolled carbon steel with a coating of enamel vitrified in an oven at 860oC of 220μ thickness that gives it adequate protection against corrosion.
In addition, the device incorporates a magnesium anode that works as additional protection. The outer body is made of 0.5 mm thick carbon steel sheet coated with 70μ thick white epoxy-polyester paint.
Between the tank and the outer body, it has 23 mm thick expanded polyurethane insulation free of CFC.
The holes in the wall to hang the device must be made of 15 mm drill bit and 75 mm deep in the case of 10 cm brick masonry walls with mortar included.
The device allows its installation in a vertical position. The nominal pressure of the appliance is 7.5 bar and is controlled by a hydraulic safety and check valve set to the aforementioned pressure supplied with each appliance. Class I, IP24 and connection plug supplied with the device.
| Product | Electric Water Heater 75 liters n vertical |
| Brand / Manufacturer | Nofer |
| Guarantee | 3 years |
| Height (cm) | 72.4 |
| Width (cm) | 45.3 |
| Volume (liters) | 75 |
| Power (W) | 2000 |
| Recovery time | 2 h 53 min |
| Orientation | Vertical |
| Depth (cm) | 44.2 |
