Double-sided wood insert IT-103 K + Direct gift
2.005,94 € VAT incl. 21%

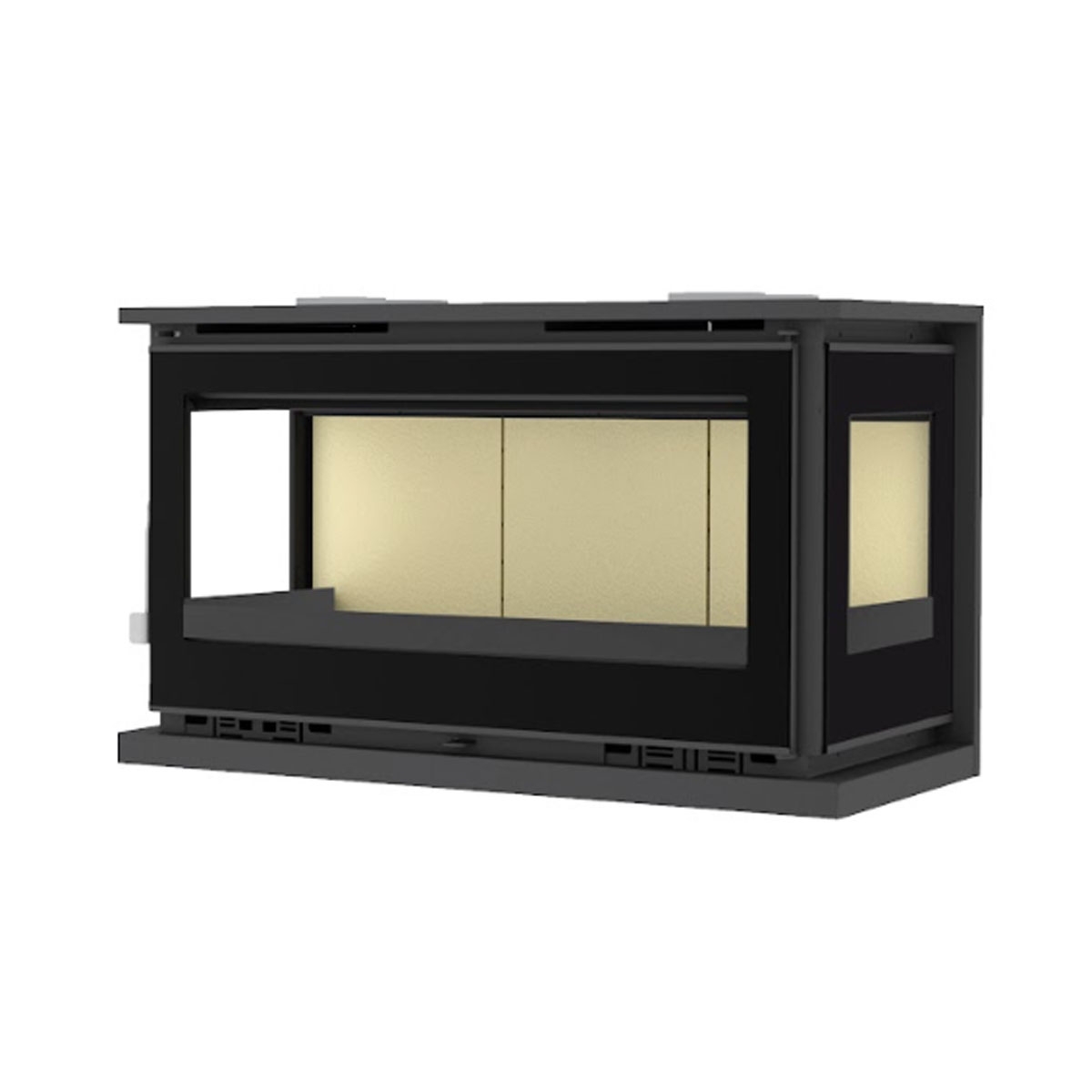

The FM IT-103 K double-sided wood insert combines innovative design and functionality, offering a panoramic view of the fire from two rooms. Made of high-strength steel, it guarantees durability and outstanding energy performance.
Its combustion system optimises wood consumption, generating efficient heat and reducing emissions. In addition, it incorporates a turbine for even heat distribution, providing comfort and warmth throughout the home with a modern and sophisticated style.
864,00 €
-10%
1.684,80 €
-10%
706,61 €
-10%
810,00 €
-10%
1.261,80 €
-10%
1.308,60 €
-10%
Table of Contents

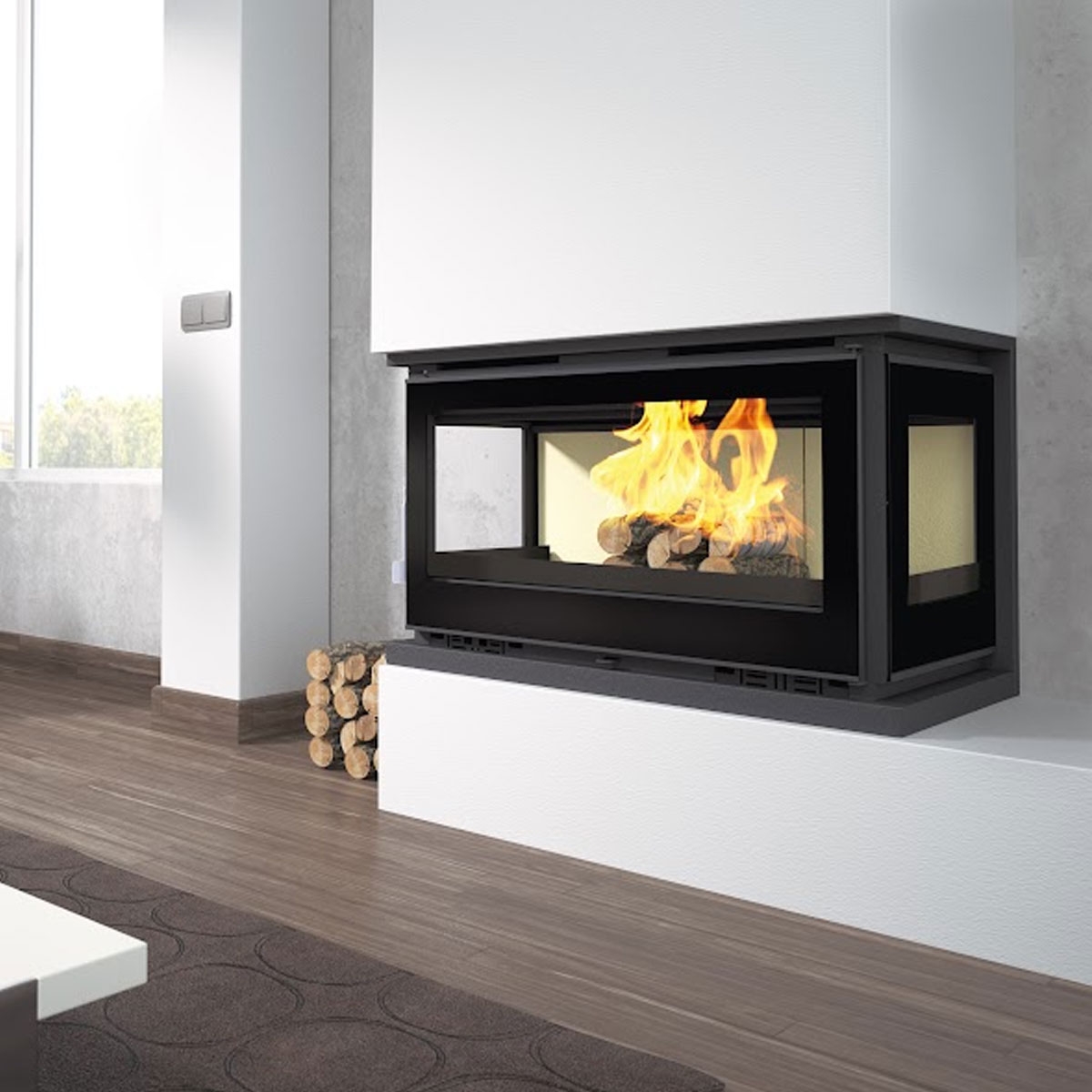

The FM IT-103 K double-sided wood insert is an elegant and efficient heating solution, designed to become the focal point of any home. Its double-sided design allows you to enjoy the view of the fire from two rooms, providing a distinctive touch to the spaces and creating a warm and cozy atmosphere.
Made of top quality steel, this model stands out for its robustness and resistance to high temperatures, guaranteeing a long lifespan.
It incorporates an advanced combustion system that improves thermal performance, ensuring optimized wood consumption and lower polluting emissions, making it an efficient and sustainable option.
In addition, it is equipped with a turbine to facilitate the uniform distribution of heat, achieving a comfortable environment in all areas of the house. Its interior design favors maintenance and cleaning, while its modern aesthetics, with sober lines and high-quality finishes.
 |
 |
|
 |
 |
 |
|
| Product | Double-sided wood insert IT-103 K + Direct gift | IT-103 Wood Insert with Turbine (100cm) + Direct Gift | Wood insert with double-sided turbine IT-102 (100cm) + Direct gift | IC-100 FKC panoramic wood insert + direct gift | Panoramic wood insert IZ-100 FKC + direct gift | Corner Firewood Insert IT-122 DFK + Direct Gift |
| Ratings |
|
|
|
|
|
|
| Manufacturer | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción |
| Price |
1.842,00 € 1.657,80 € |
1.842,00 € 1.657,80 € |
1.872,00 € 1.684,80 € |
1.800,00 € 1.620,00 € |
1.800,00 € 1.620,00 € |
1.886,00 € 1.697,40 € |
| Price difference | +27,00 € | -37,80 € | -37,80 € | +39,60 € | ||
| Guarantee |
3 years |
3 years |
3 years |
3 years |
3 years |
3 years |
| Heat output (kW) |
13,5-19 |
13,5-19 |
13,5-19 |
14,5 -17,9 |
14,5 -17,9 |
13,5-19 |
| Yield (%) |
81 |
78 |
78 |
81 |
81 |
81 |
| CO emissions (%) |
0.10 |
0.1 |
0.1 |
0.10 |
0.10 |
0.1 |
| Smoke outlet (mm) |
200 |
200 |
200 |
200 |
200 |
200 |
| Weight (kg) |
134 |
134 |
140 |
200 |
200 |
134 |
| Max size. Trunk (cm) |
95 |
95 |
95 |
88 |
88 |
95 |
| Heatable volume (m3) |
360 |
360 |
360 |
390 |
390 |
360 |
| Type of Combustion |
Double |
Double |
Double |
Double |
Double |
Double |
| Interior in |
Vermiculite |
Optional vermiculite or cast iron |
Optional vermiculite or cast iron |
Vermiculite |
Vermiculite |
|
| Fans (turbines) |
160m3/h and 20W x 4 (220v) |
4 x 160 m3/h and 20 W x4 (220 V) |
4 x 160 m3/h and 20 W x4 (220 V) |
No |
No |
160m3/h and 20W x 4 (220v) |
| Primary air regulation |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Secondary air regulation |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Clean-glass system |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Difficulty |
Advanced |
Advanced |
||||
| Fuel |
Firewood |
Firewood |
||||
| Glass-ceramic resistance (ºC) |
750 |
750 |
750 |
750 |
750 |
|
| Heat resistance paint (ºC) |
800 |
800 |
800 |
800 |
800 |
800 |
| Draft Valve |
Yes |
Yes |
||||
| Double combustion system |
Yes |
Yes |
||||
| Energy certification |
TO |
TO |
TO |
TO |
||
| Smoke outlet area |
Superior Male |
Superior Male |
Superior Male |
Superior Male |
||
| Pull-out ashtray drawer |
Yes |
Yes |
Yes |
Yes |
||
| Woodshed |
No |
No |
Yes |
Yes |
||
| Dual chamber |
Yes |
Yes |
Yes |
Yes |
||
| Plate warmer |
No |
No |
No |
No |
||
| Oven |
No |
No |
No |
No |
||
| Screen-printed glass |
Yes |
Optional |
Yes |
Yes |
||

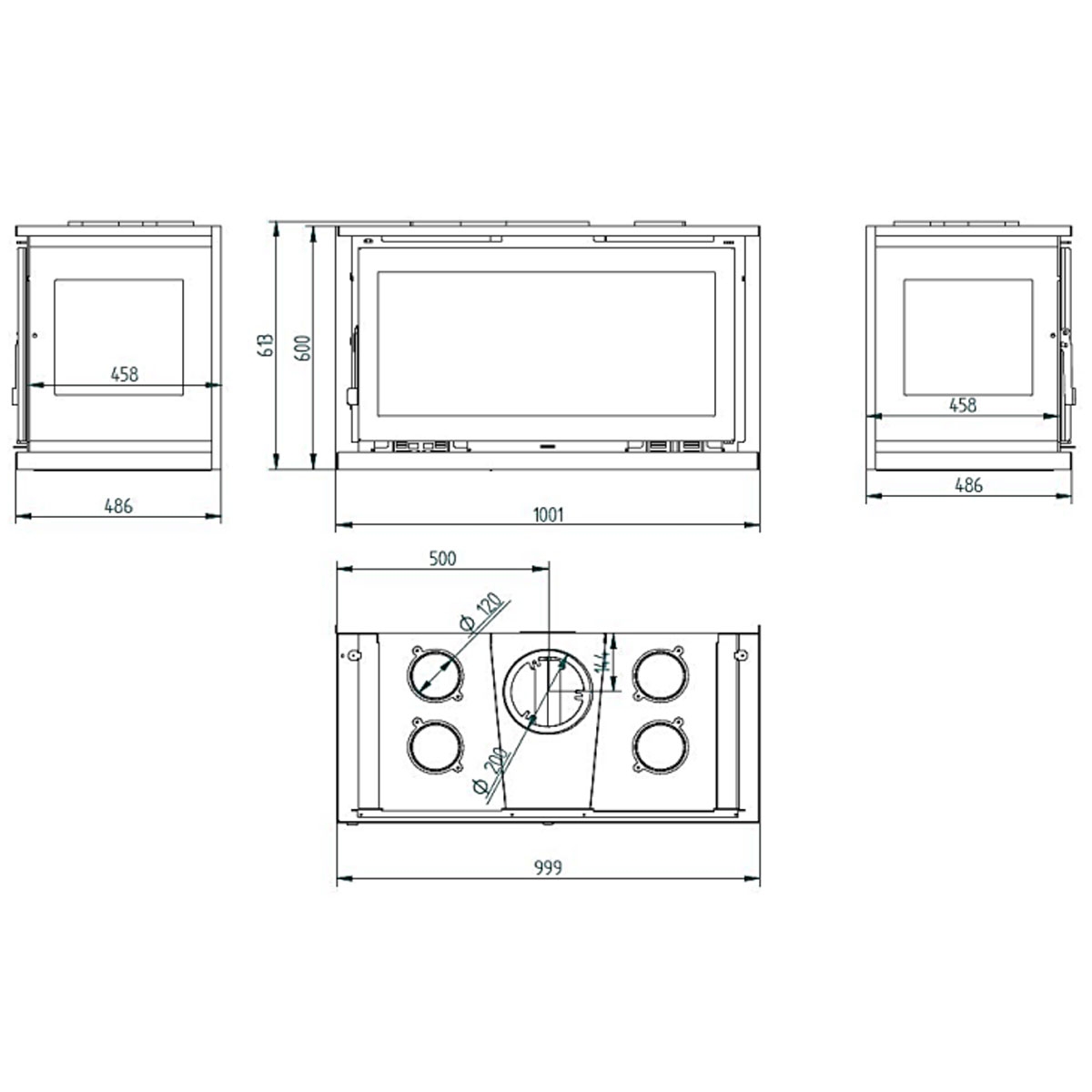

| Built-in dimensions mm (width x depth x height) |
997x487x600 |
934x417x610 |
||||
| Front dimensions (height x width) cm |
600x1001 |
645x1045 |
||||
| Outlets to heat other rooms |
4 of 120mm |
4 of 120mm |
||||
| Dimensions cm (W x L x H) |
941 x 450 x (1290:1442) |
941 x 450 x (1290:1442) |
||||
| View product | View product | View product | View product | View product | View product |
