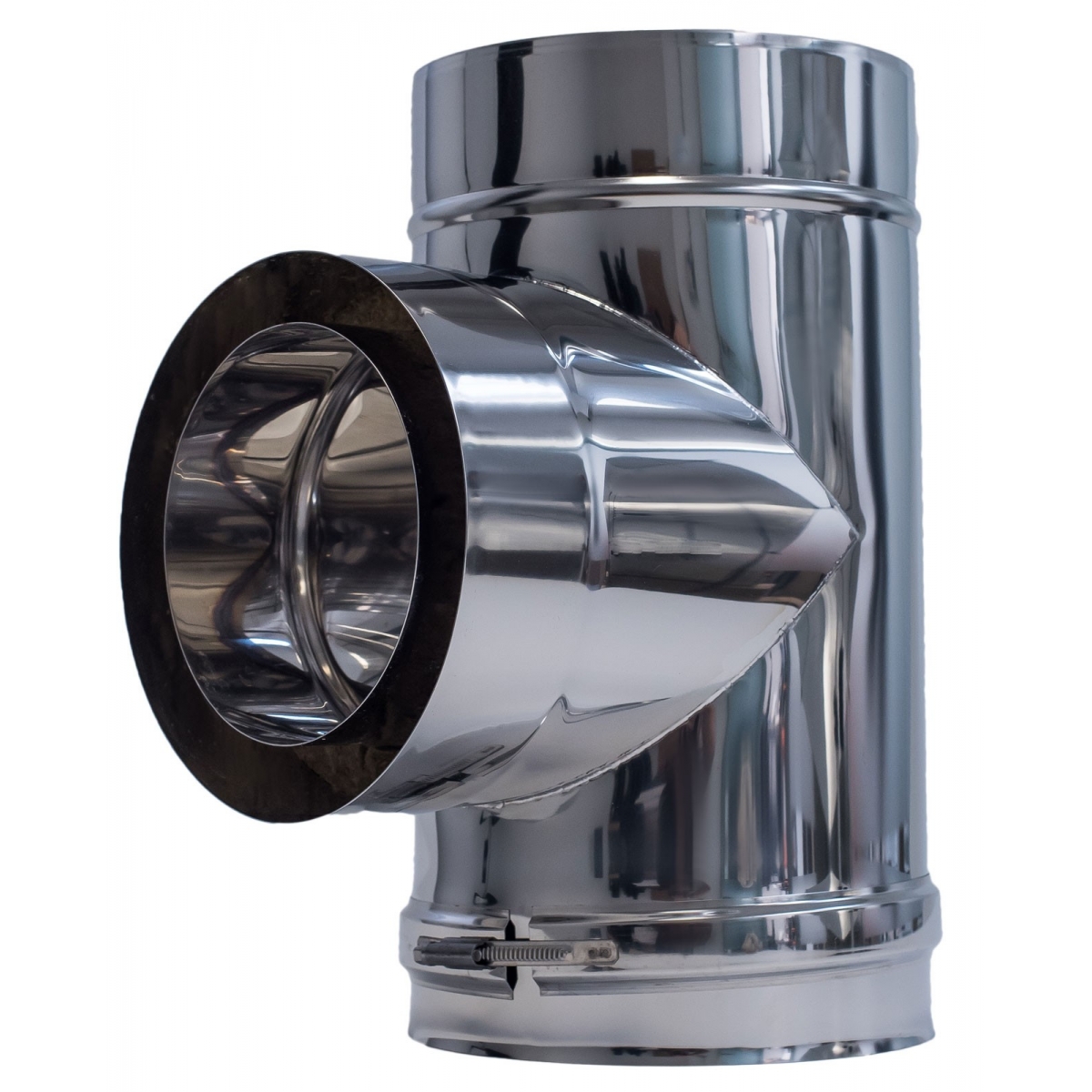

Double-walled stainless steel "T" terminal

Double wall stainless steel "T" terminal for pellet stoves. It has been manufactured with a 0.4 mm thick stainless steel inner wall and a 0.5 mm stainless steel outer wall with a variable diameter. By using a lid, it allows the ashes to be collected, facilitating the cleaning of the system. It includes the lower cover necessary for the closure of the T, whose use is to extract the leftovers from the combustion of the pellet. Technical details

• Inner wall: AISI 316L stainless steel thickness 0.4 mm.
• Exterior wall: AISI 304 stainless steel thickness 0.5 mm.
• Insulation: rock wool; Density 90kg/m3 and 25mm. thick.
• Continuous LASER welding on all parts.
• No thermal bridge of the internal duct with the outer tube, which represents a lower temperature loss of the internal duct and allows independent expansion.
• Joining system: male-female with included union clamp.
• Finish: glossy exterior.
