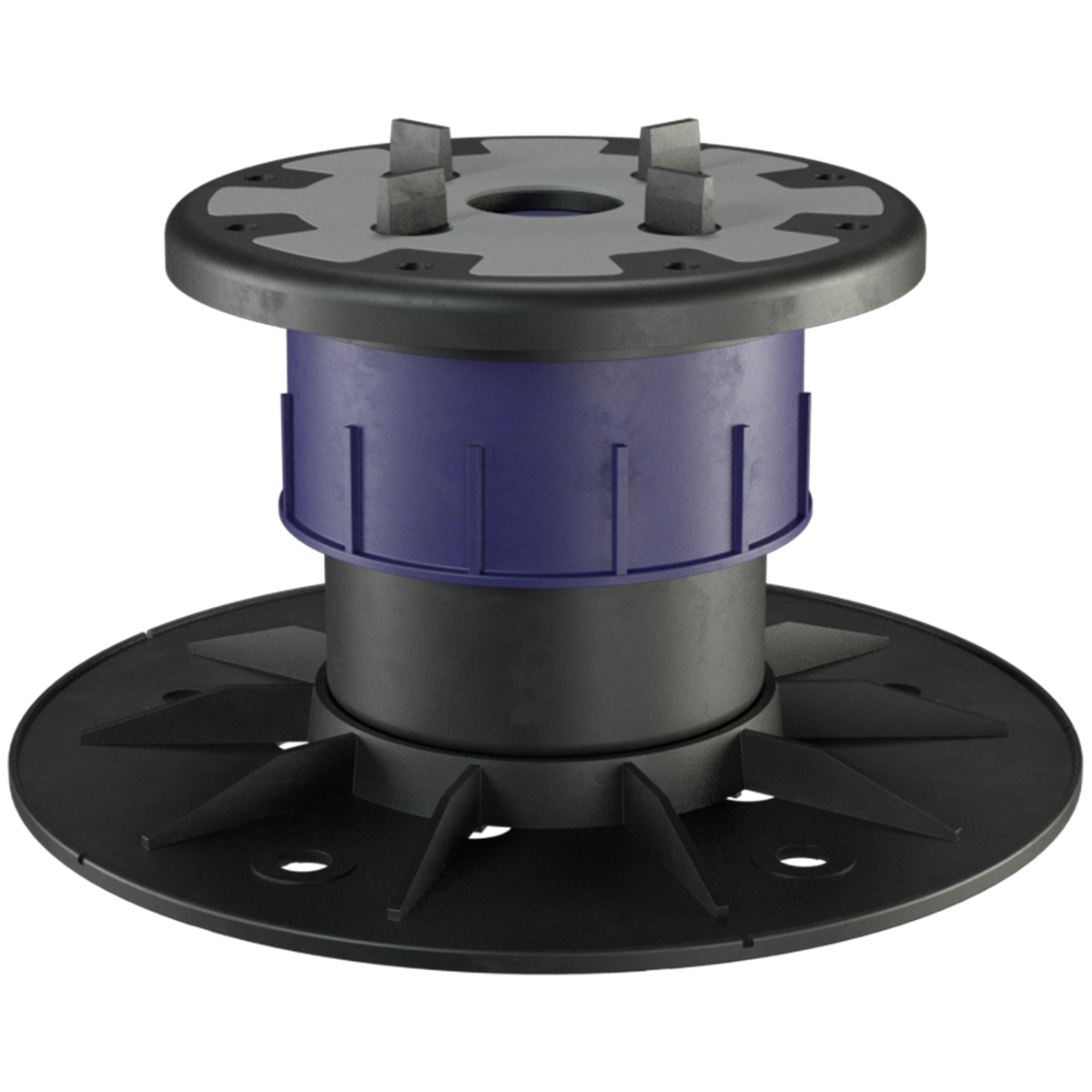

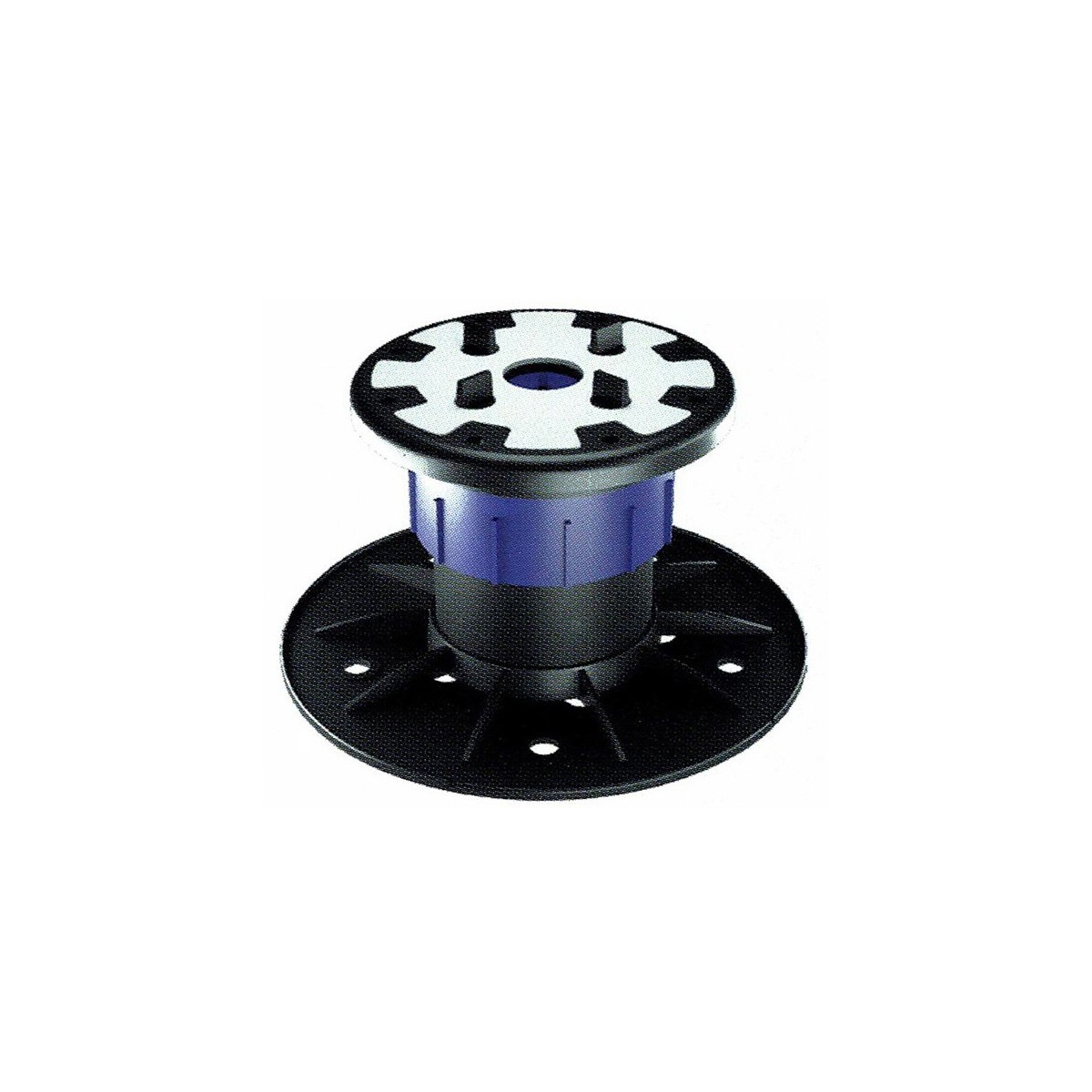

XSP 6 PRO 5% 120-160mm self-leveling plot (25u pack)

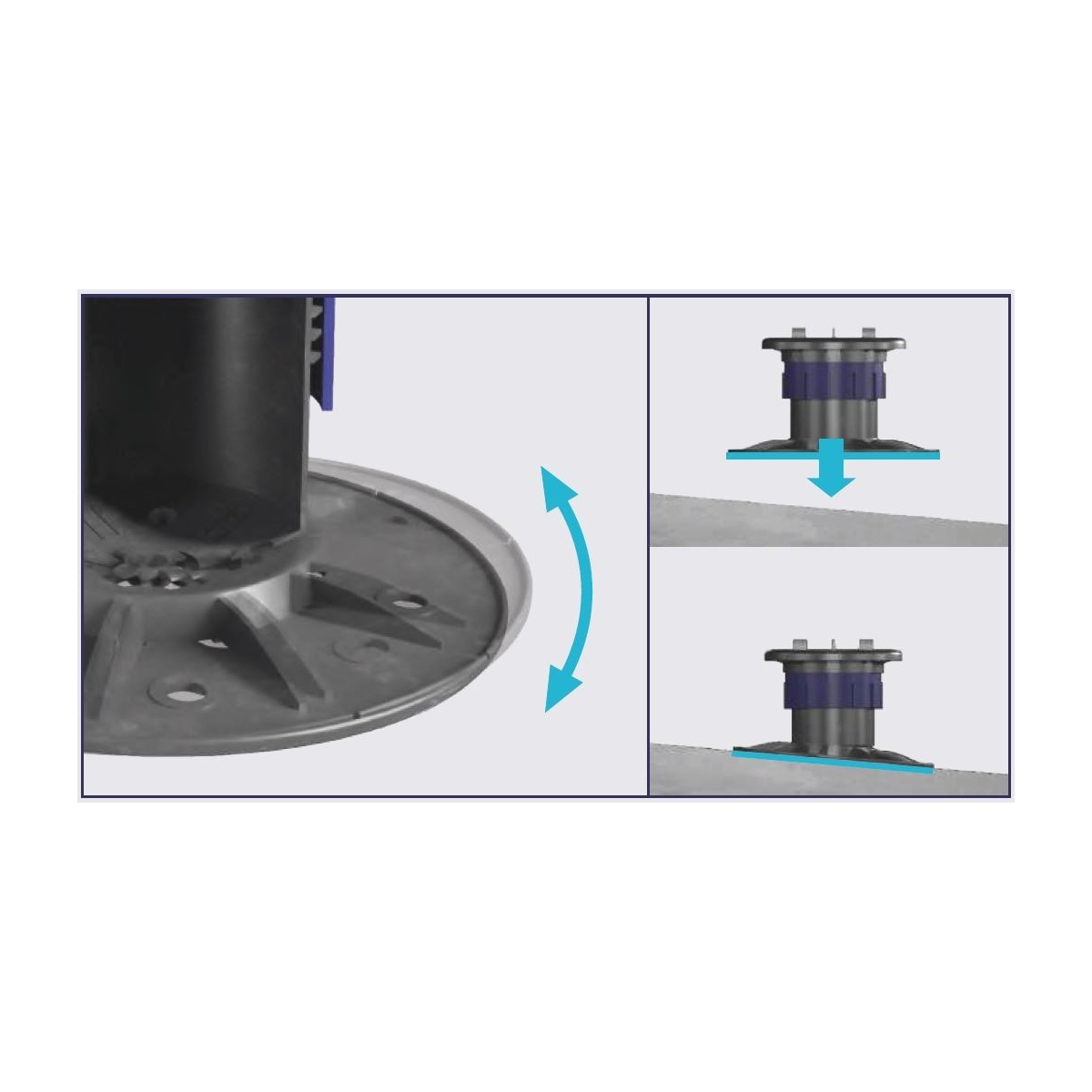

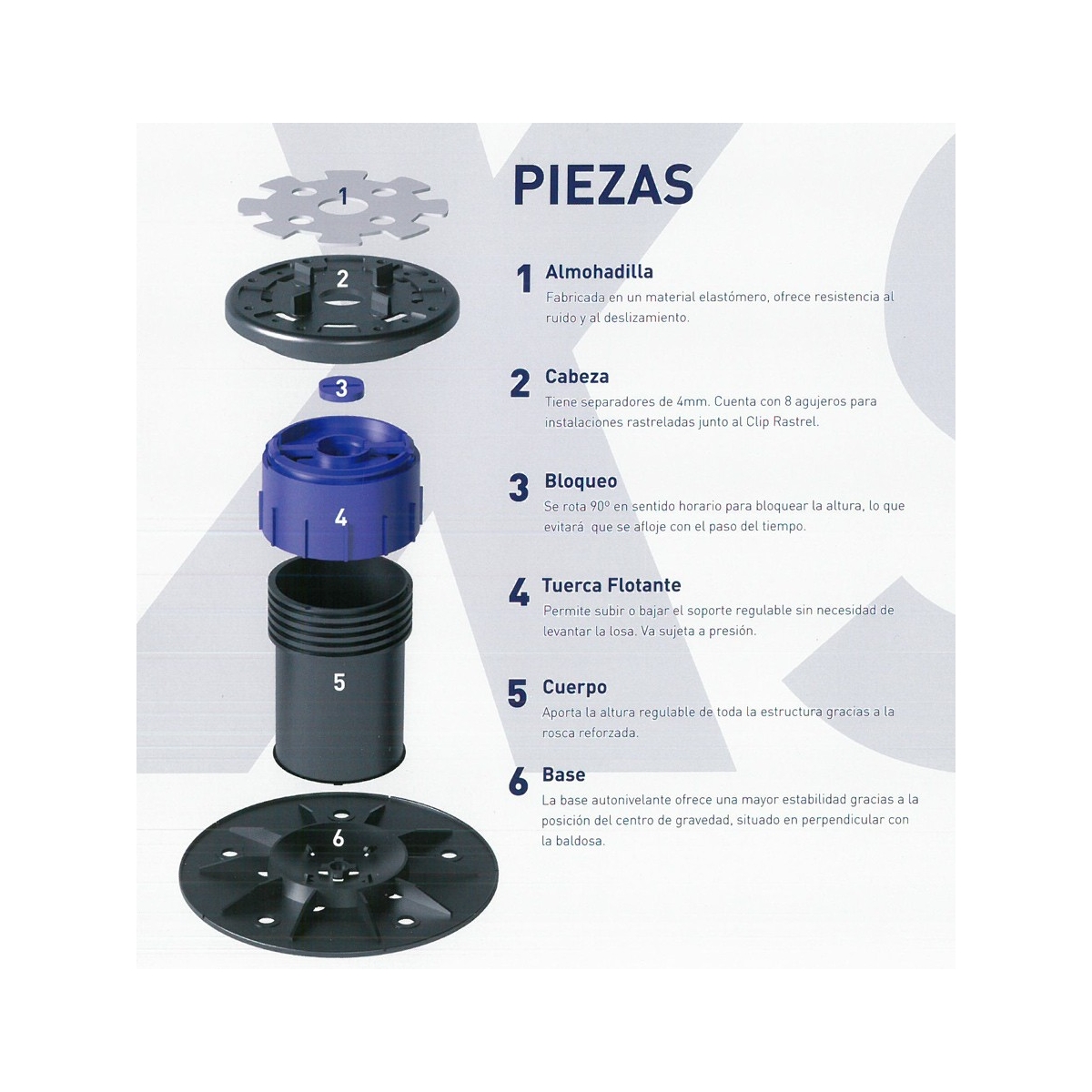

The self-leveling plot for raised pavement system guarantees greater resistance thanks to its new structure. It is larger and with more support surface, so the pressure points are better distributed and the load is distributed more efficiently. The pad is already integrated, so you add extra support and noise and impact reduction. Its oscillating base in all directions, allows you to orient the plot up to 5% depending on the model. Its structure consists of:

• Pad: Offers slip resistance and reduces noise and vibration from each step
• Head: It has 4mm spacers and 8 holes for batten installations
• Lock: It has the ability to rotate 90º clockwise to lock the height of the plot and not loosen over time
• Floating nut: Allows the support to be raised or lowered without the need to lift the slab
• Body: Supports all the weight thanks to its reinforced thread
• Base: Offers stability thanks to the position of the center of gravity, located perpendicular to the tile
