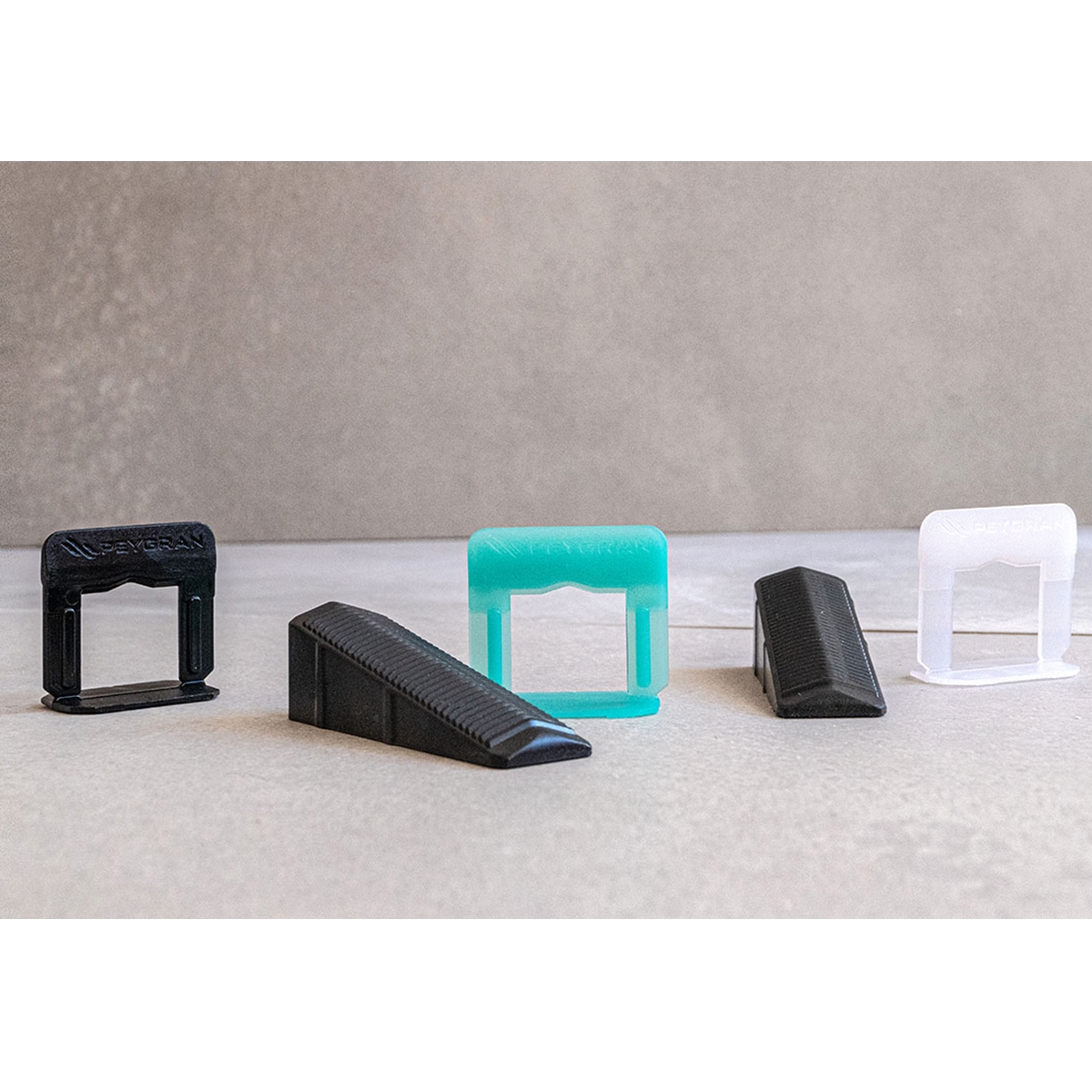

The new Compact leveling system presents all the functionalities of classic Peygran levelling in a smaller format.

Its new wide wedge guarantees the same tightening force and the upper part has a thickness gradient on the head to reuse as a tiling wedge or separator and give a new life to this part.

A new model of sustainability is thus achieved.

Its pre-cuts on the base guarantee easy removal, which added to its smaller appearance makes this step even easier.

Each bag contains 80 or 200 units.

MINIMUM BASE

The base of the LS Compact Chock reduces its thickness to facilitate placement under the tiles. With its 1.6mm thickness, you won't need to separate the tile from the glue to insert the chock.

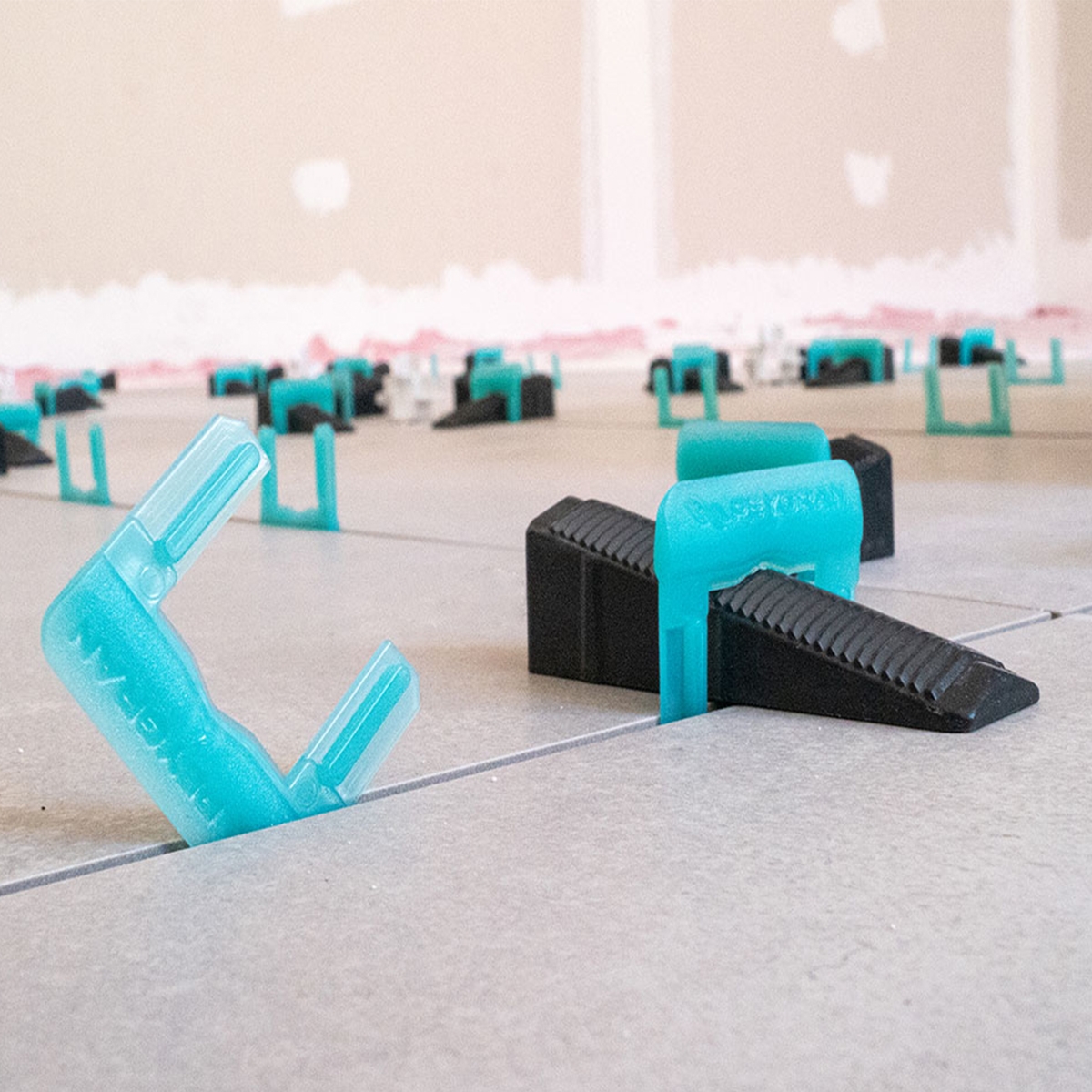

HEAD SPACER

Peygran manages to convert the upper part of the chock into a reusable piece once its initial leveling function is finished. You can use the head as a spacer wedge for the joints, with a thickness of between 0.7 and 3 mm.

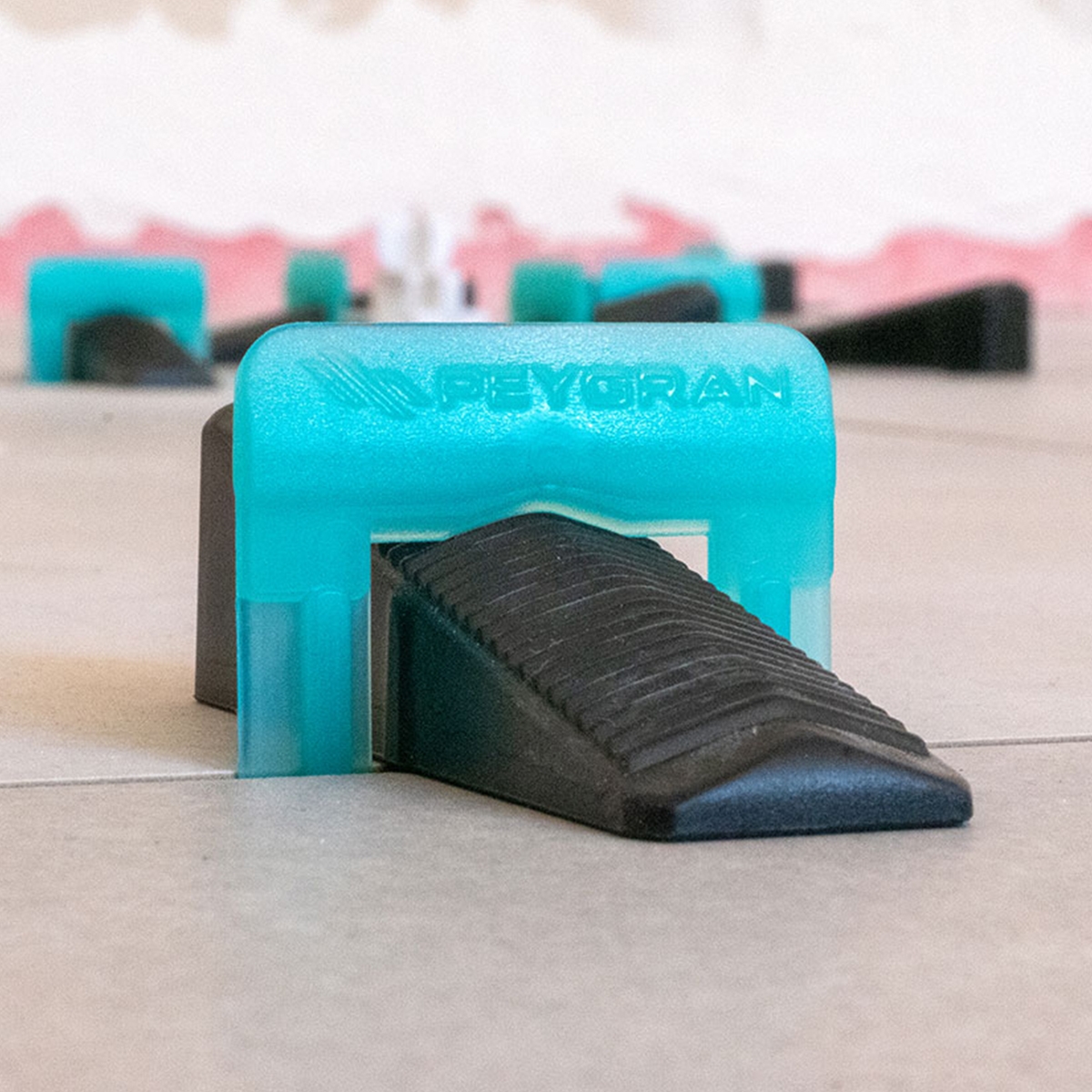

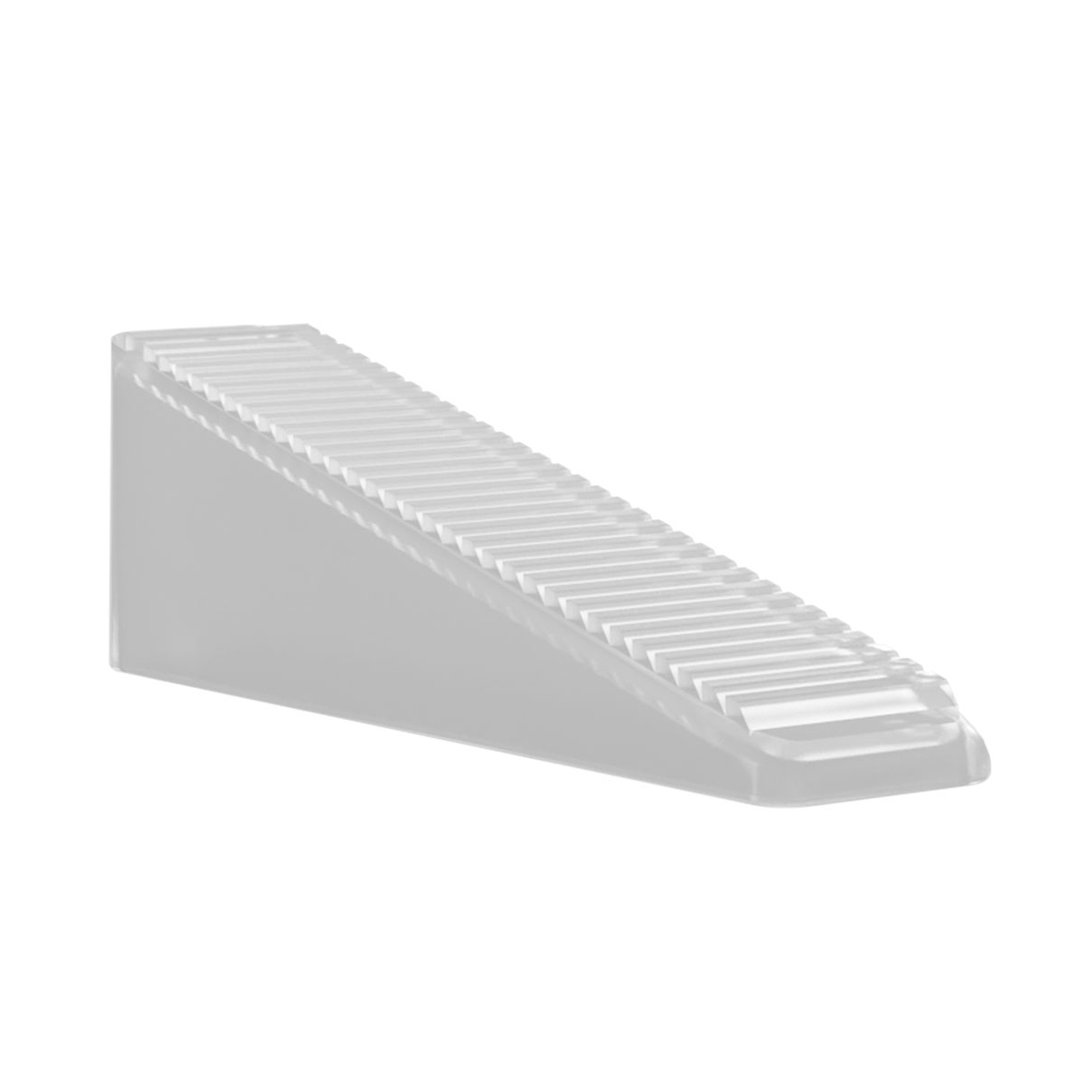

WIDE AND ANGULAR WEDGE

The force when tightening is distributed from the inside out, where the chock resists better and provides much better grip. Thanks to this, you will enjoy impeccable leveling.

REINFORCED SIDES

The reinforced sides of the new LS Compact Wedge, together with its angled design, help to distribute the force evenly. Thanks to this, the tightening of the chock can be firmer.

With the levelling system for Peygran floors and walls, we will be able to avoid the well-known "steps" (protrusions or eyebrows). This type of defects, which are sometimes attributed to the quality of the ceramics, are usually the result of irregular setting; or of very heavy, thin or complex parts to install. With the leveling system, we ensure that the pieces are attached to each other, preventing them from moving during setting. In addition, we will save time in the installation and therefore, money, because we will not have to be so aware of those unpleasant damages that occur after installing the tiles after the cement glue has set. It will also facilitate the installation of complex, heavy or thin parts. Resulting in quality work.

1. First of all, it must be taken into account that the support must have a good planimetry. Essential in large formats.
2. First we must adjust the pliers on the scale, according to the thickness of the ceramic.
3. Double gluing is recommended. Spread the adhesive cement and place a piece. Then, we will introduce the chocks or bases, and we will continue to place the adjacent tiles.
4. Subsequently, place the wedges in the chock manually.

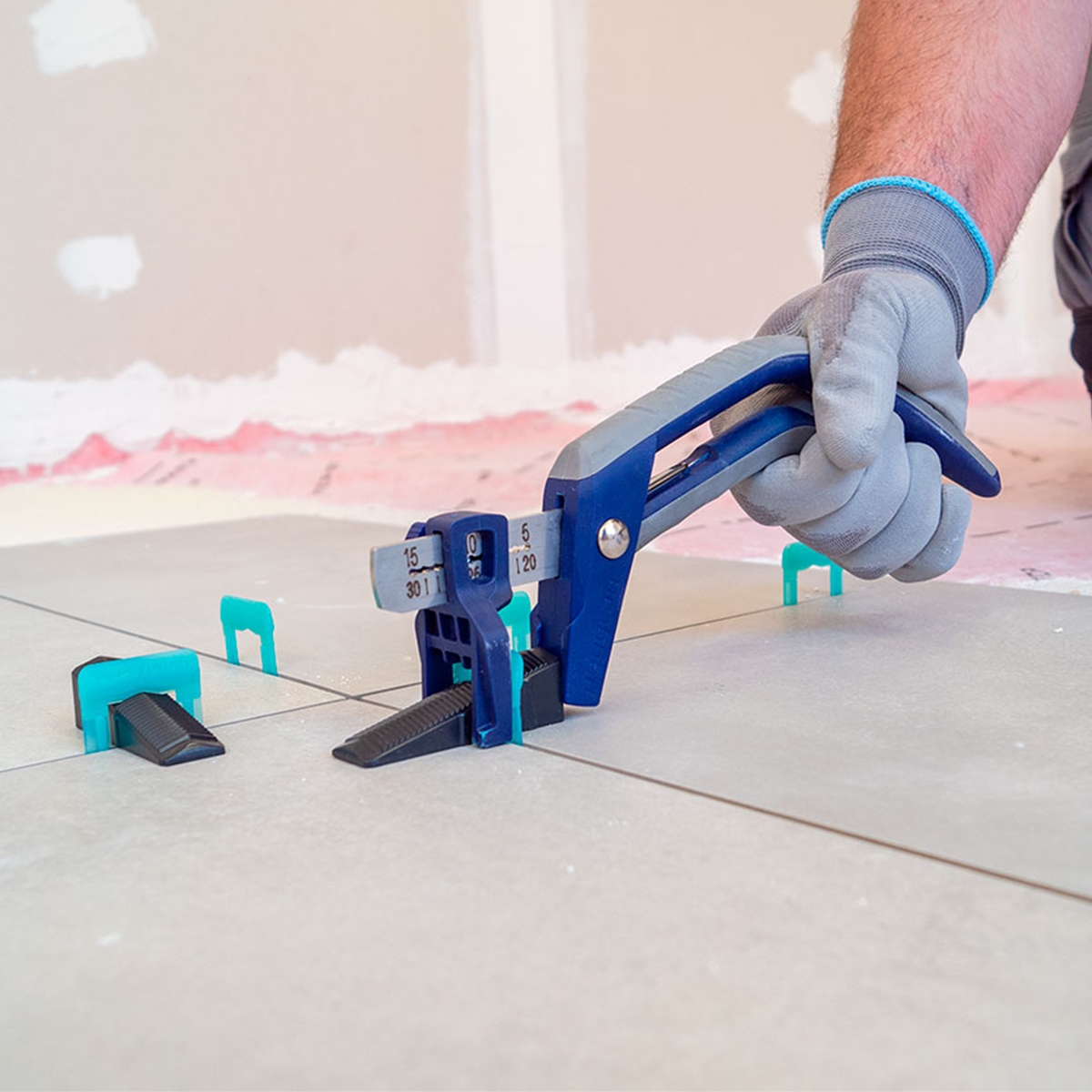

5. Then, squeeze the wedges with pliers to make the pieces flush. Once flush, it is advisable to lightly hit the ceramic with the rubber mallet to release tension.
6. Let the time recommended by the cement glue manufacturer set.
7. Once set, we will remove the chocks or bases. To do this, hit the chock with the mallet or the foot, in the direction of the joint. Do not hit the wedges.
8. Finally, recover the wedges and proceed with the grouting process.

Use of this chock according to the thickness of the tile:

• For tiles with a thickness between 3 and 5 mm, it should be used together with the supplement, so that the wedge acts as a pressure correctly
• For tiles with a thickness between 6 and 15 mm, the chock can be used individually.
• For tiles thicker than 15mm, the highest stone chocks should already be used.

How many Peygran chocks or bases do I need to buy?

Very easy, just look at this table and you will know how many you need. It depends on the dimensions A and B of the ceramic tile you are going to install. For example, if the tile measures 100 x 40 cm on each side, you will need 17 chocks per square meter. You should keep in mind that foundations are not reusable and wedges are.

Tips with Peygran chocks

If you leave the installation halfway at the end of the day and continue the next day:

Be sure to remove the fastening material or mortar from the next fila of slabs. We will also use the base of a chock to leave a small hollow point in the mortar of the last fila of tiles placed, which will allow you to insert the base of the chocks into it the next day. The next day, first make sure to fill in the hollow spots from the previous day with a margin trowel and fill the back of the slab with the mortar material. Insert the chocks and wedges and resume the installation, following the same process.

Do not remove the shims manually before breaking the system:

In order for it to break properly, the chock must be in tension. If we remove the wedges before, we will eliminate this tension, so they will not break properly. If they do not break correctly due to the above, we can pull the chock with pliers. It will always break due to the patented precuts that it has and therefore, under the slab.

Never install the leveling system at the corners of the slabs.

It will be more difficult to make a precise installation, it could even break the ceramic tile by squeezing it from the corner and get up from the rest; in addition to being very difficult to keep the filling joint aligned.

HOW TO USE

Bracket placement:

After spreading the cement glue, place the supports under the pieces on all 4 sides.
For large parts use one or more supports per side.
Place the tile and hit with the rubber mallet.

Insertion of the wedges:

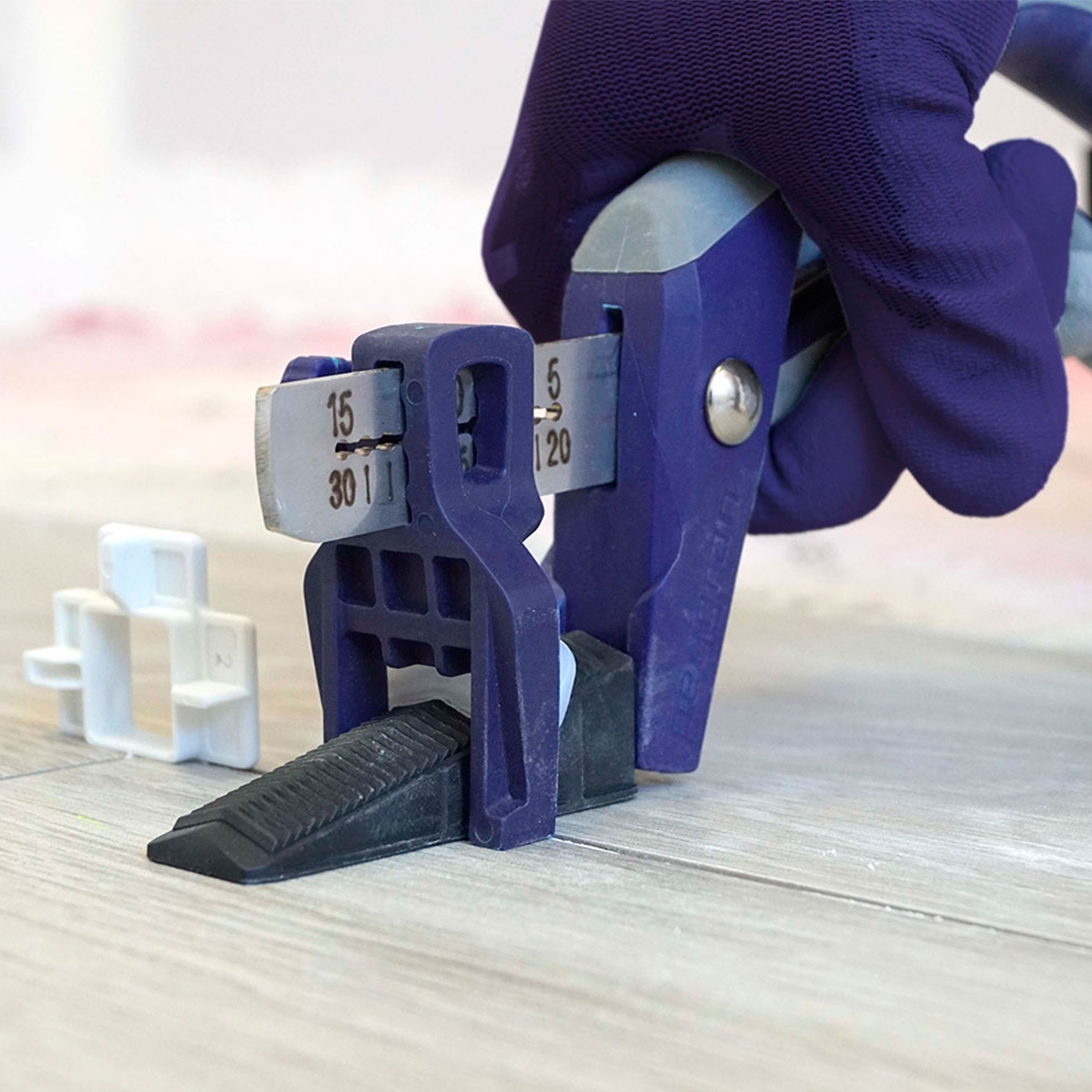

Insert the wedges into the housing by squeezing without exceeding the breaking point.
To facilitate this task, the use of the adjustable traction clamp is recommended.

Removal of the support:

Once the glue cement has set, to tear off the support simply tap with the rubber mallet or with the tip of your foot in the direction of the joint.
