Sliding door structure 600 x 2020 x 69 mm

Recessed structure in brick masonry for a single sliding door of 600 x 2,020 mm with internal headquarters of 69 mm.

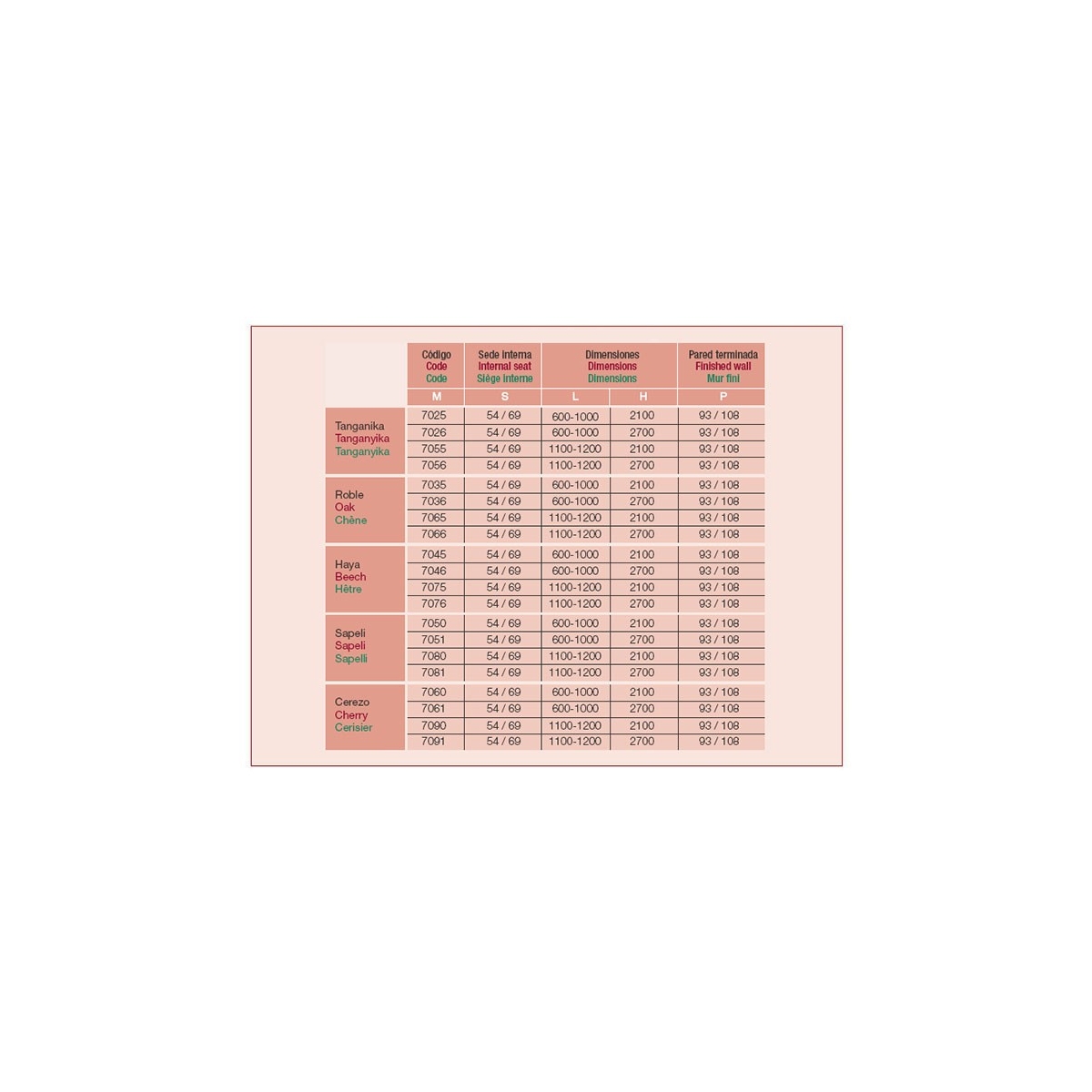

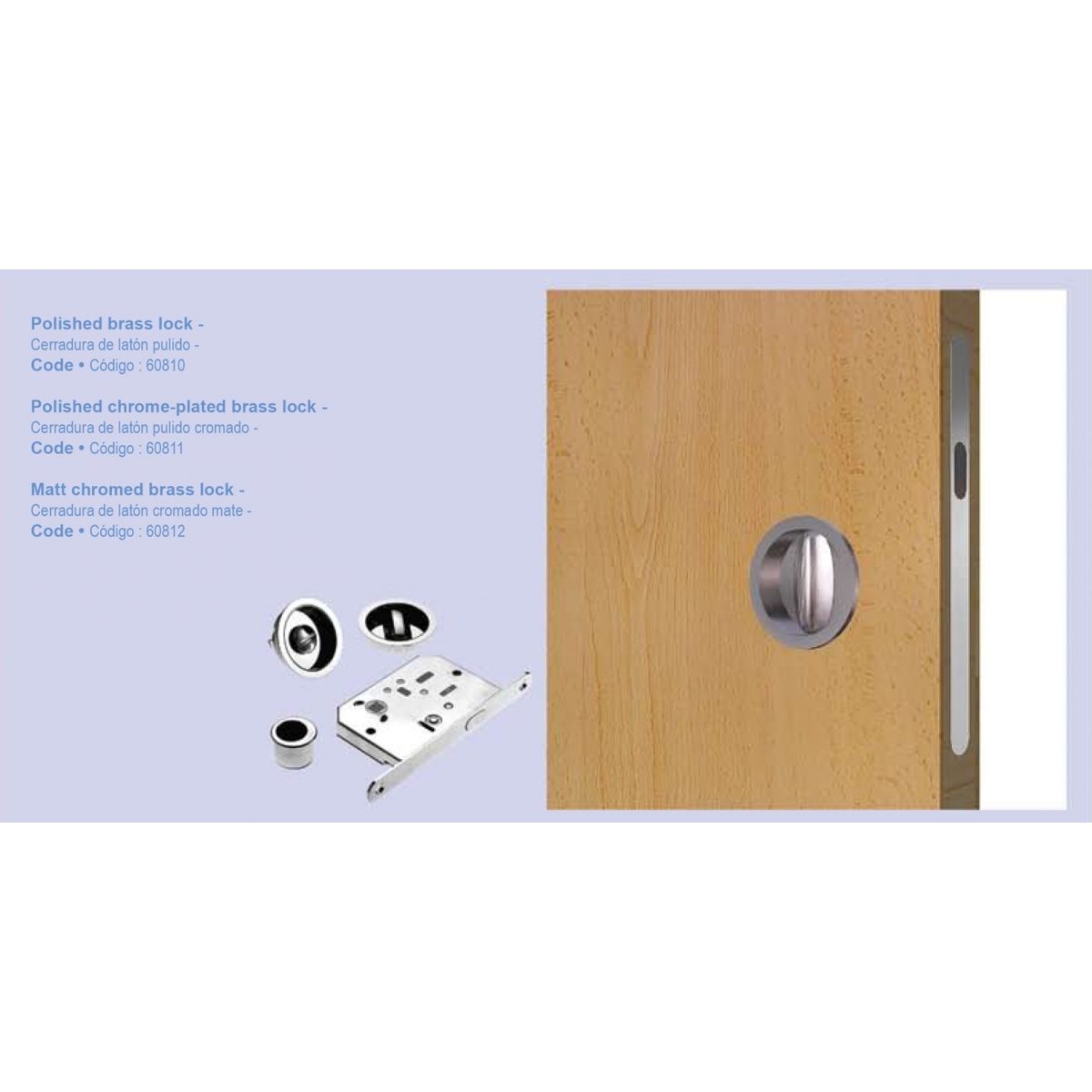

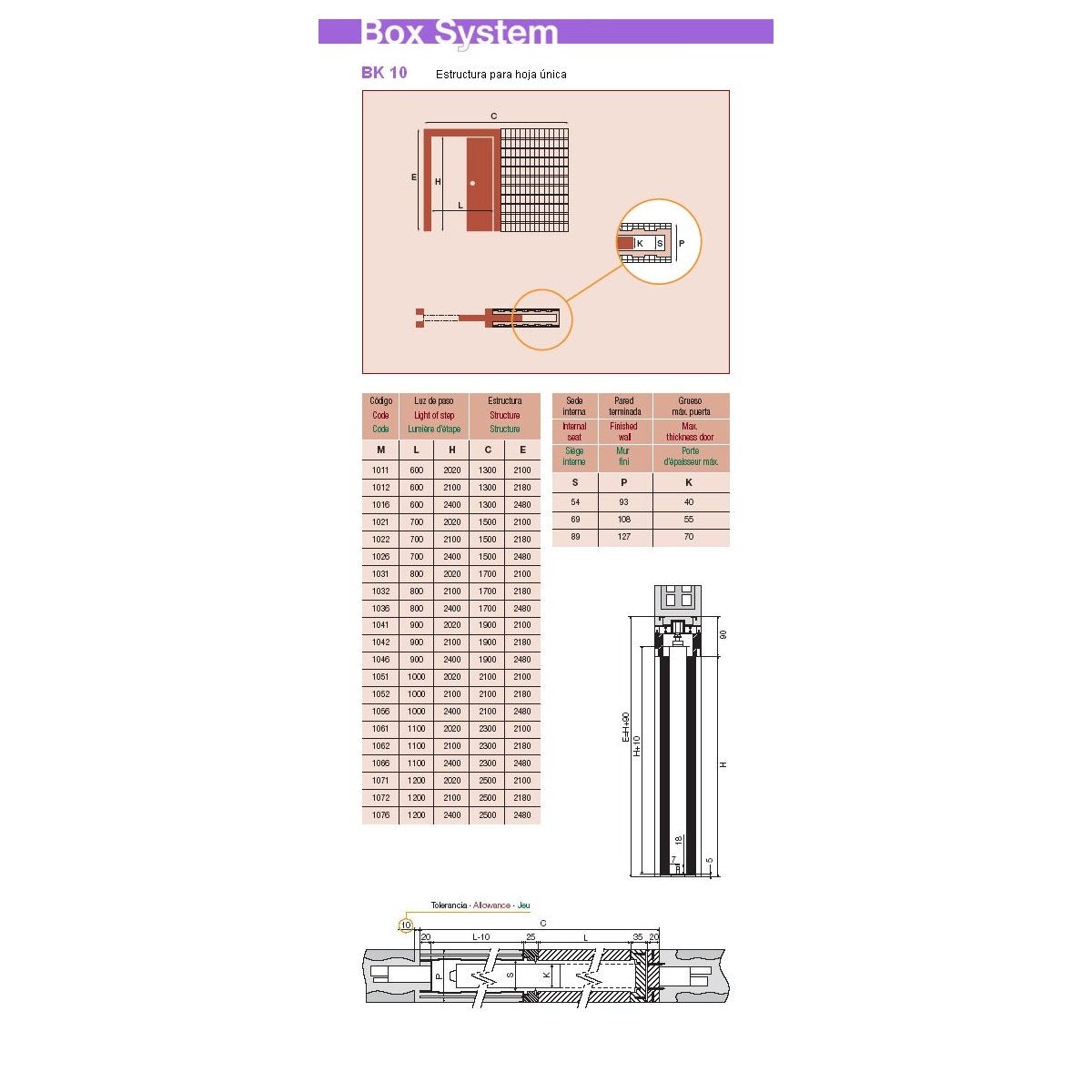

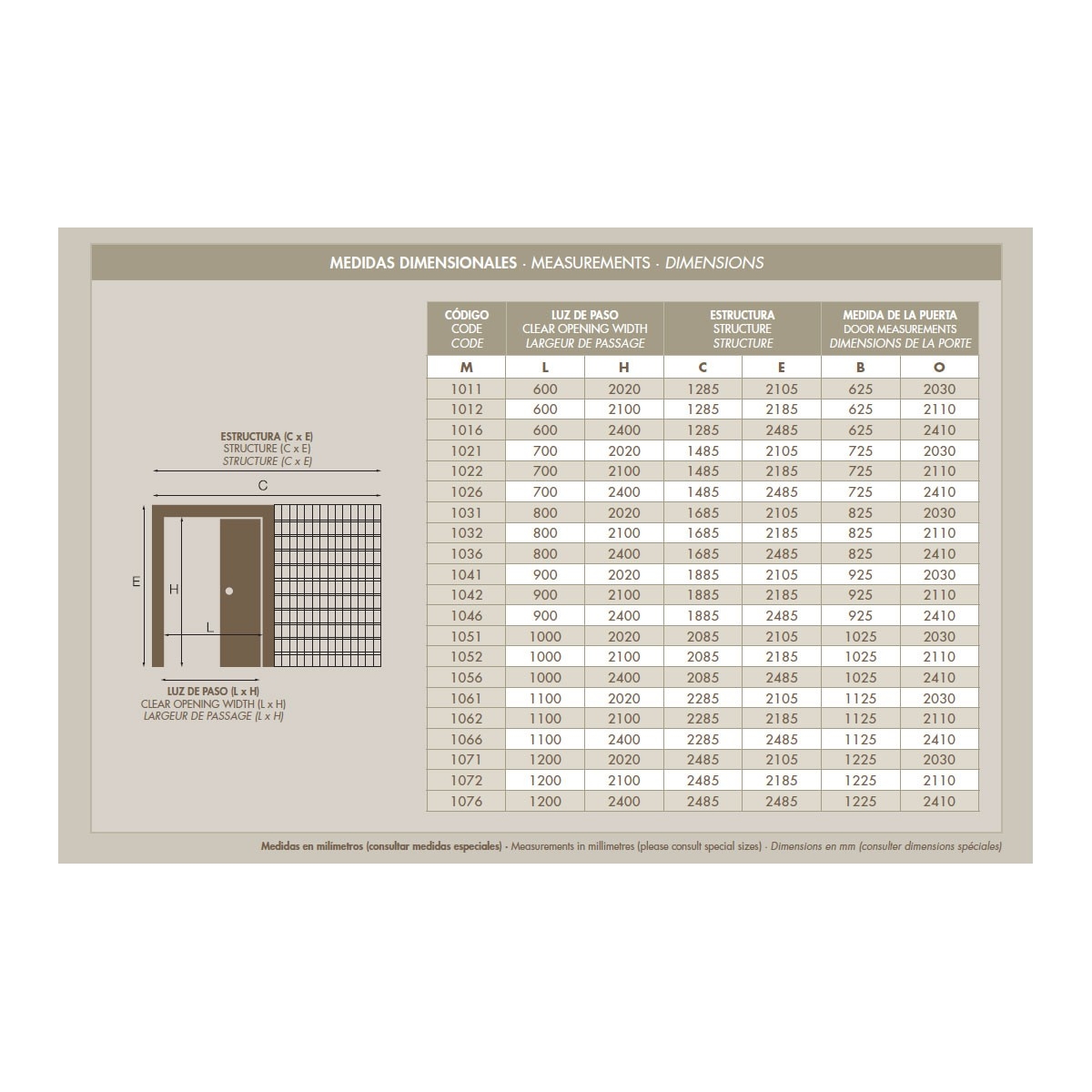

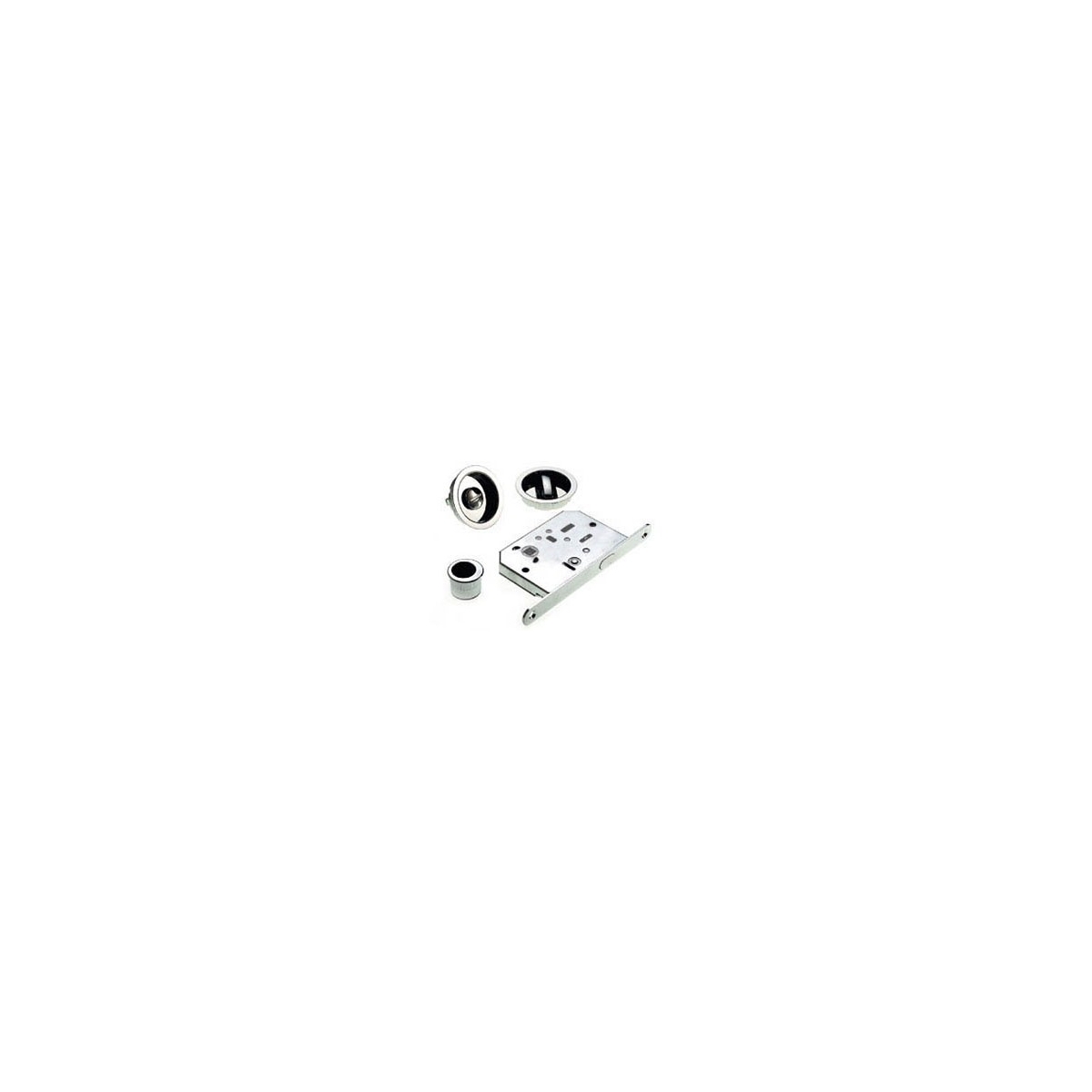

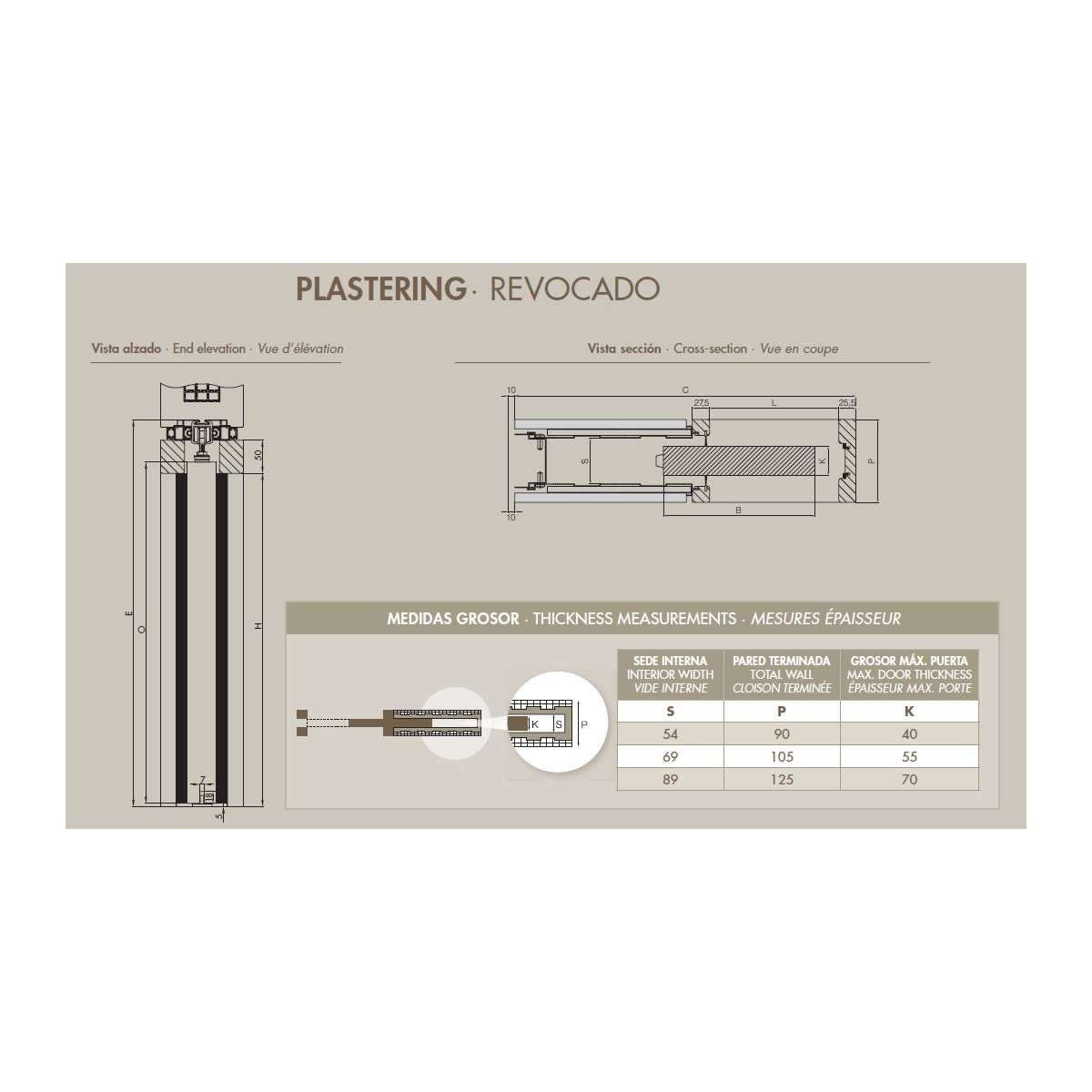

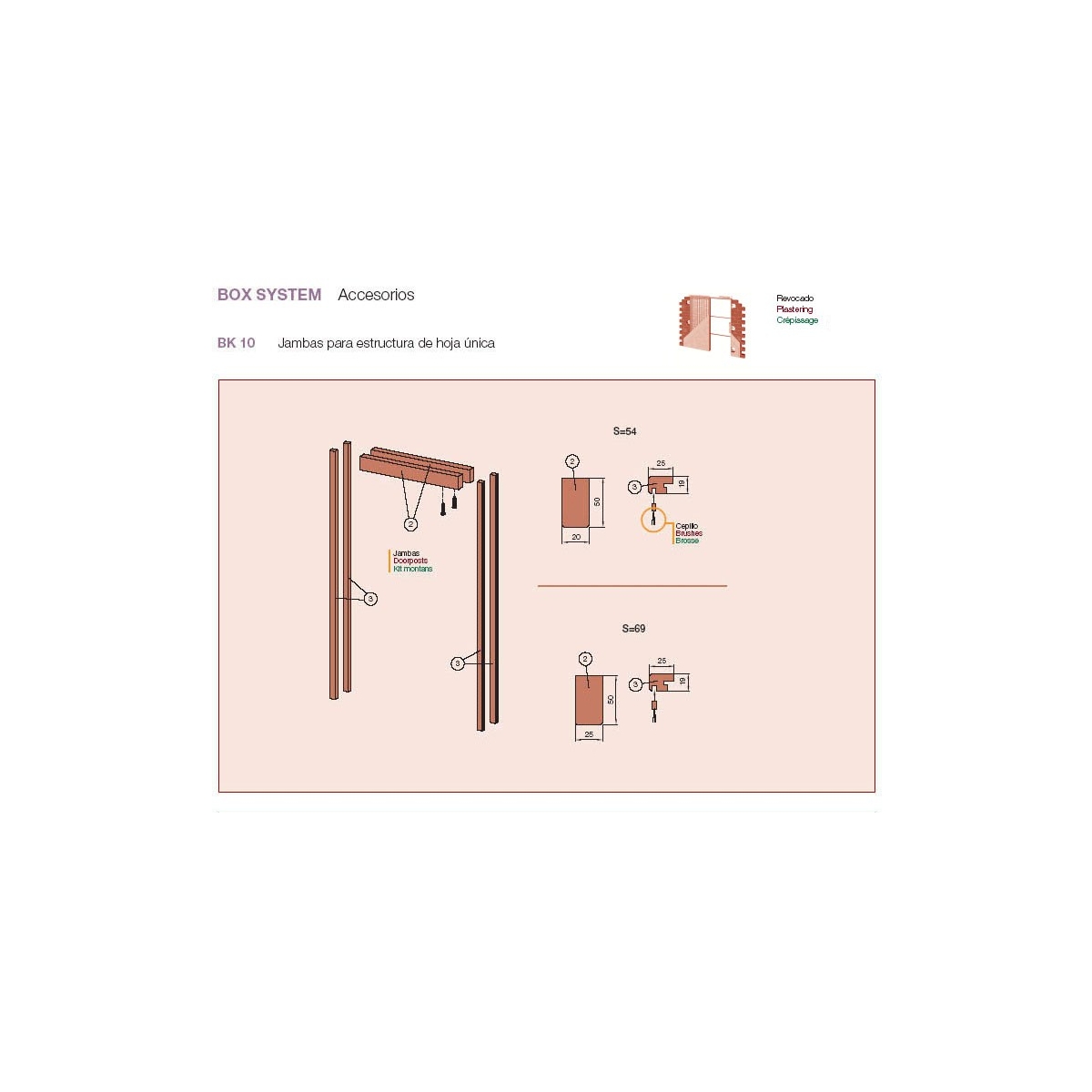

Compact system for single leaf BK10, presents a compact structure developed for the most classic doors between rooms. Finished structure thickness 108 mm. Dimensions of the structure: 1,285 x 2,105 mm. Door dimensions: 625 x 2,020 mm and 55 mm maximum door thickness. You can also buy the jambs for the sliding door in the following materials: Tanganyika, Oak, Beech, Sapelli and Cherry. The dimensions can be consulted in the attached images. You can also purchase Boxtel locks in polished brass, chrome-plated polished brass, and matte chrome-plated brass.

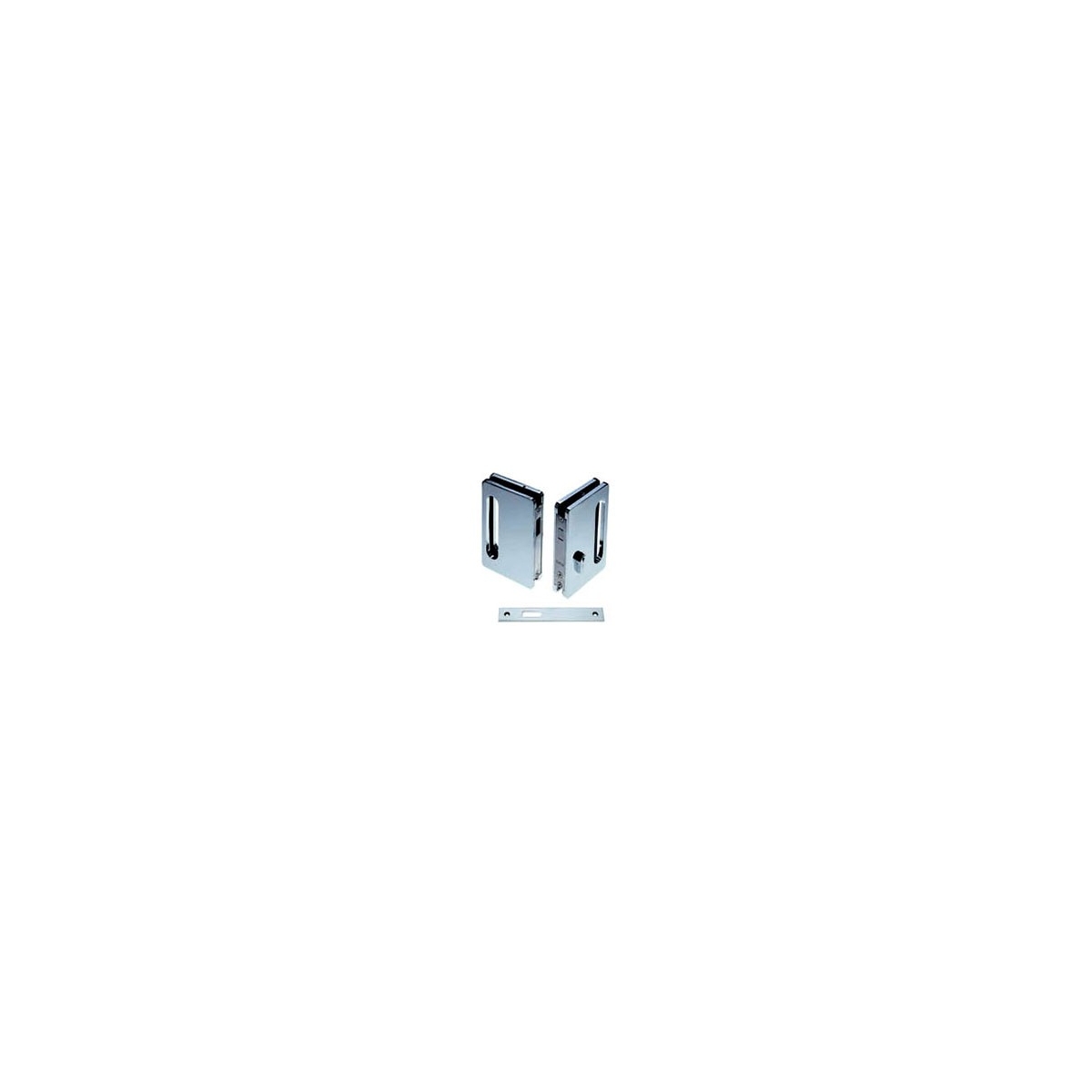

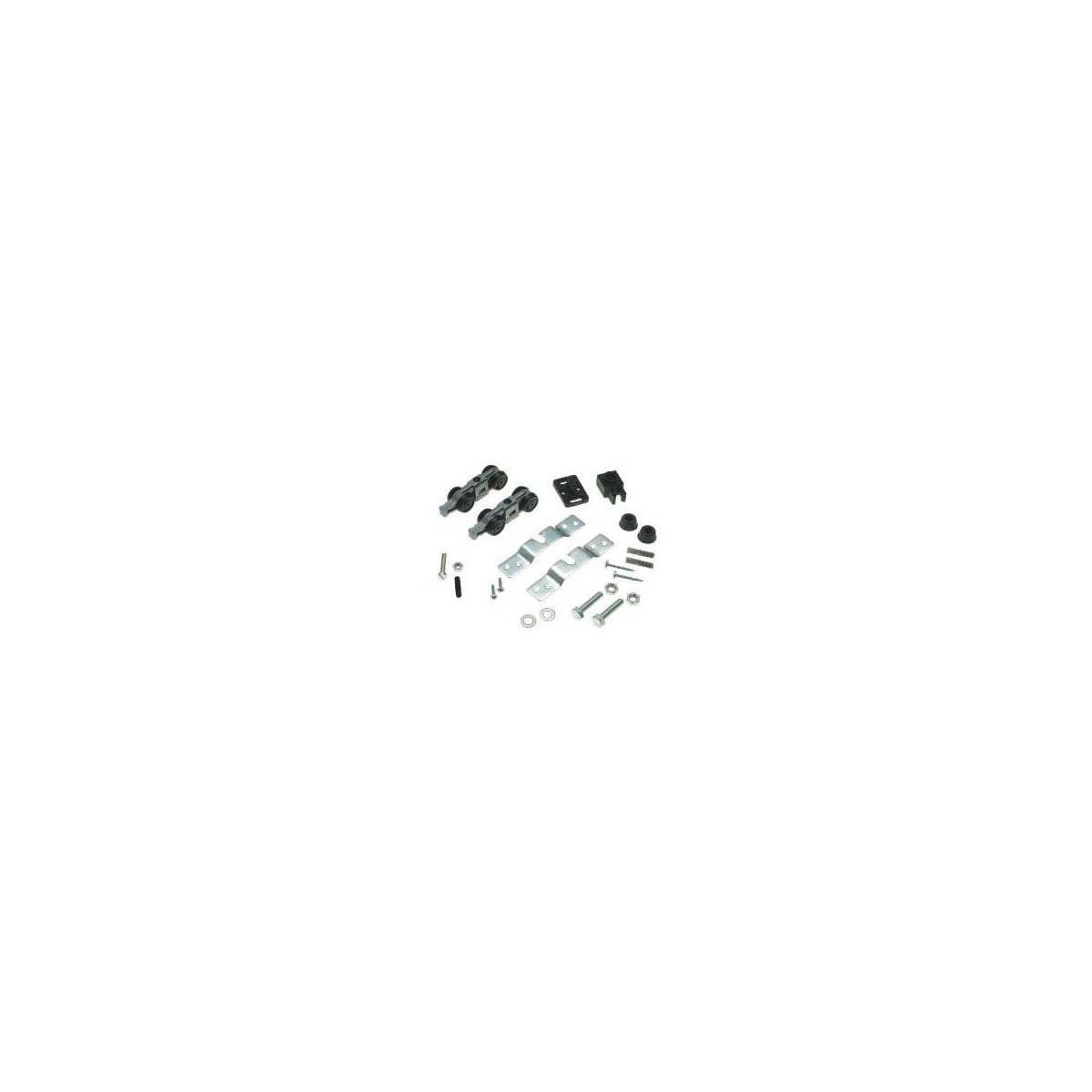

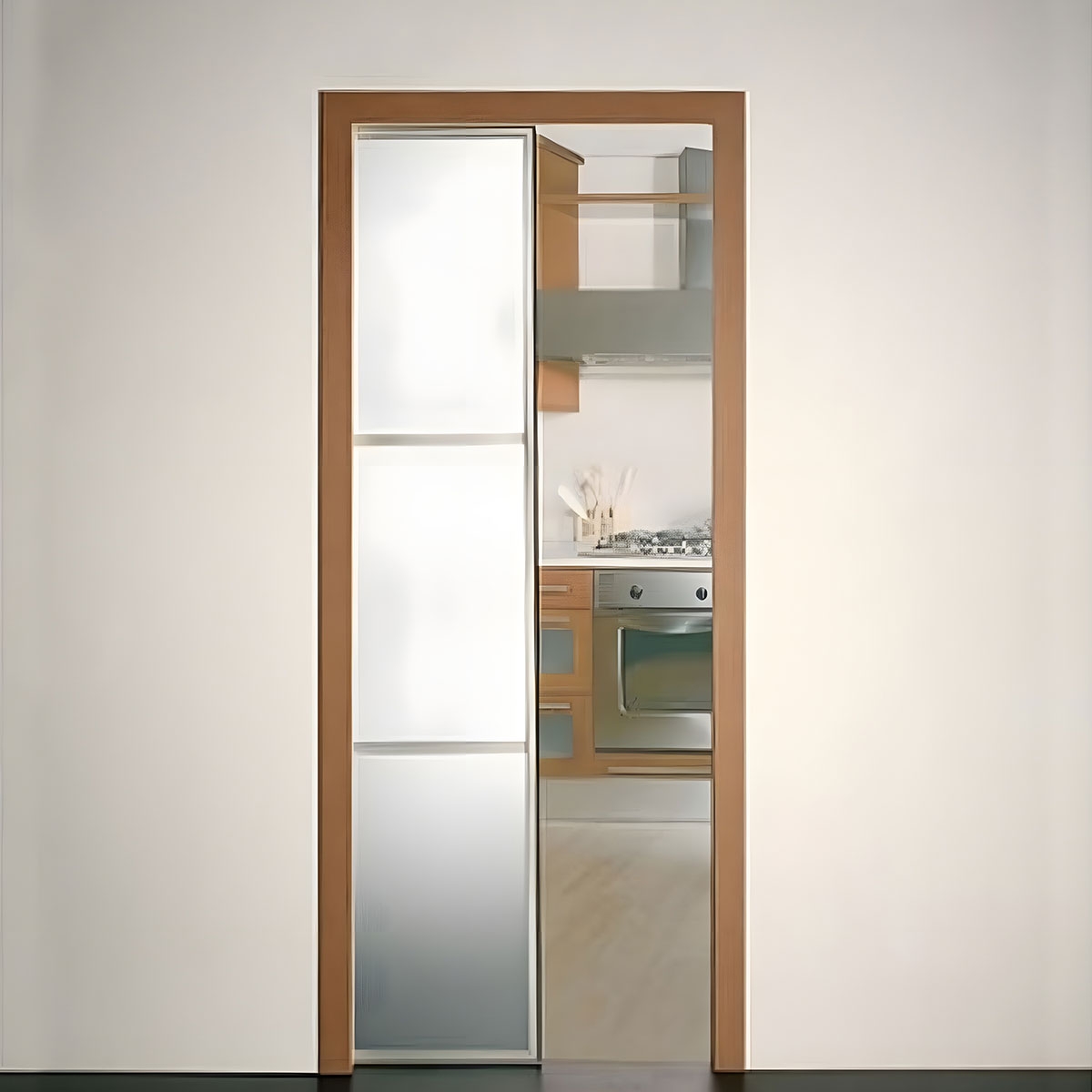

This sliding door structure allows the use of both wooden and glass doors, the latter requiring a special installation set. Assembly instructions can be found both in attachments for download in pdf and described in "More info"

1. 1. Define the size of the Box System solution you need.
2. 2. Place the metal profile on top of the structure.
3. 3. Attach the metal profile to the wooden upright.
4. 4. Control the fairness of the distances between the structure and the wooden stud.
5. 5. Use levels to fix the structure when the ground is not paved.
6. 6. Make sure that the separation distances provide you with correct alignment.
7. 7. Attach the structure to the wall.
8. 8. Place a thin metal mesh between the structure and the plaster in order to avoid possible cracks.

Installation of wooden doors.
