3-sided wood insert IT-173 FK + Direct gift
1.666,17 € VAT incl. 21%

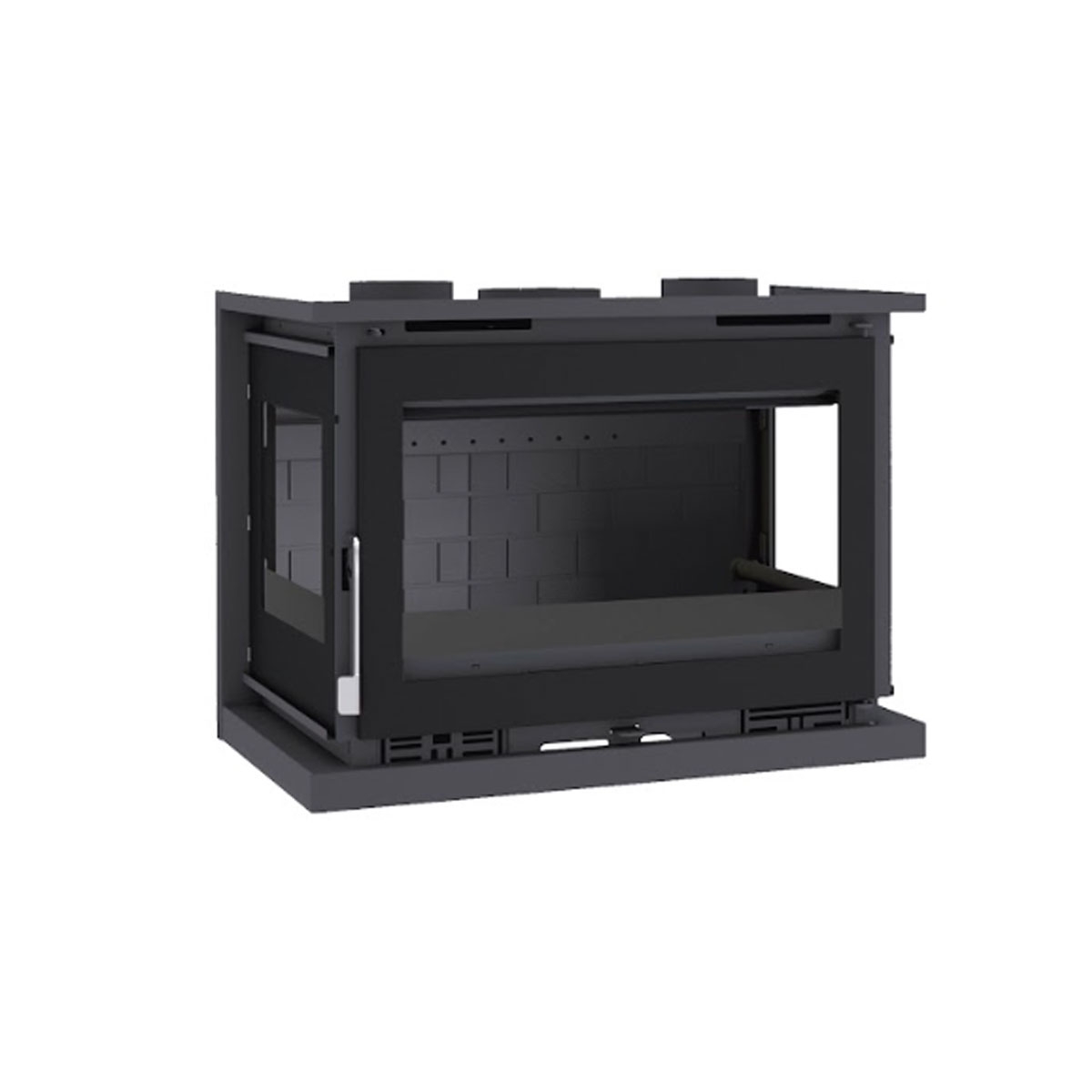

The 3-sided IT-173 FK wood insert from FM is a modern, efficient heating device with a panoramic design that allows you to enjoy the view of the fire from different angles.
Made with high-resistance materials and a system designed to improve energy performance, it also offers uniform heat, safety and a sophisticated aesthetic that enhances any environment.
864,00 €
-10%
1.684,80 €
-10%
706,61 €
-10%
810,00 €
-10%
1.261,80 €
-10%
1.308,60 €
-10%
Table of Contents
The FM IT-173 FK 3-sided wood insert combines tradition and technology to provide a practical, efficient and visually appealing heating system. Designed to be embedded in fireplaces, it adapts to both modern homes and more rustic environments, offering a perfect balance between functionality and style.
This model, with its 70 cm size, is versatile for different spaces, offering adequate power to evenly heat medium and large rooms.
It is made with robust materials that guarantee durability and resistance to intensive use. In addition, its design favors efficient combustion, which translates into a greater use of the wood and a more constant and natural heat.
It also provides safety and comfort thanks to its front door, which facilitates the loading of firewood and the control of the fire. Its elegant finishes and panoramic style make it a centerpiece in any room, transforming the environment into a cozy and sophisticated place.
 |
 |
 |
 |
 |
 |
|
| Product | 3-sided wood insert IT-173 FK + Direct gift | IT-182 IFK Corner Wood-Burning Insert + Direct Gift | Firewood corner insert IT-182 DFK + Direct gift | Panoramic Wood Insert IZ-100 K + Direct Gift | IT-100 K Wood Insert + Direct Gift | IT-100 F Built-in Wood-Burning Insert + Direct Gift |
| Ratings |
|
|
|
|
|
|
| Manufacturer | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción |
| Price |
1.530,00 € 1.377,00 € |
1.534,00 € 1.380,60 € |
1.534,00 € 1.380,60 € |
1.520,00 € 1.368,00 € |
1.552,00 € 1.396,80 € |
1.552,00 € 1.396,80 € |
| Price difference | +3,60 € | +3,60 € | -9,00 € | +19,80 € | +19,80 € | |
| Guarantee |
3 years |
3 years |
3 years |
3 years |
3 years |
3 years |
| Heat output (kW) |
12.5-17 |
13-18 |
13-18 |
14,5 -17,9 |
13,5-19 |
13,5-19 |
| Yield (%) |
81 |
78 |
81 |
81 |
81 |
78 |
| CO emissions (%) |
0.12 |
0.07 |
0.07 |
0.10 |
0.10 |
0.1 |
| Smoke outlet (mm) |
150 |
200 |
200 |
200 |
200 |
200 |
| Weight (kg) |
84 |
102 |
102 |
200 |
104 |
130 |
| Max size. Trunk (cm) |
62 |
75 |
75 |
88 |
75 |
95 |
| Heatable volume (m3) |
335 |
340 |
340 |
390 |
340 |
360 |
| Type of Combustion |
Double |
Double |
Double |
Double |
Double |
Double |
| Interior in |
Foundry |
Foundry |
Foundry |
Vermiculite |
Vermiculite |
|
| Fans (turbines) |
160m3/h and 20W x 2 (220v) |
2 x 160 m3/h and 20 W x2 (220 V) |
2 x 160 m3/h and 20 W x2 (220 V) |
No |
160m3/h and 20W x 4 (220v) |
4 x 160 m3/h and 20 W x4 (220 V) |
| Primary air regulation |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Secondary air regulation |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Clean-glass system |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Difficulty |
Advanced |
Advanced |
Advanced |
|||
| Fuel |
Firewood |
Firewood |
Firewood |
|||
| Glass-ceramic resistance (ºC) |
750 |
750 |
750 |
750 |
750 |
750 |
| Heat resistance paint (ºC) |
800 |
800 |
800 |
800 |
800 |
|
| Double combustion system |
Yes |
Yes |
Yes |
|||
| Energy certification |
TO |
TO |
TO |
|||
| Smoke outlet area |
Superior Male |
Superior Male |
Superior Male |
|||
| Pull-out ashtray drawer |
Yes |
Yes |
Yes |
|||
| Woodshed |
No |
Yes |
No |
|||
| Dual chamber |
Yes |
Yes |
Yes |
|||
| Plate warmer |
No |
No |
No |
|||
| Oven |
No |
No |
No |
|||
| Screen-printed glass |
Yes |
Yes |
Yes |
|||

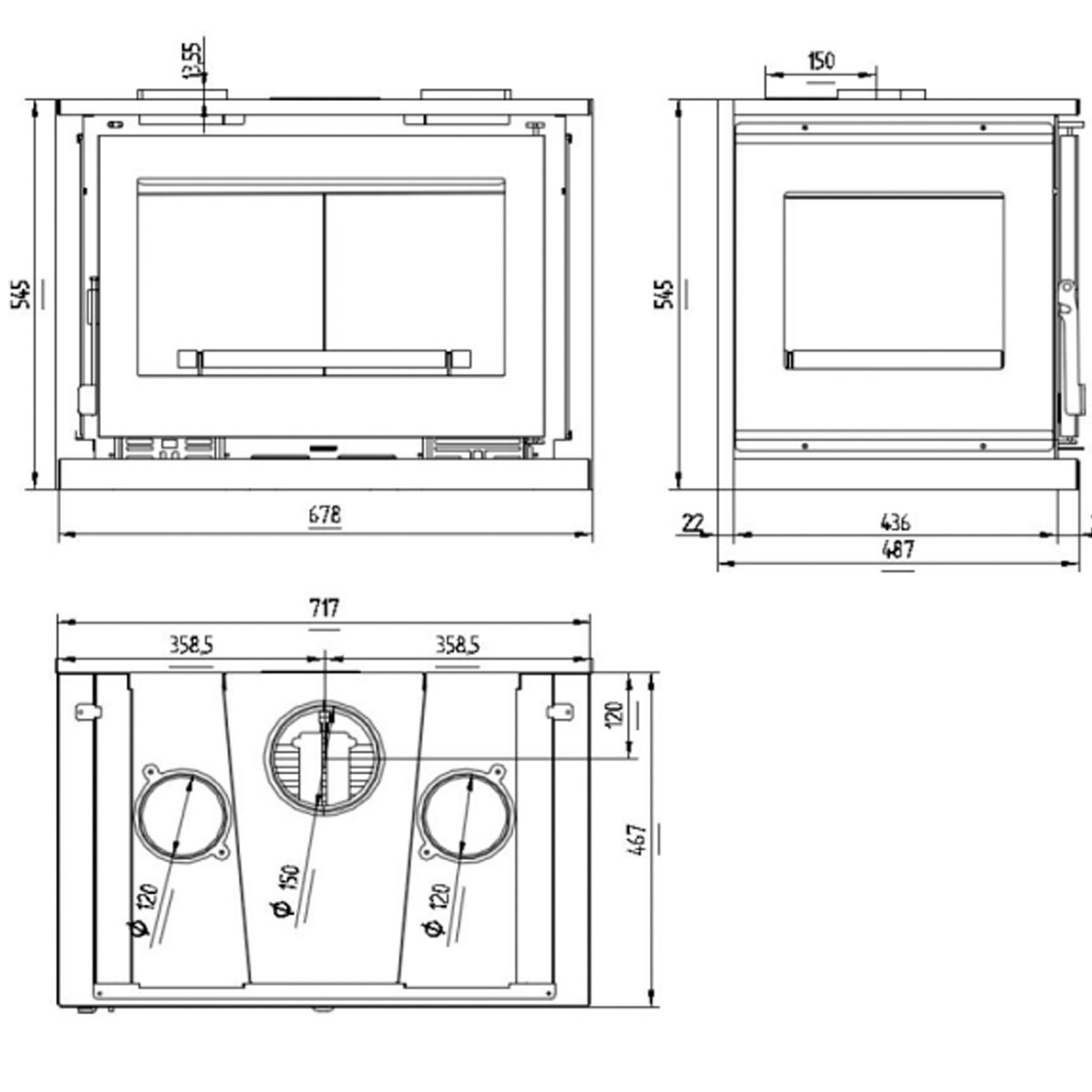

| Built-in dimensions mm (width x depth x height) |
733x451x593 |
903x452x597 |
||||
| Front dimensions (height x width) cm |
645x873 |
645x1045 |
||||
| Outlets to heat other rooms |
2 of 120mm |
|||||
| Firewood inlet (mm) |
660 x 330 |
|||||
| Draft Valve |
Yes |
|||||
| Dimensions cm (W x L x H) |
941 x 450 x (1290:1442) |
|||||
| View product | View product | View product | View product | View product | View product |
