3-sided wood insert IT-183 K + Direct gift
1.701,02 € VAT incl. 21%

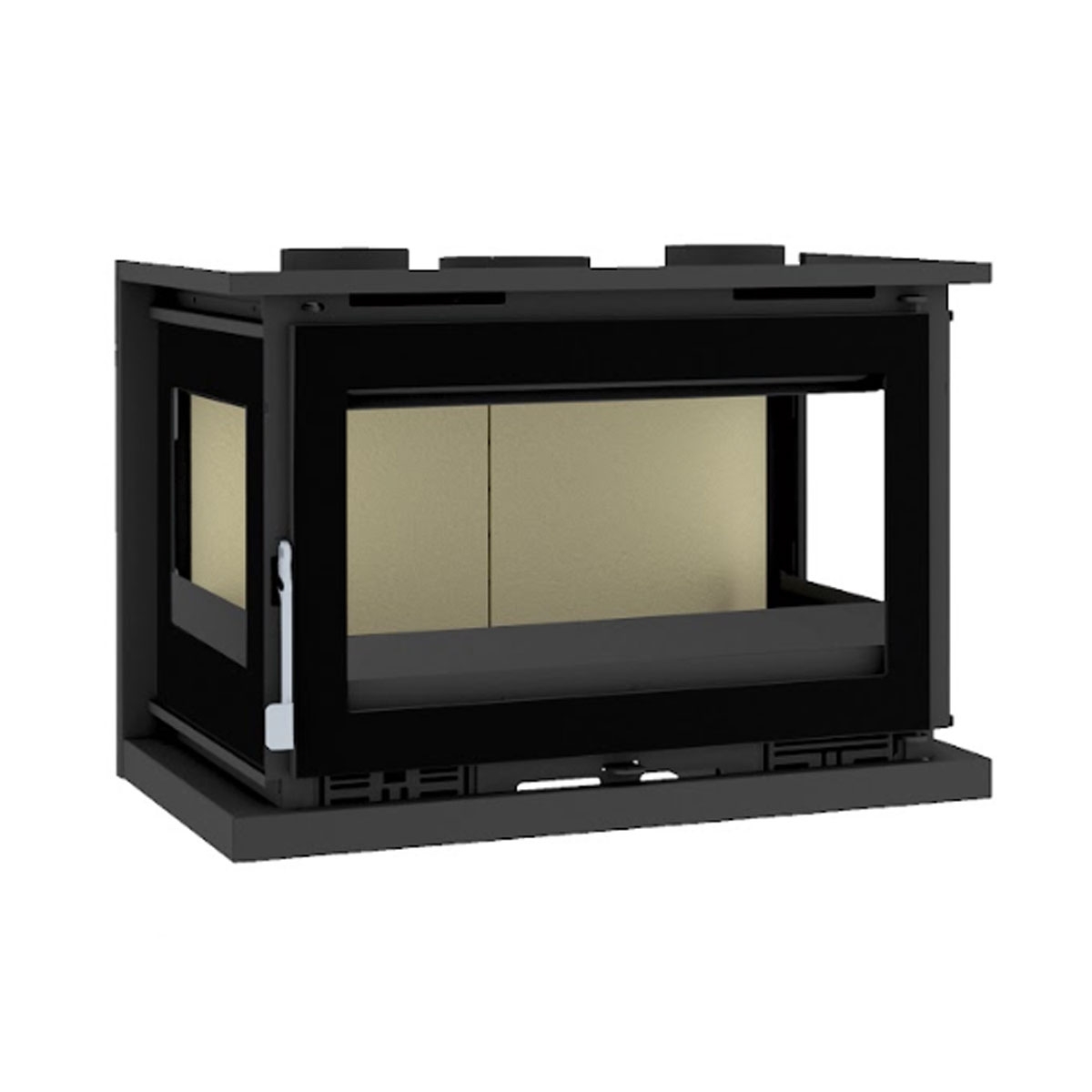

The 3-sided IT-183 K wood insert from FM is a modern, efficient and decorative option to enjoy the heat of firewood in all its splendor, its panoramic design of triple vision allows you to contemplate the flames from different angles
Providing spaciousness and great aesthetic value to the space, built with high-quality materials, this model guarantees resistance, durability and superior energy performance.
864,00 €
-10%
1.684,80 €
-10%
706,61 €
-10%
810,00 €
-10%
1.261,80 €
-10%
1.308,60 €
-10%
Table of Contents
The 3-sided wood insert IT-183 K from FM is an exclusive model designed for those looking for a heating system that combines high performance, contemporary design and a unique visual experience.

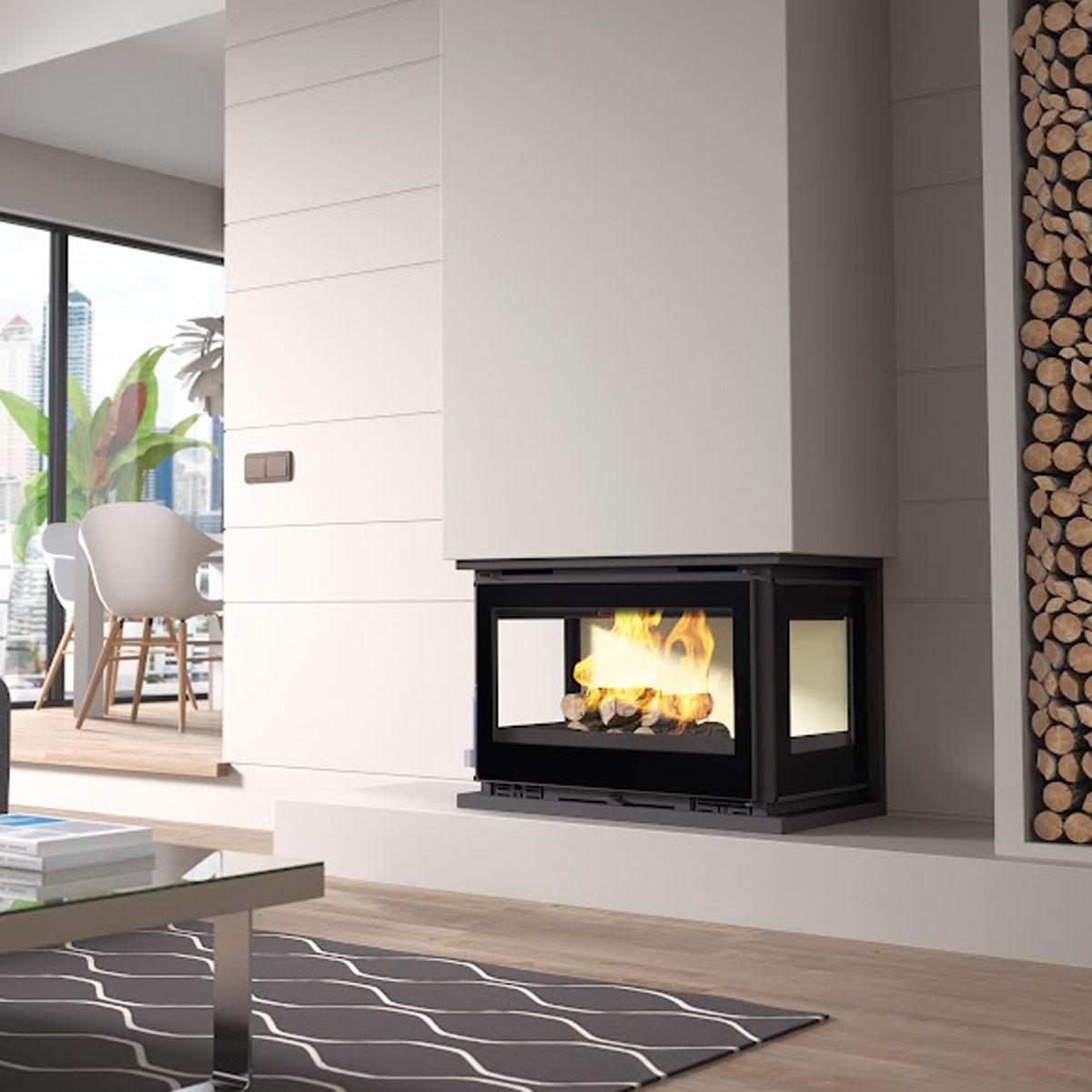

Its panoramic structure with glass on tres sides makes the fire the protagonist of the environment, offering a spectacular view from different points of the room and generating a welcoming, warm and sophisticated atmosphere.
Made with thick steel and materials resistant to high temperatures, this insert ensures durability, efficiency and maximum safety in daily use. The wide combustion chamber is designed to accommodate large logs, facilitating prolonged combustion and constant heat, reducing reloading effort.
The IT-183 K not only stands out for its design, but also for its optimal energy use, ensuring efficient wood consumption and balanced heat distribution.
 |
 |
 |
 |
 |
 |
|
| Product | 3-sided wood insert IT-183 K + Direct gift | IT-183 Wood Insert with Turbine (80cm) + Direct Gift | IT-100 K Wood Insert + Direct Gift | IT-100 F Built-in Wood-Burning Insert + Direct Gift | IT-182 IFK Corner Wood-Burning Insert + Direct Gift | Firewood corner insert IT-182 DFK + Direct gift |
| Ratings |
|
|
|
|
|
|
| Manufacturer | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción |
| Price |
1.562,00 € 1.405,80 € |
1.562,00 € 1.405,80 € |
1.552,00 € 1.396,80 € |
1.552,00 € 1.396,80 € |
1.534,00 € 1.380,60 € |
1.534,00 € 1.380,60 € |
| Price difference | -9,00 € | -9,00 € | -25,20 € | -25,20 € | ||
| Guarantee |
3 years |
3 years |
3 years |
3 years |
3 years |
3 years |
| Heat output (kW) |
13-18 |
13-18 |
13,5-19 |
13,5-19 |
13-18 |
13-18 |
| Yield (%) |
81 |
78 |
81 |
78 |
78 |
81 |
| CO emissions (%) |
0.07 |
0.07 |
0.10 |
0.1 |
0.07 |
0.07 |
| Smoke outlet (mm) |
200 |
200 |
200 |
200 |
200 |
200 |
| Weight (kg) |
104 |
104 |
104 |
130 |
102 |
102 |
| Max size. Trunk (cm) |
75 |
75 |
75 |
95 |
75 |
75 |
| Heatable volume (m3) |
340 |
340 |
340 |
360 |
340 |
340 |
| Type of Combustion |
Double |
Double |
Double |
Double |
Double |
Double |
| Fans (turbines) |
2 x 160 m3/h and 20 W x2 (220 V) |
2 x 160 m3/h and 20 W x2 (220 V) |
160m3/h and 20W x 4 (220v) |
4 x 160 m3/h and 20 W x4 (220 V) |
2 x 160 m3/h and 20 W x2 (220 V) |
2 x 160 m3/h and 20 W x2 (220 V) |
| Primary air regulation |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Secondary air regulation |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Clean-glass system |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Difficulty |
Advanced |
Advanced |
Advanced |
|||
| Fuel |
Firewood |
Firewood |
Firewood |
|||
| Consumption (kg/h) |
4.5 |
|||||
| Glass-ceramic resistance (ºC) |
750 |
750 |
750 |
750 |
750 |
750 |
| Heat resistance paint (ºC) |
800 |
800 |
800 |
800 |
800 |
|
| Draft Valve |
Yes |
Yes |
||||
| Double combustion system |
Yes |
Yes |
Yes |
|||
| Energy certification |
TO |
TO |
TO |
|||
| Smoke outlet area |
Superior Male |
Superior Male |
Superior Male |
|||
| Pull-out ashtray drawer |
Yes |
Yes |
Yes |
|||
| Interior in |
Optional vermiculite or cast iron |
Vermiculite |
Foundry |
Foundry |
||
| Woodshed |
No |
No |
No |
|||
| Dual chamber |
Yes |
Yes |
Yes |
|||
| Plate warmer |
No |
No |
No |
|||
| Oven |
No |
No |
No |
|||
| Screen-printed glass |
Optional |
Yes |
Yes |
|||

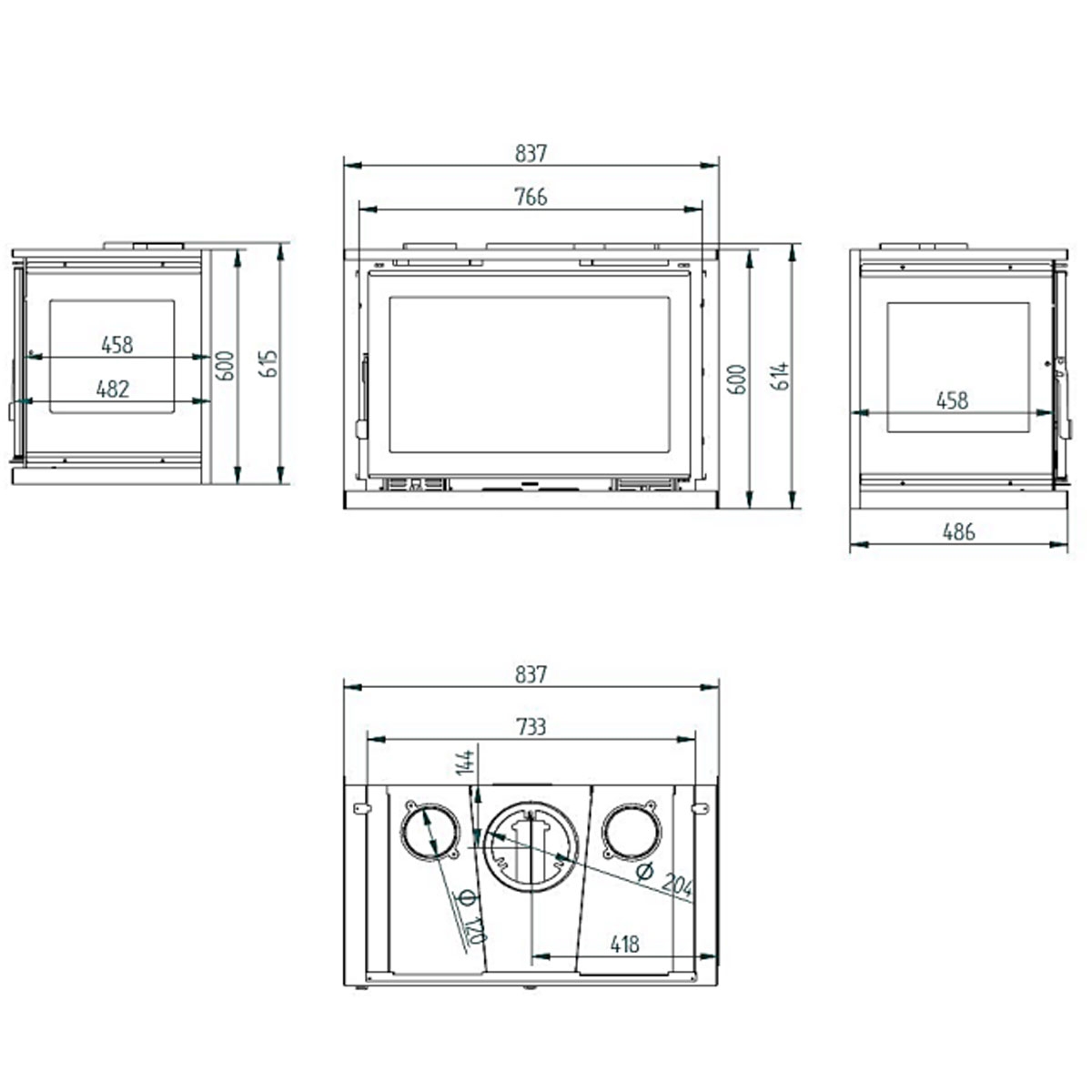

| Built-in dimensions mm (width x depth x height) |
837x486x614 |
903x452x597 |
733x451x593 |
|||
| Front dimensions (height x width) cm |
600x819 |
645x1045 |
645x873 |
|||
| Outlets to heat other rooms |
2 of 120mm |
2 of 120mm |
||||
| Firewood inlet (mm) |
660 x 330 |
|||||
| View product | View product | View product | View product | View product | View product |
