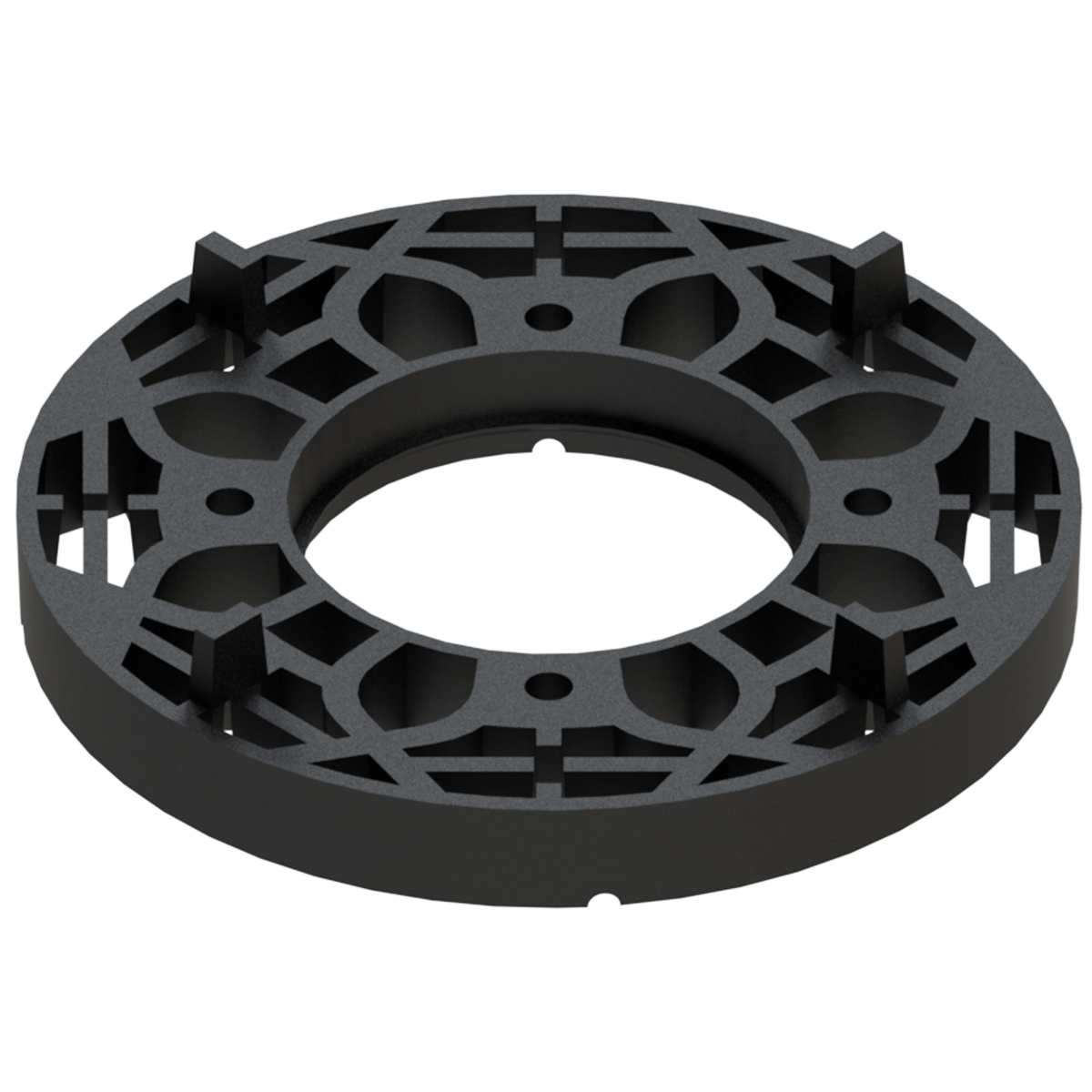

Fixed support 10-15mm for Plots for floating floor (Pack 20 units)
21,67 € VAT incl. 21%
Calculate your shipping costs
Select zone and quantity
This product has free shipping from: 800,00 €
Non-adjustable supports of 10-15mm height for Peygran plots.
9,76 €
-10%
64,93 €
-10%
77,27 €
-10%
86,58 €
-10%
88,79 €
-10%
95,94 €
-10%
Table of Contents
Non-adjustable supports of 10-15mm height. They are interlockable to achieve the desired height. They are compatible with the pad and with the adjustable plots, and can be fitted to the head of these to achieve the desired height. Resistance greater than 6,000 Kg. Technical characteristics 10 mm support
- Central Load Limit [kN]: >40 kN
- Load limit [kN] over 1/2: >40 kN
- Load limit [kN] over 1/4: 29 kN
- Operating temperature: -40 to 65 ºC
- Tile spacing: 4 mm
- Tilt base: 0%
Technical characteristics 15 mm support
- Central Load Limit [kN]: >40 kN
- Load limit [kN] over 1/2: >40 kN
- Limit load [kN] over 1/4: 31 kN
- Operating temperature: -40 to 65 ºC
- Tile spacing: 4 mm
- Tilt base: 0%
Note: Load Limit: Values according to C182520 to C182529 tests by the Institute of Ceramic Technology (AICE-ITC) UNE-EN 12825:2002 Apt 5..3.1.
Applications:
- Roof covers.
- Garden terraces in stone, concrete, wood, etc.
- Tents, stands, etc.
- Edges and decking in swimming pools.
- Pedestrian crossings on roofs and garden areas.
- Floors with lighting (LED floors).
- Raised raised floors for the industrial sector: petrochemical, mechanical, metallurgical, offshore platforms, etc.
Supports Peygran SP range
- Range of height-adjustable outdoor plots
- Range of supports for floating flooring, adjustable in height by means of a nut at the base of the head that allows the height to be adjusted without moving the slab.
- They are made of polypropylene with special loads, which give the pedestal great resistance and protection against inclement weather and temperature changes. In addition, they have a (patented) anchoring system, which prevents the plot from being easily disassembled.
- General features and benefits:
- Models from 50 mm to 580 mm (other sizes consult).
- Models adjustable by means of a "floating" nut that allows the height of the plot to be adjusted without lifting the slab.
- Lock nut (SPC range) Lock nut moulds allow the support to be "anchored" at the desired height, preventing them from loosening over time and varying the height of the support. The lock nut must be tightened firmly against the floating nut, which fixes the height of the bracket. They are available from the sp2 model onwards.
- High drainage capacity: The existing tabs on the supports force 4mm of separation between slabs, which facilitates drainage. Therefore, the tile joints should not be filled. In addition, the supports have a drainage channel that prevents water from accumulating in them. Thus avoiding a possible source of bacteria and bad odor.
- Pressure anchoring system between the nut and the base/or bushing. Prevents the stand from being easily disassembled.
- Extension Bushing: Allows the height of the support to be increased by 90mm per socket.
| Product | Fixed support 10-15mm for Plots for floating floor (Pack 20 units) |
| Brand / Manufacturer | Peygran |
| Height Range (mm) | 10 |
