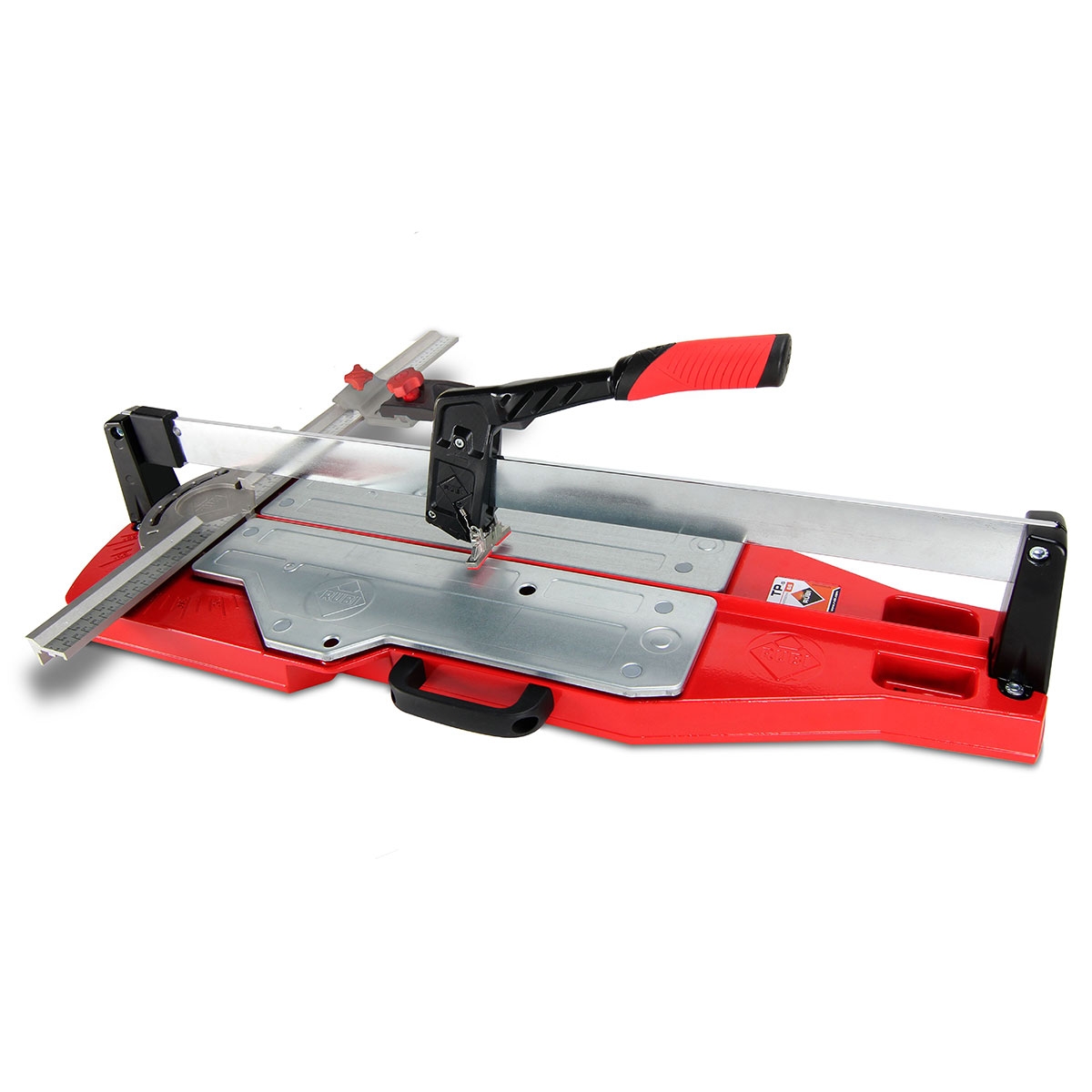

TP-66 S Manual Ceramic Cutter
336,40 € VAT incl. 21%
Manual ceramic cutter with 1000kg of cutting power from the TP-66-S series from Rubi. Single-guide cutter with multi-point separator and angular measurement.
108,76 €
-10%
36,15 €
-10%
33,30 €
-10%
8,10 €
-10%
409,24 €
-10%
453,54 €
-10%
Table of Contents
These manual cutters are designed to perform intensive work with any type of ceramic tile.
The TP-S manual cutters are ideal for cutting porcelain stoneware tiles (type BIa). They incorporate a monoguide system, highly resistant to impacts, which gives them a very long useful life.
The ergonomic handle of the TP-S manual cutters is adapted for a working system, pushing the handle, and incorporates a retractable separator that allows it to work with ceramic tiles with thicknesses* from 5 to 20 mm, with a separation power of 1,000 kg.
TP manual cutters are very easy to use and offer the professional installer a higher working speed.
In addition, the mobile separator of the TP-S manual cutters ensures high quality in diagonal and angle cuts. All models in the TP-S range of manual cutters feature a swivel square with a central pivot for fast and accurate measurement of angle cuts. Thanks to the side stop, the ceramic tile fixer can make repetitive cuts very easily and always with maximum precision.
The TP-S manual cutters from RUBI have a high-strength aluminum base with a two-layer system with a cushioning effect on springs, and a side support for large-format tiles. Unlike the TP-T ceramic cutter, we will work with this one in a position that resembles that of double-guide cutters, i.e. in front of the machine.
TP-S ceramic cutters work with a 22 mm scoring wheel, made of durable tungsten carbide. This allows us to adapt to each material with a very versatile and effective scoring wheel diameter. All these characteristics make these manual cutters very easy to use, as well as durable and light. TP-S manual cutters do not require extensive care or maintenance, as the guide does not require lubrication.
* There are some ceramic materials, with thicknesses greater than 15 mm, which, due to their physical characteristics, possible internal tensions or finishes, present difficulties to be cut manually. It is advisable to make some sample cuts to determine the compatibility of the product.
Highlights
• Highly impact-resistant single-guide system. Longer service life.
• Ergonomic handle with built-in spacer for increased speed and ease of use.
• Rotating square with center pivot for fast and accurate measurement of angle cuts.
• Long-lasting laser-etched ruler.
• Rotating square with center pivot for fast and accurate measurement of angle cuts.
Materials
• For intensive cutting of ceramic tiles, ideal for Porcelain Stoneware.
Characteristics
• Side stop for repetitive precision cuts.
• Two-layer base with cushioning effect.
• Base supplement for large formats.

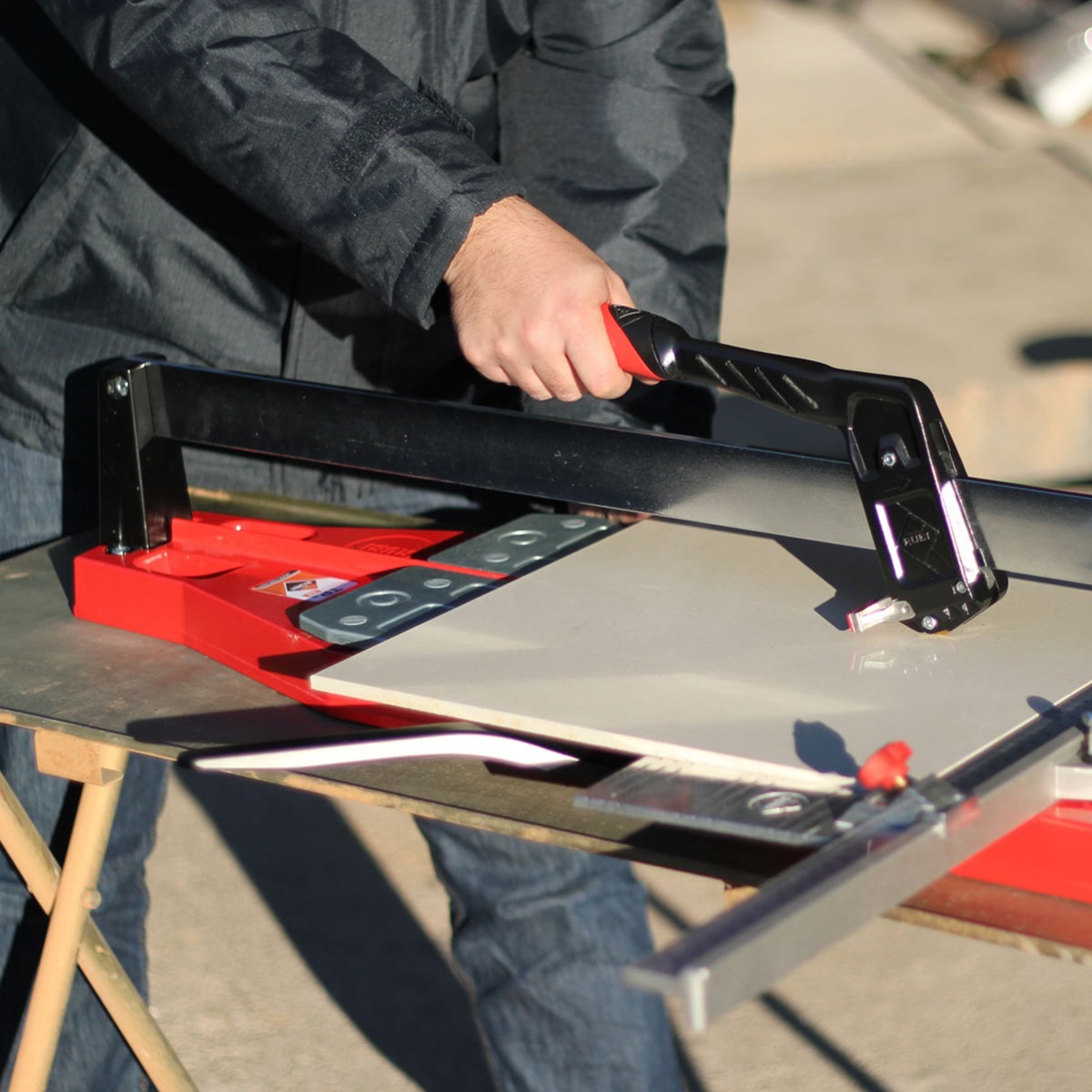

• Set design for use by pushing the handle.
• RUBIFLEX bi-material handle.
• Ø 22mm scoring wheel included. (Ref. 18914)
 |
 |
 |
 |
 |
 |
|
| Product | TP-66 S Manual Ceramic Cutter | TR-710 Magnet Ceramic Manual Cutter | TS-75 Gray MAX Manual Ceramic Cutter | TS-75 Orange MAX Manual Ceramic Cutter | TR-600 Magnet Ceramic Manual Cutter | TS-66 Orange MAX Manual Ceramic Cutter |
| Ratings |
|
|
|
|
|
|
| Manufacturer | Rubi | Rubi | Rubi | Rubi | Rubi | Rubi |
| Price |
308,91 € 278,02 € |
315,34 € 283,80 € |
294,86 € 265,37 € |
294,86 € 265,37 € |
293,57 € 264,21 € |
267,56 € 240,81 € |
| Price difference | +5,78 € | -12,65 € | -12,65 € | -13,81 € | -37,21 € | |
| Cutting height (mm) |
5 to 20 |
3 to 15 |
6 to 15 |
6 to 15 |
3 to 15 |
6 to 15 |
| Cutting length (cm) |
66 |
71 |
75 |
75 |
60 |
66 |
| Diagonal cut length (cm) |
46x46 |
50x50 |
53x53 |
53x53 |
42x42 |
46x46 |
| View product | View product | View product | View product | View product | View product |
