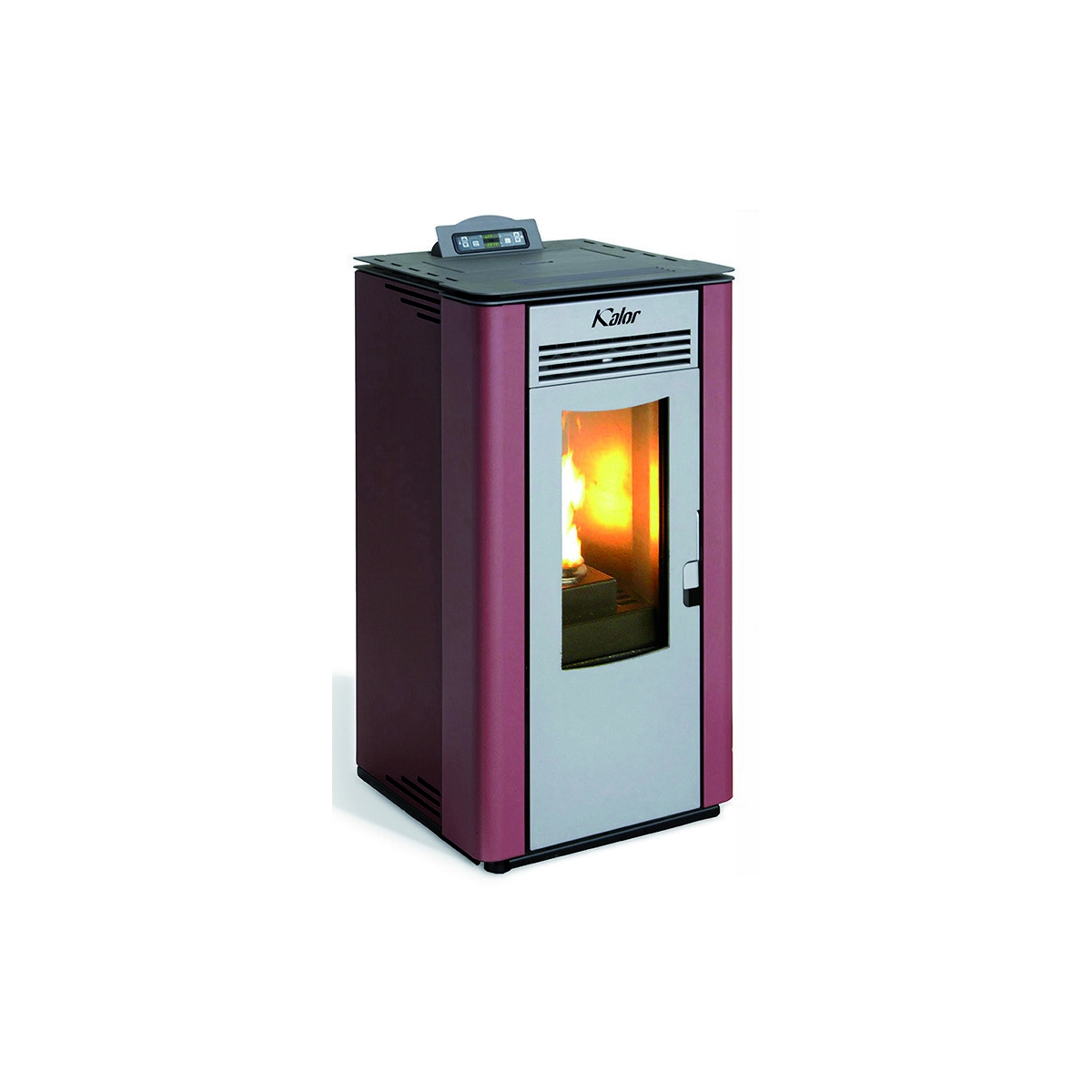

Lara model pellet stove with up to 10KW for hot air production. It is a heating system produced with advanced technology to achieve maximum performance, minimum consumption and a high nivel of quality. Clean, renewable and economical heating medium.

Stove measurements: height 996 mm x width 476 mm x depth 470 mm With a power of 10.1 Kw and a performance of up to 22 hours with an average electricity consumption of 100 W.

For more information, please refer to the technical data below.

High efficiency pellet stove, in practical terms this means that: if 100% is the amount of heat extrapolated from combustion, 92.7% is the percentage of heat introduced into the environment and only 7.3% is the percentage of heat from the exhaust gases. To obtain these results, a careful design has been necessary to extend the exchange surface to the interior of the stove body to extrapolate the maximum amount of heat from the combustion gases before they are conducted out by the exhaust fan. The extension of the exchange surface is carried out with an obligatory path for the gases that give up heat progressively by convention.

Advantages of Lara 10 kW Ductable Pellet Stove:

It is a stove that solves all furniture requirements thanks to its classic line. Its electronic control unit modulates the oxygen input for combustion, the frequency of pellet loading and the speed for the discharge of fumes, depending on the temperature from the

• Ductable with dual rear outlet

• Digital control with remote control

• Overall thermal power of 10.1 kw

• Up to 92% performance.

• Consumption from 0.6 to 2kg/h

• 80mm output

• 13 kg pellet tank

• Battery life of up to 22 hours

• Weight of 91 kg

• Dimensions 996x470x476 mm

• Heating volume from 90 to 250 m3

• Available colors: White, anthracite and burgundy

Ducted stoves allow heat to be brought to other areas of the home, through turbines that push hot air to the room that needs it.

Technical assistance service of Lara 10 kW Channelable Pellet Stove:

All pellet stoves have a 2-year warranty on parts, provided that the stove has been commissioned by the official technical service. We put at your disposal the official technical service of the brand, REVO, which has a start-up and installation service for pellet stoves.

What technical services can you hire for the installation of the stove?

• Installation of the stove itself, with the placement of the pipes, passing through partitions and walls if necessary.

• Installation of smoke outlet.

• Installation of pipes to other rooms.

• Commissioning (first power-up)

• Etc, etc

Simply make a call to Revo's 24-hour PBX. On the switchboard you will have to specify what type of assistance you need (start-up, installation, maintenance...), a postal code and a telephone number where they can contact. The switchboard will forward your request to the nearest branch in your area, from which they will contact you to respond to your request.

Technical service customer service telephone number: 865 508 000

You can check the REVO tariff in the attached file "Technical Service" and find more information at:

Installation of stoves and heating
