Corner wood insert with turbine IT-122 (100cm) + Direct gift
1.695,94 € VAT incl. 21%
IT-122 corner wood insert with turbine, has the different characteristics:
- Equipment Made of Steel up to 4 mm.
- Cast Iron Door & Grill
- Pull-out ashtray drawer
- Dual Camera
- Four Axial Fans of 160m3/h and 20W x 4 (220v)
- 2-Speed Switch
- Safety Thermostat in Position 0
- Double Combustion System
- Choice of vermiculite or cast interior.
- Left or right option.
In addition, the IT-122 wood insert with turbine comes with a gift of your choice from Wonderbox
768,00 €
-20%
1.497,60 €
-20%
628,10 €
-20%
720,00 €
-20%
1.121,60 €
-20%
1.163,20 €
-20%
Table of Contents
The IT-122 Corner Wood Insert with Turbine is the ultimate choice for those looking for the perfect combination of performance and style. Precision crafted from steel up to 4mm thick, this equipment incorporates a number of exceptional features that make it stand out.
Its cast iron door and grill not only add a touch of elegance, but also ensure exceptional durability .
It has a removable ashtray drawer for easy cleaning and a double chamber system that improves energy efficiency.
It also incorporates a double combustion system for cleaner and more efficient burning. Customize your experience with interior options in vermiculite or cast iron, as well as the ability to choose a screen-printed glass. In addition, you can opt for left or right orientation, ensuring that this insert fits perfectly into your space and style.
What is combustion in a fireplace?
It is the chemical reaction that occurs between oxygen and fuel (firewood), with an initial contribution of fire at the beginning of the process.
What is double combustion in a fireplace?
The combustion of a basic chimney emits waste that is expelled by its draught, which ends up in the outside air and produces greater environmental pollution, as well as a great loss of heat and efficiency.
If the waste formed by the first combustion is reused as fuel, performance is improved. This process is known as double combustion, and it is carried out by injecting air into this waste. This second air intake improves the final performance of the chimney, reduces the elements ejected, improves fine performance, and keeps the interior cleaner.
What is the performance of a fireplace?
This value indicates the percentage of heat that is actually used to heat the room where it is located, produced by combustion. That is, of the 100% of the heat produced inside the fireplace, the value that really serves us to heat our home. For example, an efficiency of 71% indicates that 29% of the heat is lost in the chimney's own combustion chamber and 71% is emitted to the outside.
On the other hand, a different concept is energy efficiency, which is related to the performance that can be extracted from a fuel, depending on whether we use combustion, double combustion, primary air, secondary air... The greater the mechanisms for extracting all its accumulated energy from a fuel, the more efficient our fireplace will be.
What is a chimney deflector?
It is a piece that is placed in the upper part of the combustion chamber. It serves as a screen between the fire and the smoke outlet where the evacuation pipe is fitted.
It has a double function, on the one hand it prevents that when there is a lot of flame it can directly affect the tube, which would cause the smoke to accumulate in the combustion chamber of the stove as the flame is covering the natural outlet of the stove, while reducing the consumption of wood, since the deflector regulates the burning of wood, and it also serves to improve smoke evacuation, since the flame when it hits the baffle, heats it, and this heats the air at the top of the baffle making it weigh less, and causes it to exit through the tube upwards.
 |
 |
 |
 |
 |
 |
|
| Product | Corner wood insert with turbine IT-122 (100cm) + Direct gift | IT-122 DK Corner Wood Insert + Direct Gift | IT-122 IK Corner Wood Insert + Direct Gift | Panoramic wood-burning insert IZ-100 FKT + direct gift | IC-100 FKC panoramic wood insert + direct gift | Panoramic wood insert IZ-100 FKC + direct gift |
| Ratings |
|
|
|
|
|
|
| Manufacturer | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción |
| Price |
1.752,00 € 1.401,60 € |
1.752,00 € 1.401,60 € |
1.752,00 € 1.401,60 € |
1.720,00 € 1.376,00 € |
1.800,00 € 1.440,00 € |
1.800,00 € 1.440,00 € |
| Price difference | -25,60 € | +38,40 € | +38,40 € | |||
| Guarantee |
3 years |
3 years |
3 years |
3 years |
3 years |
3 years |
| Energy certification |
TO |
TO |
TO |
TO |
||
| Heat output (kW) |
13,5-19 |
13,5-19 |
13,5-19 |
14,5 -17,9 |
14,5 -17,9 |
14,5 -17,9 |
| Yield (%) |
78 |
81 |
81 |
81 |
81 |
81 |
| CO emissions (%) |
0.1 |
0.10 |
0.10 |
0.10 |
0.10 |
0.10 |
| Smoke outlet (mm) |
200 |
200 |
200 |
200 |
200 |
200 |
| Smoke outlet area |
Superior Male |
Superior Male |
Superior Male |
Superior Male |
||
| Weight (kg) |
134 |
134 |
134 |
200 |
200 |
200 |
| Max size. Trunk (cm) |
95 |
95 |
95 |
88 |
88 |
88 |
| Heatable volume (m3) |
360 |
360 |
360 |
390 |
390 |
390 |
| Type of Combustion |
Double |
Double |
Double |
Double |
Double |
Double |
| Pull-out ashtray drawer |
Yes |
Yes |
Yes |
Yes |
||
| Interior in |
Optional vermiculite or cast iron |
Vermiculite |
Vermiculite |
Vermiculite |
||
| Woodshed |
No |
Yes |
Yes |
Yes |
||
| Dual chamber |
Yes |
Yes |
Yes |
Yes |
||
| Plate warmer |
No |
No |
No |
No |
||
| Oven |
No |
No |
No |
No |
||
| Fans (turbines) |
4 x 160 m3/h and 20 W x4 (220 V) |
160m3/h and 20W x 4 (220v) |
160m3/h and 20W x 4 (220v) |
No |
No |
No |
| Screen-printed glass |
Yes |
Yes |
Yes |
Yes |
||

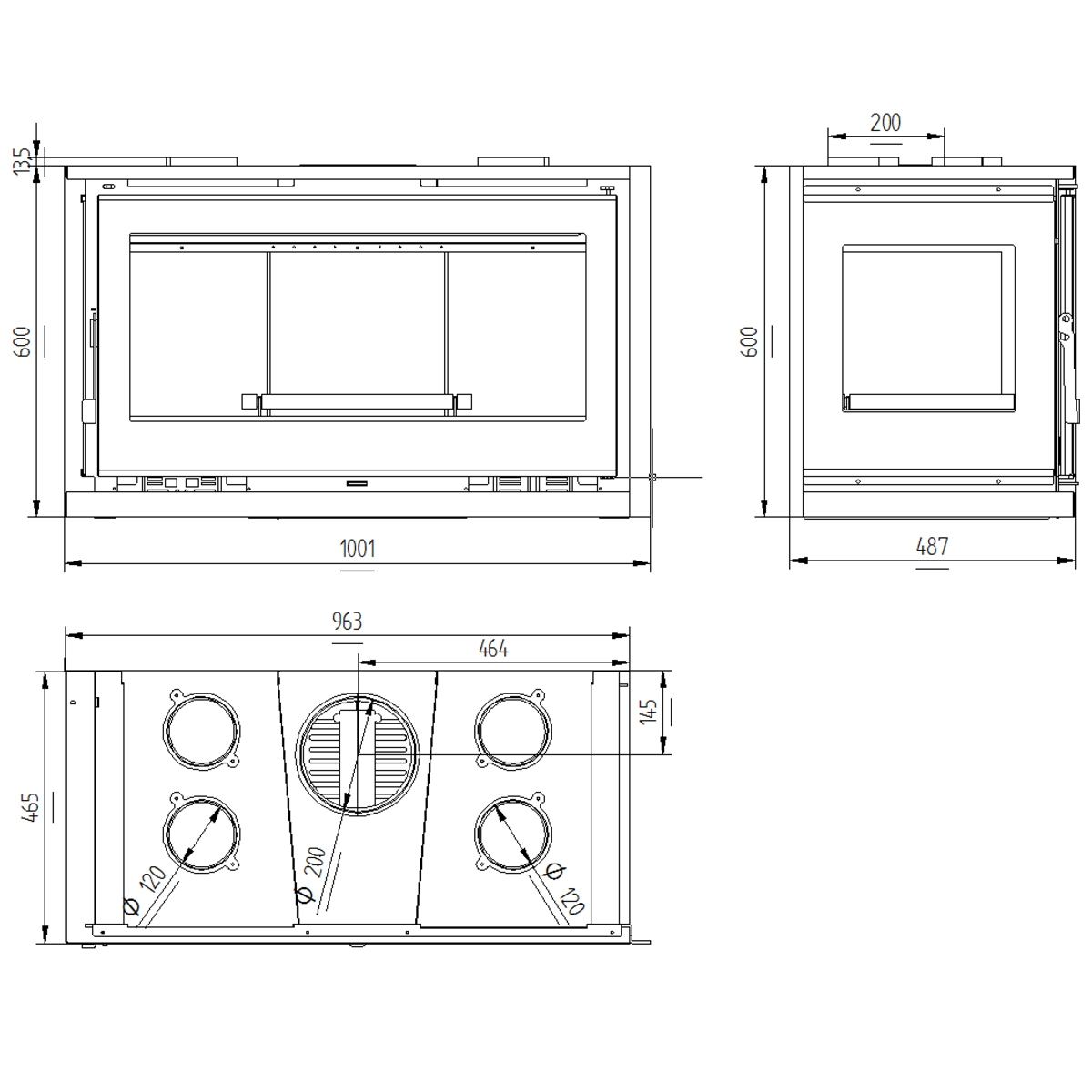

| Built-in dimensions mm (width x depth x height) |
963x487x600 |
|||||
| Front dimensions (height x width) cm |
600x1001 |
|||||
| Outlets to heat other rooms |
4 of 120mm |
|||||
| Primary air regulation |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Secondary air regulation |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Clean-glass system |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Glass-ceramic resistance (ºC) |
750 |
750 |
750 |
750 |
750 |
|
| Heat resistance paint (ºC) |
800 |
800 |
800 |
800 |
800 |
800 |
| Difficulty |
Advanced |
Advanced |
||||
| Fuel |
Firewood |
Firewood |
||||
| Draft Valve |
Yes |
Yes |
||||
| Double combustion system |
Yes |
Yes |
||||
| Dimensions cm (W x L x H) |
941 x 450 x (1290:1442) |
941 x 450 x (1290:1442) |
941 x 450 x (1290:1442) |
|||
| View product | View product | View product | View product | View product | View product |
