Front wood stove with oven M-107 + Direct gift
1.422,96 € VAT incl. 21%

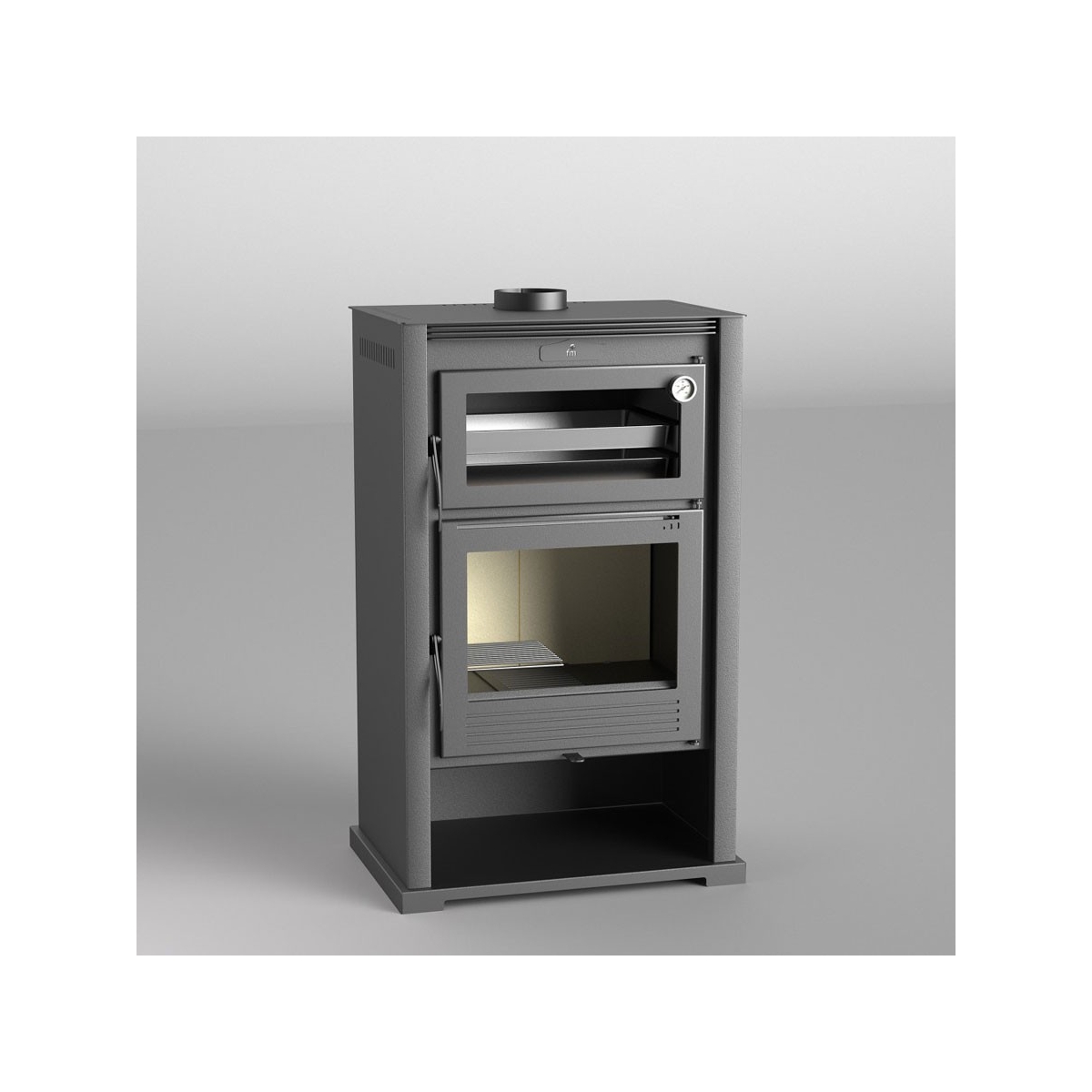

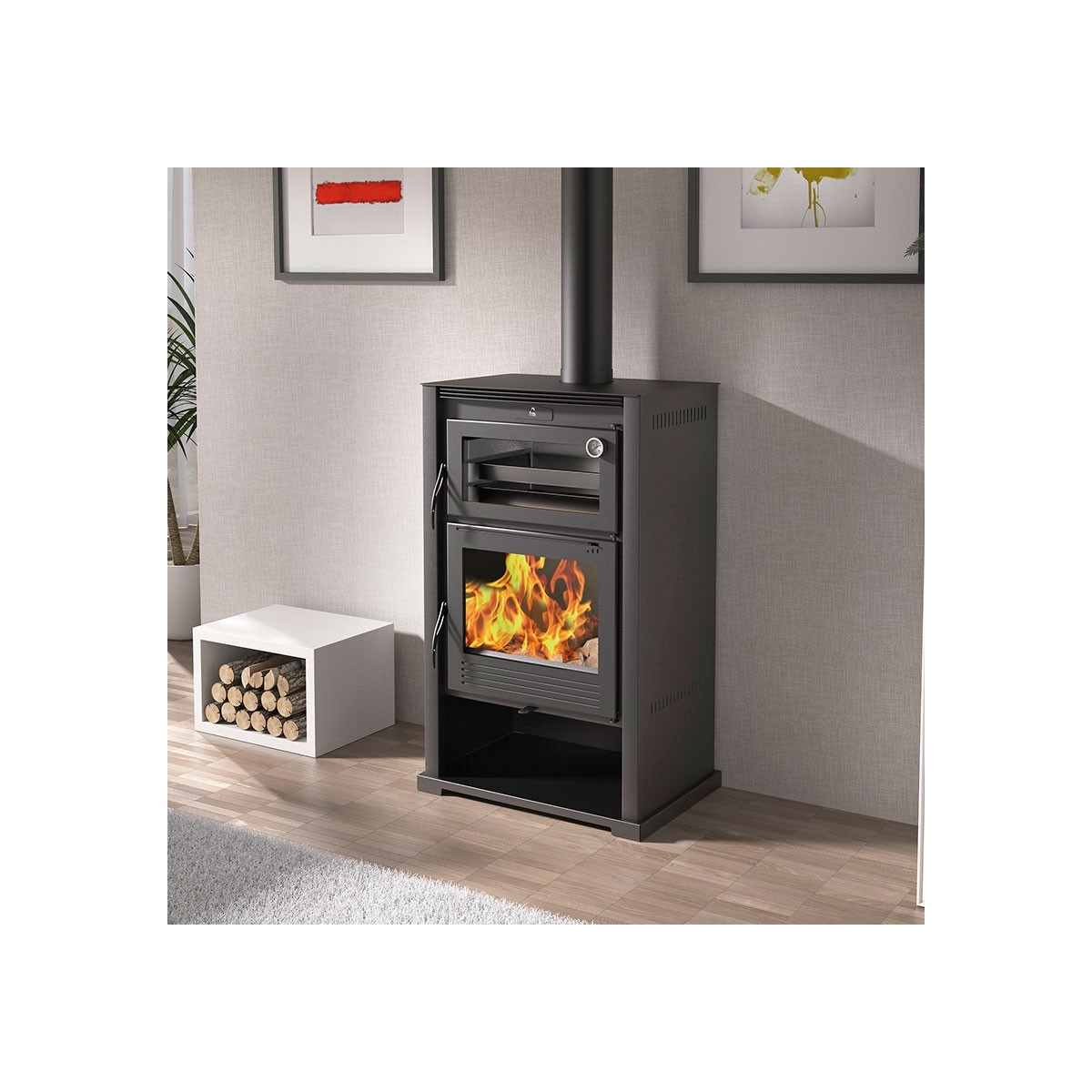

Front wood stove M-107 with enveloping oven in stainless steel with the following characteristics:
- Equipment Made of Steel up to 4 mm.

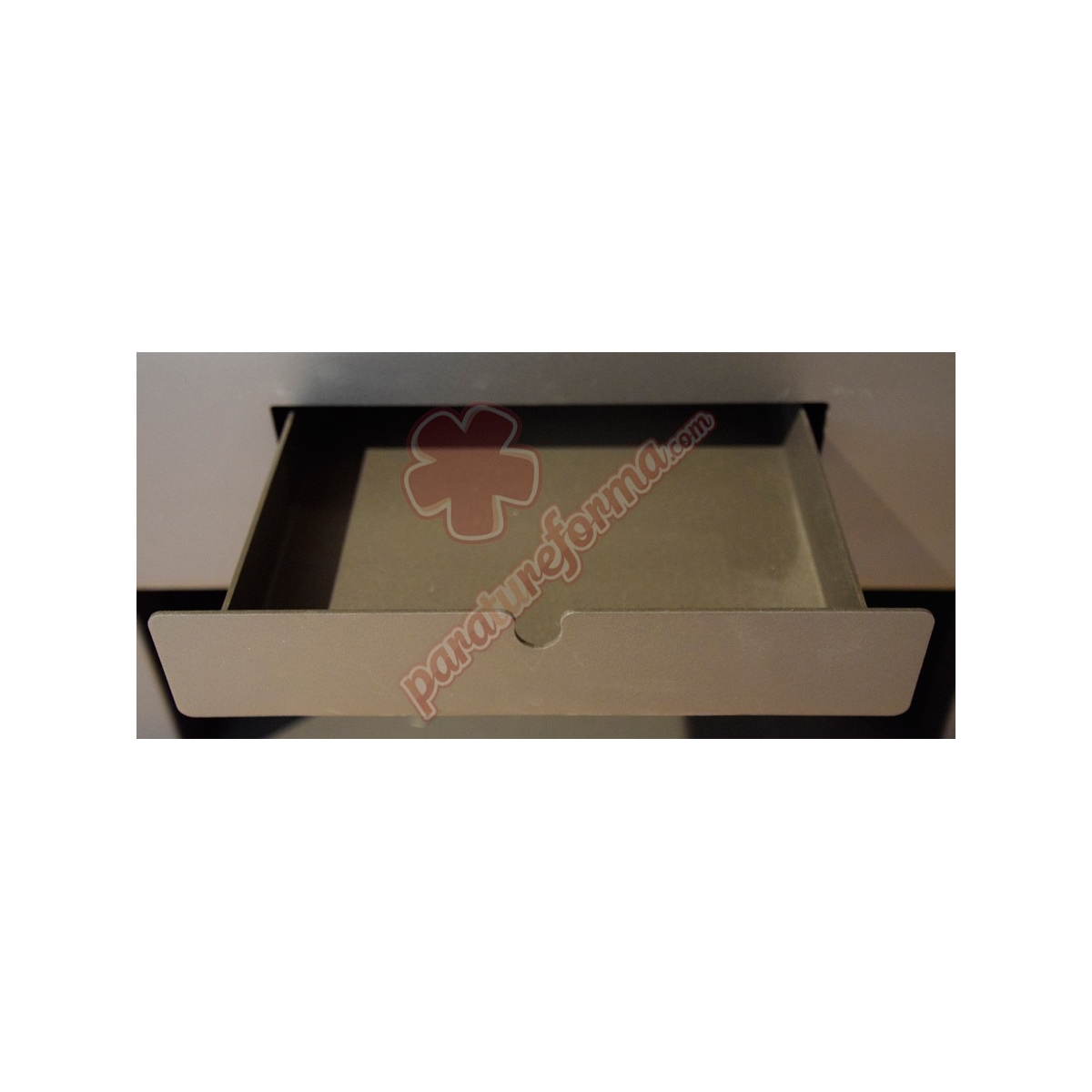

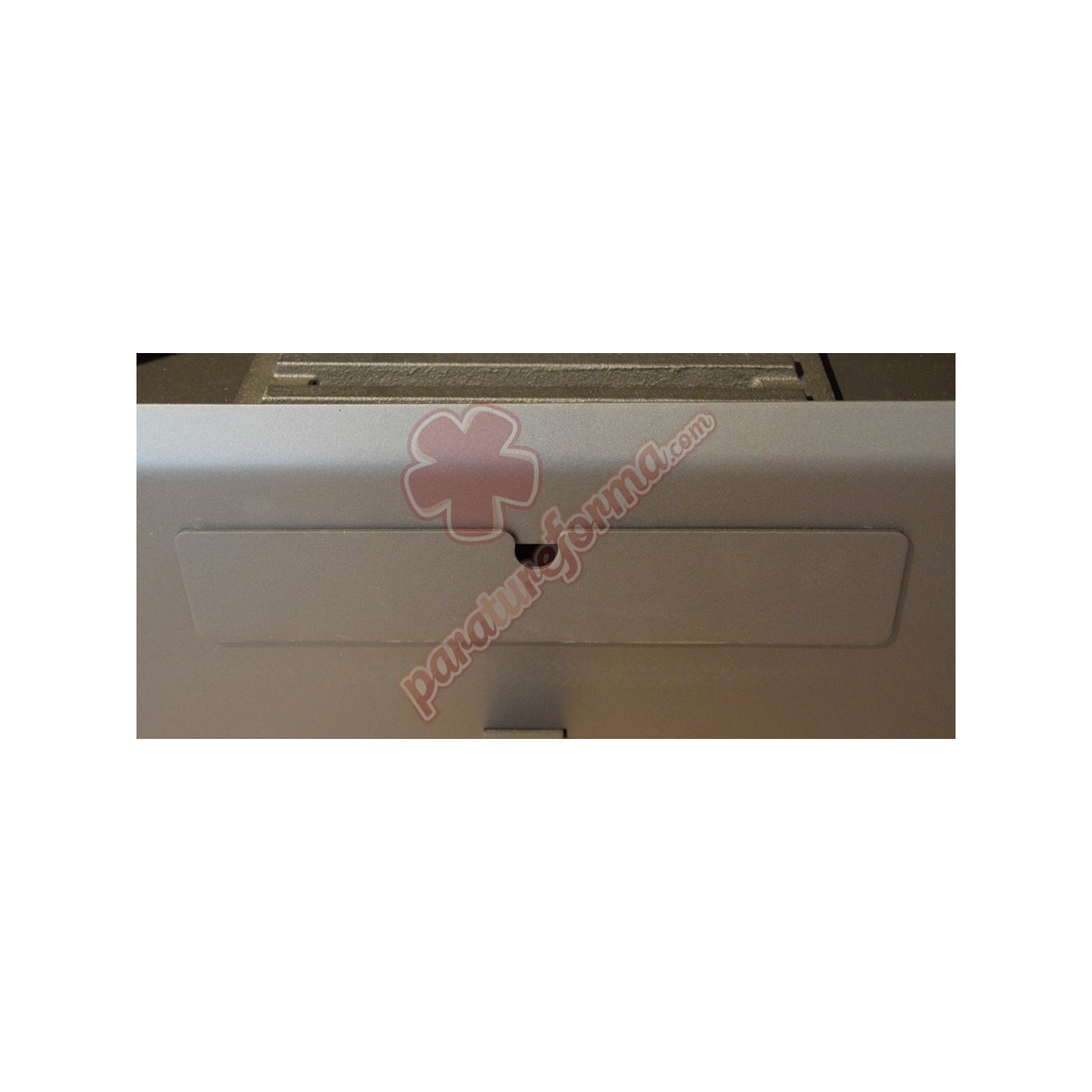

- Pull-out ashtray drawer.
- Interior in Vermiculite.
- Double Combustion System.

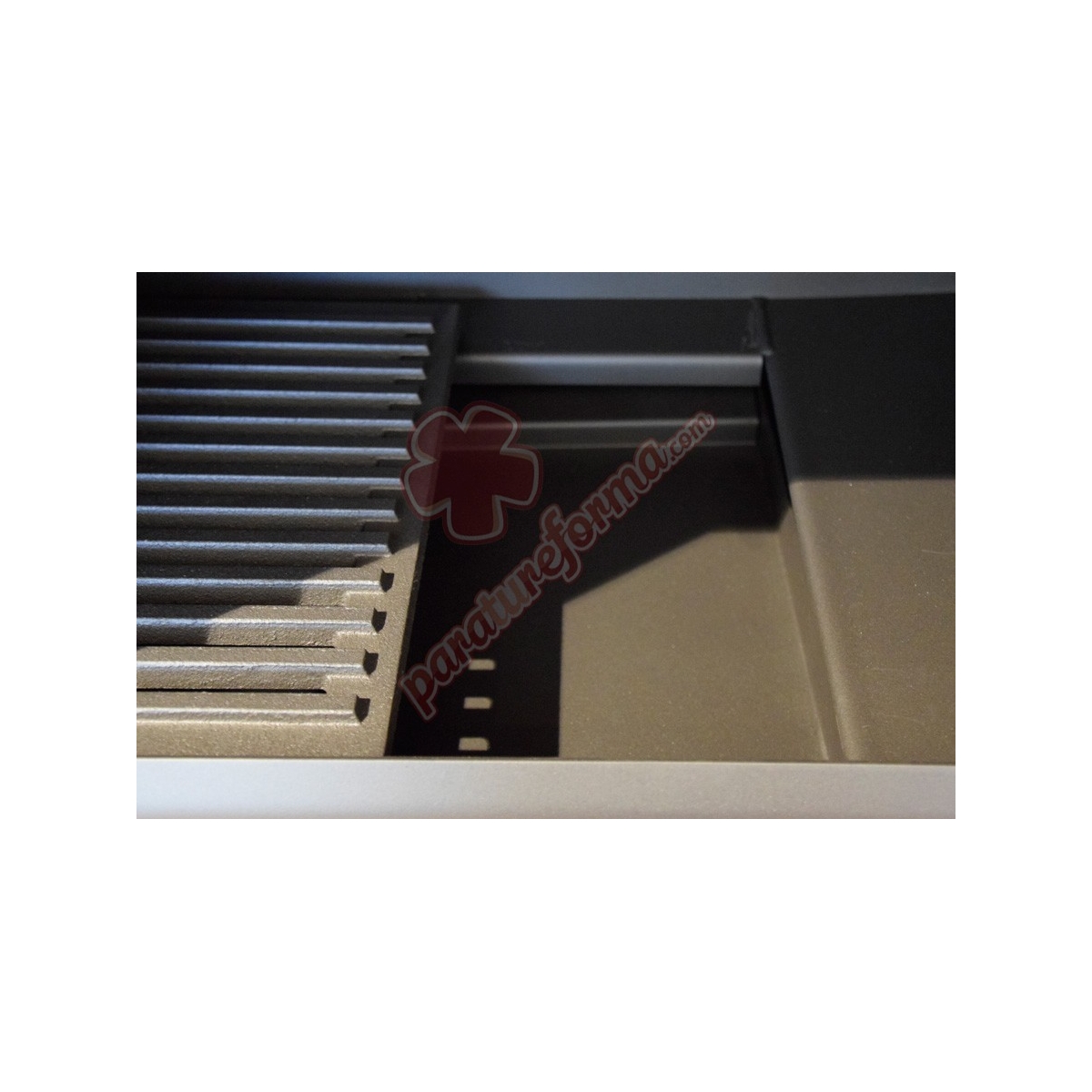

- Equipment with Doors and Cast Iron Grill.

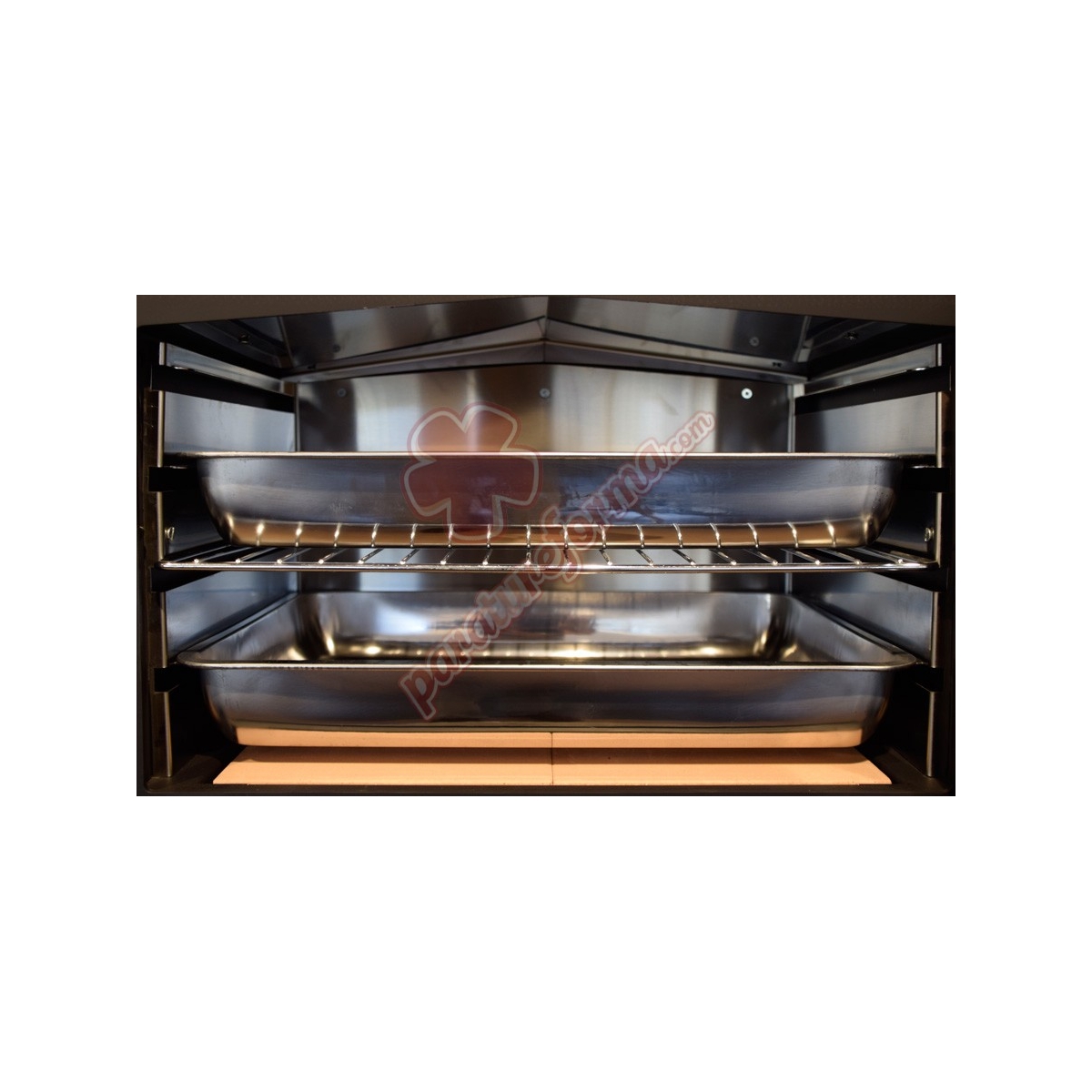

- Stainless Steel Oven Tray. 500 x 300 x 60 mm.

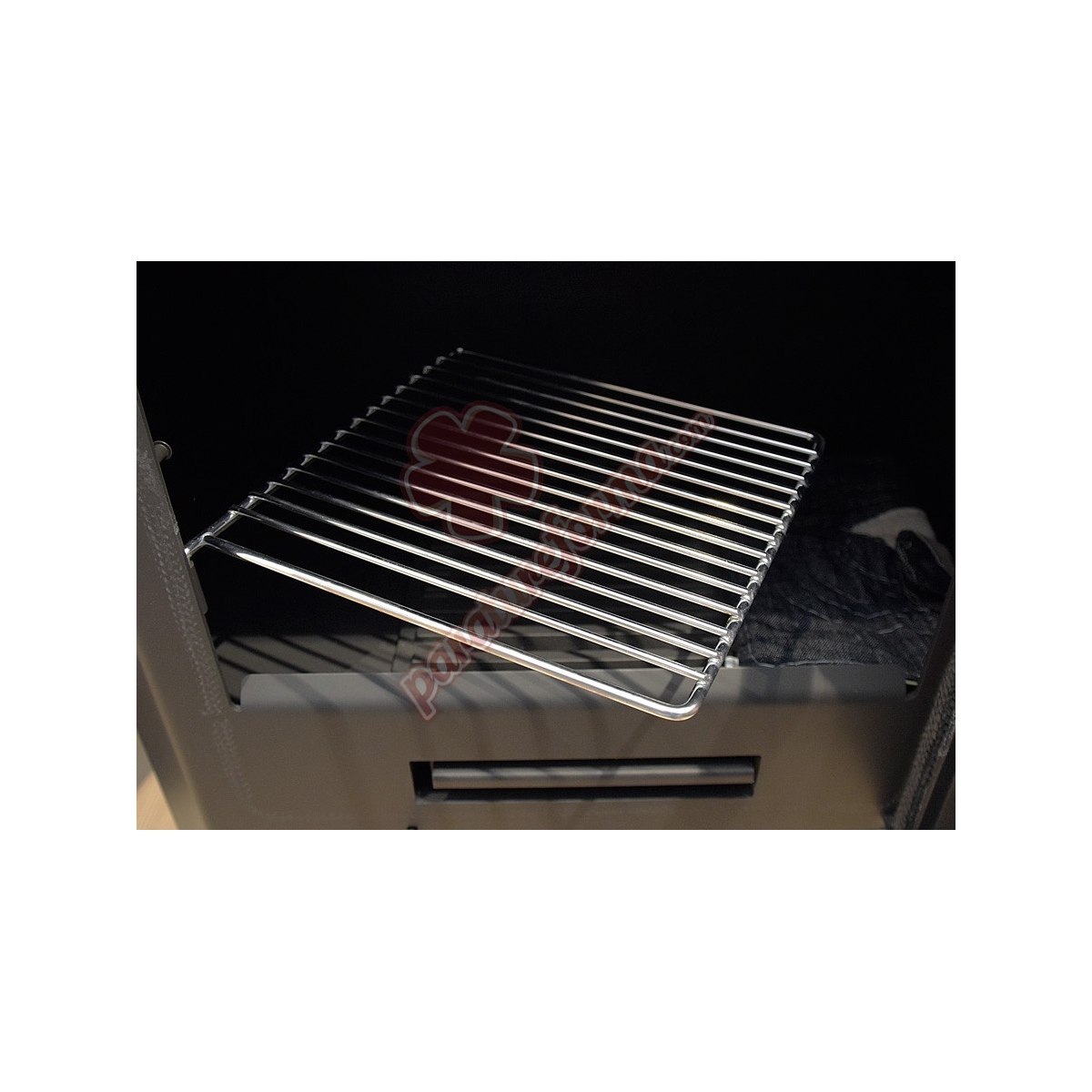

- Oven Grill Stainless Steel. 500 x 350 mm.
- Dual Camera.
- M-107 Without turbine.
In addition, the M-107 corner wood stove comes with a gift of your choice from Wonderbox.
592,00 €
-20%
710,40 €
-20%
571,20 €
-20%
1.051,20 €
-20%
528,00 €
-20%
576,00 €
-20%
Table of Contents
The front wood stove with M-107 oven, a true jewel of heating with a touch of elegance and functionality. Meticulously designed to meet your heating and cooking needs, this stove combines the best of both worlds.
Made with steel up to 4 mm thick, this stove is synonymous with durability and resistance. Its pull-out ashtray drawer simplifies cleaning, while its vermiculite-lined interior ensures efficient combustion. Thanks to the double combustion system, you will enjoy constant heat and less wood consumption.
What does combustion in awood stove consist of?
It is the chemical reaction that occurs between oxygen and fuel (firewood), with an initial contribution of fire at the beginning of the process.
What is double combustion in a wood stove?
The combustion of a basic wood stove emits waste that is expelled by its draught, which ends up in the outside air and produces greater environmental pollution, in addition to a great loss of heat and efficiency.
If the waste formed by the first combustion is reused as fuel, performance is improved. This process is known as double combustion, and it is carried out by injecting air into this waste. This second air intake improves the final performance of thewood fuel , reduces the elements ejected, improves fine performance, and keeps the interior cleaner.
What is the yield of a wood fire-fired e-stufa?
This value indicates the percentage of heat that is actually used to heat the room where it is located, produced by combustion. That is, of the 100% of the heat produced inside the wood stove, the value that really serves us to heat our home. For example, an efficiency of 71% indicates that 29% of the heat is lost in the combustion chamber of the wood stove itself and 71% is emitted to the outside.
On the other hand, a different concept is energy efficiency, which is related to the performance that can be extracted from a fuel, depending on whether we use combustion, double combustion, primary air, secondary air... The greater the mechanism for extracting all its accumulated energy from a fuel, the more efficient our wood stove will be.
What is the deflector of a wood stufa?
It is a piece that is placed in the upper part of the combustion chamber. It serves as a screen between the fire and the smoke outlet where the evacuation pipe is fitted.
It has a double function, on the one hand it prevents that when there is a lot of flame it can directly affect the tube, which would cause the smoke to accumulate in the combustion chamber of the stove as the flame is covering the natural outlet of the stove, while reducing the consumption of wood, since the deflector regulates the burning of wood, and it also serves to improve smoke evacuation, since the flame when it hits the baffle, heats it, and this heats the air at the top of the baffle making it weigh less, and causes it to exit through the tube upwards.
 |
 |
 |
 |
 |
 |
|
| Product | Front wood stove with oven M-107 + Direct gift | Corner wood stove with oven M-106 R + Direct gift | Front wood stove with log holder M-180 LK + direct gift | Front Wood Stove with Woodshed and Turbines M-172 LK + direct gift | Front wood stove M-173 + Direct gift | M-180 K hanging wood stove + direct gift |
| Ratings |
|
|
|
|
|
|
| Manufacturer | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción | FM Calefacción |
| Price |
1.470,00 € 1.176,00 € |
1.466,00 € 1.172,80 € |
1.480,00 € 1.184,00 € |
1.500,00 € 1.200,00 € |
1.440,00 € 1.152,00 € |
1.440,00 € 1.152,00 € |
| Price difference | -3,20 € | +8,00 € | +24,00 € | -24,00 € | -24,00 € | |
| Guarantee |
3 years |
3 years |
3 years |
|||
| Energy certification |
A+ |
A+ |
TO |
TO |
TO |
TO |
| Heat output (kW) |
9,5-12 |
9.5-12 |
13-18 |
12.5-17 |
12,5-17 |
13-18 |
| Yield (%) |
81 |
81 |
75 |
81 |
75 |
81 |
| CO emissions (%) |
0.08 |
0.08 |
0.07 |
0.12 |
0.12 |
0.11 |
| Smoke outlet (mm) |
200 |
200 |
200 |
150 |
150 |
150 |
| Smoke outlet area |
Superior Male |
Superior Male |
Male |
Male |
Superior Male |
Male |
| Weight (kg) |
146 |
160 |
147 |
120 |
120 |
120 |
| Max size. Trunk (cm) |
65 |
65 |
75 |
62 |
62 |
75 |
| Heatable volume (m3) |
260 |
260 |
305 |
335 |
335 |
305 |
| Type of Combustion |
Double |
Double |
Double |
Double |
Double |
Double |
| Pull-out ashtray drawer |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Woodshed |
Yes |
Yes |
Yes |
Yes |
No |
Yes |
| Dual chamber |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Plate warmer |
No |
No |
Yes |
Yes |
No |
Yes |
| Oven |
Yes |
Yes |
No |
No |
No |
No |
| Fans (turbines) |
No |
No |
No |
2 x 160 m3/h and 20 W x2 (220 V) |
||

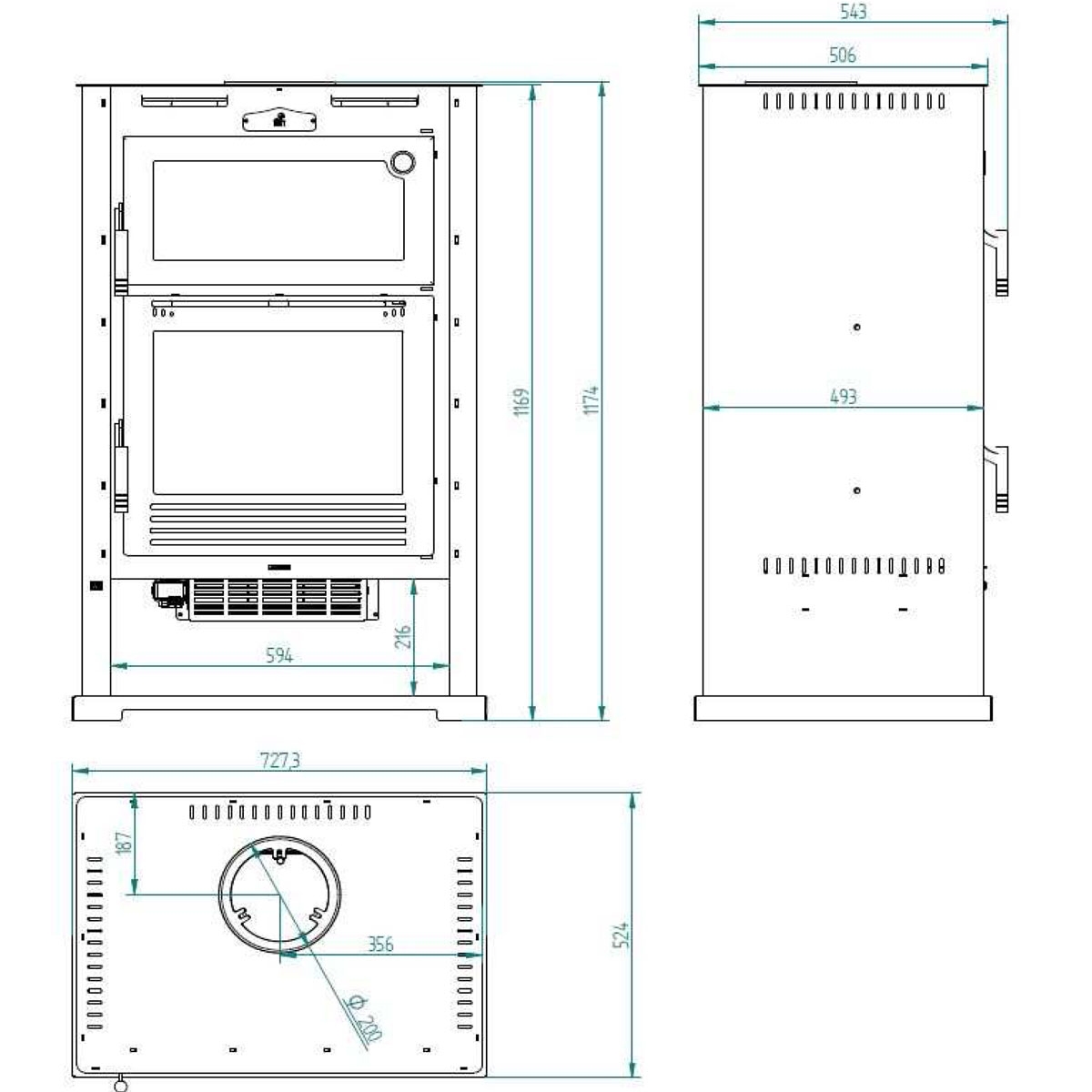

| Dimensions cm (W x L x H) |
728x543x1180 |
1100x755x1161 |
839x493x1060 |
710x454x949.5 |
678x496x55 |
839 x 493 x 620 |
| Primary air regulation |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Secondary air regulation |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Clean-glass system |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| Glass-ceramic resistance (ºC) |
750 |
750 |
750 |
750 |
750 |
750 |
| Heat resistance paint (ºC) |
800 |
800 |
800 |
800 |
800 |
800 |
| Interior in |
Vermiculite |
|||||
| View product | View product | View product | View product | View product | View product |
